Toyota Etios

2012-09 → present · chassis NGK1# · catalogue 137310 · General

Supported model Data version 2018-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

14 part groups · 4 illustrations

Illustrations

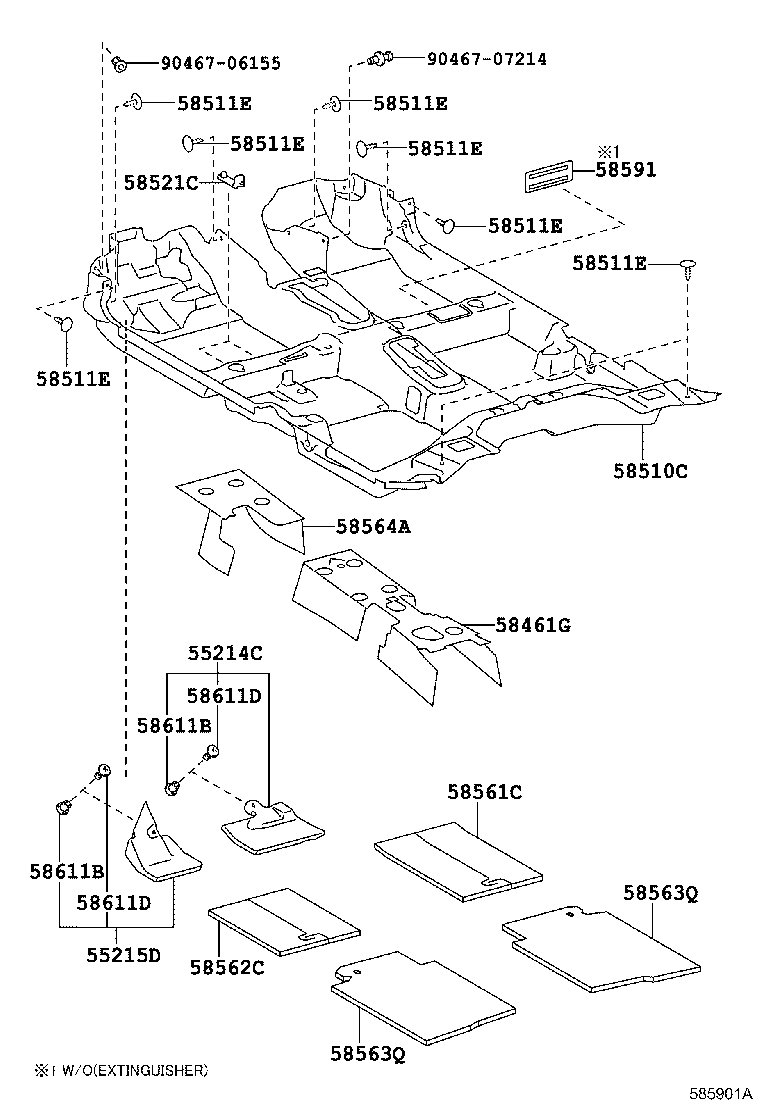

Figure 584645A 584645A 2012-09 → — Figure 585901A 585901A 2016-04 → — Figure 585902A 585902A 2016-04 → — Figure 584718 584718 2012-09 → —

Part groups

PNCDescription
55214C Pad, Dash Panel Insulator, NO.2
55215D Pad, Dash Panel Insulator, NO.3
58461G Silencer, Front Floor, NO.5
58510C Carpet Assy, Front Floor, Front
58510H Mat Assy, Floor
58511E Clip(FOR FRONT FLOOR MAT)
58521C Hook, Floor Carpet NO.2
58561C Silencer, Front Floor, NO.1
58562C Silencer, Front Floor, NO.2
58563Q Silencer, Front Floor, NO.3
58564A Silencer, Front Floor, NO.4
58591 Cover, Floor Carpet
58611B Plate, Mat Set, NO.1
58611D Plate, Mat Set, NO.1 B
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
