Toyota Etios

2012-09 → present · chassis NGK1# · catalogue 137310 · General

Supported model Data version 2018-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Window Glass

27 part groups · 3 illustrations

Illustrations

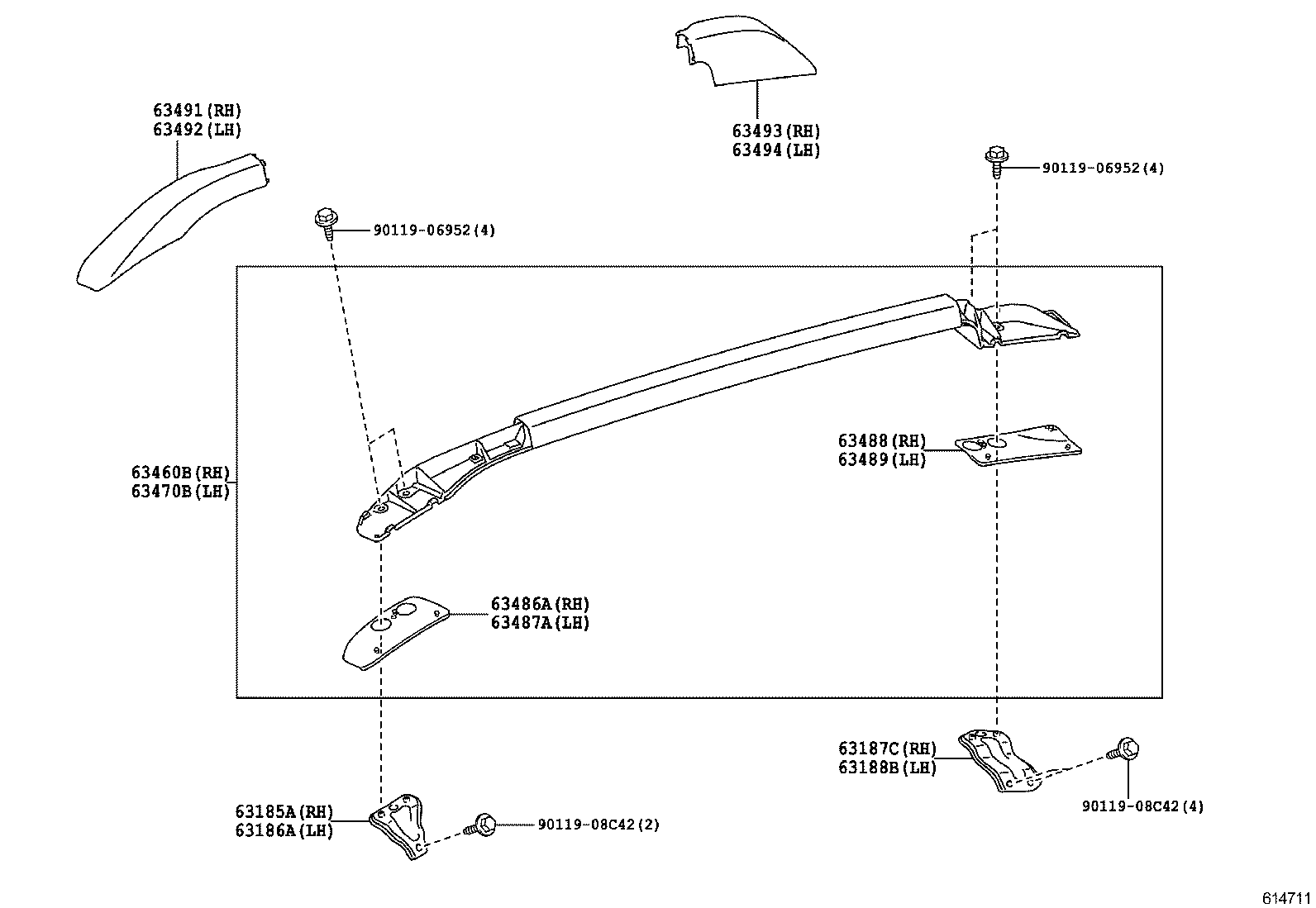

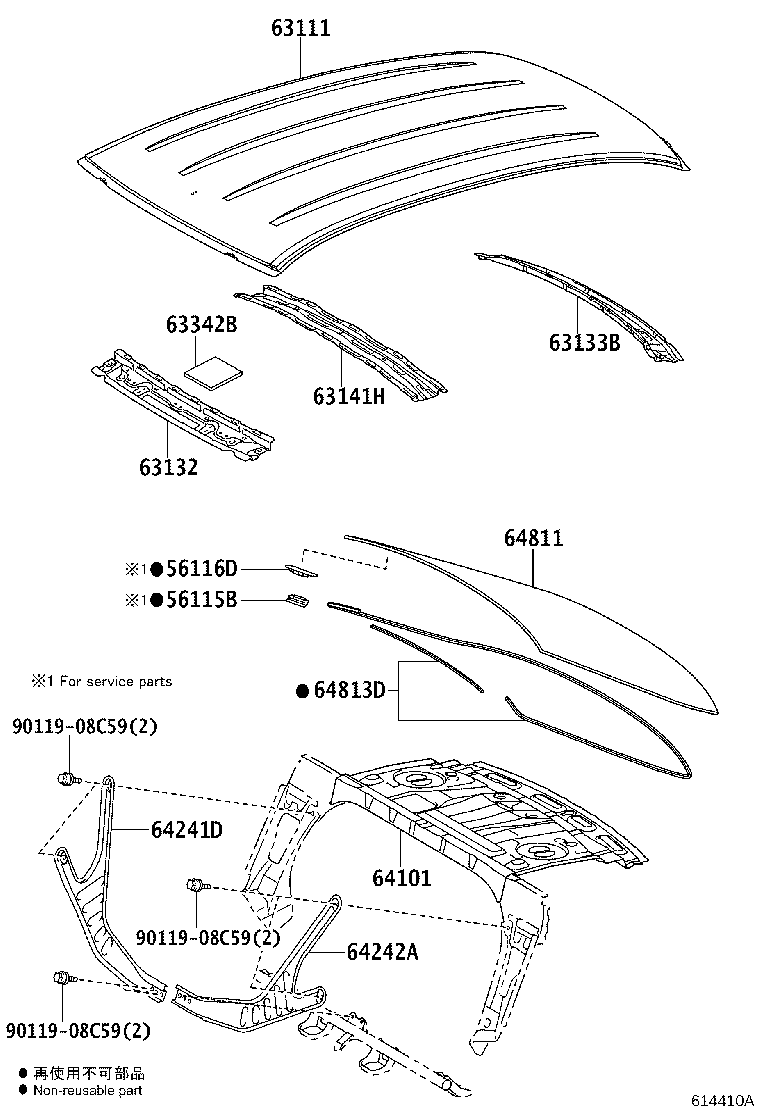

Figure 614409 614409 2012-09 → — Figure 614410A 614410A 2012-09 → — Figure 614711 614711 2013-11 → —

Part groups

PNCDescription
56115B Stopper, Back Window Glass, NO.1
56116D Stopper, Back Window Glass, NO.2
63105A Frame Sub-assy, Back Door Opening
63111 Panel, Roof
63132 Panel, Windshield Header, Inner
63133B Frame, Back Window
63141H Reinforcement, Roof Panel, Center
63185A Bracket, Roof Rack, Front RH
63186A Bracket, Roof Rack, Front LH
63187C Bracket, Roof Rack, NO.1 Rear RH
63188B Bracket, Roof Rack, NO.1 Rear LH
63342B Pad, Roof Silencer, NO.2
63460B Rack Assy, Roof, RH
63470B Rack Assy, Roof, LH
63486A Cushion, Roof Rack Leg, Front RH
63487A Cushion, Roof Rack Leg, Front LH
63488 Cushion, Roof Rack Leg, Rear RH
63489 Cushion, Roof Rack Leg, Rear LH
63491 Cover, Roof Rack Leg, Front RH
63492 Cover, Roof Rack Leg, Front LH
63493 Cover, Roof Rack Leg, Rear RH
63494 Cover, Roof Rack Leg, Rear LH
64101 Panel Sub-assy, Upper Back
64241D Panel, Room Partition
64242A Panel, Room Partition, LH
64811 Glass, Back Window
64813D Dam, Back Window Glass Adhesive
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
