Toyota Etios

2012-09 → present · chassis NGK1# · catalogue 137310 · General

Supported model Data version 2018-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Inside Trim Board & Door Opening Trim Moulding

20 part groups · 2 illustrations

Illustrations

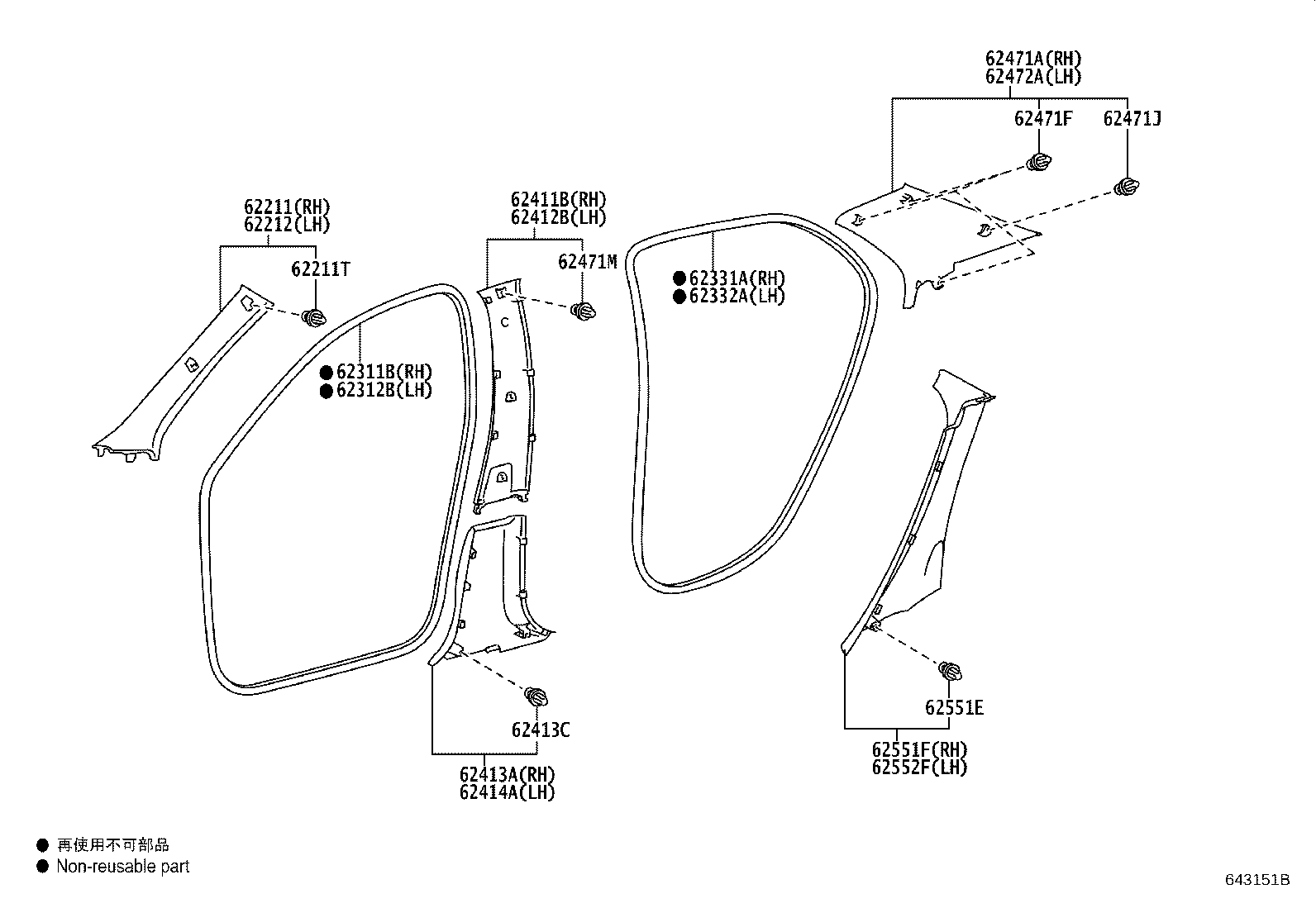

Figure 643149A 643149A 2012-09 → — Figure 643151B 643151B 2012-09 → —

Part groups

PNCDescription
62211 Garnish, Front Pillar, RH
62211T Clip(FOR FRONT PILLAR GARNISH)
62212 Garnish, Front Pillar, LH
62311B Weatherstrip, Front Door Opening Trim, RH
62312B Weatherstrip, Front Door Opening Trim, LH
62331A Weatherstrip, Rear Door Opening Trim, RH
62332A Weatherstrip, Rear Door Opening Trim, LH
62411B Garnish, Center Pillar, Upper RH
62412B Garnish, Center Pillar, Upper LH
62413A Garnish, Center Pillar, Lower RH
62413C Clip (FOR CENTER LOWER GARNISH)
62414A Garnish, Center Pillar, Lower LH
62471A Garnish, Roof Side, Inner RH
62471F Clip (FOR ROOF SIDE, INNER UPPER GARNISH)
62471J Clip (FOR ROOF SIDE GARNISH)
62471M Clip
62472A Garnish, Roof Side, Inner LH
62551E Clip(FOR REAR SEAT SIDE GARNISH)
62551F Garnish, Rear Seat Side, RH
62552F Garnish, Rear Seat Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
