Toyota Etios

2012-09 → present · chassis NGK1# · catalogue 137310 · General

Supported model Data version 2018-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

17 part groups · 2 illustrations

Illustrations

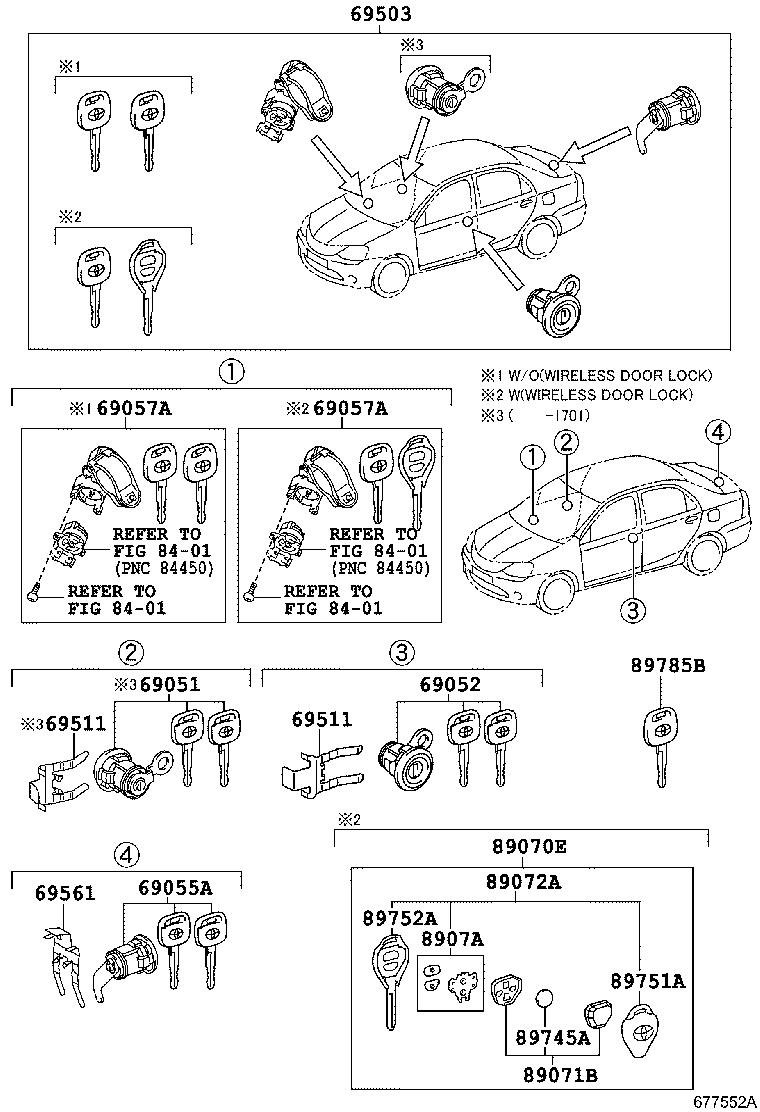

Figure 677550A 677550A 2012-09 → — Figure 677552A 677552A 2012-09 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69055A Cylinder & Key Set, Luggage Compartment Lock
69055B Cylinder & Key Set, Back Door Lock
69057A Cylinder & Key Set, Ignition Switch Lock
69503 Cylinder Set, Lock
69511 Retainer, Front Door Lock Cylinder
69561 Retainer, Luggage Compartment OR Back Door Lock Cylinder
69561B Retainer, Back Door Lock Cylinder
89070E Transmitter Assy, Door Control
89071B Module Set, Transmitter Sub-assy, Door Control
89072A Housing Set, Door Control Transmitter
8907A Switch Set, Transmitter
89745A Battery, Transmitter
89751A Cover, Transmitter Housing
89752A Case, Transmitter Housing
89785B Transmitter, Transponder Key Master
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
