Toyota Etios

2012-09 → present · chassis NGK1# · catalogue 137310 · General

Supported model Data version 2018-02

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

43 part groups · 4 illustrations

Illustrations

718026G 2012-09 → 2014-09

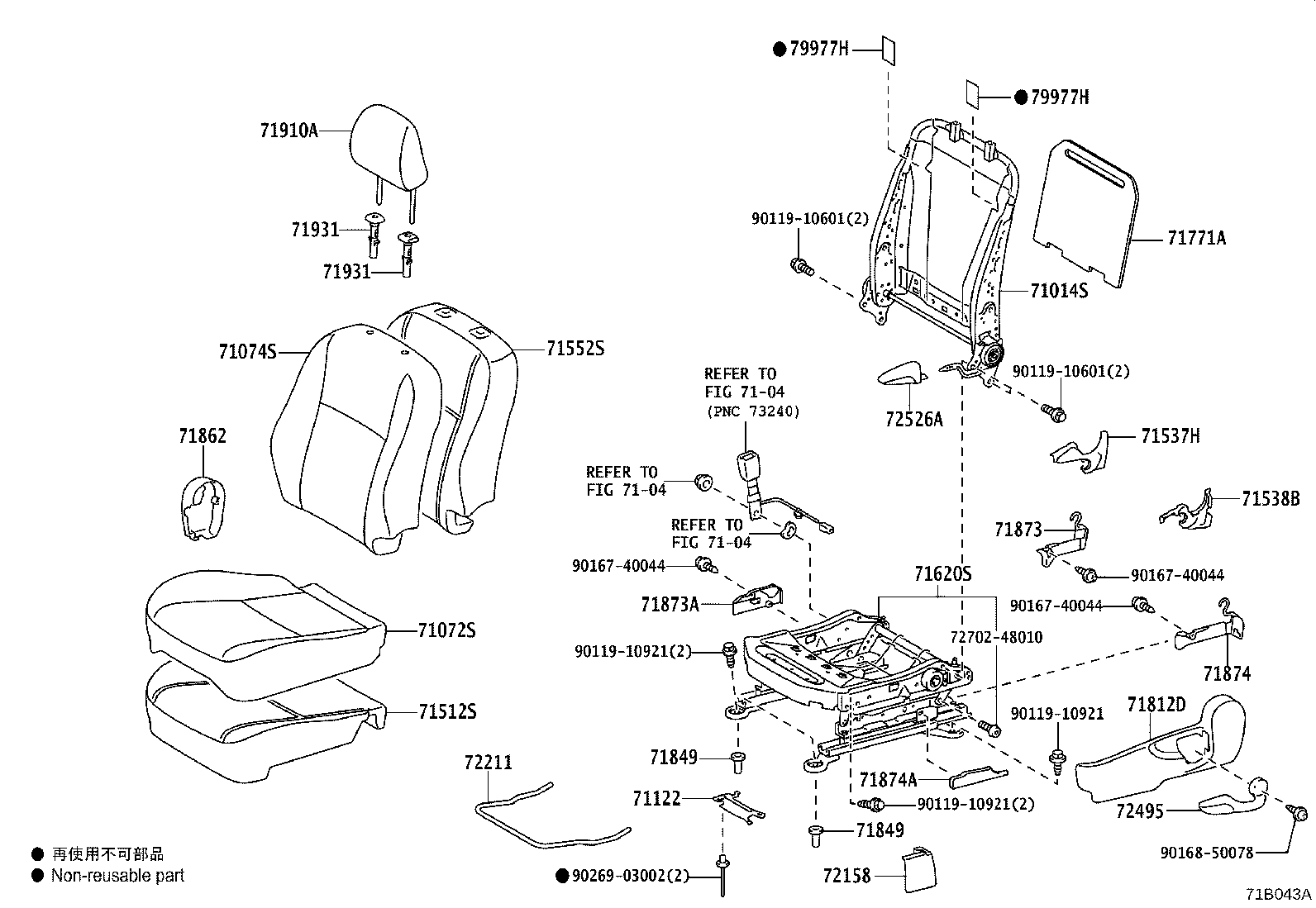

71B043A 2014-09 → —

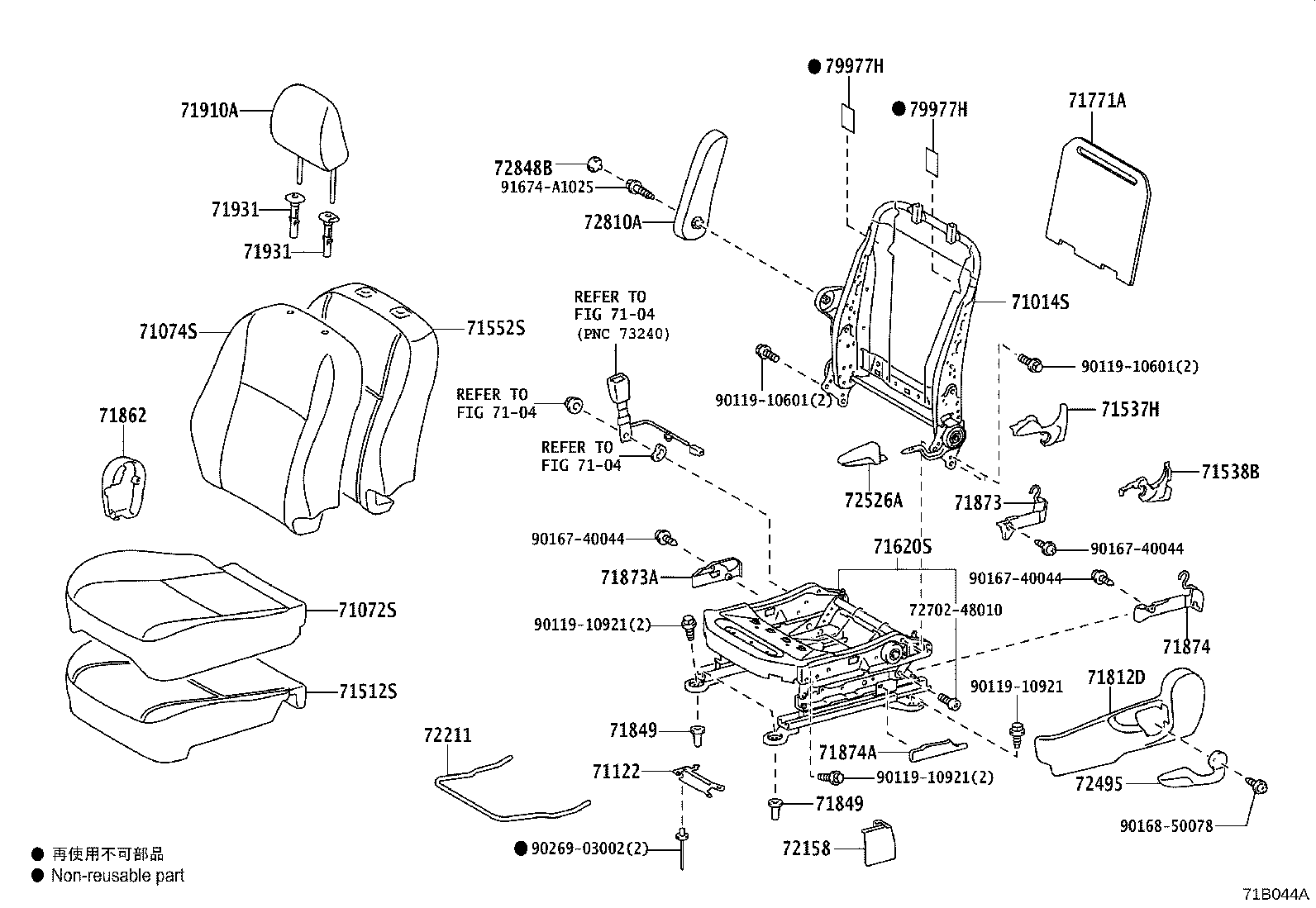

71B044A 2016-04 → —

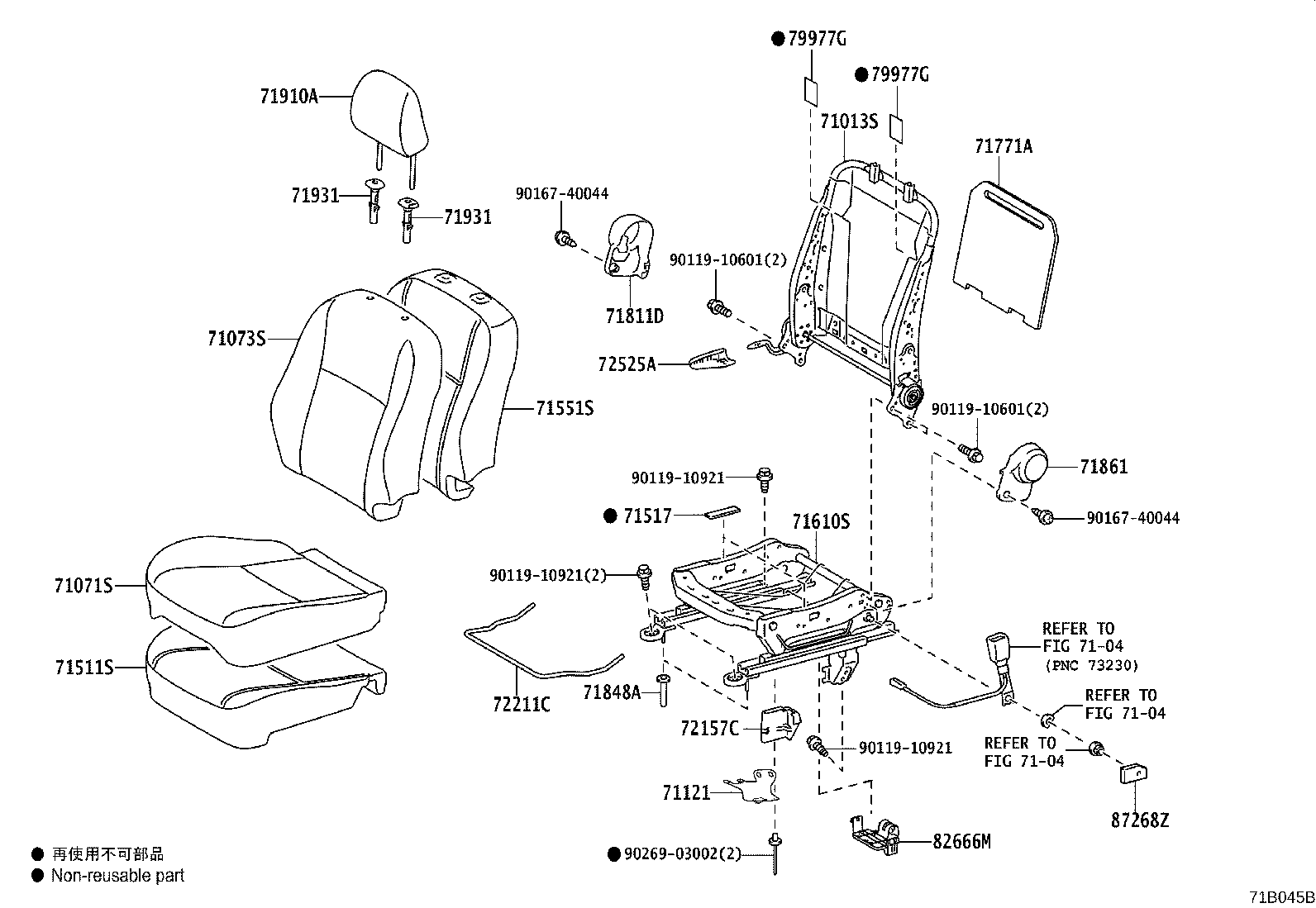

71B045B 2012-09 → —

Part groups

PNC	Description
71013S	Frame Sub-assy, Front Seatback, RH
71014S	Frame Sub-assy, Front Seatback, LH
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71121	Bracket, Front Seat Cushion, RH
71122	Bracket, Front Seat Cushion, LH
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71517	Cloth, Front Seat Cushion Under
71537H	Protector, Front Seat Cushion Edge, RH(FOR LH SEAT)
71538B	Protector, Front Seat Cushion Edge, LH(FOR LH SEAT)
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71610S	Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71620S	Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71771A	Board, Front Seatback
71811D	Shield, Front Seat Cushion, RH
71812D	Shield, Front Seat Cushion, LH
71848A	Cap, Seat Adjuster Cover, RH
71849	Cap, Seat Adjuster Cover, LH
71861	Shield, Front Seat Cushion, Inner RH
71862	Shield, Front Seat Cushion, Inner LH
71873	Shield, Front Seat Cushion, Lower RH
71873A	Shield, Front Seat Cushion, Lower
71874	Shield, Front Seat Cushion, Lower LH
71874A	Shield, Front Seat Cushion, Lower LH
71910A	Headrest Assy, Front Seat
71931	Support, Front Seat Headrest
72157C	Cover, Seat Track Bracket, Inner RH
72158	Cover, Seat Track Bracket, Inner LH
72211	Handle, Seat Track Adjusting
72211C	Handle, Seat Track Adjusting
72495	Handle, Vertical Adjusting, LH
72525A	Handle, Reclining Adjuster Release, RH
72526A	Handle, Reclining Adjuster Release, LH
72810A	Armrest Assy, Seat, RH
72848B	Cap, Seat Armrest, NO.1
79977G	Felt, Front Seatback, RH
79977H	Felt, Front Seatback, LH
82666M	Holder, Connector
87268Z	Protector

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
