Toyota Etios

2012-09 → present · chassis NGK1# · catalogue 137310 · General

Supported model Data version 2018-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

16 part groups · 5 illustrations

Illustrations

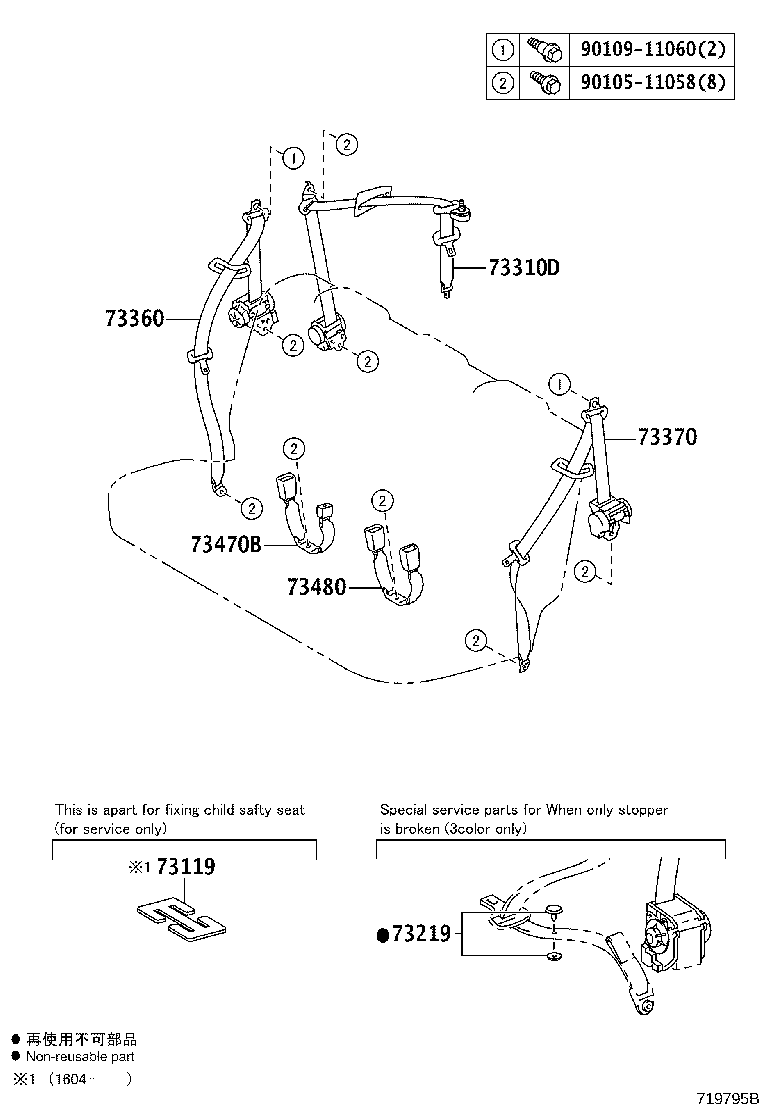

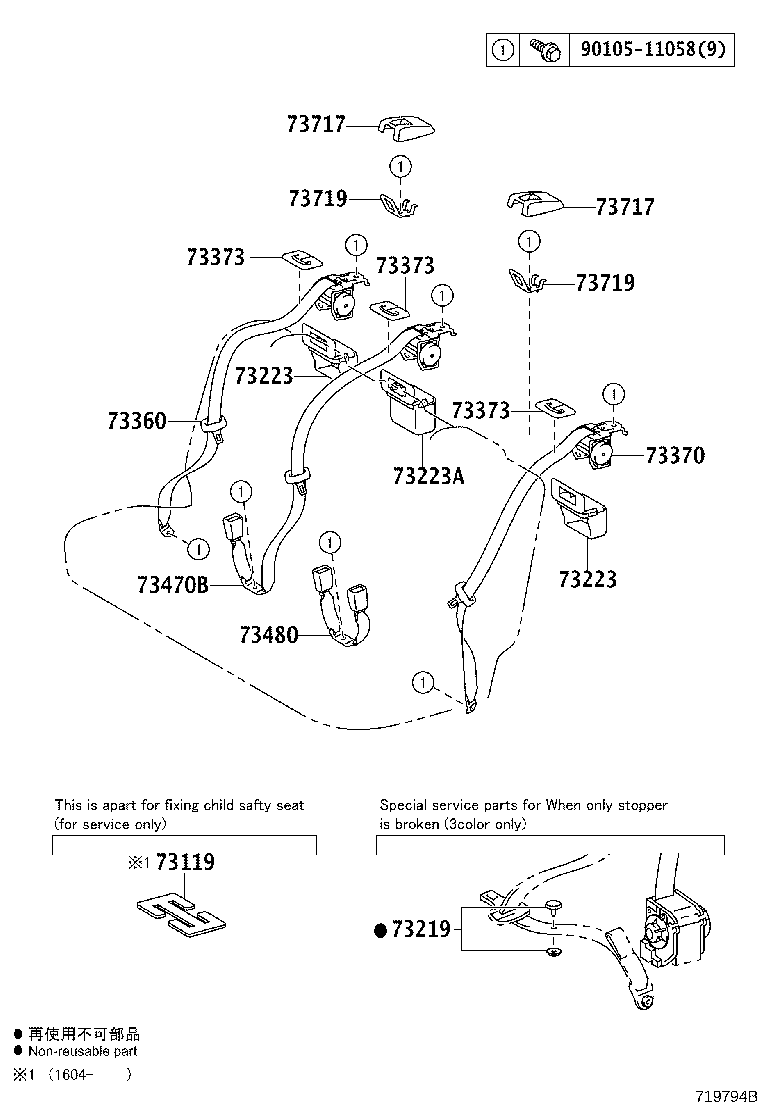

Figure 718040D 718040D 2012-09 → — Figure 718041 718041 2012-09 → 2015-12 Figure 718042A 718042A 2012-09 → 2015-12 Figure 719795B 719795B 2015-12 → — Figure 719794B 719794B 2015-12 → —

Part groups

PNCDescription
73119 Plate, Seat Belt Webbing Clip
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73223 Cover, Seat Belt Retractor
73223A Cover, Seat Belt Retractor
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73310D Belt Assy, Rear Seat 3 Point Type, Center
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73373 Cover, Rear Seat Shoulder Belt
73470B Belt Assy, Rear Seat Inner W/Center, RH
73480 Belt Assy, Rear Seat Inner W/Center, LH
73717 Cover, Child Restraint Seat Tether Anchor
73719 Bracket, Child Restraint Seat Tether Anchor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
