Toyota Etios

2012-09 → present · chassis NGK1# · catalogue 137310 · General

Supported model Data version 2018-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

11 part groups · 2 illustrations

Illustrations

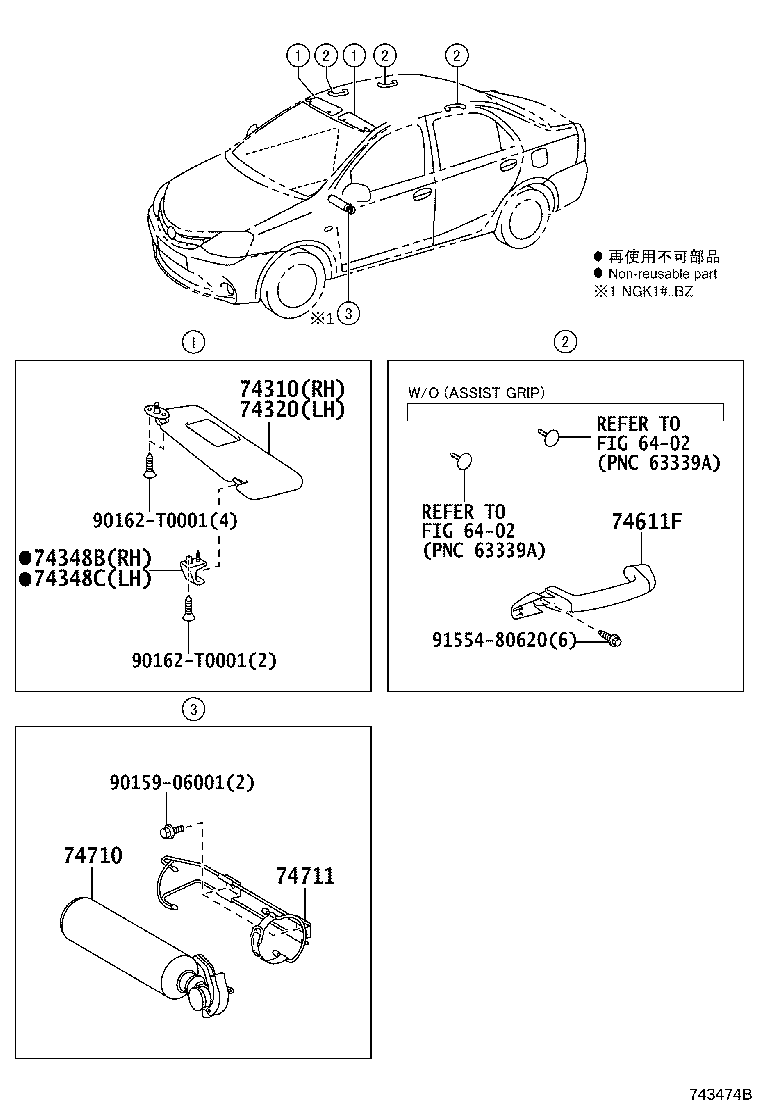

Figure 743473 743473 2012-09 → — Figure 743474B 743474B 2012-09 → —

Part groups

PNCDescription
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74271A Panel, Rear Door Armrest Base, Upper RH
74272A Panel, Rear Door Armrest Base, Upper LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74348B Holder, Visor, RH
74348C Holder, Visor, LH
74611F Grip, Assist, NO.1
74710 Extinguisher Assy
74711 Bracket Sub-assy, Extinguisher
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
