Toyota Etios

2012-09 → present · chassis NGK1# · catalogue 137310 · General

Supported model Data version 2018-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

11 part groups · 3 illustrations

Illustrations

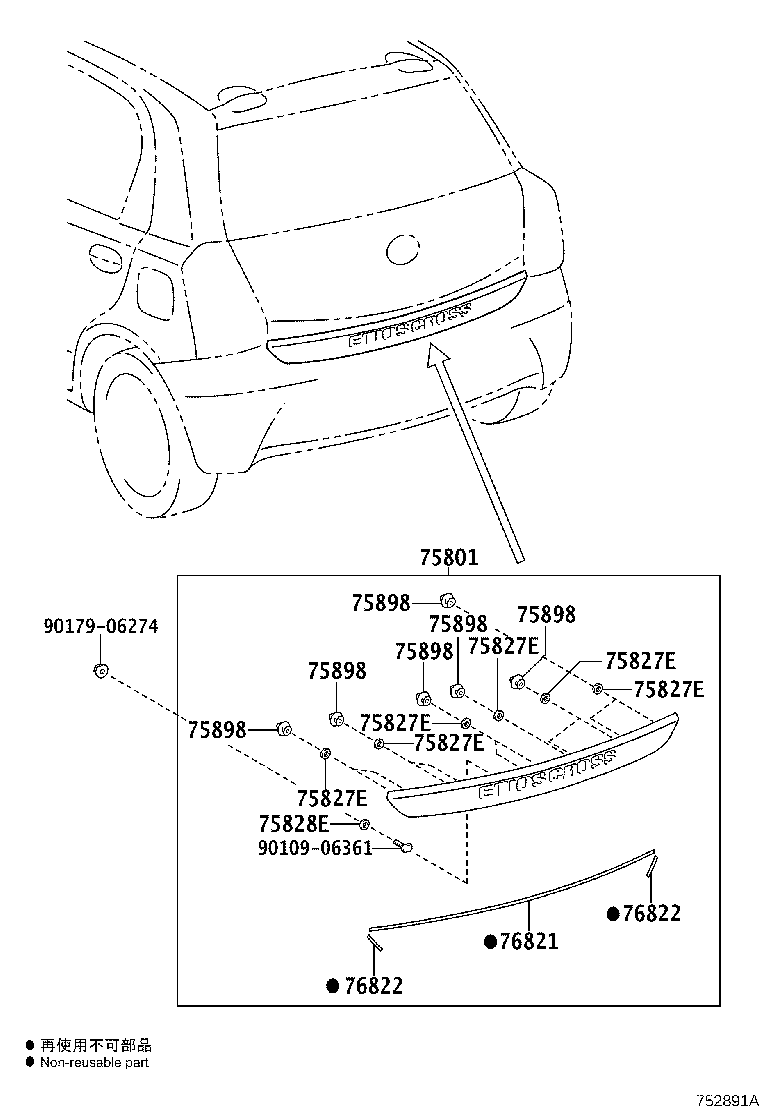

Figure 752760A 752760A 2012-09 → — Figure 752761A 752761A 2012-09 → — Figure 752891A 752891A 2013-11 → —

Part groups

PNCDescription
75395C Clip, Outside Moulding, NO.1
75801 Moulding Sub-assy, Back Door, Outside
75801A Moulding Sub-assy, Luggage Compartment Door
75825 Pad, Luggage Compartment Door Moulding
75826B Pad, Luggage Compartment Door Moulding, NO.2
75827E Protector, Luggage Door Moulding
75828E Protector, Luggage Door Moulding, NO.2
75898 Clip, Back Door Outside Moulding
76821 Protector, Back Door Garnish Moulding, Upper
76822 Protector, Back Door Garnish Moulding, Lower
76826 Retainer, Back Door Garnish, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
