Factory parts data · Europe

Toyota Etios

2012-09 → present · chassis NGK1# · catalogue 137310 · General

Supported model Data version 2018-02

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

12 part groups · 2 illustrations

Illustrations

Figure 760852D

760852D 2012-09 → —

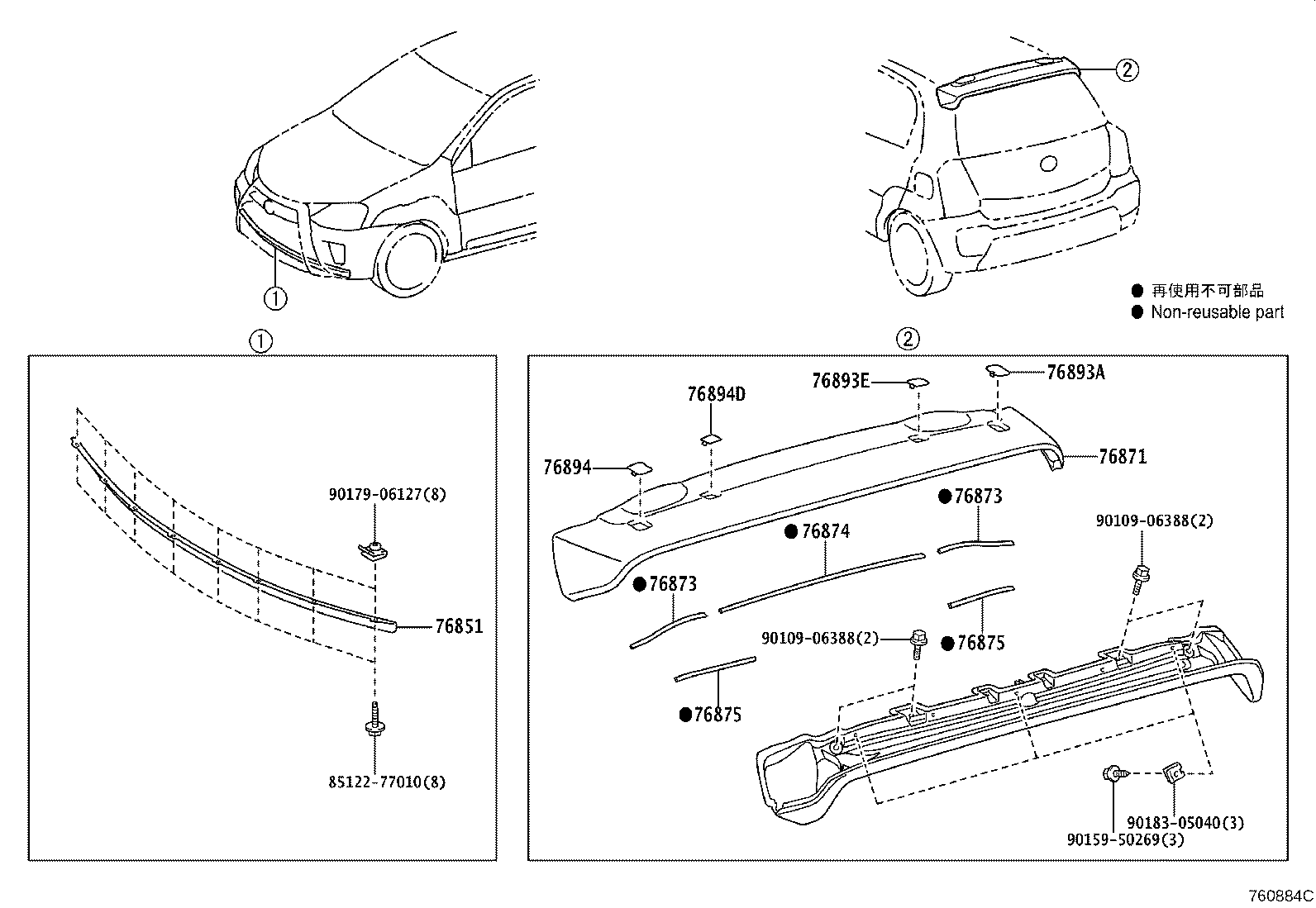

Figure 760884C

760884C 2013-11 → —

Part groups

PNC	Description
75868C	Clip, Rear Spoiler, NO.2
76851	Cover, Front Spoiler
76853B	Cover, Front Spoiler, Center
76853C	Retainer, Front Spoiler, NO.1
76871	Spoiler, Rear
76873	Protector, Rear Spoiler, NO.2
76874	Protector, Rear Spoiler, NO.3
76875	Protector, Rear Spoiler, NO.4
76893A	Cover, Rear Spoiler, RH
76893E	Cover, Rear Spoiler, RH
76894	Cover, Rear Spoiler, LH
76894D	Cover, Rear Spoiler, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
