Toyota Etios
2012-09 → present · chassis NGK1# · catalogue 137310 · General
Supported model
Data version 2018-02
Fuel Tank & Tube
59 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 23217D | Filter, Fuel Pump |
| 23221 | Pump, Fuel |
| 23225A | Spacer, Fuel Pump |
| 23280J | Regulator Assy, Fuel Pressure |
| 23280K | Ring, O(FOR FUEL PRESSURE REGULATOR) |
| 23282F | Hose, Fuel, NO.4 |
| 23300J | Filter Assy, Fuel |
| 75259A | Hose, Fuel |
| 77020A | Tube Assy, Fuel Suction W/Pump & Gage |
| 77027B | Tube Sub-assy, Fuel Emission, NO.1 |
| 77028F | Tube Sub-assy, Fuel Emission, NO.2 |
| 77031 | Cap Assy, Fuel Tank |

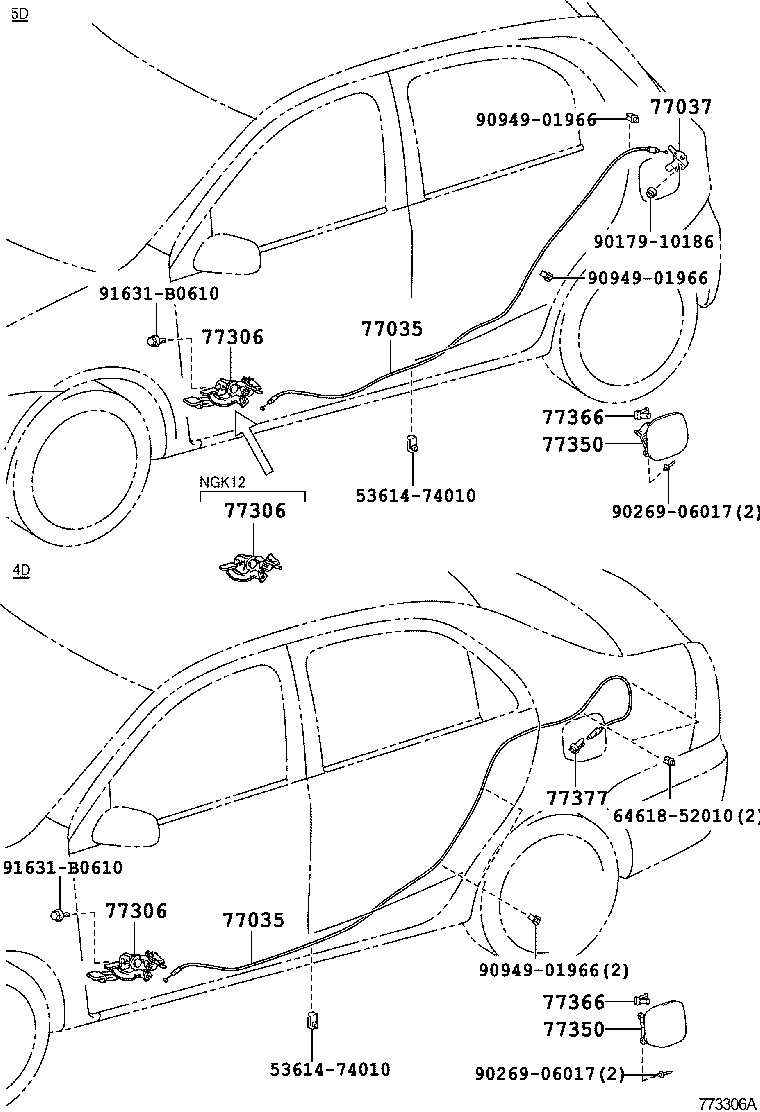

| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77037 | Lock Sub-assy, Fuel Filler Opening Lid |

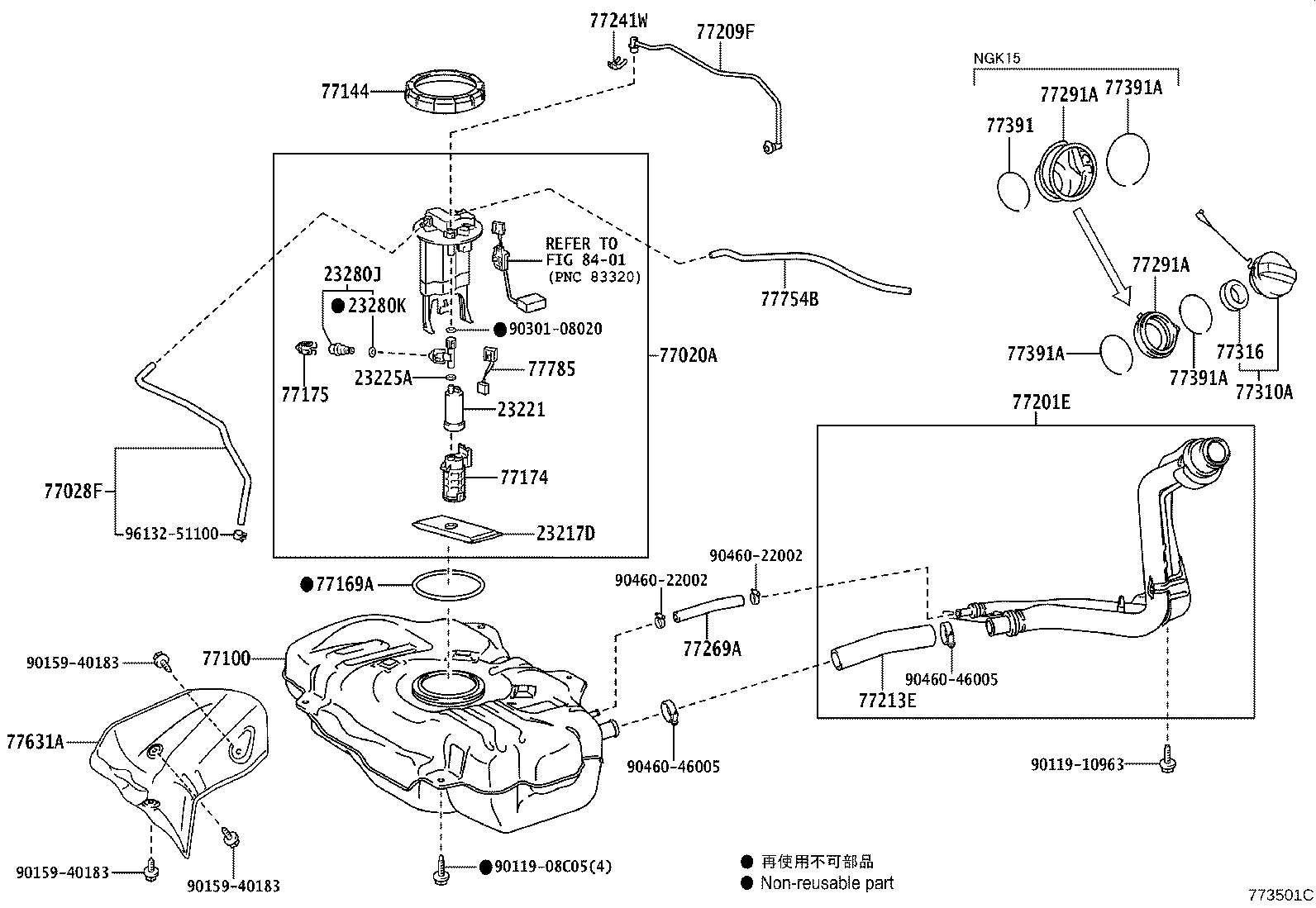

| 77100 | Tank Assy, Fuel |

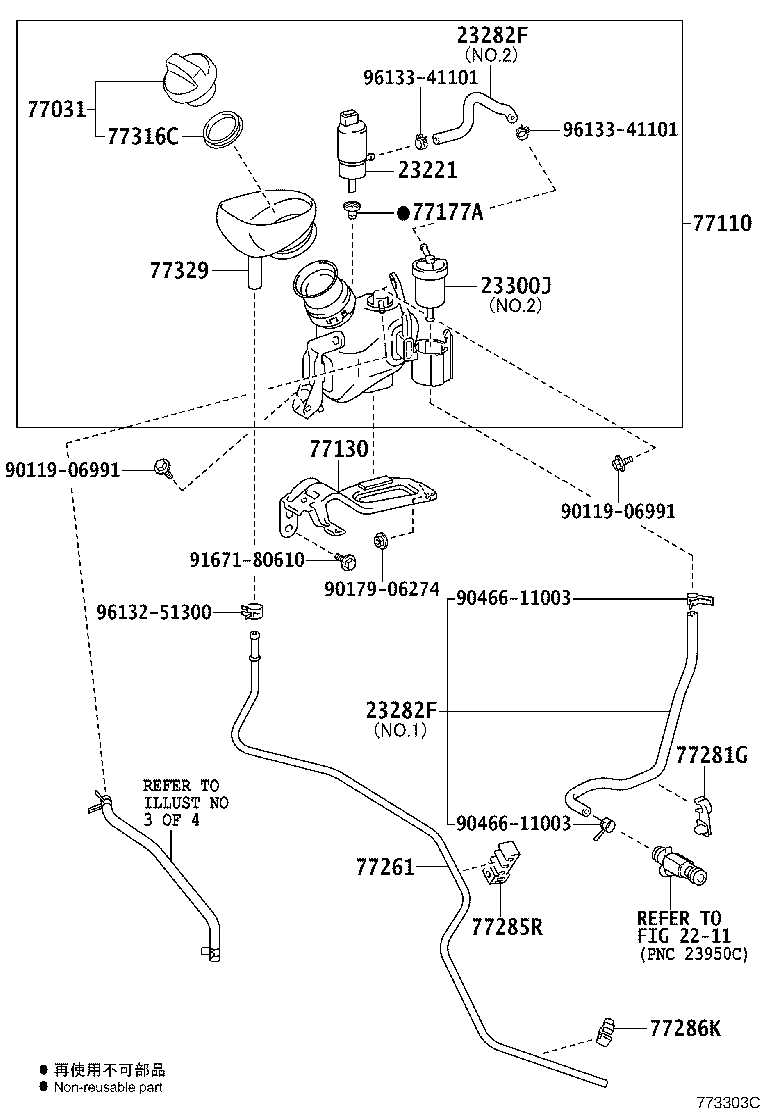

| 77110 | Tank Assy, Auxiliary Fuel |
| 77130 | Bracket Assy, Auxiliary Fuel Tank |
| 77144 | Retainer, Fuel Pump Gauge |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77174 | Support, Fuel Suction, NO.1 |
| 77175 | Support, Fuel Suction, NO.2 |
| 77177A | Gasket, Check Valve |
| 77201E | Pipe Sub-assy, Fuel Tank Filler |
| 77204A | Tube, Fuel Tank Return |
| 77209F | Tube Sub-assy, Fuel Tank Main |
| 77213E | Hose, Fuel Tank TO Filler Pipe |
| 77241W | Clip, Tube Joint |

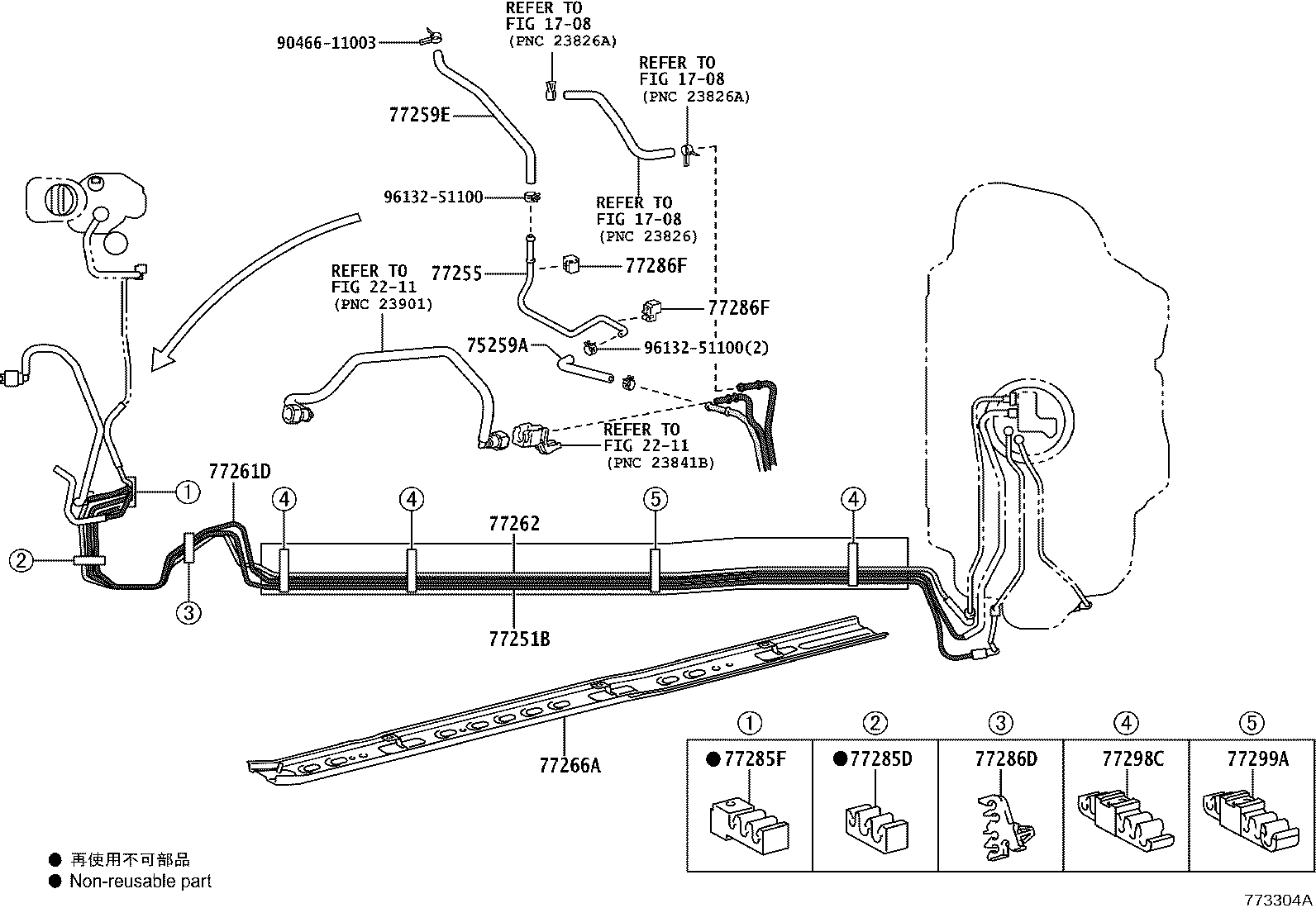

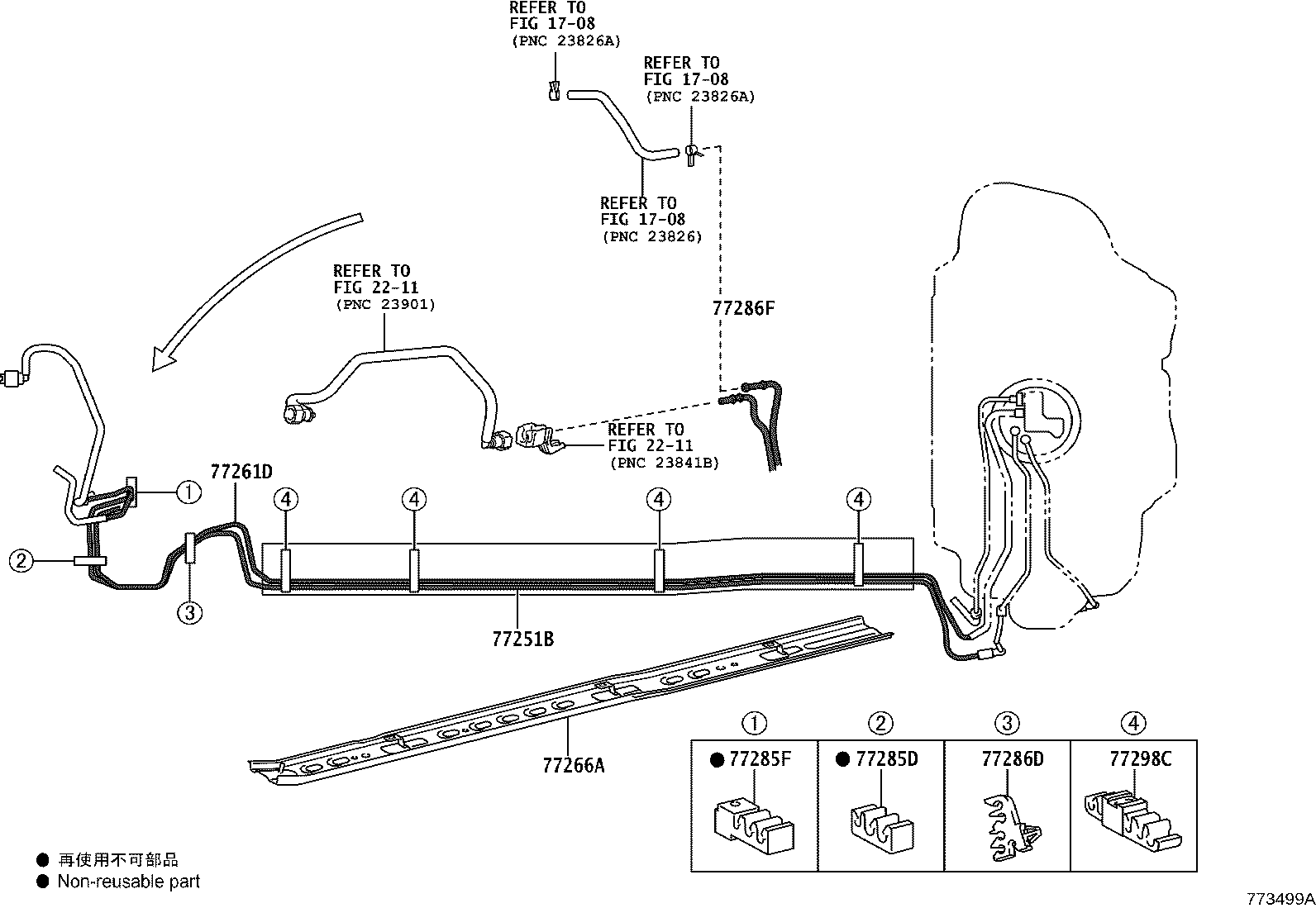

| 77251B | Tube, Fuel Main |
| 77255 | Tube, Fuel Emission, NO.2 |
| 77259C | Hose, Fuel |
| 77259E | Hose, Fuel |
| 77261 | Tube Sub-assy, Fuel Emission |
| 77261D | Tube, Fuel Tank TO Canister |
| 77262 | Tube, Fuel Emission, NO.2 |
| 77266A | Protector, Fuel Tube, NO.1 |
| 77269A | Hose, Fuel Tank Breather |
| 77281G | Clamp, Fuel Hose |
| 77285D | Clamp, Fuel Tube, NO.1 |
| 77285F | Clamp, Fuel Tube, NO.1 |
| 77285R | Clamp, Fuel Tube, NO.1 |
| 77286D | Clamp, Fuel Tube, NO.2 |
| 77286F | Clamp, Fuel Tube, NO.2 |
| 77286K | Clamp, Fuel Tube, NO.2 |
| 77291A | Shield, Fuel Tank Filler Pipe |
| 77298C | Clamp, Fuel Tube, NO.4 |
| 77299A | Clamp, Fuel Tube, NO.5 |
| 77306 | Lever Sub-assy, Fuel Lid Lock Open |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77316C | Gasket, Fuel Tank Cap |
| 77329 | Cover, Fuel Tank Cap |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77391 | Ring, Fuel Inlet Box |
| 77391A | Ring, Fuel Inlet Box |
| 77631A | Protector, Fuel Tank, Lower Center |
| 77754B | Hose, Charcoal Canister Outlet |
| 77785 | Harness, Fuel Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
