Toyota Etios

2012-09 → present · chassis NGK1# · catalogue 137310 · General

Supported model Data version 2018-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

24 part groups · 8 illustrations

Illustrations

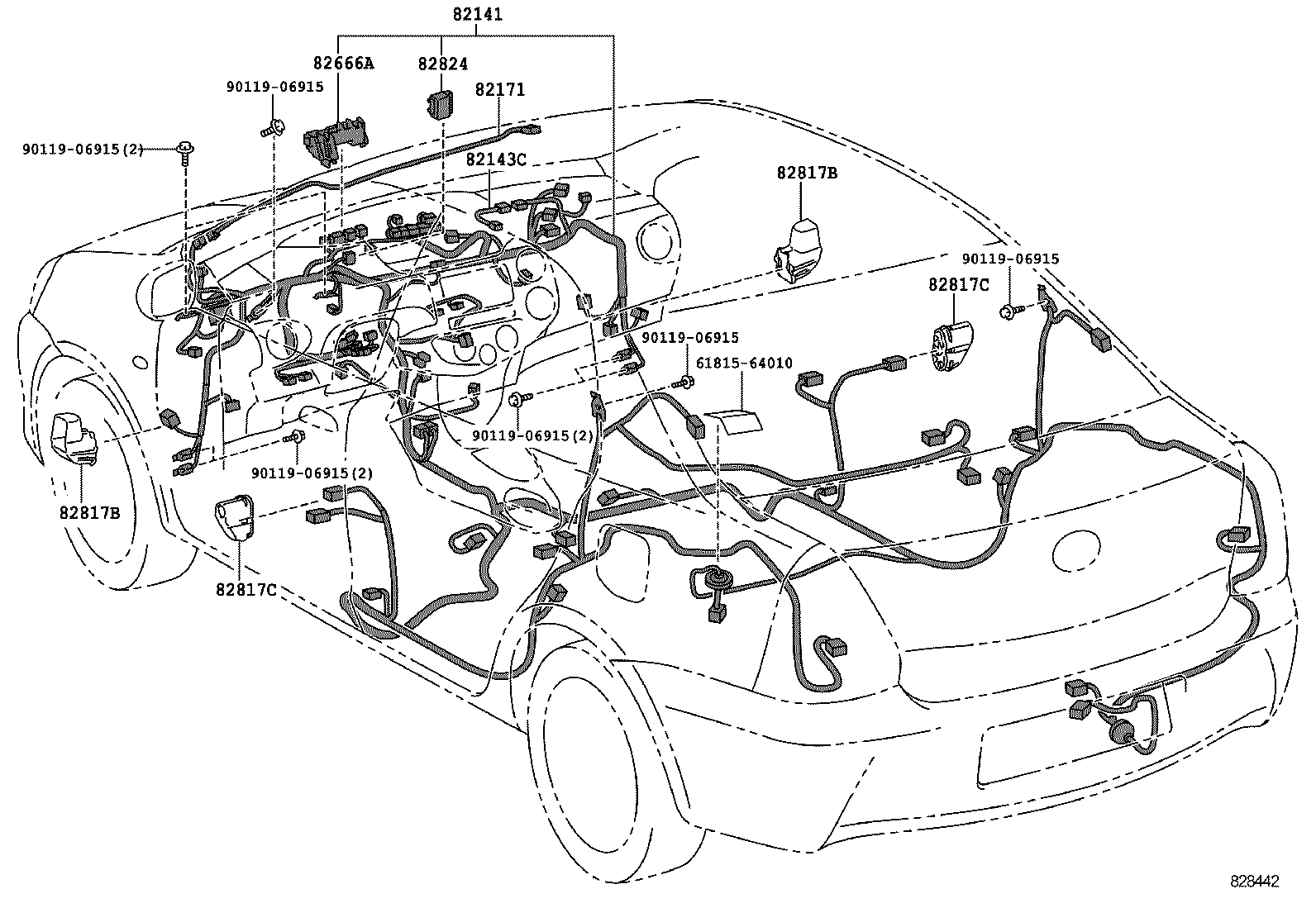

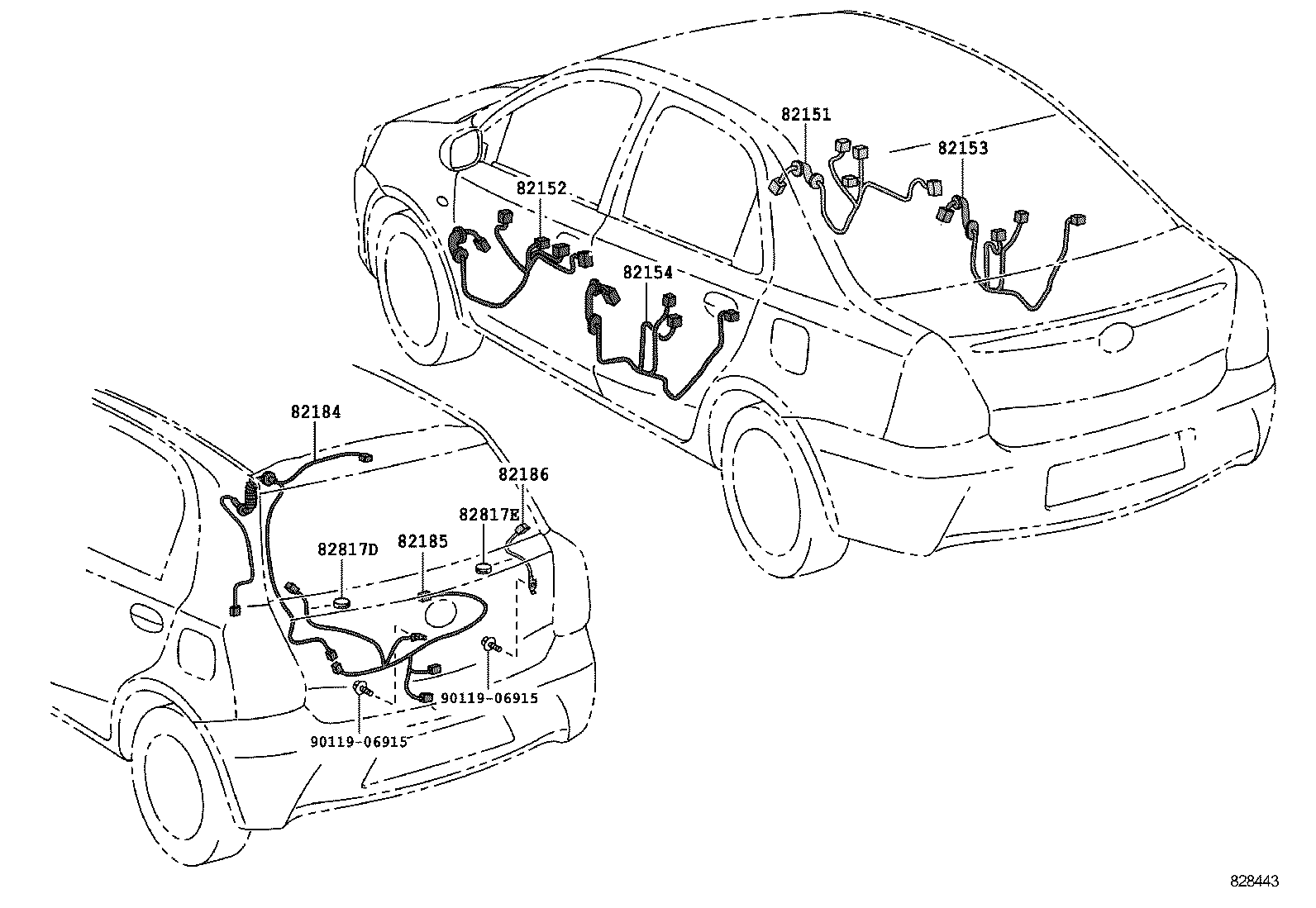

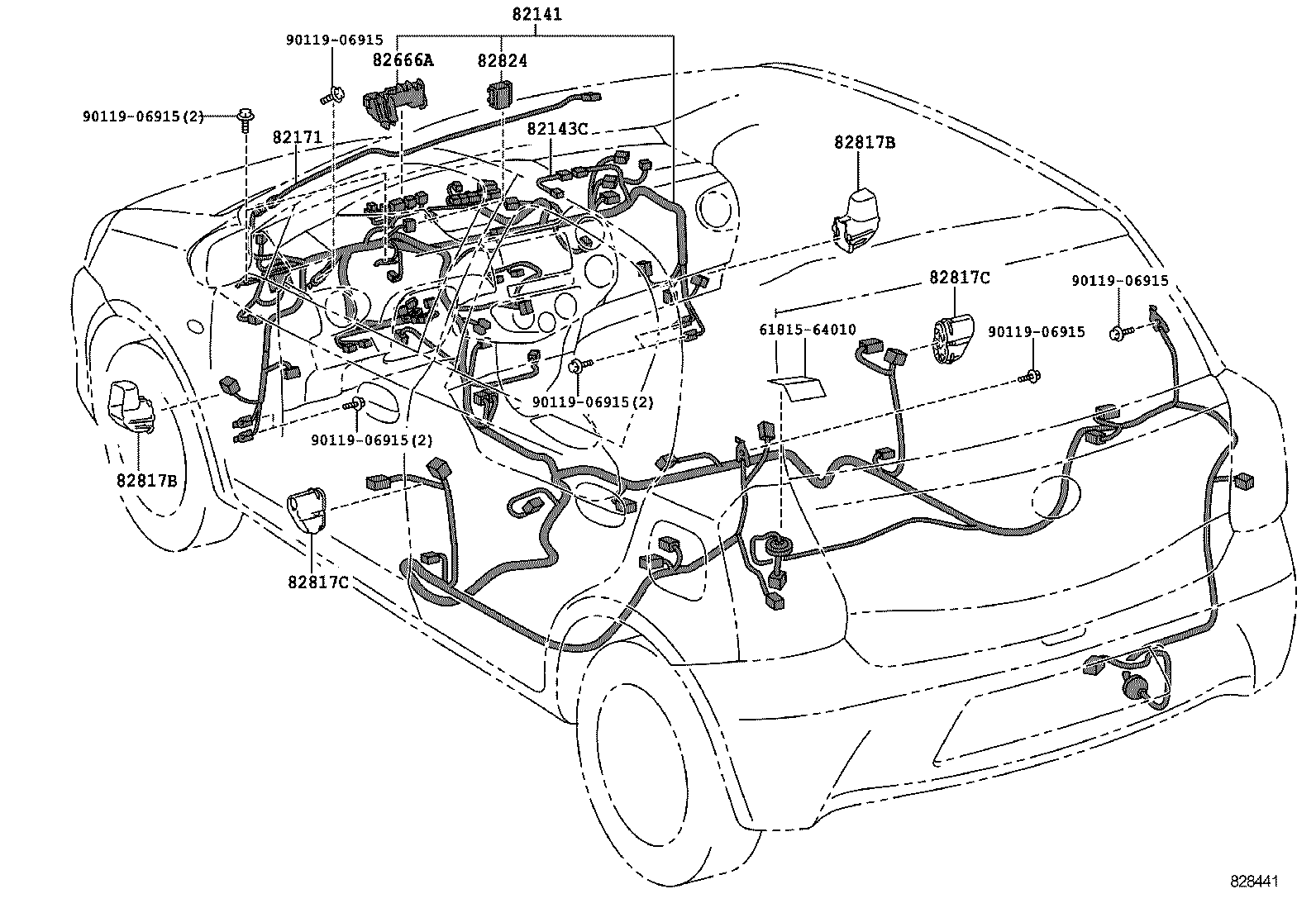

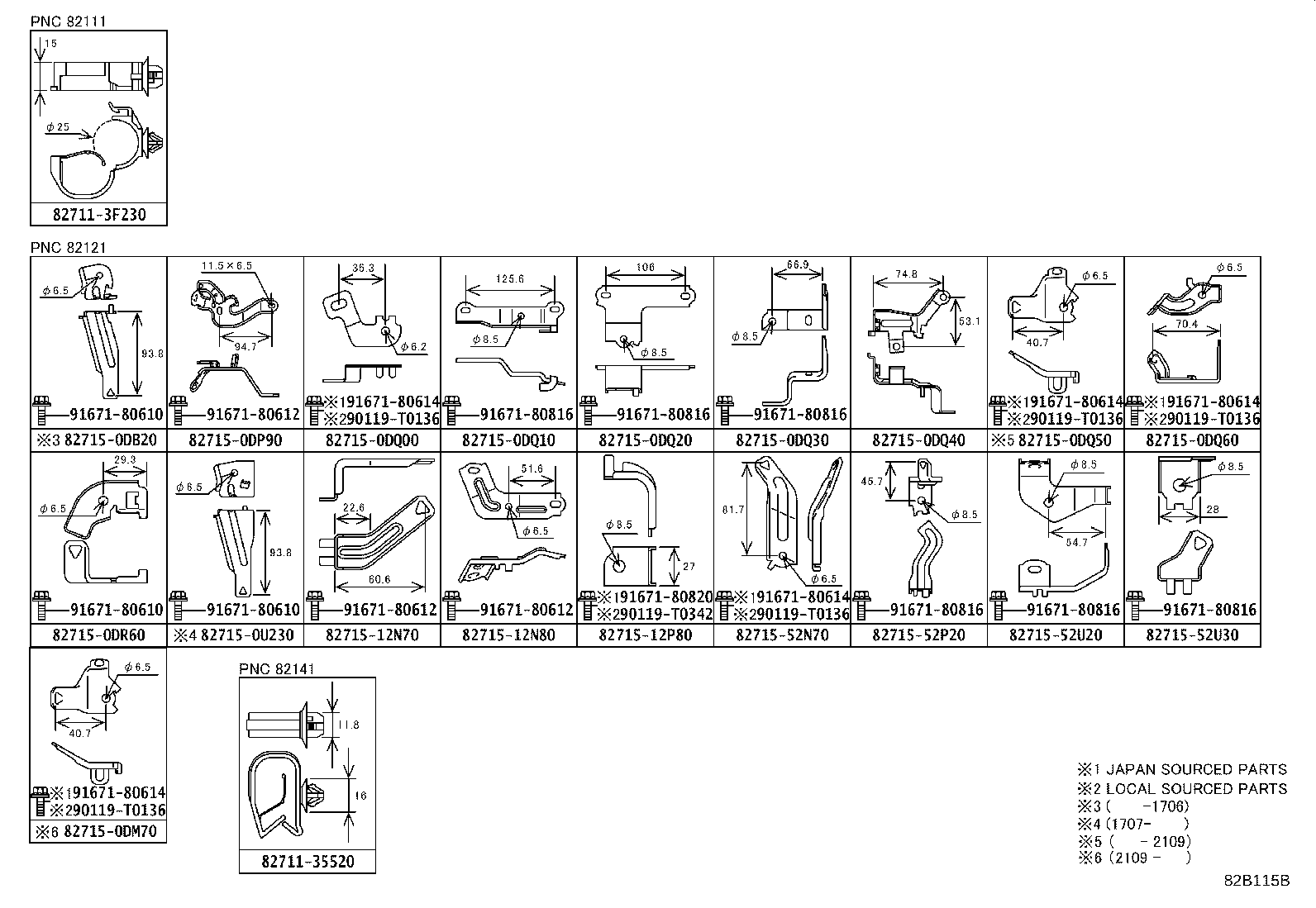

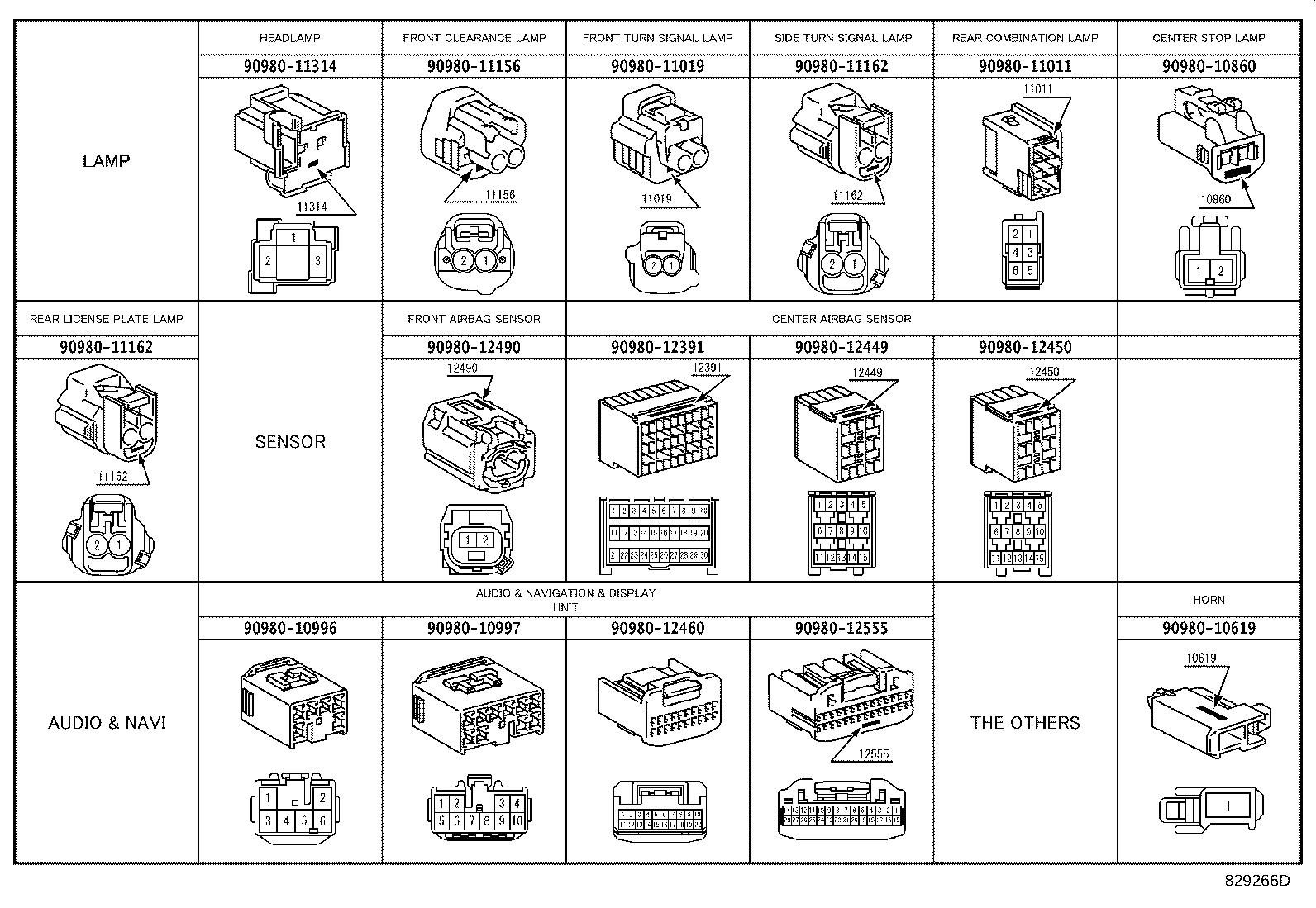

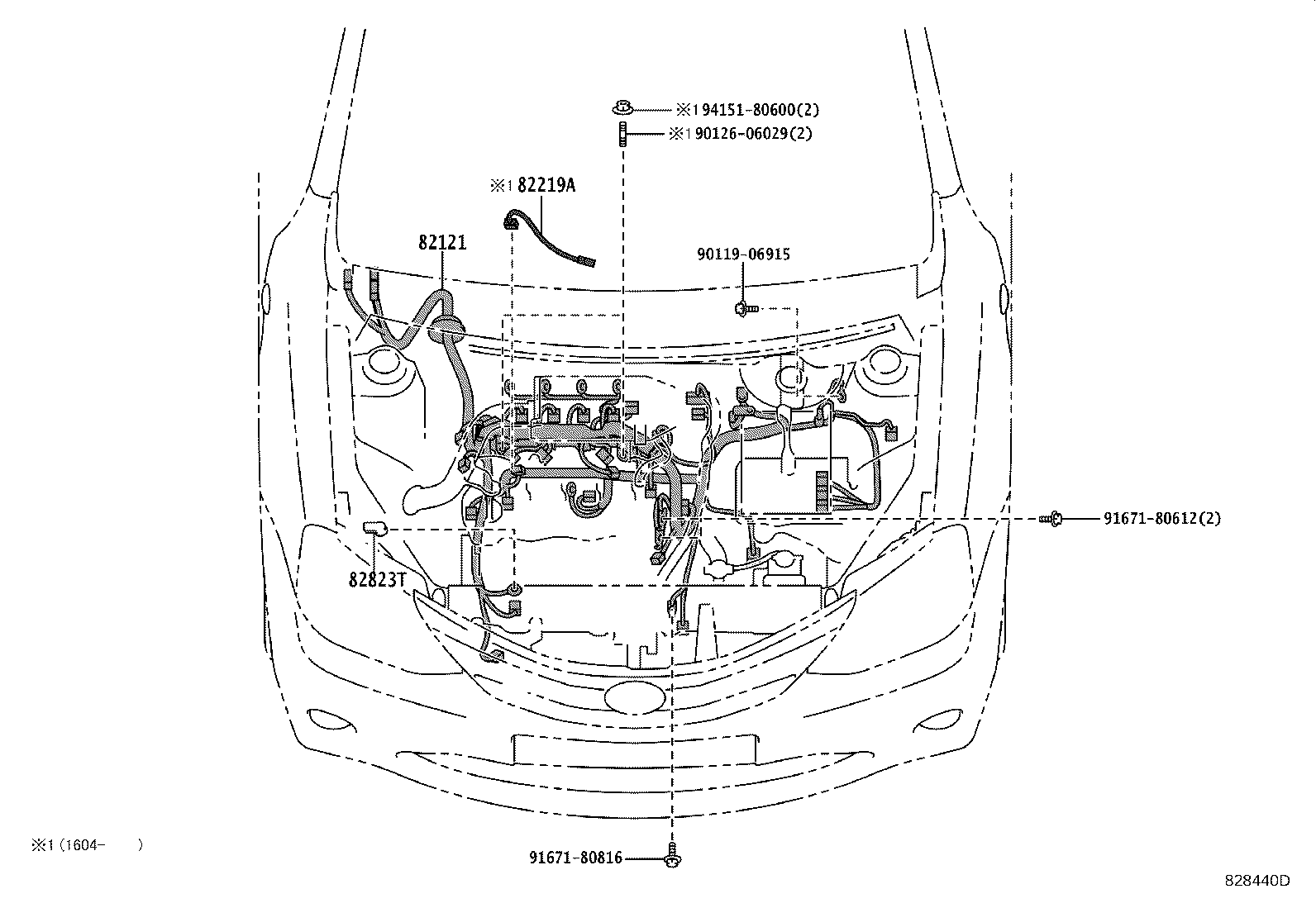

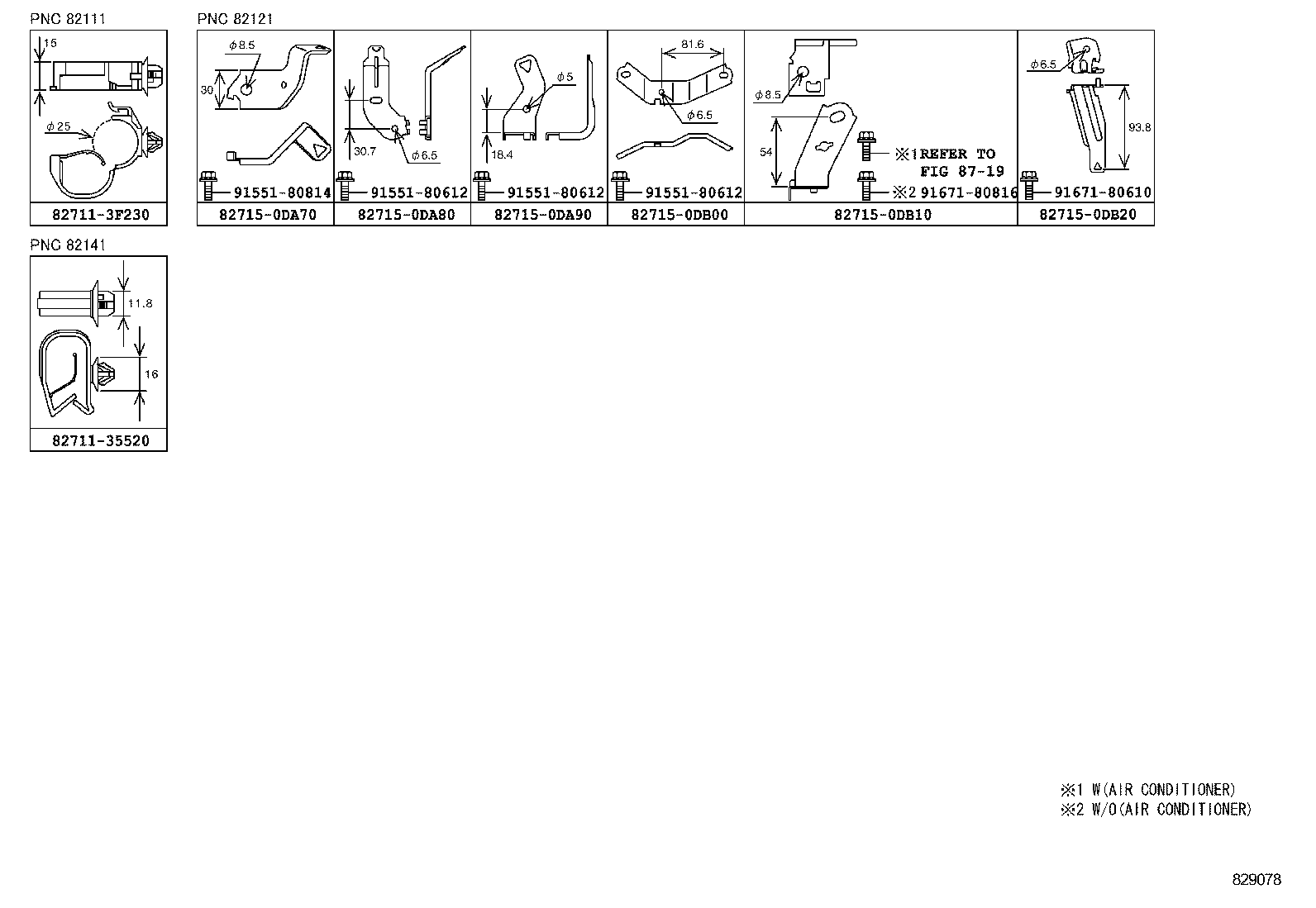

Figure 828439 828439 2012-09 → — Figure 828440D 828440D 2012-09 → — Figure 828441 828441 2012-09 → — Figure 828442 828442 2012-09 → — Figure 828443 828443 2012-09 → — Figure 829078 829078 2012-09 → 2016-04 Figure 82B115B 82B115B 2016-04 → — Figure 829266D 829266D 2012-09 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82121 Wire, Engine
82141 Wire, Instrument Panel
82143C Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82219A Wire, Sensor
82666A Holder, Connector NO.2
82815A Cover, Wiring Harness Protector
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82821A Cover, Connector
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
