Toyota Etios

2012-09 → present · chassis NGK1# · catalogue 137310 · General

Supported model Data version 2018-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

67 part groups · 13 illustrations

Illustrations

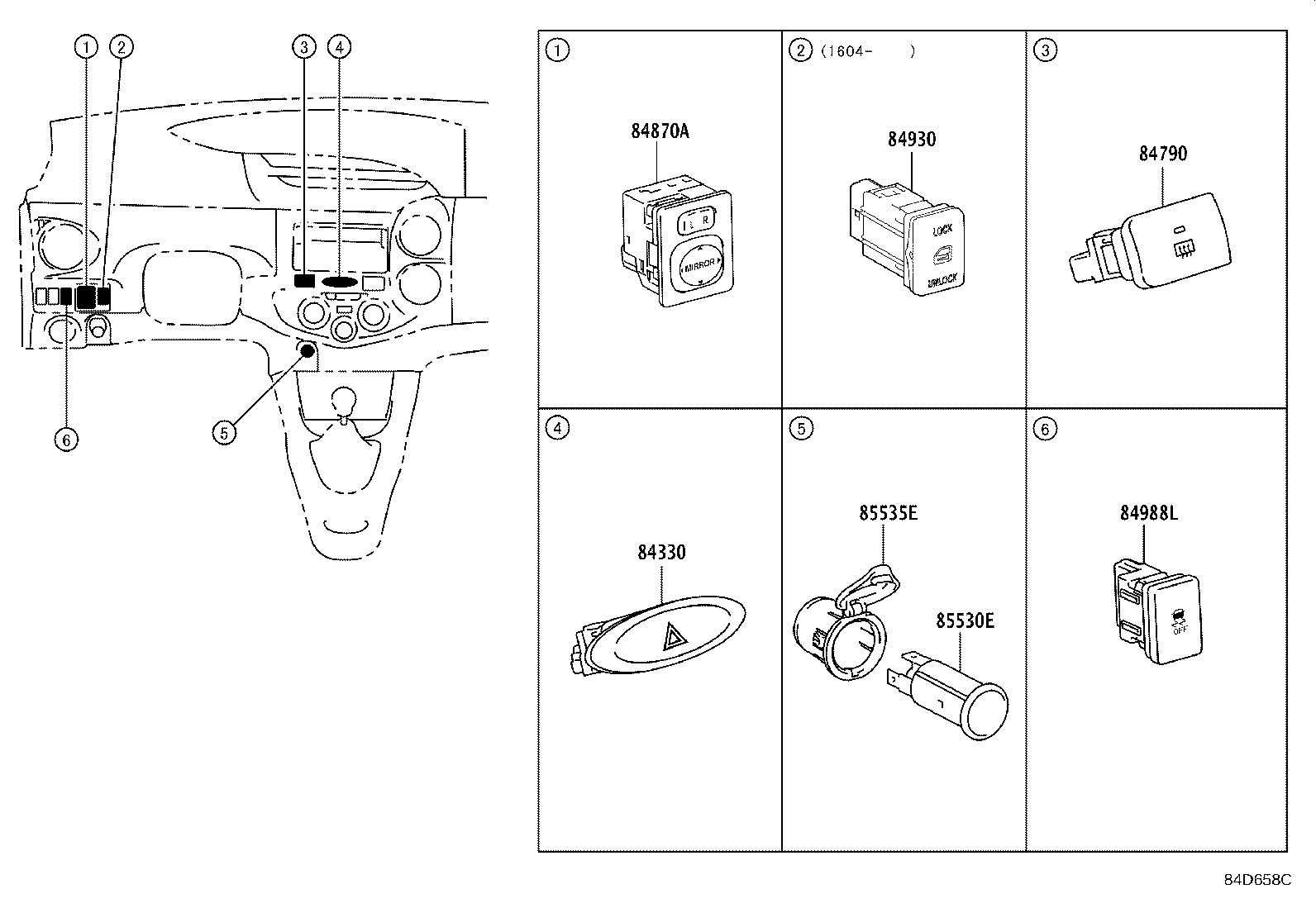

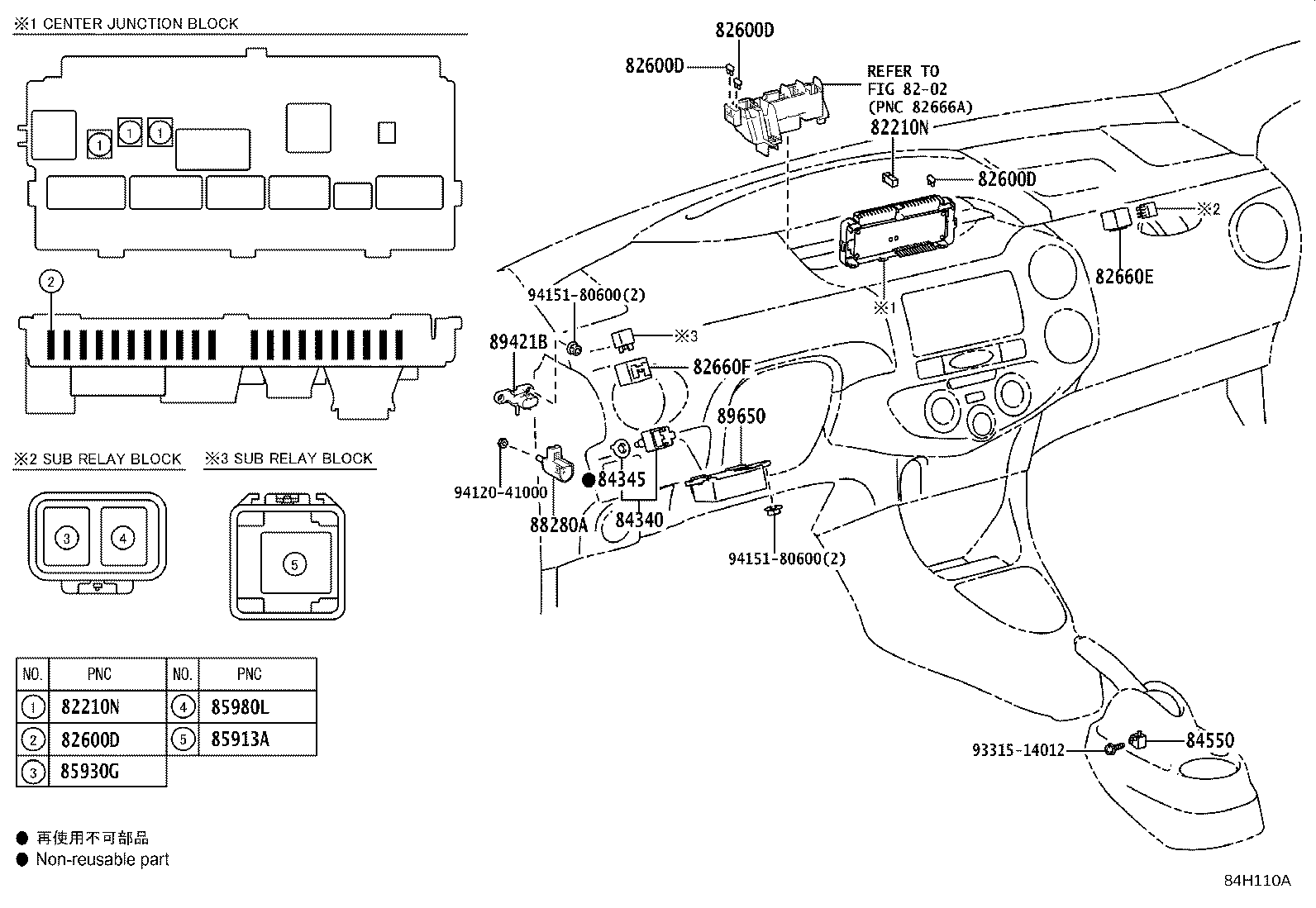

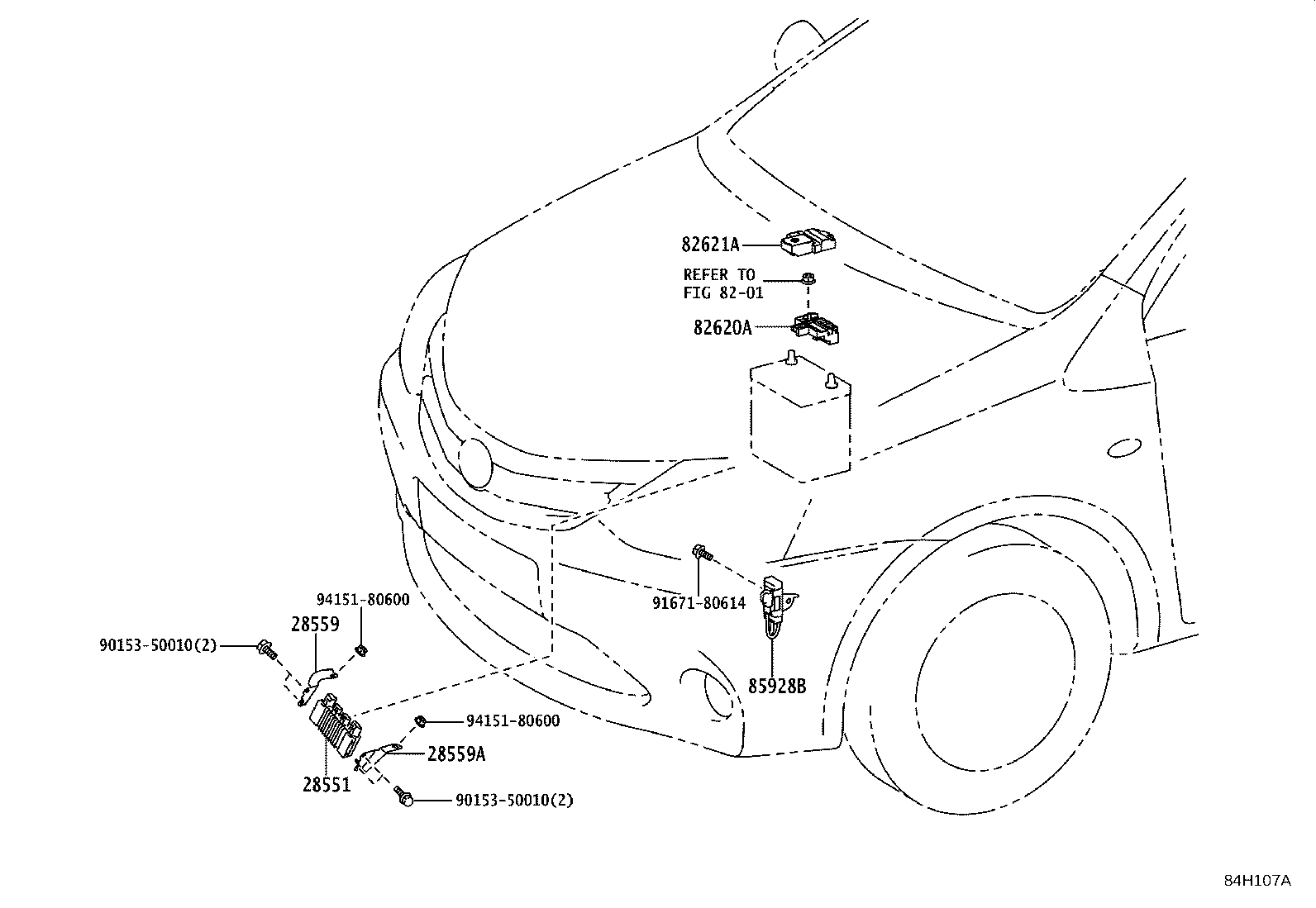

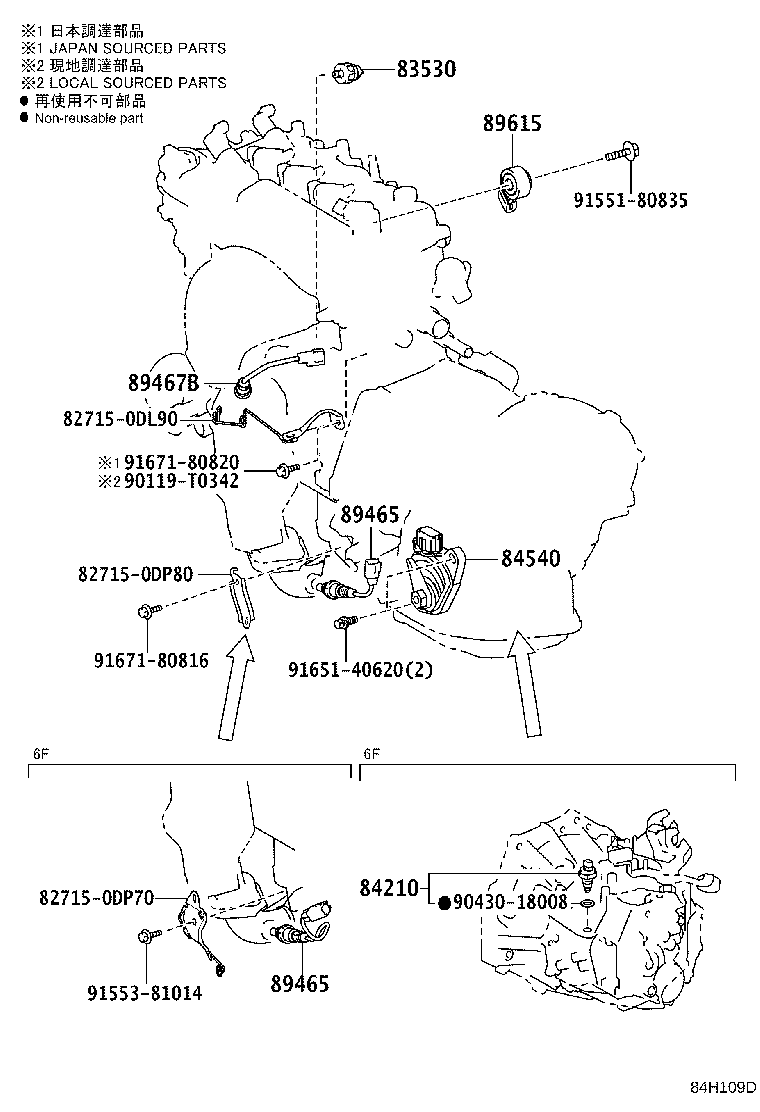

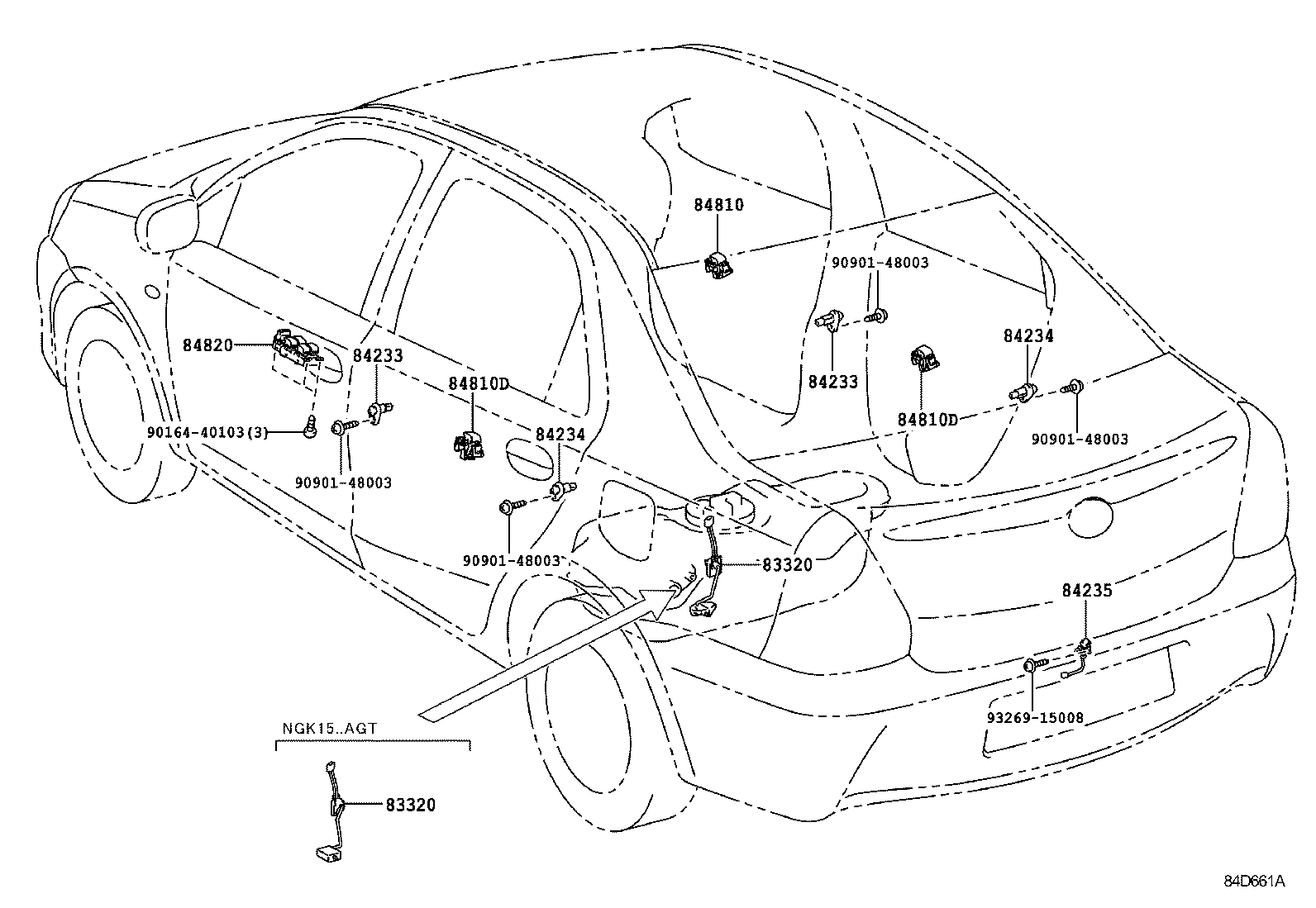

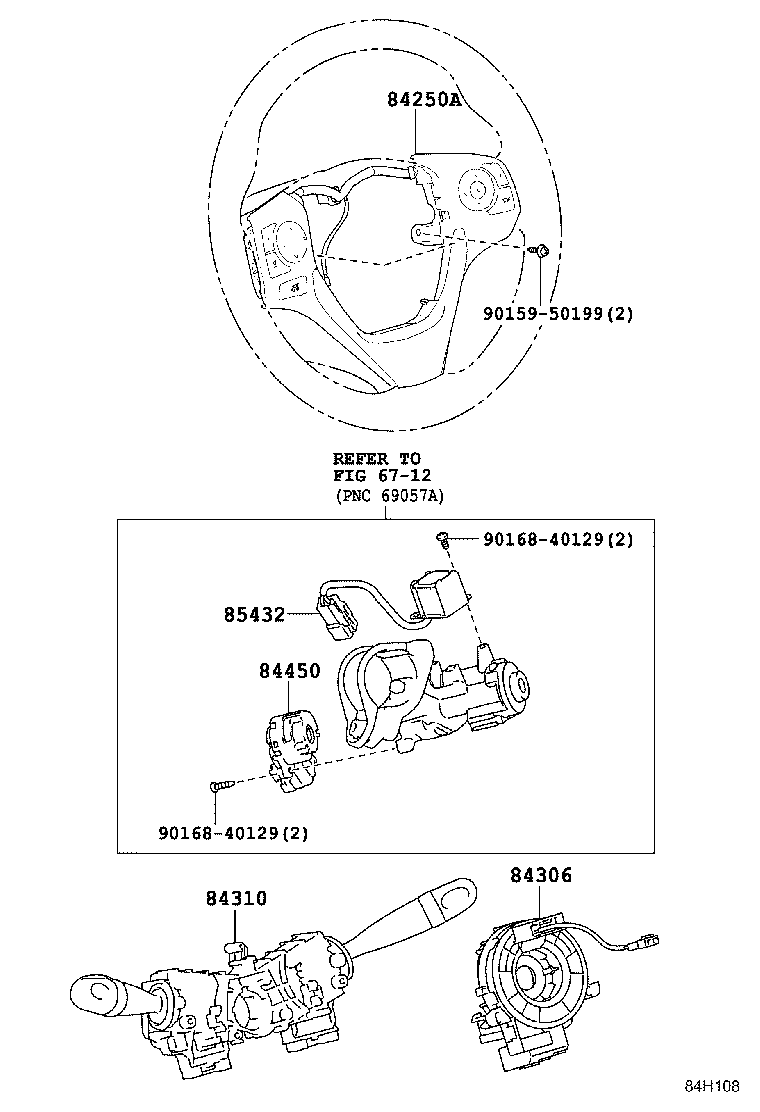

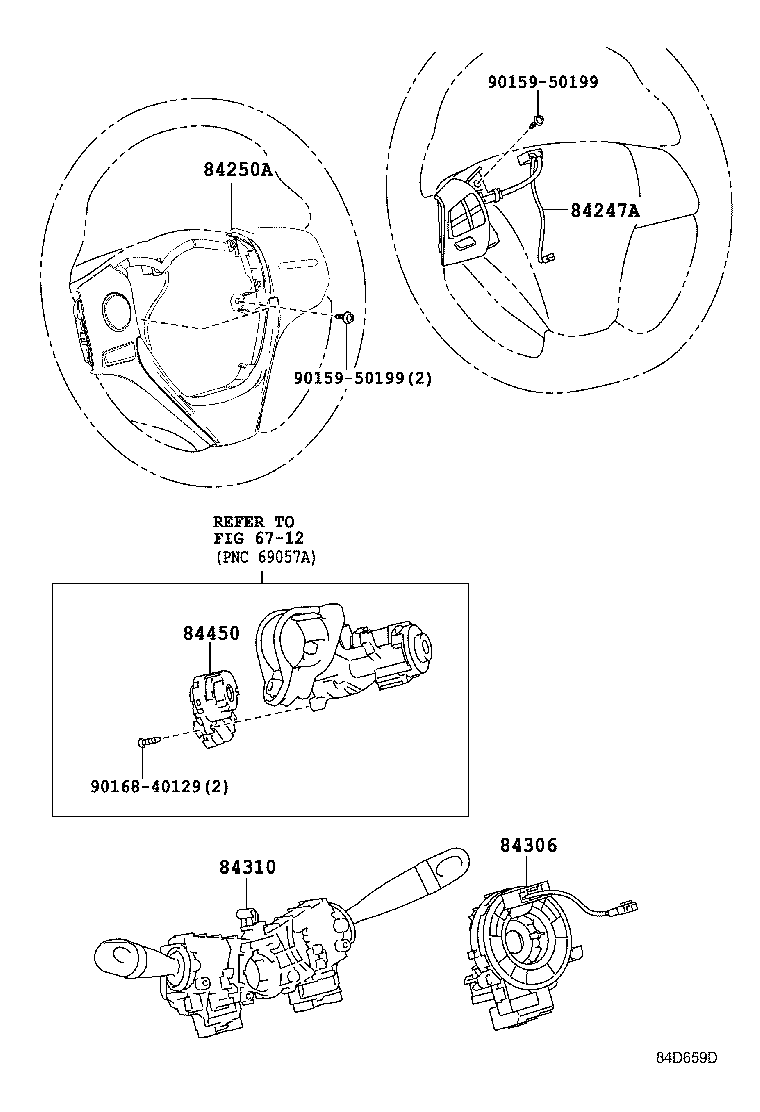

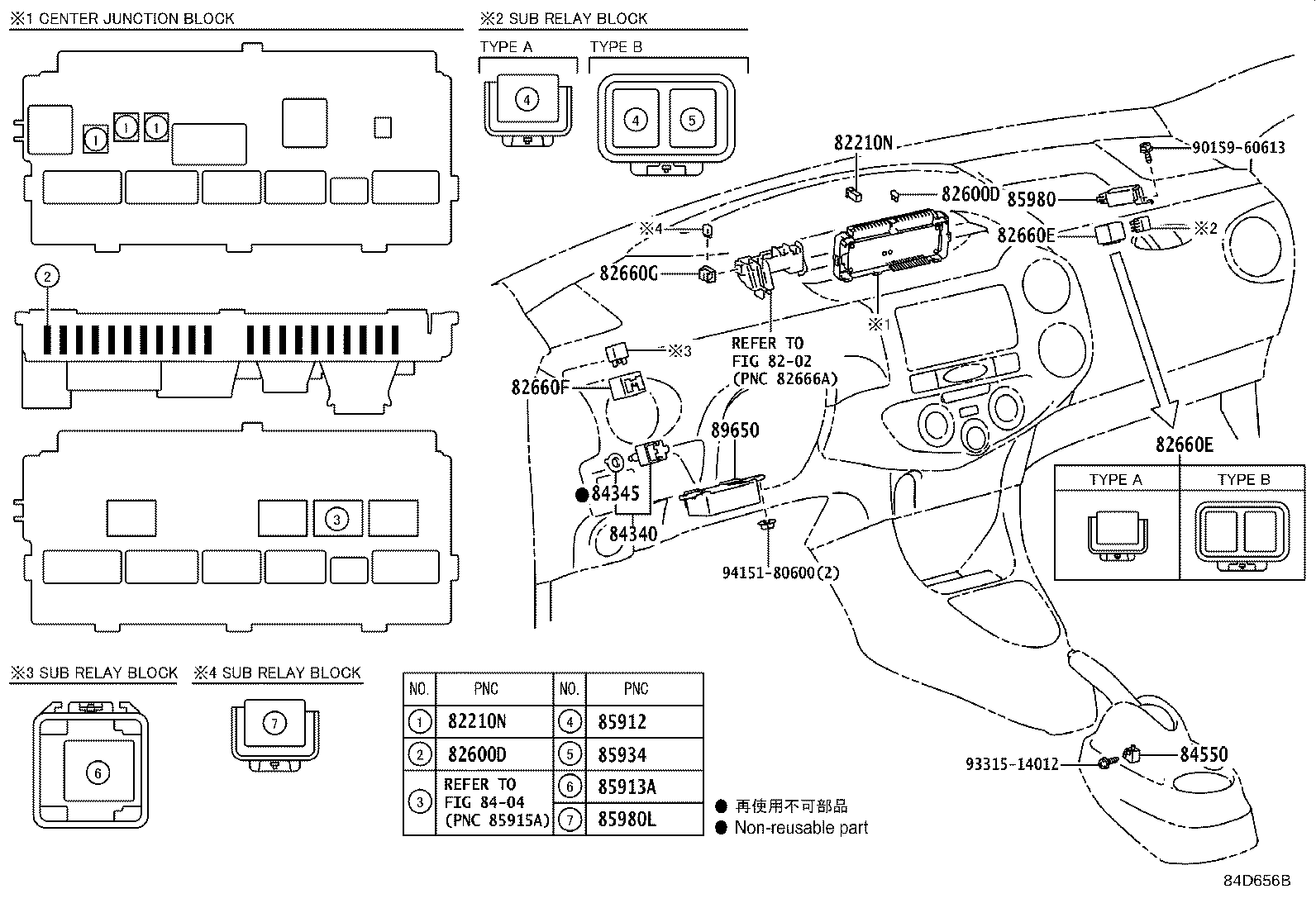

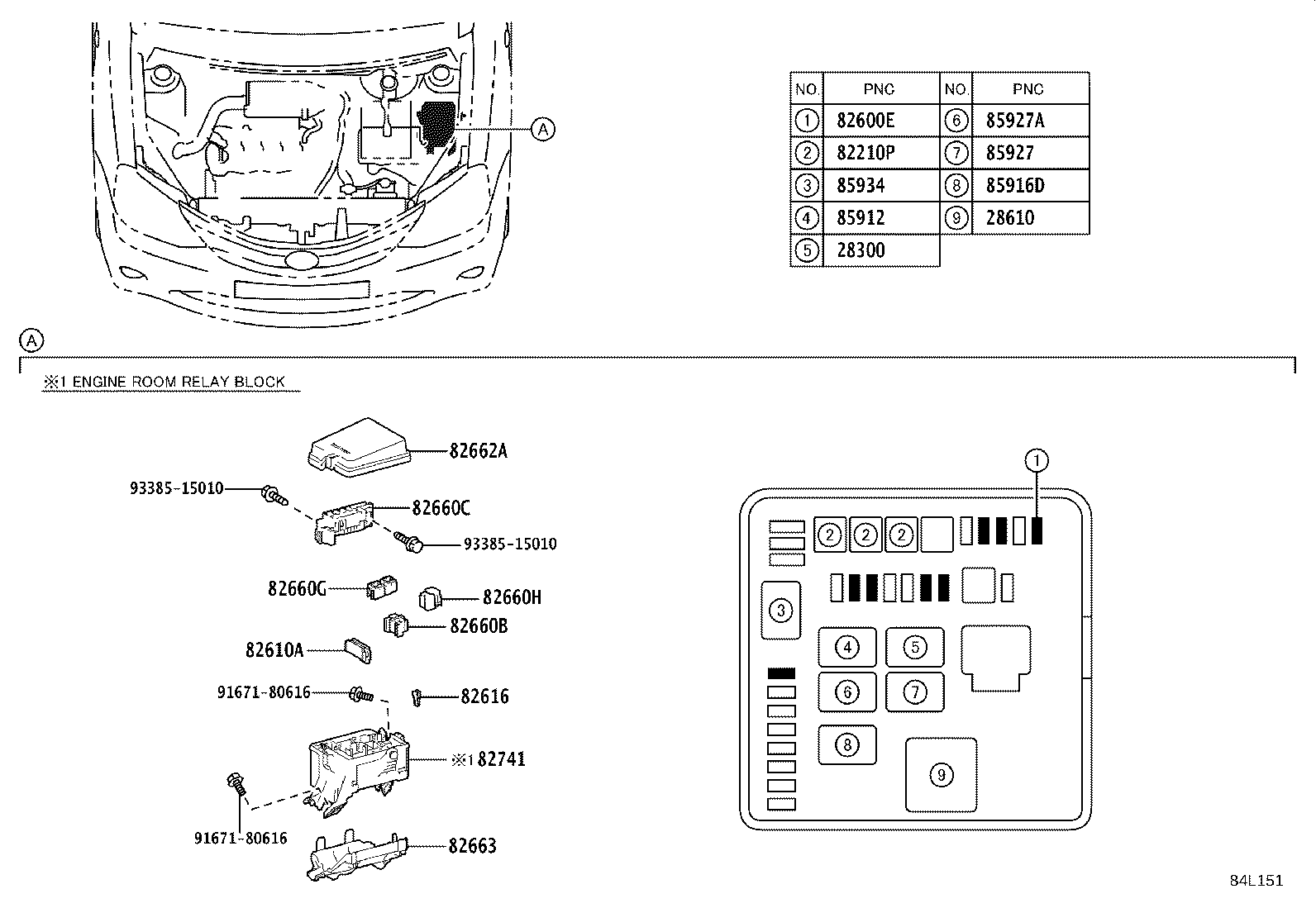

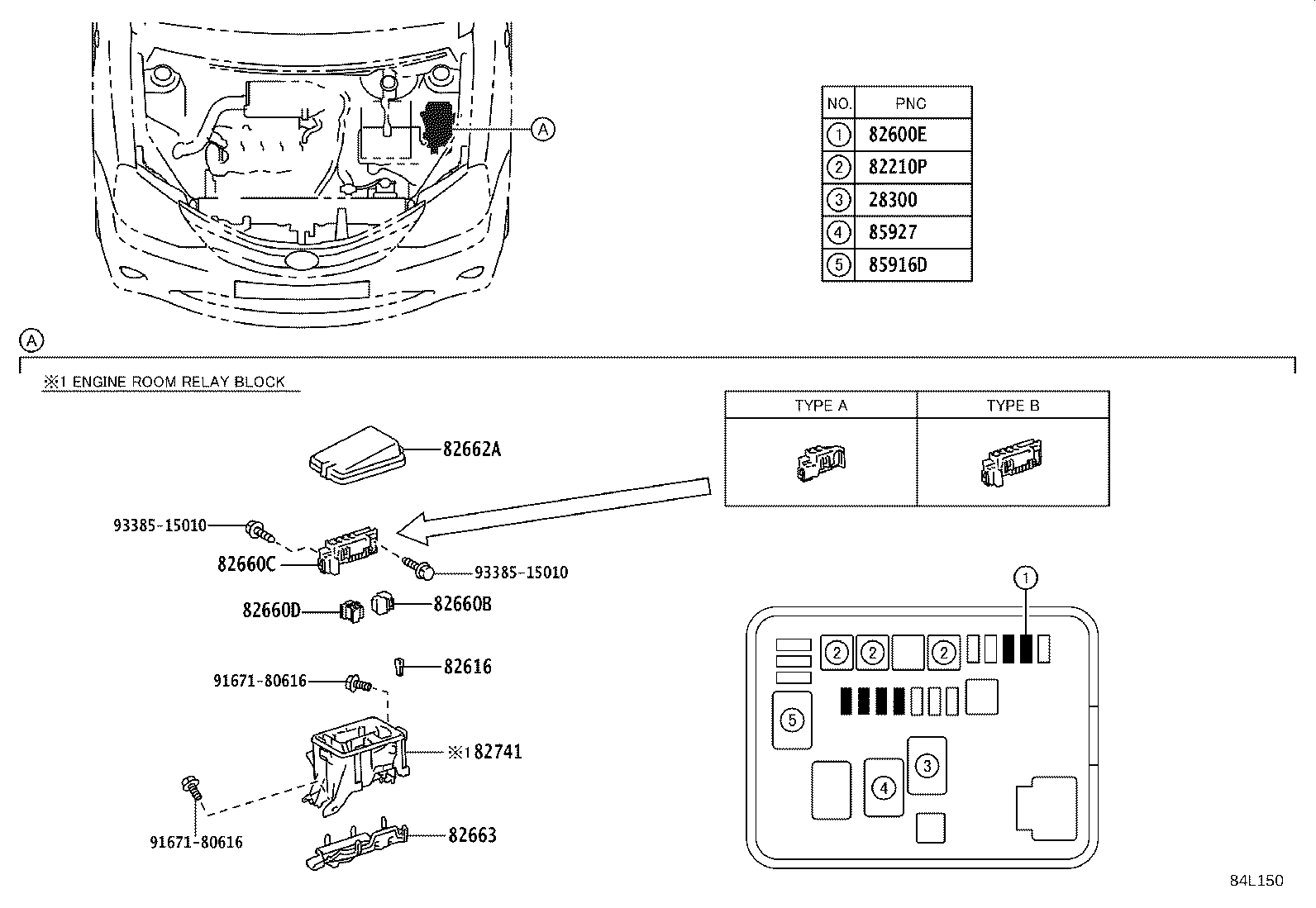

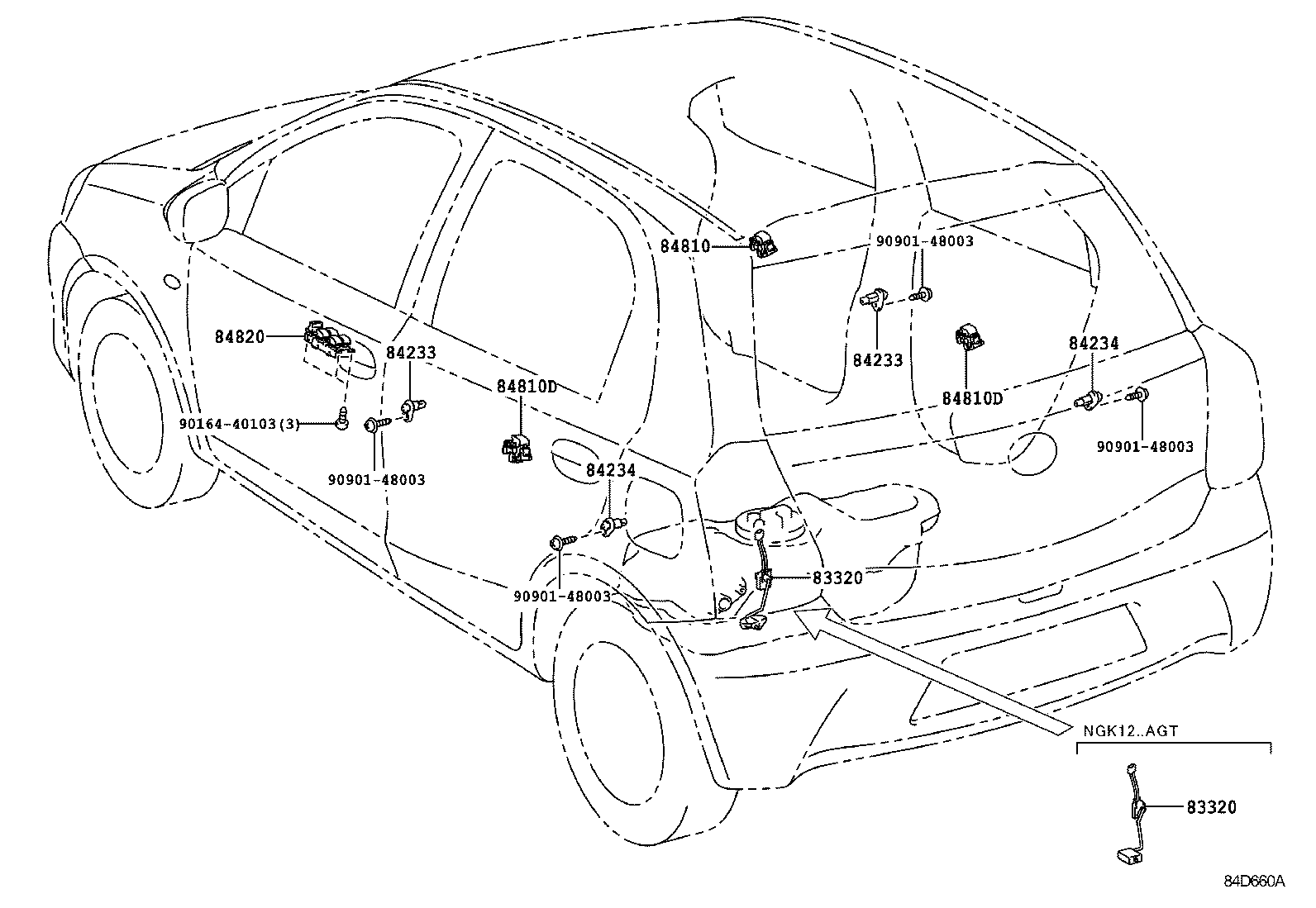

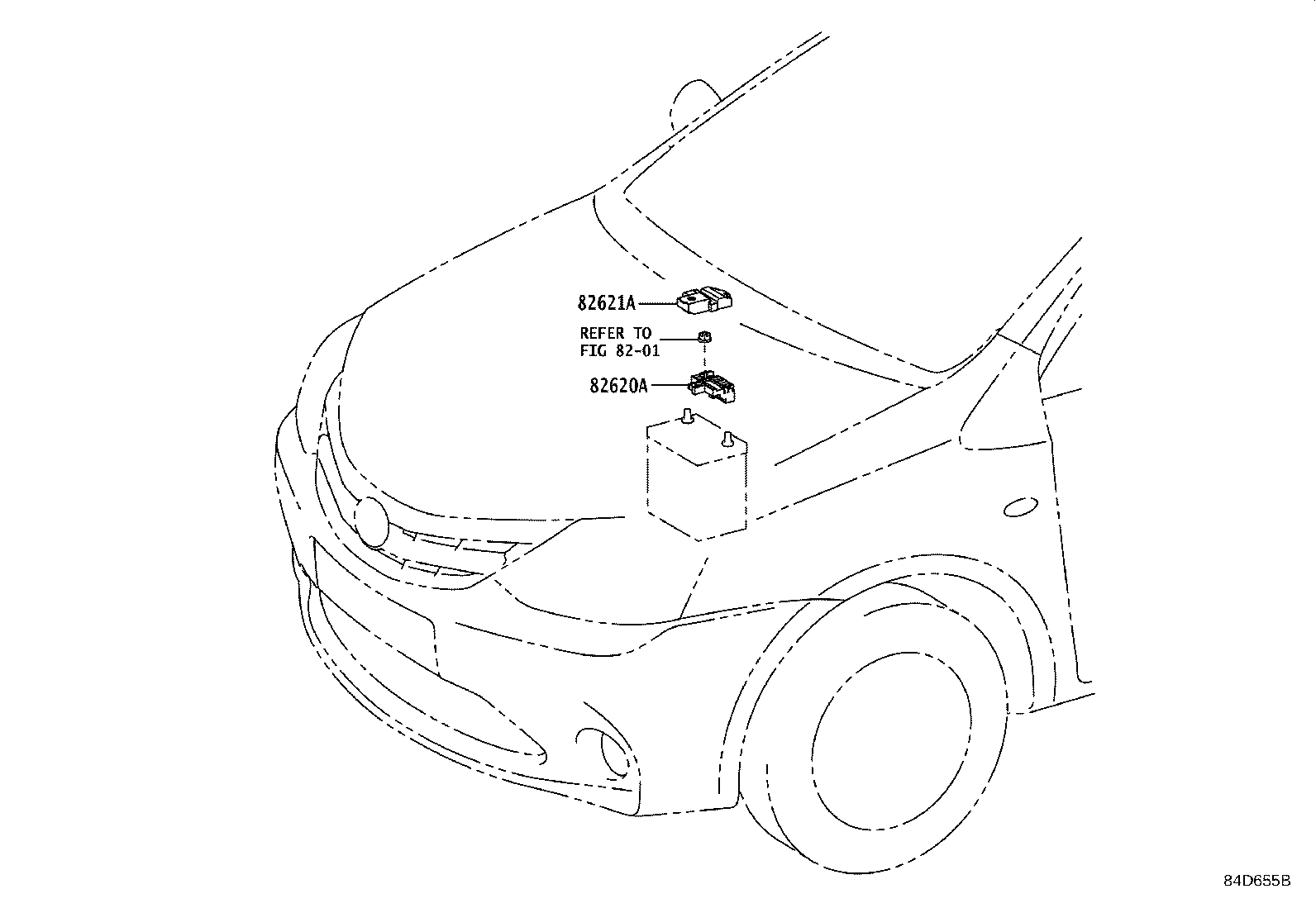

Figure 84D654A 84D654A 2012-09 → 2016-04 Figure 84H109D 84H109D 2016-04 → — Figure 84D655B 84D655B 2012-09 → 2016-04 Figure 84H107A 84H107A 2016-04 → — Figure 84L150 84L150 2012-09 → 2016-04 Figure 84L151 84L151 2016-04 → — Figure 84D656B 84D656B 2012-09 → 2016-04 Figure 84H110A 84H110A 2016-04 → — Figure 84D658C 84D658C 2012-09 → — Figure 84D659D 84D659D 2012-09 → 2016-04 Figure 84H108 84H108 2016-04 → — Figure 84D660A 84D660A 2012-09 → — Figure 84D661A 84D661A 2012-09 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28551 Controller, Glow Plug
28559 Bracket, Glow Plug Controller, NO.1
28559A Bracket, Glow Plug Controller, NO.2
28610 Relay Assy, Intake Heater OR Glow Plug
82210N Instrument Panel Fusible Link
82210P Engine Room Fusible Link
82600D Instrument Panel Fuse
82600E Engine Room Fuse
82610A Block Assy, Fuse
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82621A Cover, Fusible Link
82660B Block Assy, Relay
82660C Block Assy, Relay
82660D Block Assy, Relay
82660E Block Assy, Relay
82660F Block Assy, Relay
82660G Block Assy, Relay
82660H Block Assy, Relay
82662A Cover, Relay Block, Upper, NO.1
82663 Cover, Relay Block, Lower
82741 Block, Engine Room Relay
83320 Gage Assy, Fuel Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84210 Switch Assy, Back-up Lamp
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84235 Switch Assy, Courtesy Lamp(FOR BACK DOOR)
84247A Switch, Steering Pad, LH
84250A Switch Assy, Steering Pad
84306 Cable Sub-assy, Spiral
84310 Switch Assy, Turn Signal
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84450 Switch Assy, Ignition OR Starter
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84790 Switch Assy, Rear Window Defogger
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84820 Master Switch Assy, Power Window Regulator
84870A Switch Assy, Outer Mirror
84930 Switch Assy, Door Control
84988L Switch, Vsc Off
85432 Solenoid, Key Interlock
85530E Socket Assy, Power Outlet, NO.3
85535E Cover, Power Outlet Socket, NO.2
85912 Relay, Defogger
85913A Relay, Heater Control
85916D Relay, Fog Lamp
85927 Relay, Cooling Fan
85927A Relay, Cooling Fan, NO.2
85928B Resistor, Cooling Fan
85930G Relay, Acc
85934 Relay, Magnet-clutch
85980 Relay Assy, Door Control
85980L Relay Assy, Back Door Control
88280A Switch Assy, Clutch
89413A Sensor, Transmission Revolution
89421B Sensor, Vacuum
89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89467B Sensor, Air Fuel Ratio
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
