Factory parts data · Europe

Toyota Etios

2012-09 → present · chassis NGK1# · catalogue 137310 · General

Supported model Data version 2018-02

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Bag

5 part groups · 2 illustrations

Illustrations

Figure 84O713

84O713 2012-09 → 2016-04

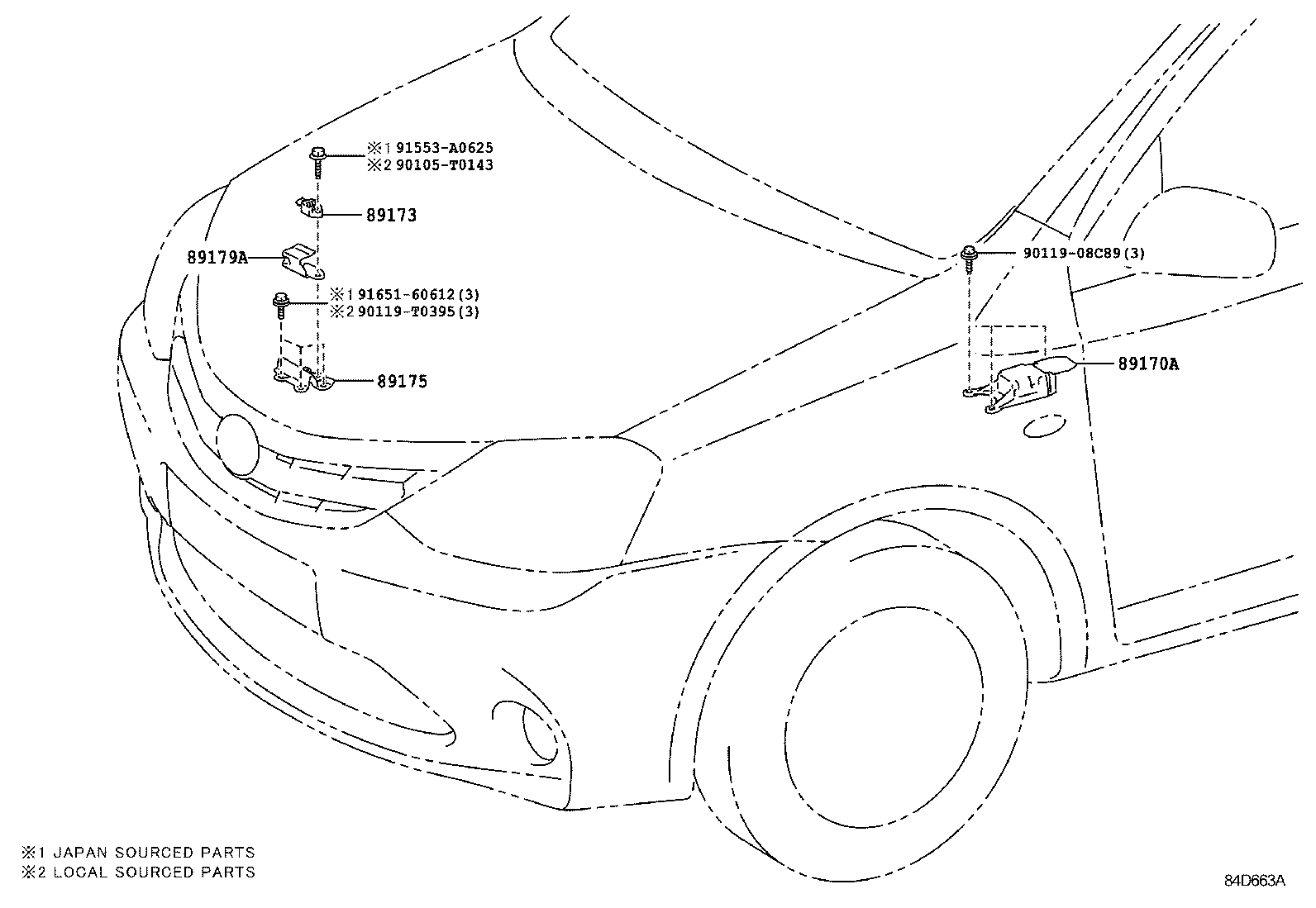

Figure 84D663A

84D663A 2016-04 → —

Part groups

PNC	Description
89170	Sensor Assy, Airbag
89170A	Computer Assy, Airbag
89173	Sensor, Airbag, Front
89175	Bracket, Airbag Sensor
89179A	Cover, Airbag Sensor

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
