Toyota Etios
2012-09 → present · chassis NGK1# · catalogue 137310 · General
Supported model
Data version 2018-02
Radio Receiver & Amplifier & Condenser

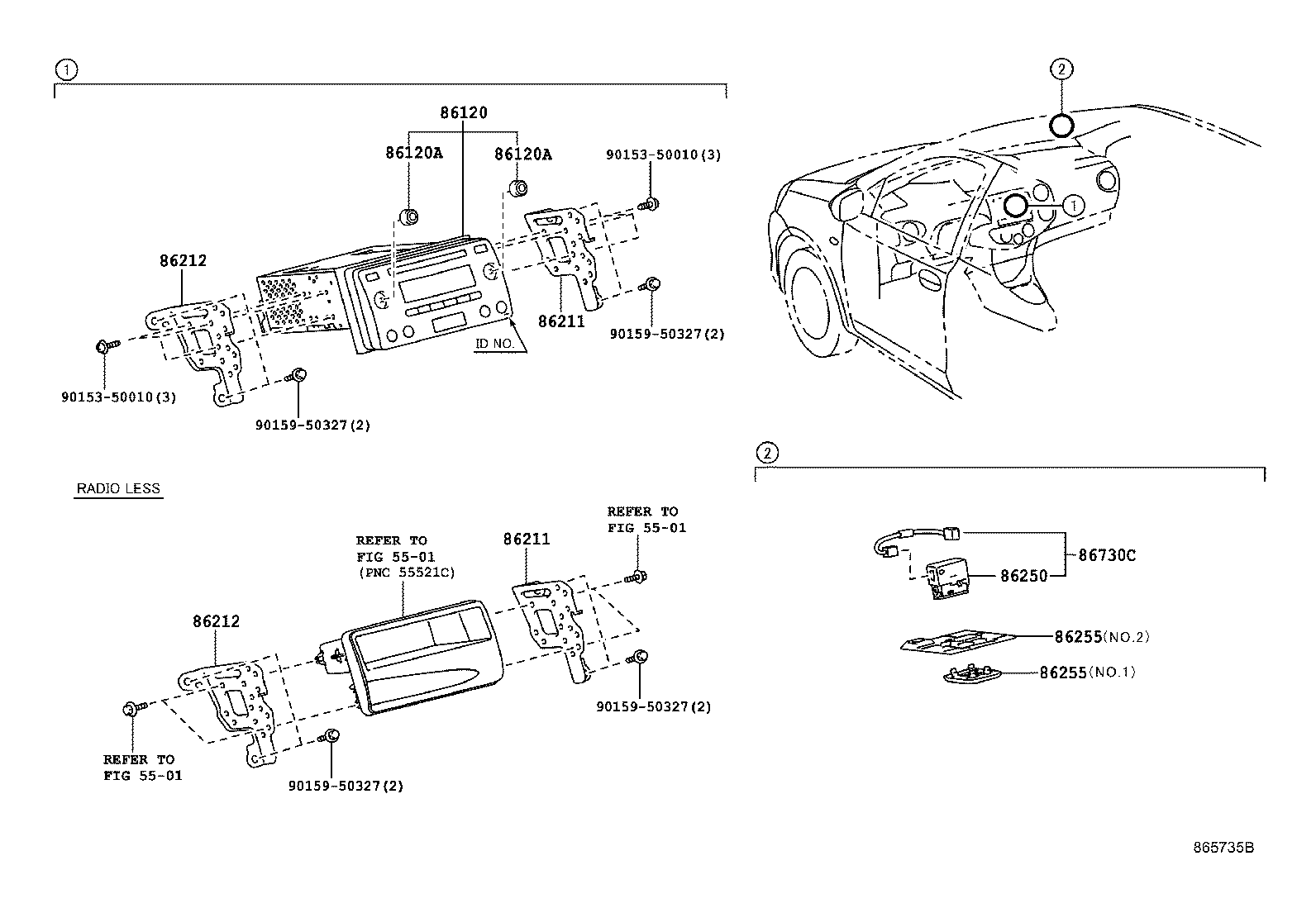

7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86120 | Receiver Assy, Radio |
| 86120A | Knob, Radio Receiver Switch |
| 86211 | Bracket, Radio, NO.1 |
| 86212 | Bracket, Radio, NO.2 |
| 86250 | Microphone Assy, Amplifier |
| 86255 | Case, Microphone |
| 86730C | Microphone Assy, Telephone |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
