Toyota Etios

2012-09 → present · chassis NGK1# · catalogue 137310 · General

Supported model Data version 2018-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

17 part groups · 8 illustrations

Illustrations

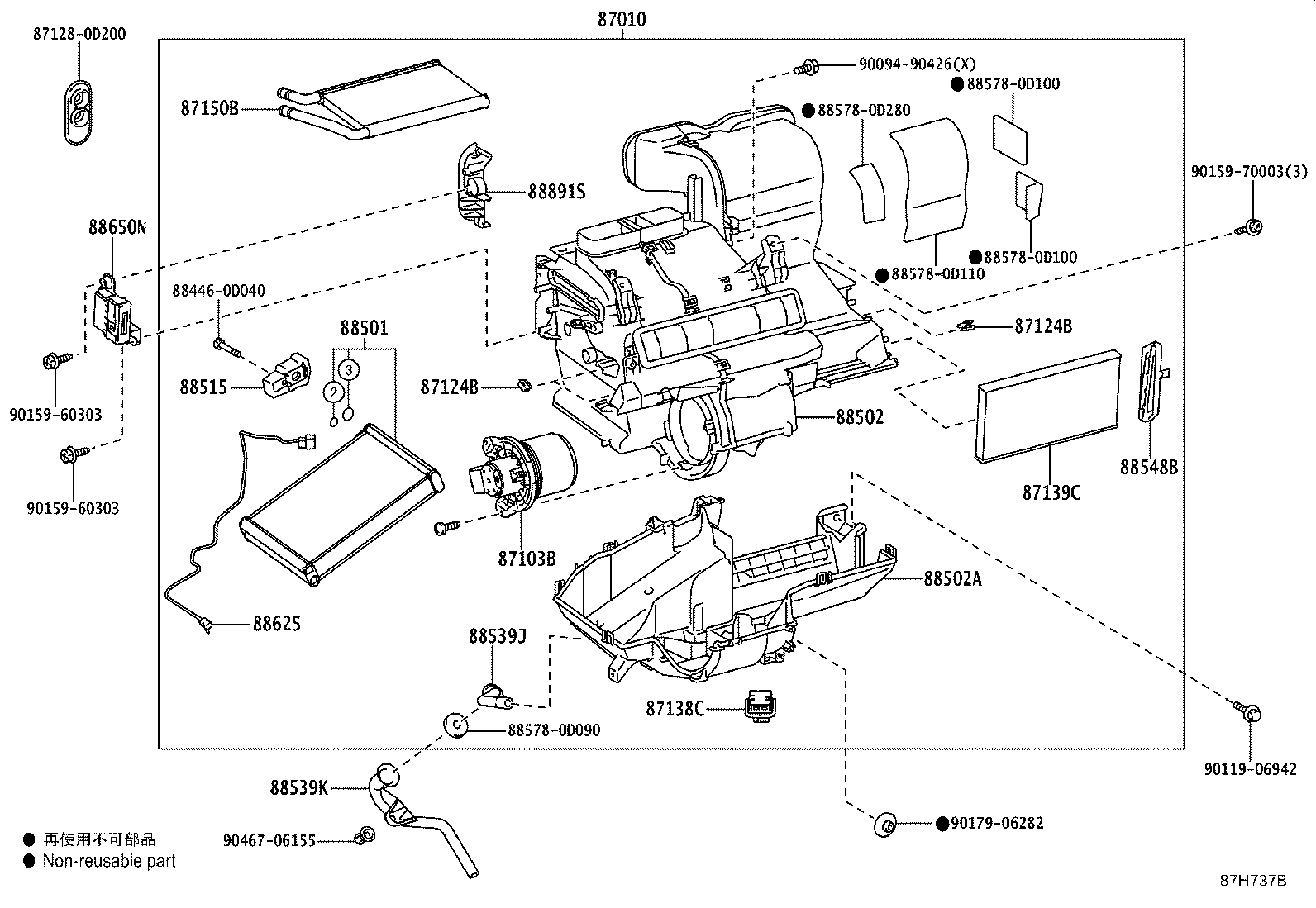

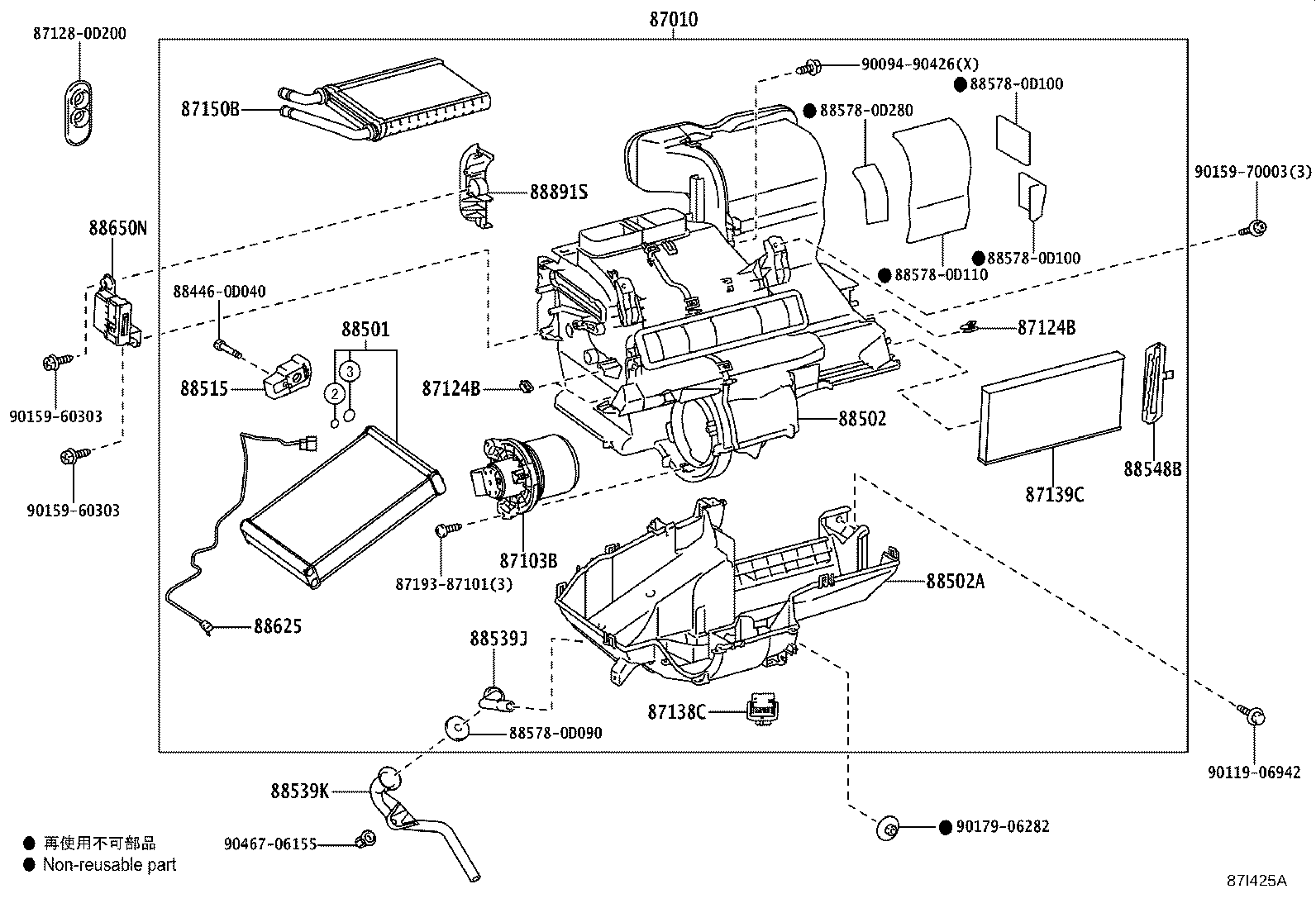

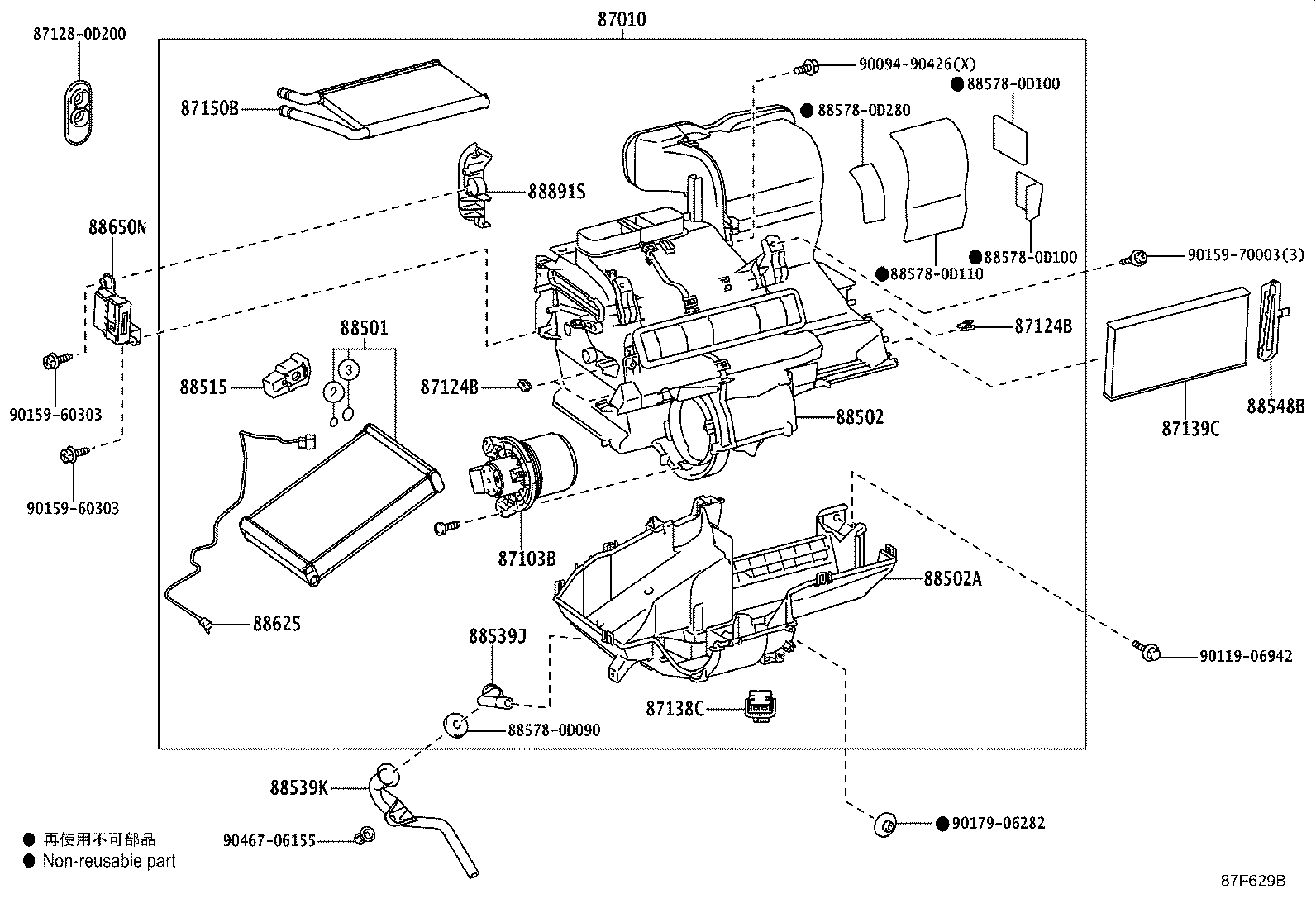

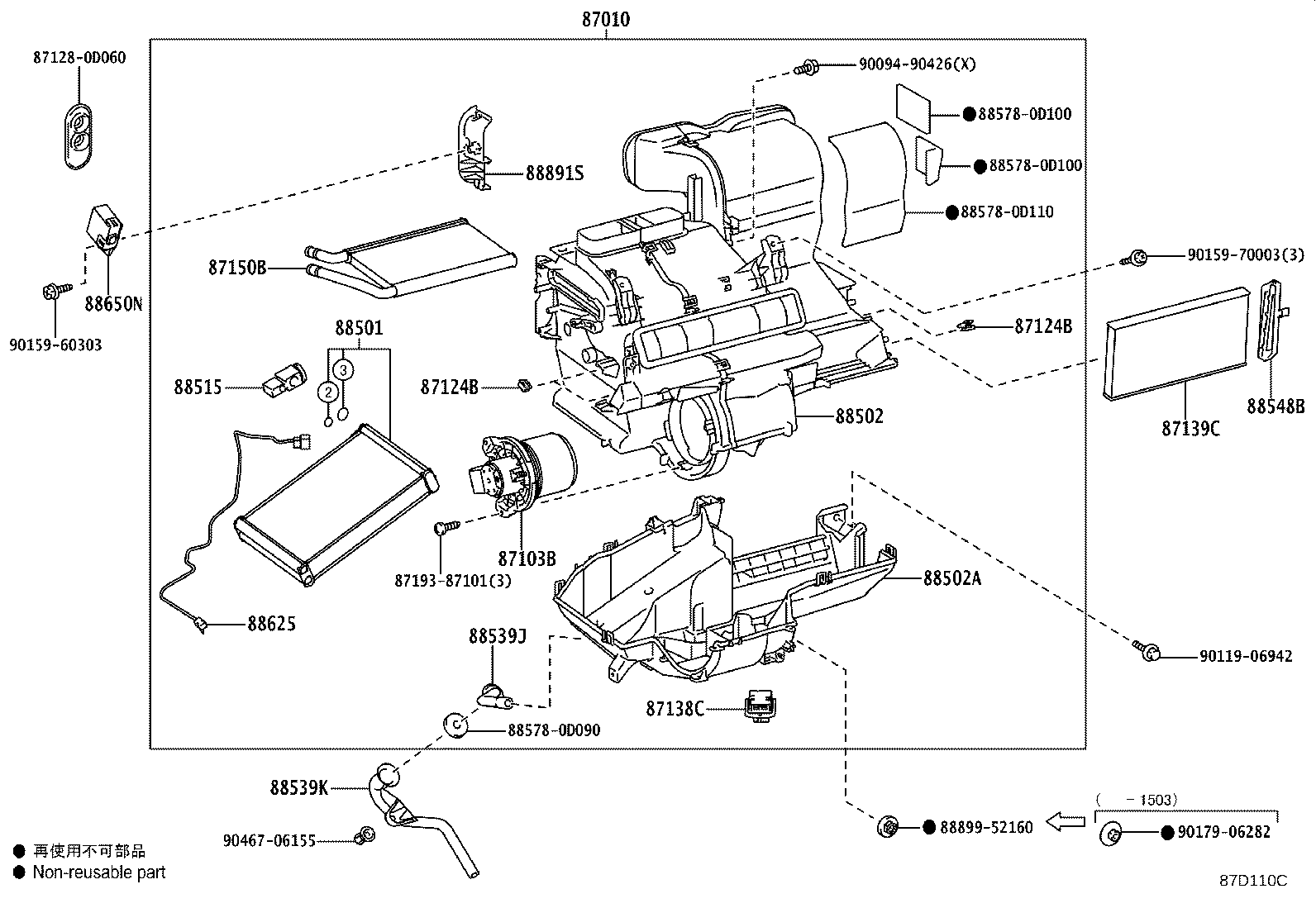

Figure 87D109C 87D109C 2012-09 → — Figure 87D110C 87D110C 2012-09 → — Figure 87F629B 87F629B 2016-04 → 2019-02 Figure 87H737B 87H737B 2019-03 → 2019-07 Figure 87H737B 87H737B 2019-03 → — Figure 87I425A 87I425A 2019-07 → — Figure 87D111B 87D111B 2012-09 → — Figure 87D111B 87D111B 2016-04 → —

Part groups

PNCDescription
87010 Unit Assy, Air Conditioner
87103B Motor Sub-assy, Blower W/Fan
87124B Clamp, Heater
87138C Resistor, Blower
87139C Filter, Clean Air
87150B Radiator Assy, Heater
87174G Guide, Air Heater
88501 Evaporator Sub-assy, Cooler, NO.1
88502 Case Sub-assy, Cooling Unit
88502A Case Sub-assy, Cooling Unit
88515 Valve, Cooler Expansion
88539J Hose, Drain Cooler
88539K Hose, Drain Cooler
88548B Case, Air Filter
88625 Thermistor, Cooler, NO.1
88650N Amplifier Assy, Air Conditioner
88891S Cover, Cooler, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
