Toyota Etios

2012-09 → present · chassis NGK1# · catalogue 137310 · General

Supported model Data version 2018-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

10 part groups · 4 illustrations

Illustrations

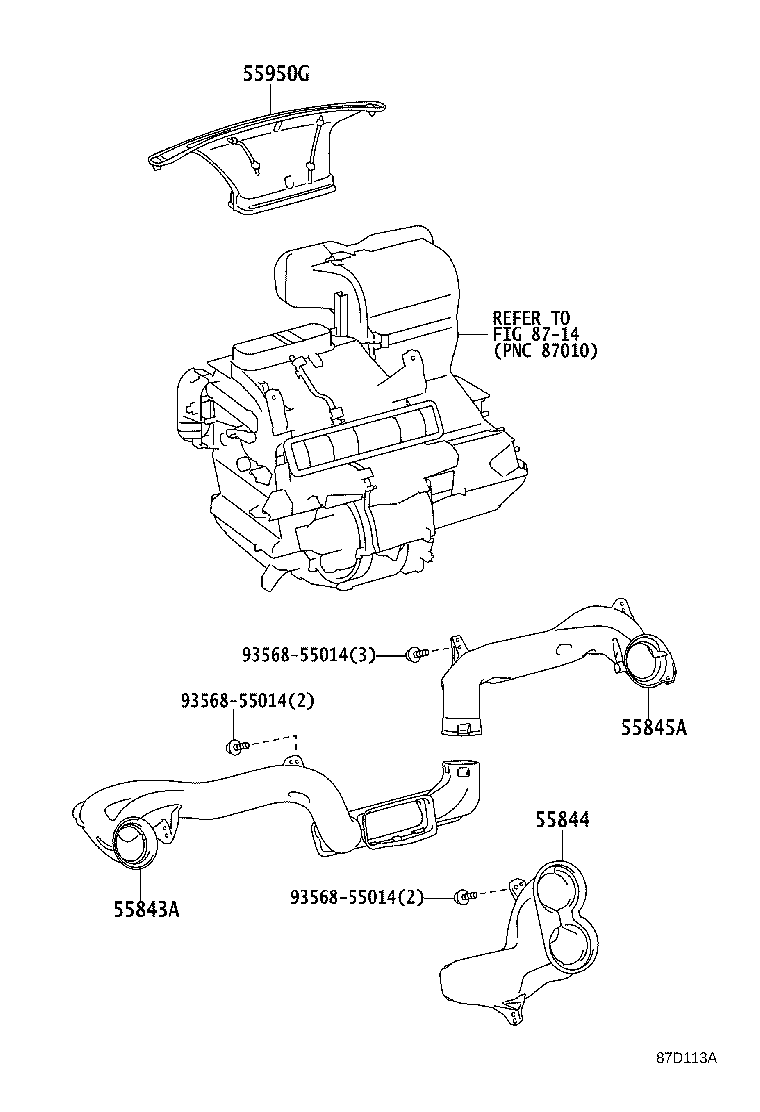

Figure 87D112B 87D112B 2012-09 → — Figure 87D112B 87D112B 2016-04 → — Figure 87D113A 87D113A 2012-09 → — Figure 87D113A 87D113A 2016-04 → —

Part groups

PNCDescription
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55900 Control Assy, Air Conditioner
55900B Bulb, Air Conditioner Control
55905D Knob Sub-assy, Control
55906 Cable Sub-assy, Heater Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909C Cable Sub-assy, Airmix Damper Control
55950G Nozzle Assy, Defroster
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
