Toyota Etios

2012-09 → present · chassis NGK1# · catalogue 137310 · General

Supported model Data version 2018-02

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

5 part groups · 3 illustrations

Illustrations

Figure 87D114A

87D114A 2012-09 → —

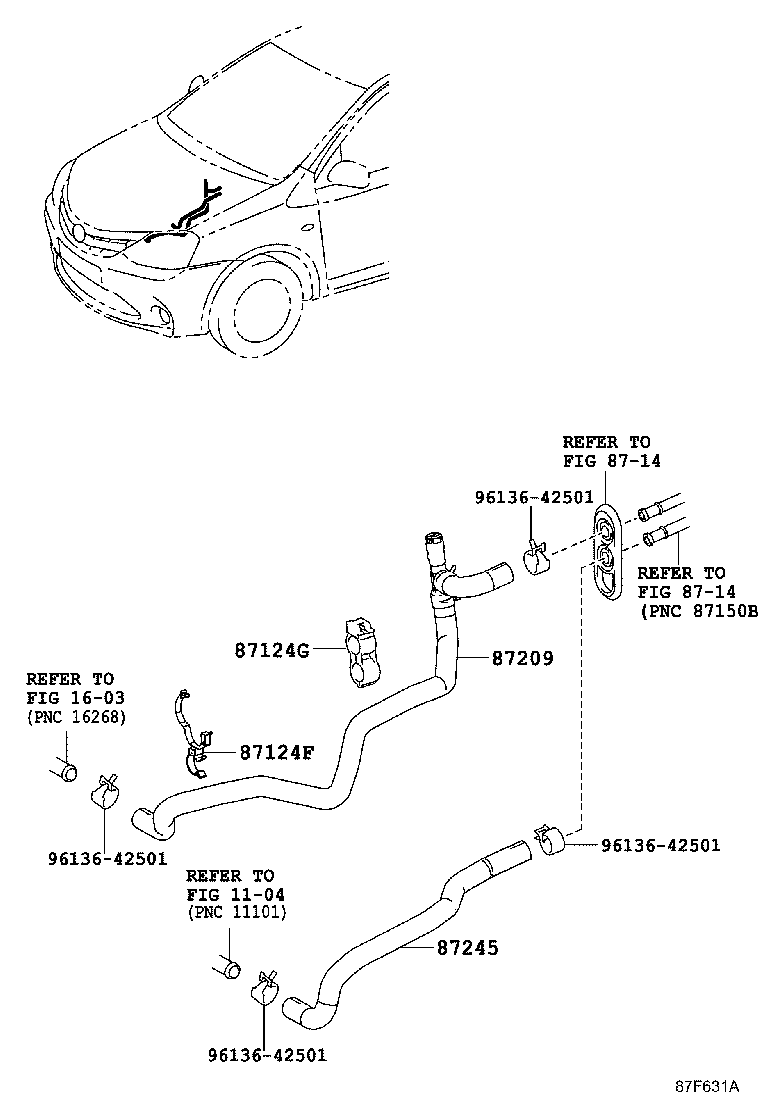

Figure 87F631A

87F631A 2016-04 → —

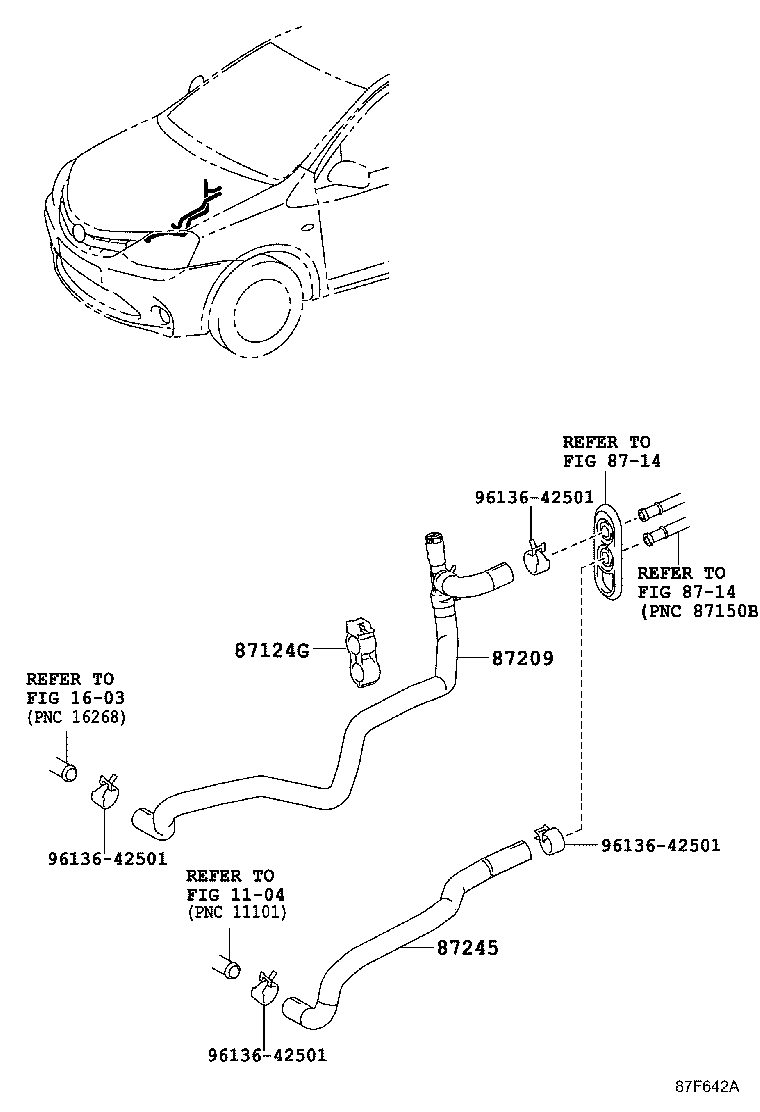

Figure 87F642A

87F642A 2016-04 → —

Part groups

PNC	Description
87121F	Bracket, Heater
87124F	Clamp, Heater Hose, NO.1
87124G	Clamp, Heater Hose, NO.2
87209	Hose Sub-assy, Water
87245	Hose, Heater Water, Inlet

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
