Toyota Urban Cruiser
2020-12 → present · chassis K15BR-HS###N · catalogue 138310 · General
Supported model
Data version 2020-12

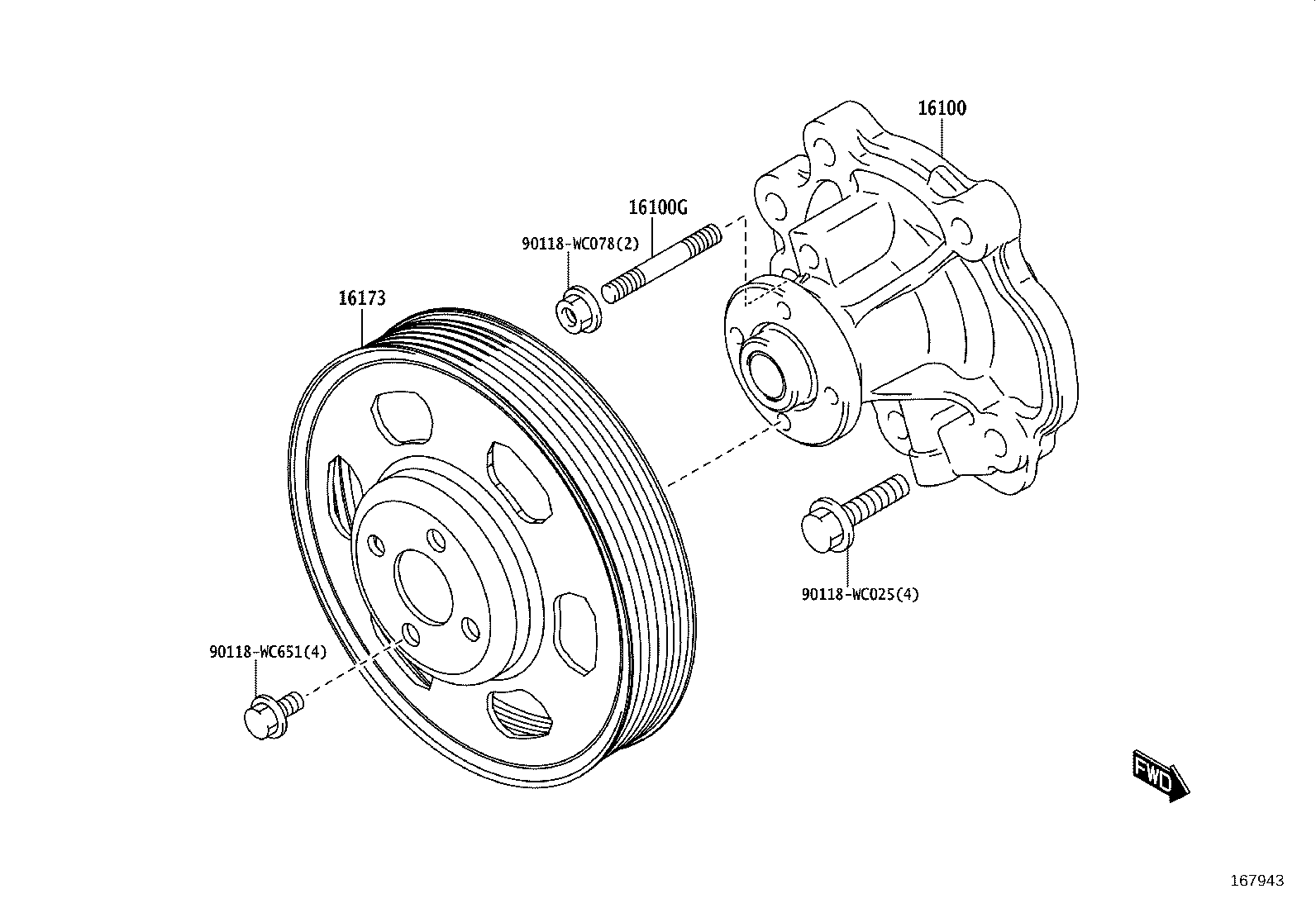

Water Pump
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 16100 | Pump Assy, Engine Water |
| 16100G | Bolt, Stud(FOR WATER PUMP SET) |
| 16173 | Pulley, Water Pump |
| 16603 | Pulley Sub-assy, Idler, NO.1 |
| 16603M | Bolt(FOR IDLER PULLEY) |
| 16622 | Arm, V-ribbed Belt Tensioner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
