Brake Pedal & Bracket
11 part groups · 4 illustrations
Part groups

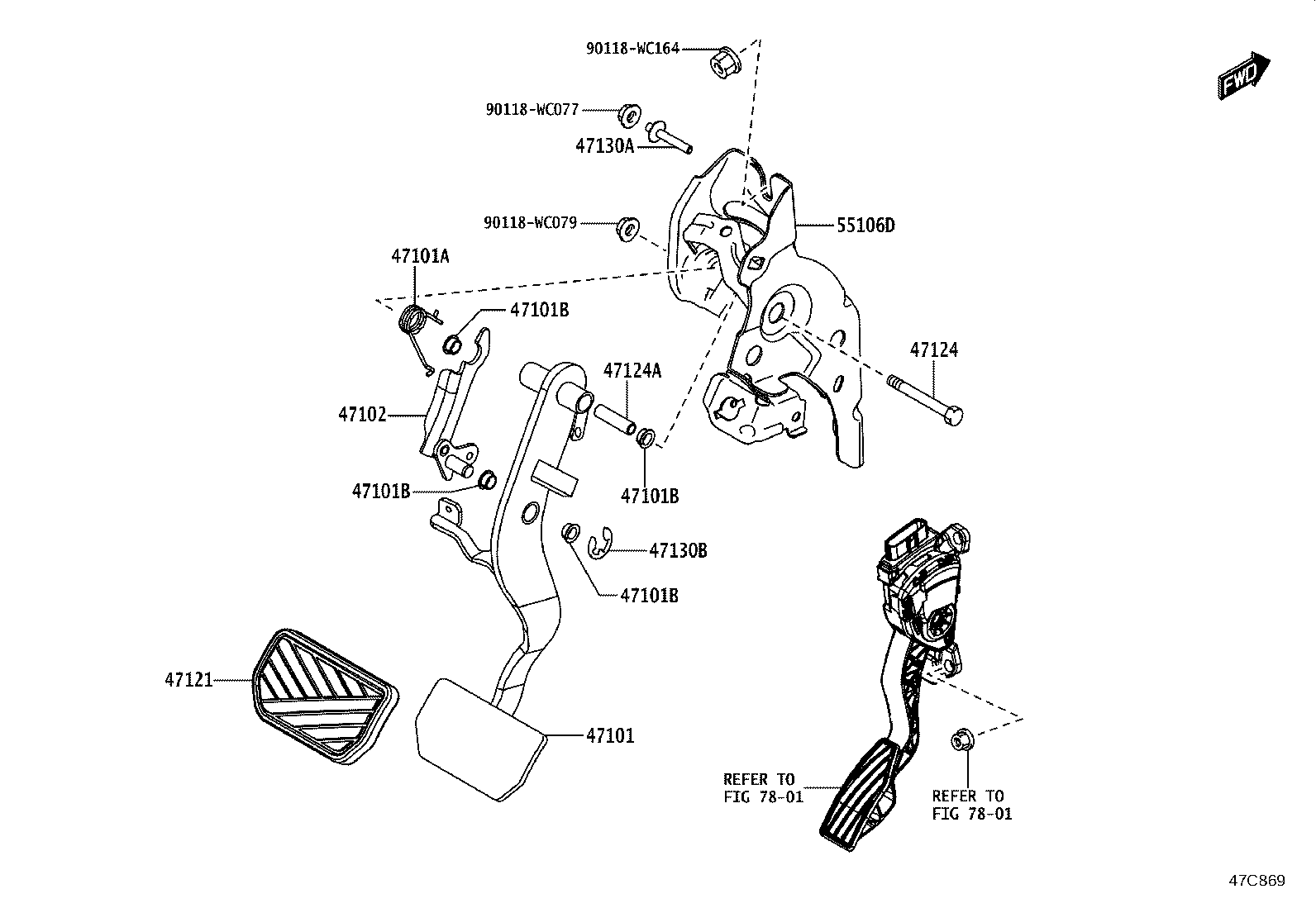

| PNC | Description |
|---|---|
| 47101 | Pedal Sub-assy, Brake |
| 47101A | Spring(FOR BRAKE PEDAL RETURN) |
| 47101B | Bush(FOR BRAKE PEDAL) |
| 47102 | Lever Sub-assy, Brake Pedal |
| 47121 | Pad, Brake Pedal |
| 47124 | Shaft, Brake Pedal |
| 47124A | Collar(FOR BRAKE PEDAL SHAFT) |
| 47130A | Pin, Brake Pedal Link |
| 47130B | Ring E, Brake Pedal Link Pin |

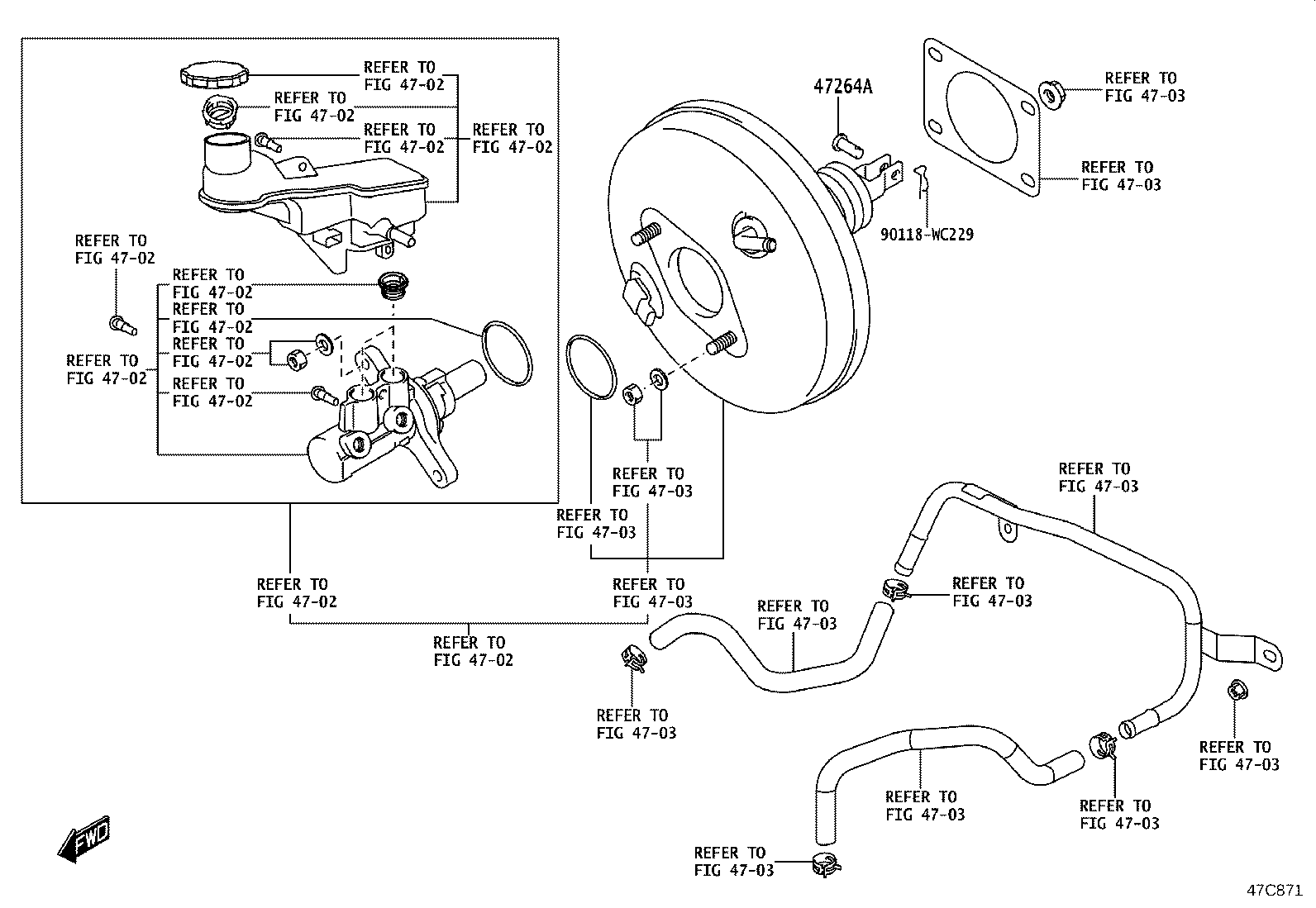

| 47264A | Pin(FOR PUSH ROD) |
| 55106D | Bracket Sub-assy, Pedal |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
