Toyota Urban Cruiser
2020-12 → present · chassis K15BR-HS###N · catalogue 138310 · General
Supported model
Data version 2020-12

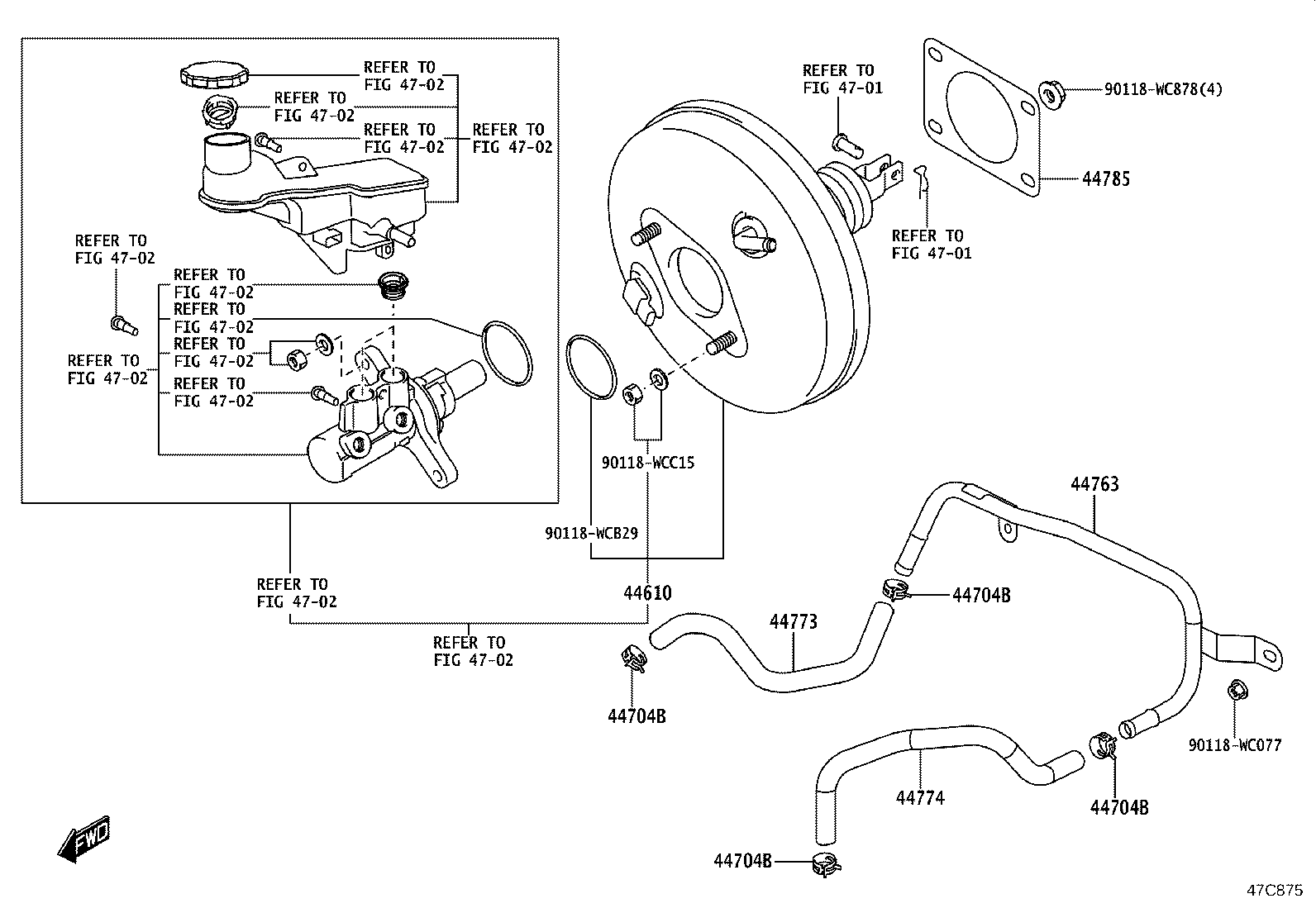

Brake Booster & Vacuum Tube
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 44610 | Booster Assy, Brake |
| 44704B | Clip(FOR HOSE) |
| 44763 | Tube, Booster Vacuum |
| 44773 | Hose, Vacuum, NO.2 |
| 44774 | Hose, Union TO Connector Tube |
| 44785 | Gasket, Brake Booster |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
