Toyota Urban Cruiser

2020-12 → present · chassis K15BR-HS###N · catalogue 138310 · General

Supported model Data version 2020-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

13 part groups · 2 illustrations

Illustrations

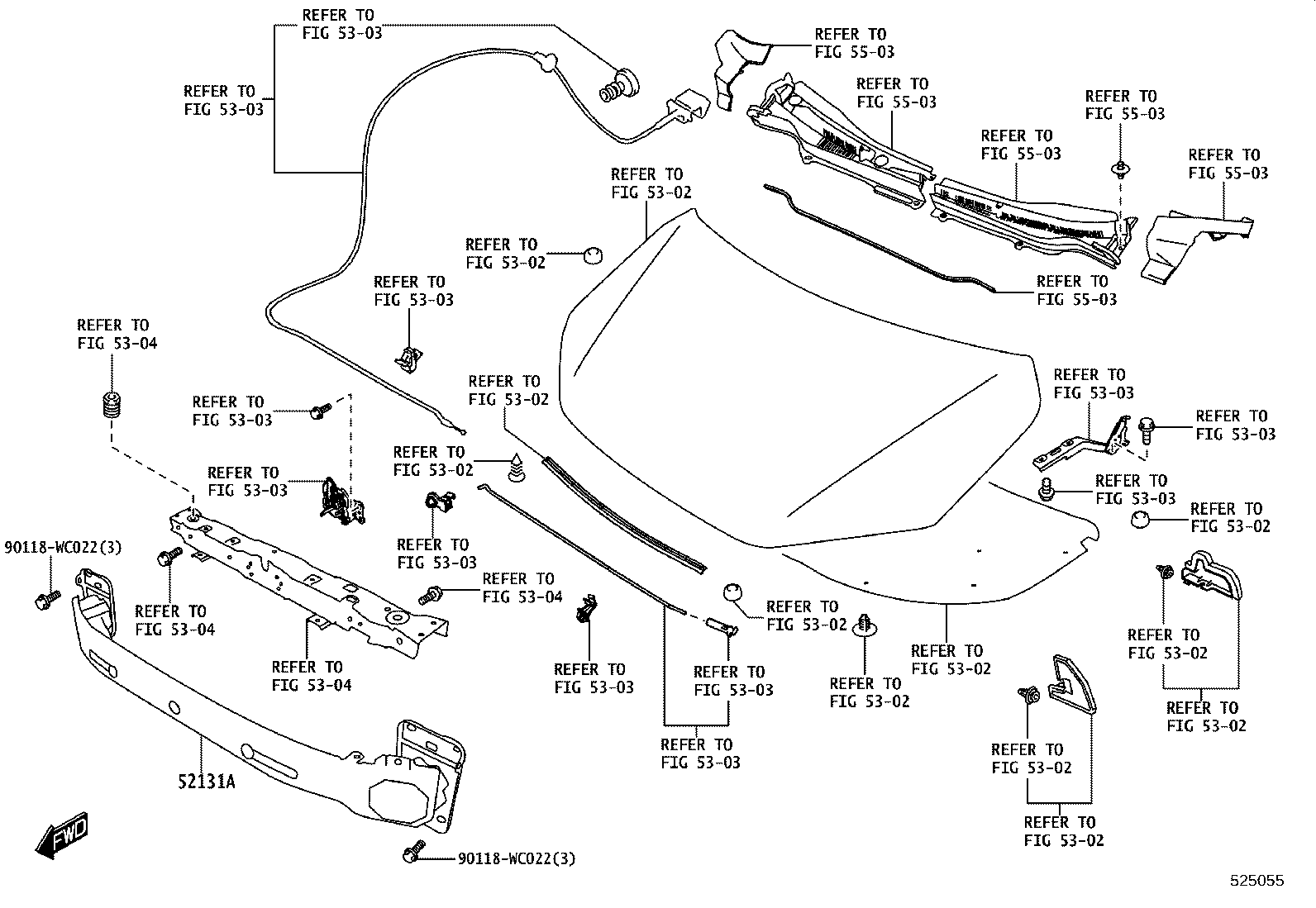

Figure 525054 525054 2020-12 → — Figure 525055 525055 2020-12 → —

Part groups

PNCDescription
52119A Cover, Front Bumper
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52129B Cover, Front Bumper, Lower
52131A Reinforcement, Front Bumper
52133 Reinforcement, Front Bumper
52143D Bracket, Front Bumper Side, RH
52144D Bracket, Front Bumper Side, LH
52149 Bracket, Front Bumper, Inner
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52537C Retainer, Front Bumper Side, NO.2 RH
52538C Retainer, Front Bumper Side, NO.2 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
