Toyota Urban Cruiser

2020-12 → present · chassis K15BR-HS###N · catalogue 138310 · General

Supported model Data version 2020-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

16 part groups · 3 illustrations

Illustrations

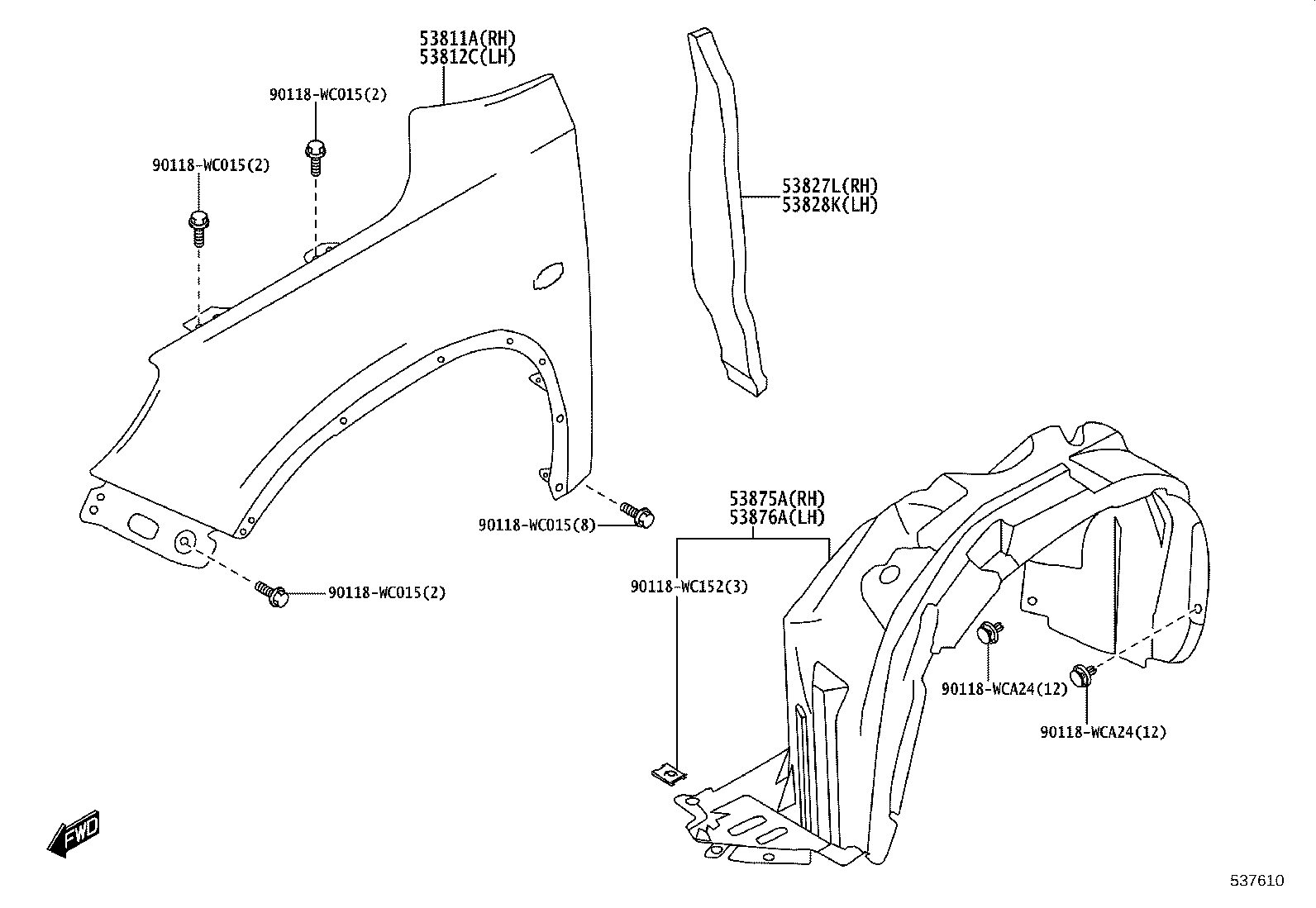

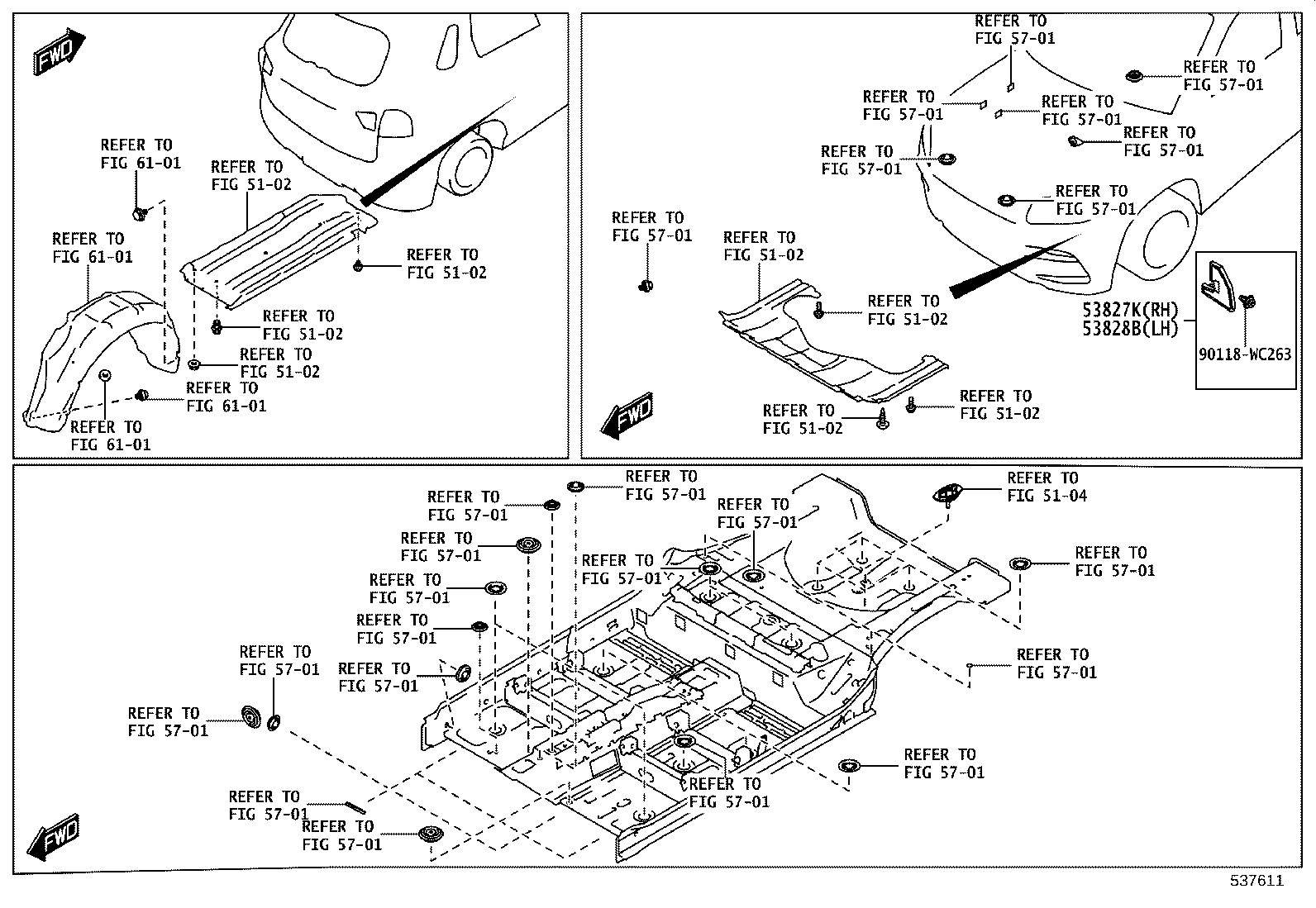

Figure 537609 537609 2020-12 → — Figure 537610 537610 2020-12 → — Figure 537611 537611 2020-12 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53301B Cushion, Hood Bumper
53341B Insulator, Hood
53381 Seal, Hood TO Radiator Support
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53388 Cushion, Hood, Rear
53388D Seal, Hood TO Front Fender, RH
53389B Seal, Hood TO Front Fender, LH
53811A Panel, Front Fender, RH
53812C Panel, Front Fender, LH
53827K Protector, Front Fender Side Panel, RH
53827L Protector, Front Fender Side Panel, RH
53828B Protector, Front Fender Side Panel, LH
53828K Protector, Front Fender Side Panel, LH
53875A Liner, Front Fender, RH
53876A Liner, Front Fender, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
