Toyota Urban Cruiser

2020-12 → present · chassis K15BR-HS###N · catalogue 138310 · General

Supported model Data version 2020-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Window Glass

9 part groups · 2 illustrations

Illustrations

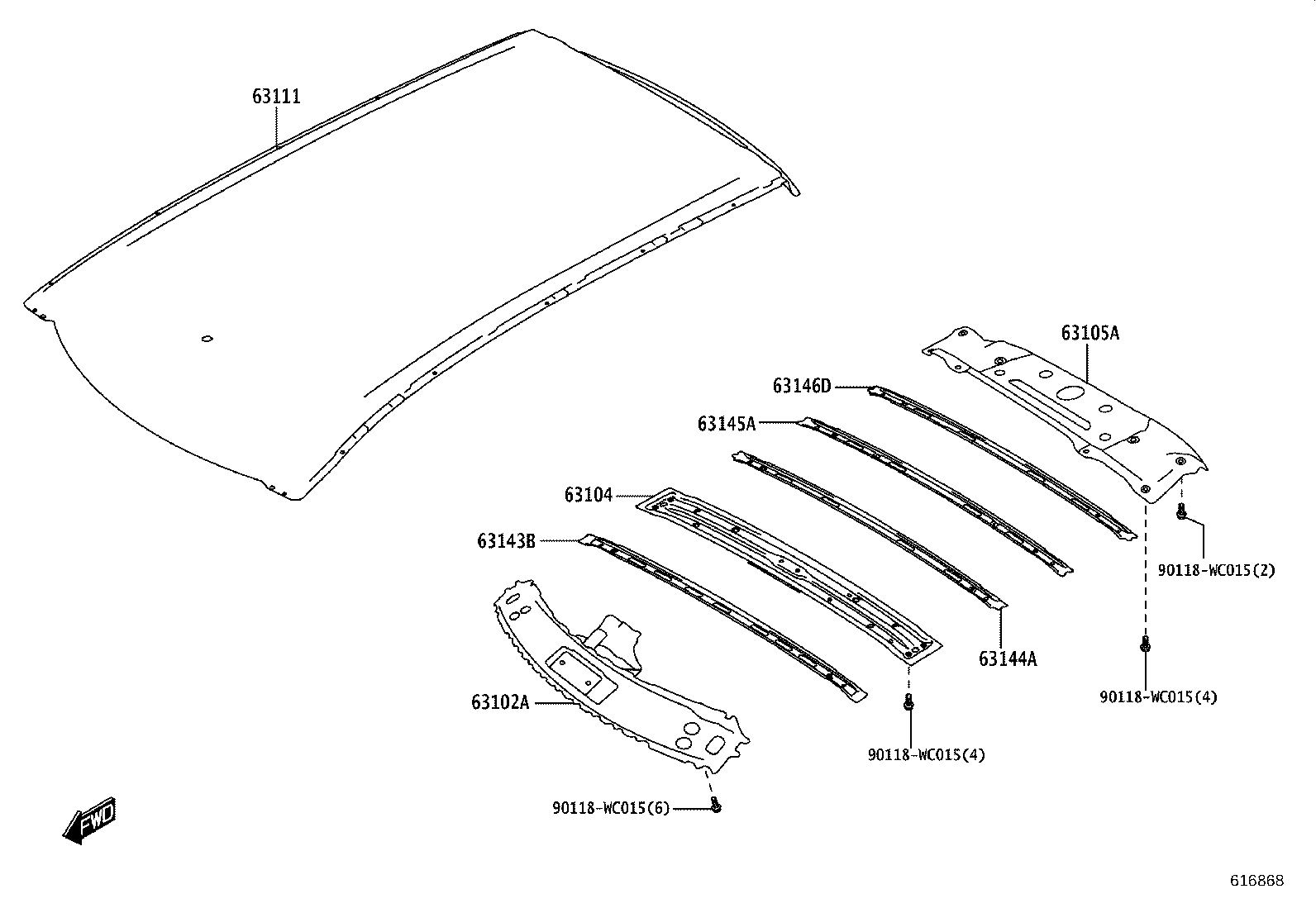

Figure 616867A 616867A 2020-12 → — Figure 616868 616868 2020-12 → —

Part groups

PNCDescription
63102A Panel Sub-assy, Windshield Header
63104 Reinforcement Sub-assy, Roof Panel, Center
63105A Frame Sub-assy, Back Door Opening
63111 Panel, Roof
63143B Reinforcement, Roof Panel, NO.3
63144A Reinforcement, Roof Panel, NO.4
63145A Reinforcement, Roof Panel, NO.5
63146D Reinforcement, Roof Panel, NO.6
63147 Bracket, Roof Panel Reinforcement
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
