Toyota Urban Cruiser
2020-12 → present · chassis K15BR-HS###N · catalogue 138310 · General
Supported model
Data version 2020-12

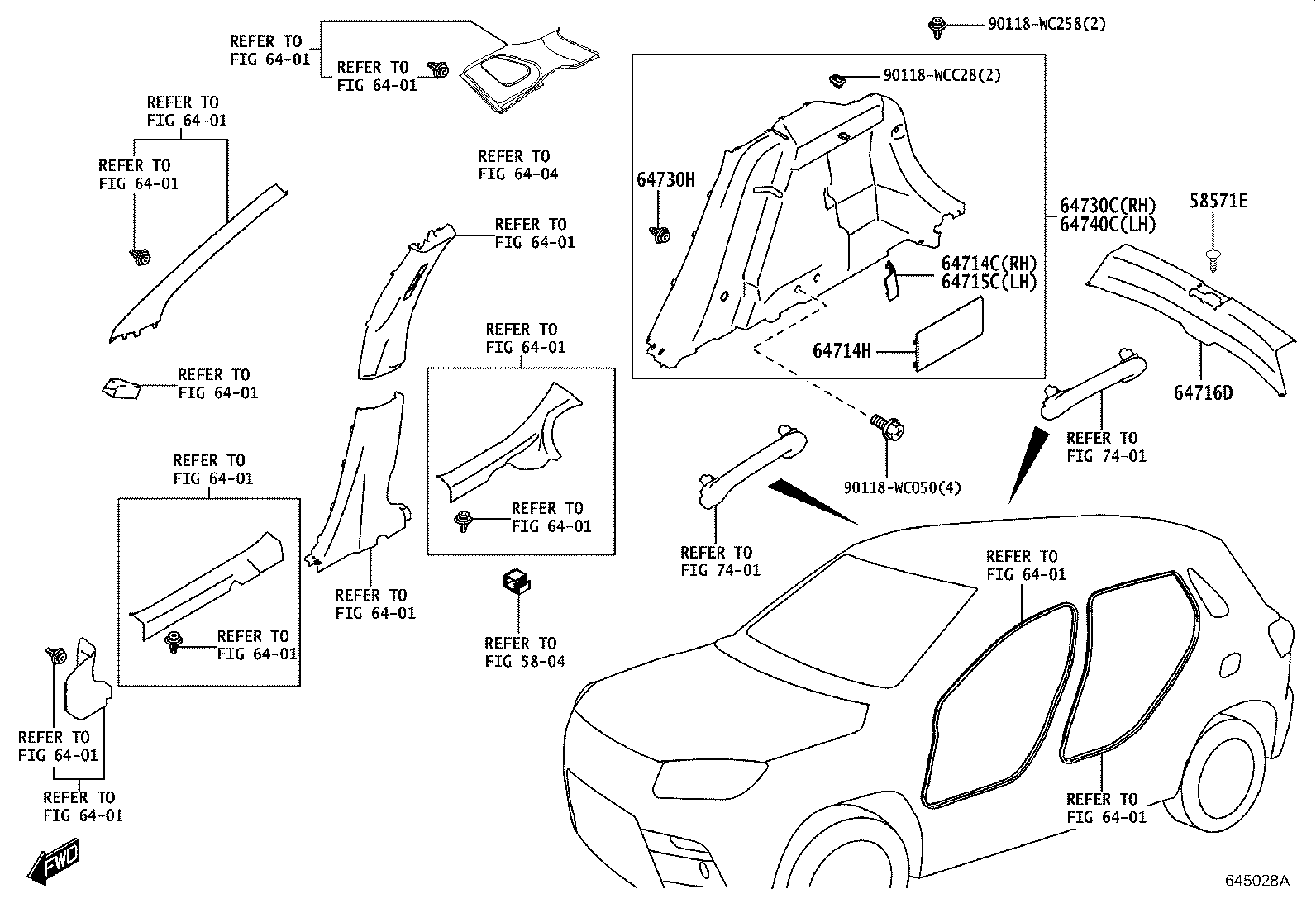

Deck Board & Deck Trim Cover
14 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

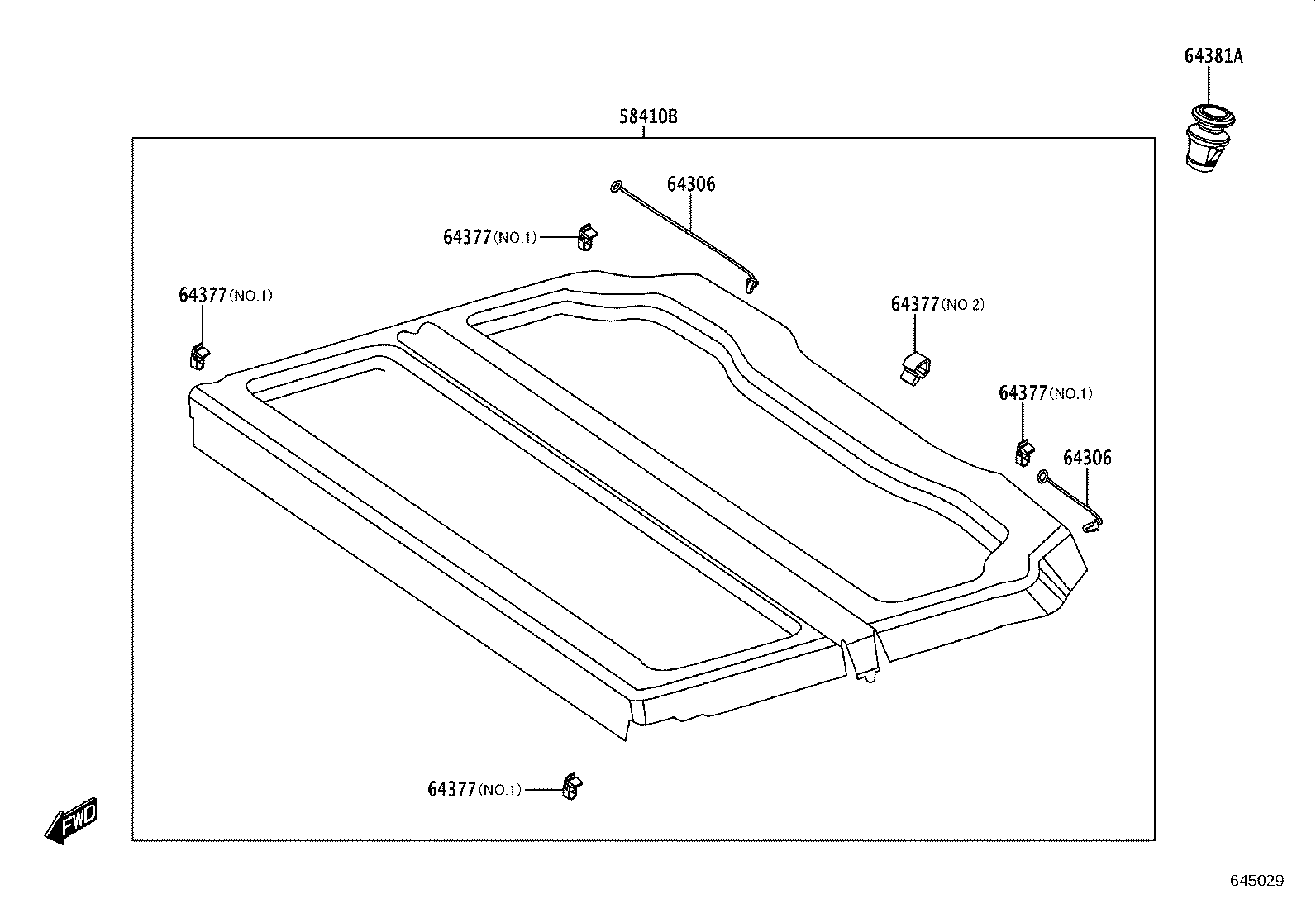

| 58410B | Board Assy, Deck |
| 58571E | Clip, Rear Floor Carpet |
| 64306 | Suspender Sub-assy, Package Tray Trim |
| 64377 | Cushion, Package Tray Trim |
| 64381A | Hanger, Package Tray Trim |
| 64714C | Cover, Deck Side Trim, RH |
| 64714H | Cover, Deck Side Trim, NO.1 |
| 64715C | Cover, Deck Side Trim, LH |
| 64716D | Cover, Deck Trim, Rear |
| 64730C | Board, Deck Trim Side, RH |
| 64730H | Clip(FOR DECK TRIM SIDE PANEL) |
| 64740C | Panel Assy, Deck Trim Side, LH |
| 64746A | Cover, Deck Trim Side Lamp Hole |

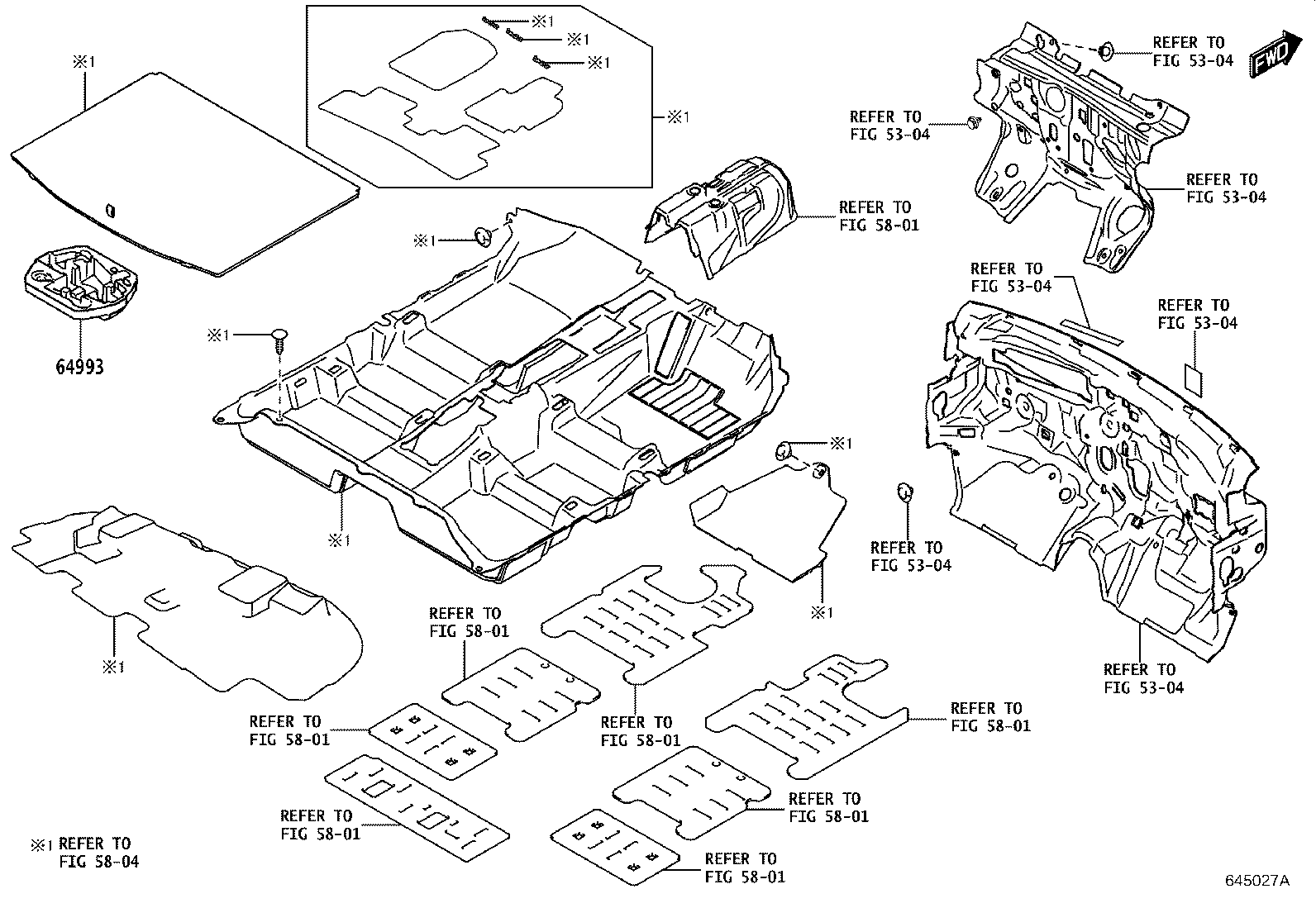

| 64993 | Box, Deck Floor, Rear |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
