Toyota Urban Cruiser

2020-12 → present · chassis K15BR-HS###N · catalogue 138310 · General

Supported model Data version 2020-12

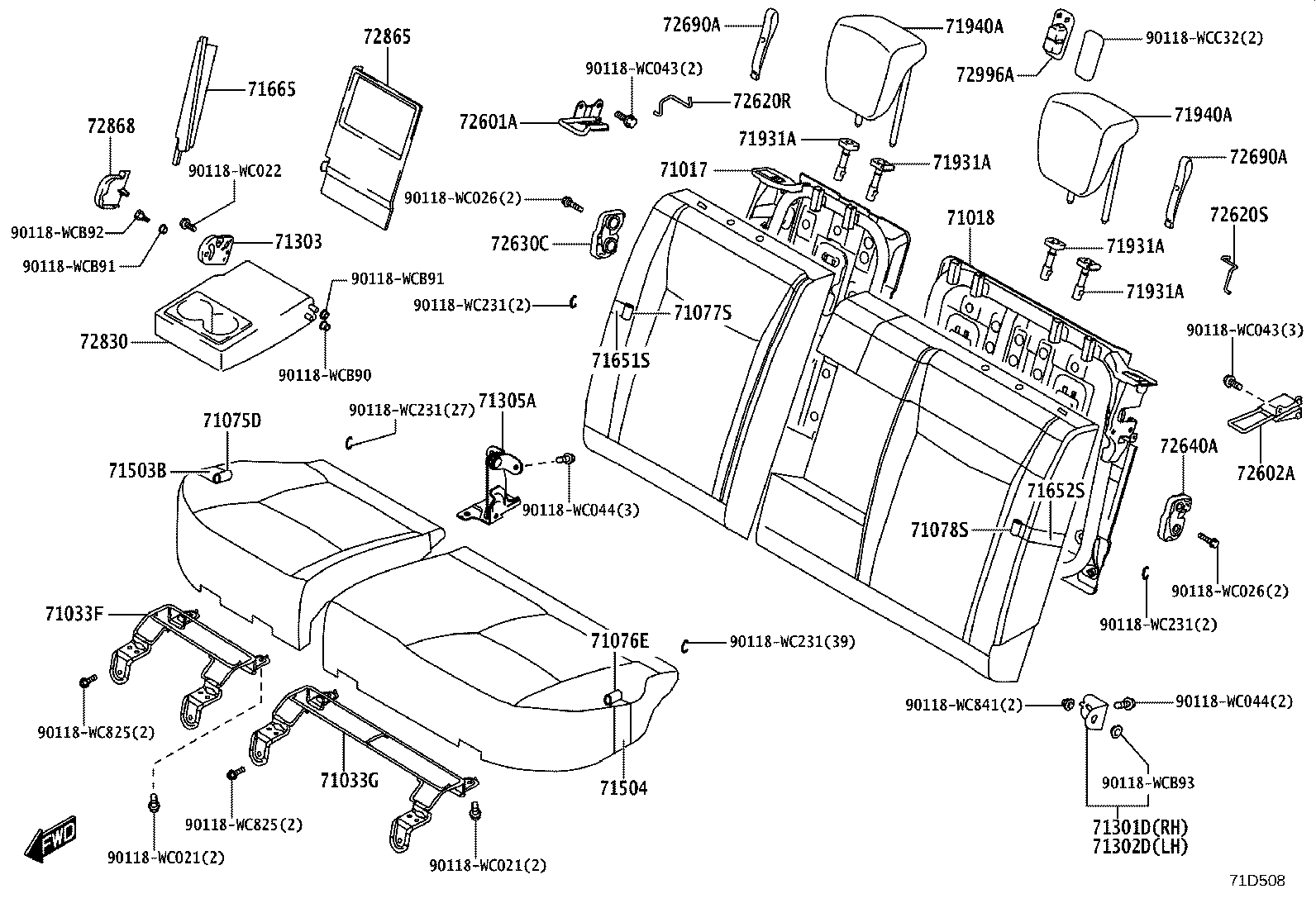

Rear Seat & Seat Track

36 part groups · 2 illustrations

PNC	Description
71017	Frame Sub-assy, Rear Seatback, RH
71017A	Frame Sub-assy, Rear Seatback
71018	Frame Sub-assy, Rear Seatback, LH
71033	Leg Sub-assy, Rear Seat Cushion
71033F	Leg Sub-assy, Rear Seat Cushion, RH
71033G	Leg Sub-assy, Rear Seat Cushion, LH
71075B	Cover, Rear Seat Cushion (FOR BENCH TYPE)
71075D	Cover Sub-assy, Rear Seat Cushion, RH
71076E	Cover Sub-assy, Rear Seat Cushion, LH
71077B	Cover, Rear Seatback (FOR BENCH TYPE)
71077S	Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S	Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71301D	Hinge Sub-assy, Rear Seat, RH
71302D	Hinge Sub-assy, Rear Seat, LH
71303	Hinge Sub-assy, Rear Seatback
71305A	Hinge Sub-assy, Rear Seatback, Center
71503A	Pad Sub-assy, Rear Seat Cushion
71503B	Pad Sub-assy, Rear Seat Cushion, RH
71504	Pad Sub-assy, Rear Seat Cushion, LH
71651B	Pad, Rear Seatback(FOR BENCH TYPE)
71651S	Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S	Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71665	Pad, Rear Seatback Side, RH
71931A	Support, Rear Seat Headrest
71940A	Headrest Assy, Rear Seat
72601A	Striker Sub-assy, Rear Seatback Look, RH
72602A	Striker Sub-assy, Rear Seatback Lock, LH
72620R	Cable Assy, Rear NO.1 Seat Lock(FOR RH SEAT)
72620S	Cable Assy, Rear NO.1 Seat Lock(FOR LH SEAT)
72630C	Lock Assy, Rear Seatback, RH
72640A	Lock Assy, Rear Seatback, LH
72690A	Strap Assy, Rear Seat Lock Release
72830	Armrest Assy, Rear Seat, Center
72865	Board, Center Armrest, NO.1
72868	Cover, Center Armrest Hinge, RH
72996A	Cover, Rear Seatback

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
