Toyota Urban Cruiser
2020-12 → present · chassis K15BR-HS###N · catalogue 138310 · General
Supported model
Data version 2020-12
Armrest & Visor
10 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|

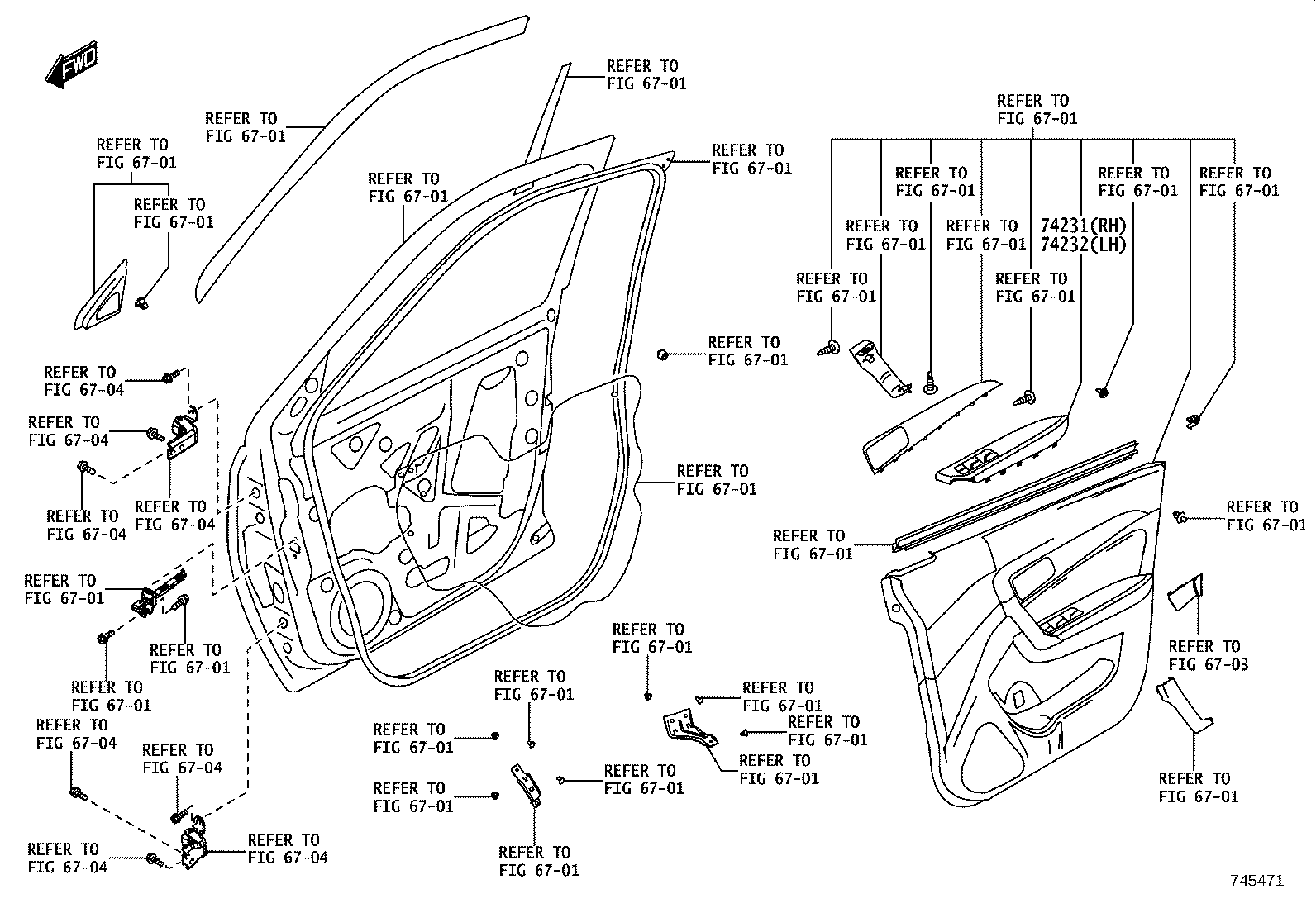

| 74231 | Panel, Front Armrest Base, Upper RH |
| 74232 | Panel, Front Armrest Base, Upper LH |

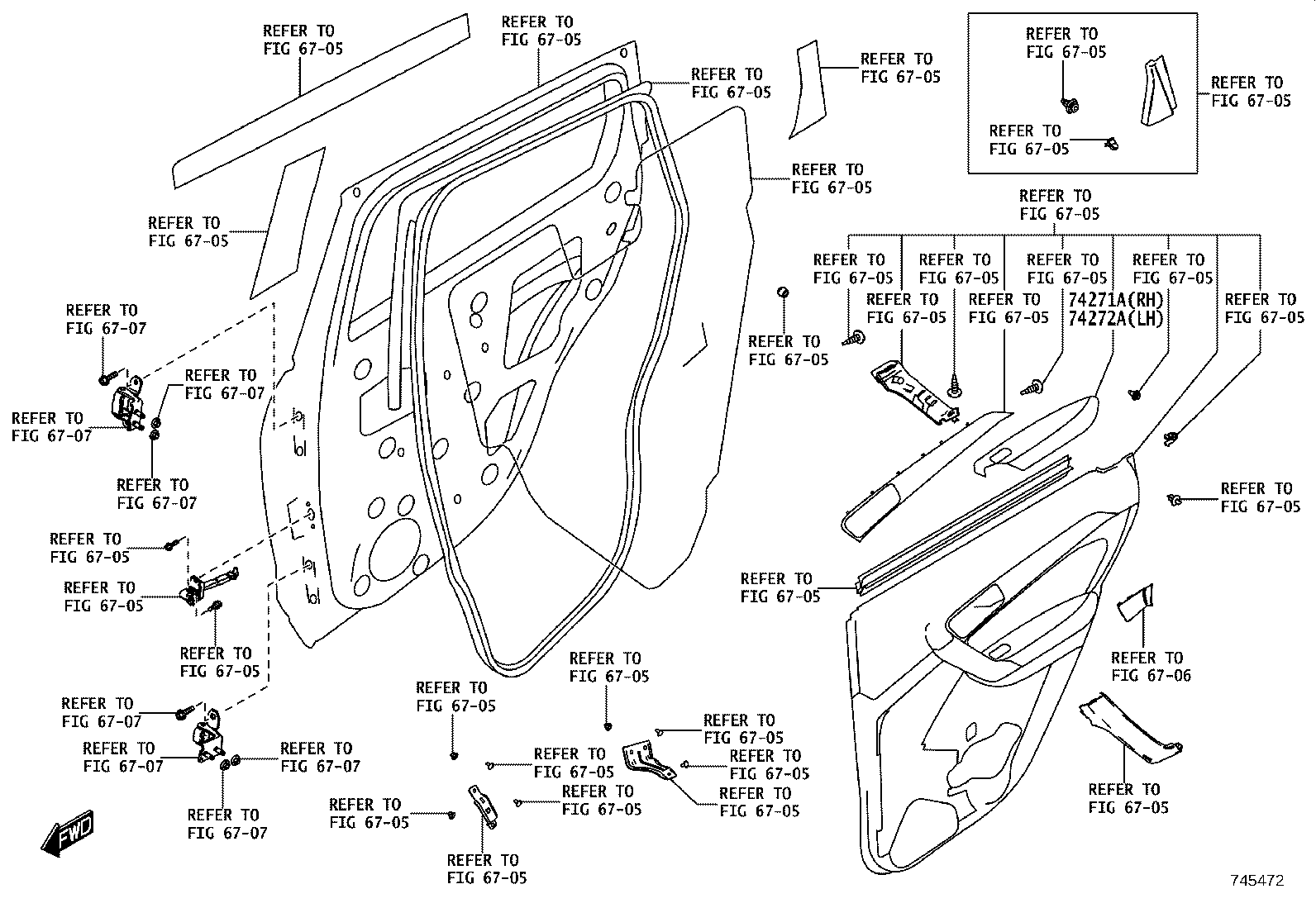

| 74271A | Panel, Rear Door Armrest Base, Upper RH |
| 74272A | Panel, Rear Door Armrest Base, Upper LH |

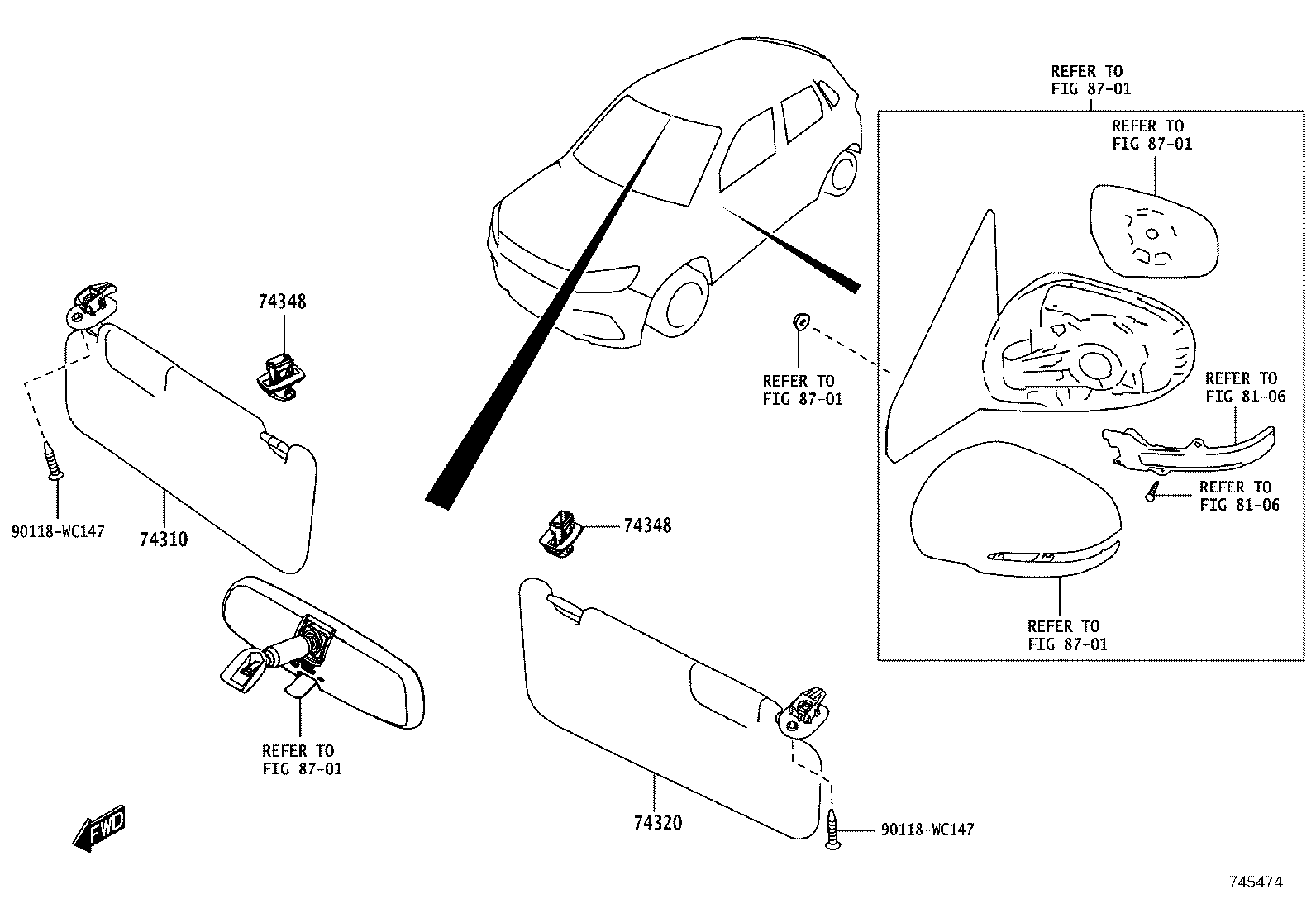

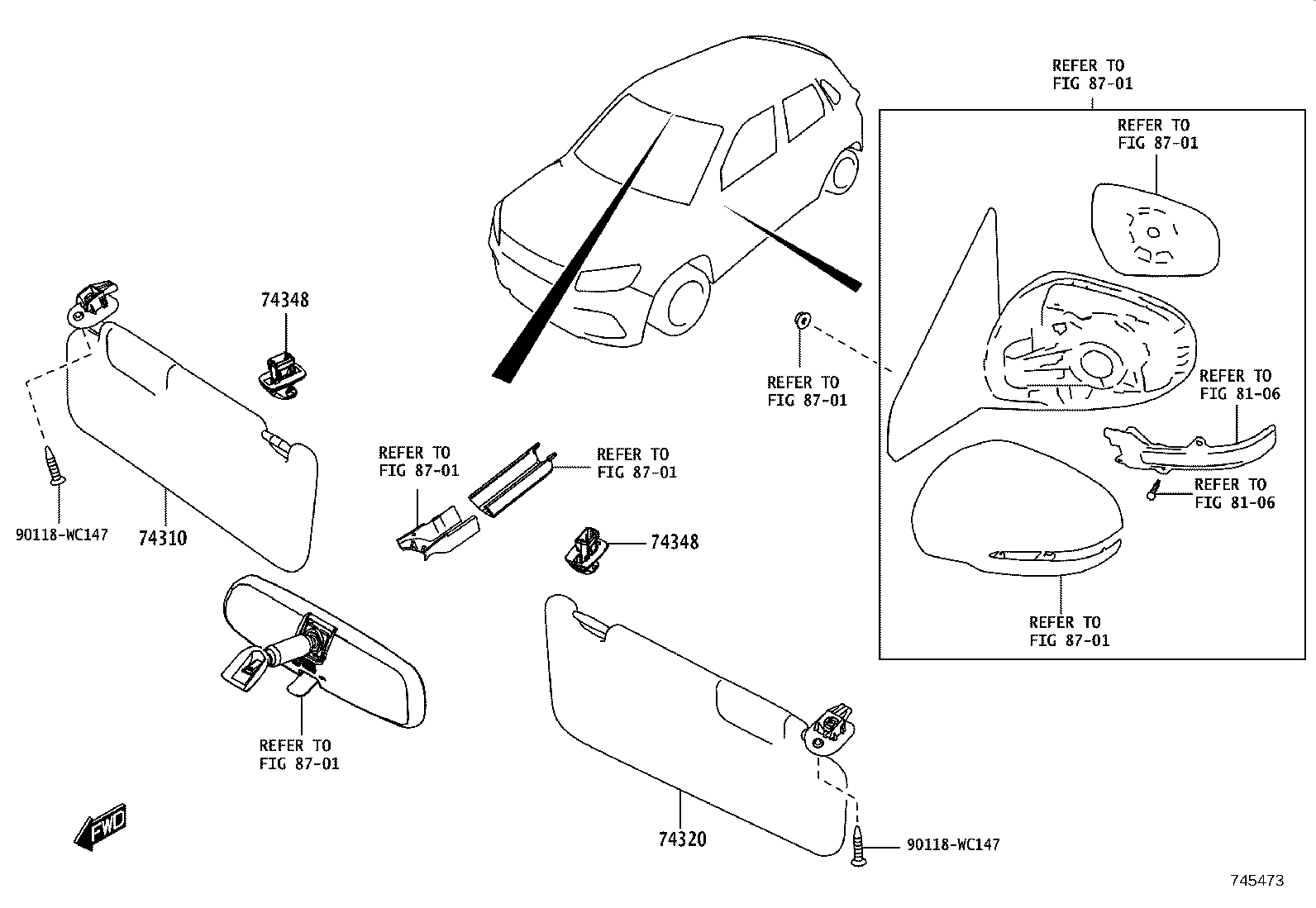

| 74310 | Visor Assy, RH |
| 74320 | Visor Assy, LH |
| 74348 | Holder, Visor |
| 74610A | Grip Sub-assy, Assist |
| 74620C | Grip Assy, Assist, Rear RH |
| 74630E | Grip Assy, Assist, Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
