Toyota Urban Cruiser
2020-12 → present · chassis K15BR-HS###N · catalogue 138310 · General
Supported model
Data version 2020-12
Caution Plate (EXTERIOR & INTERIOR)
7 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 16793B | Label, Cooling Fan Information |

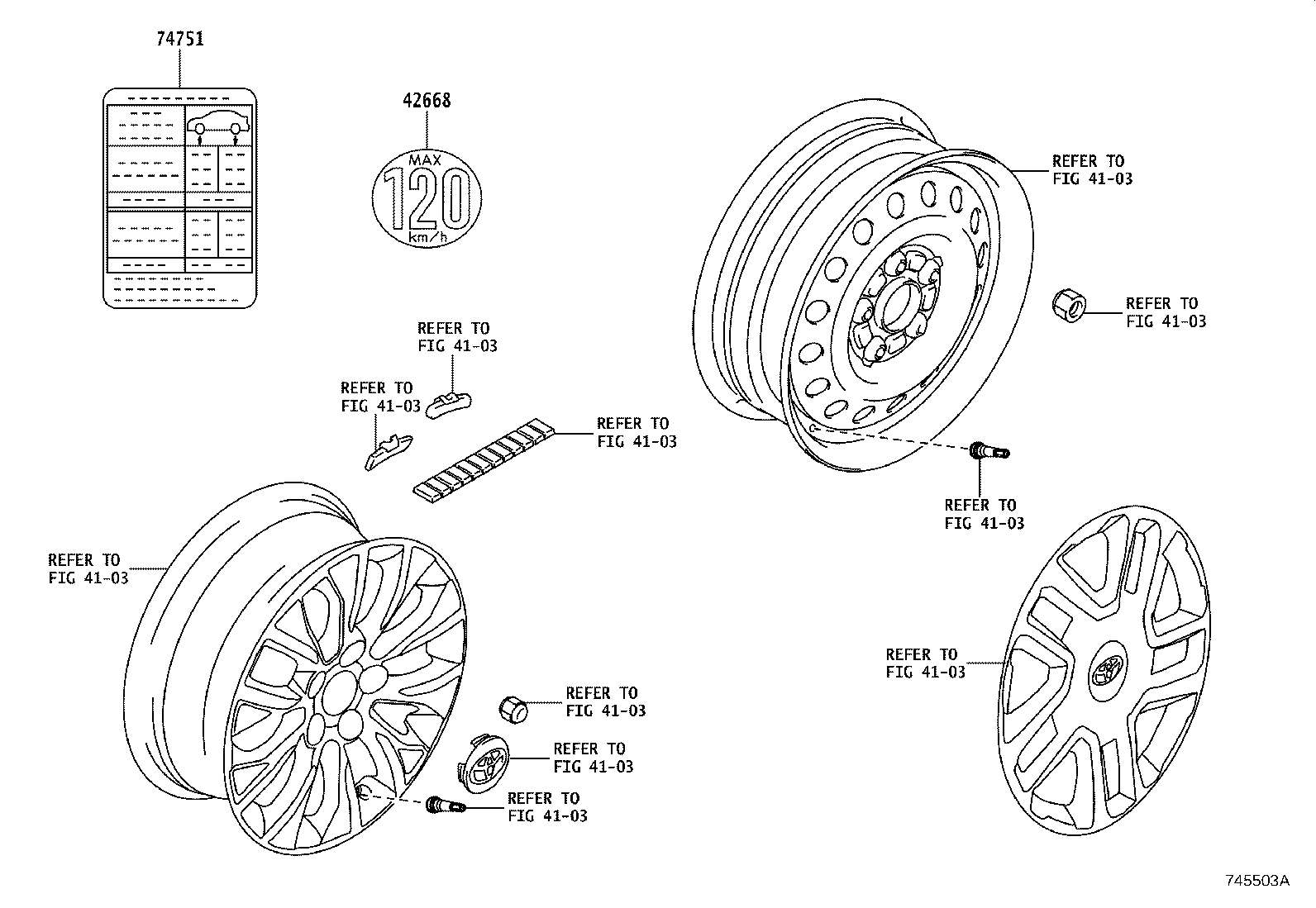

| 42668 | Label, Compact Spare Tire Caution |

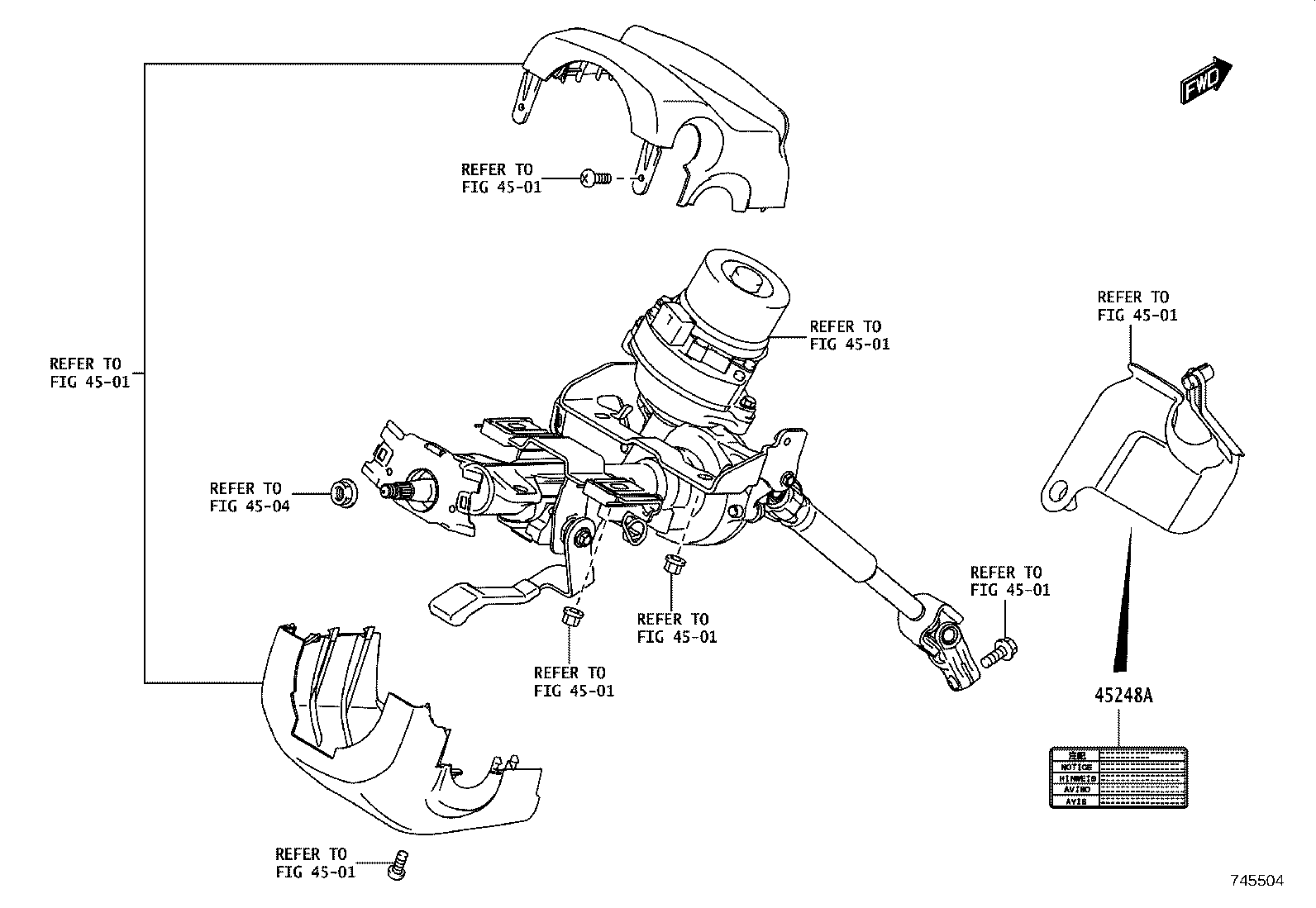

| 45248A | Label, Steering Actuator Caution |

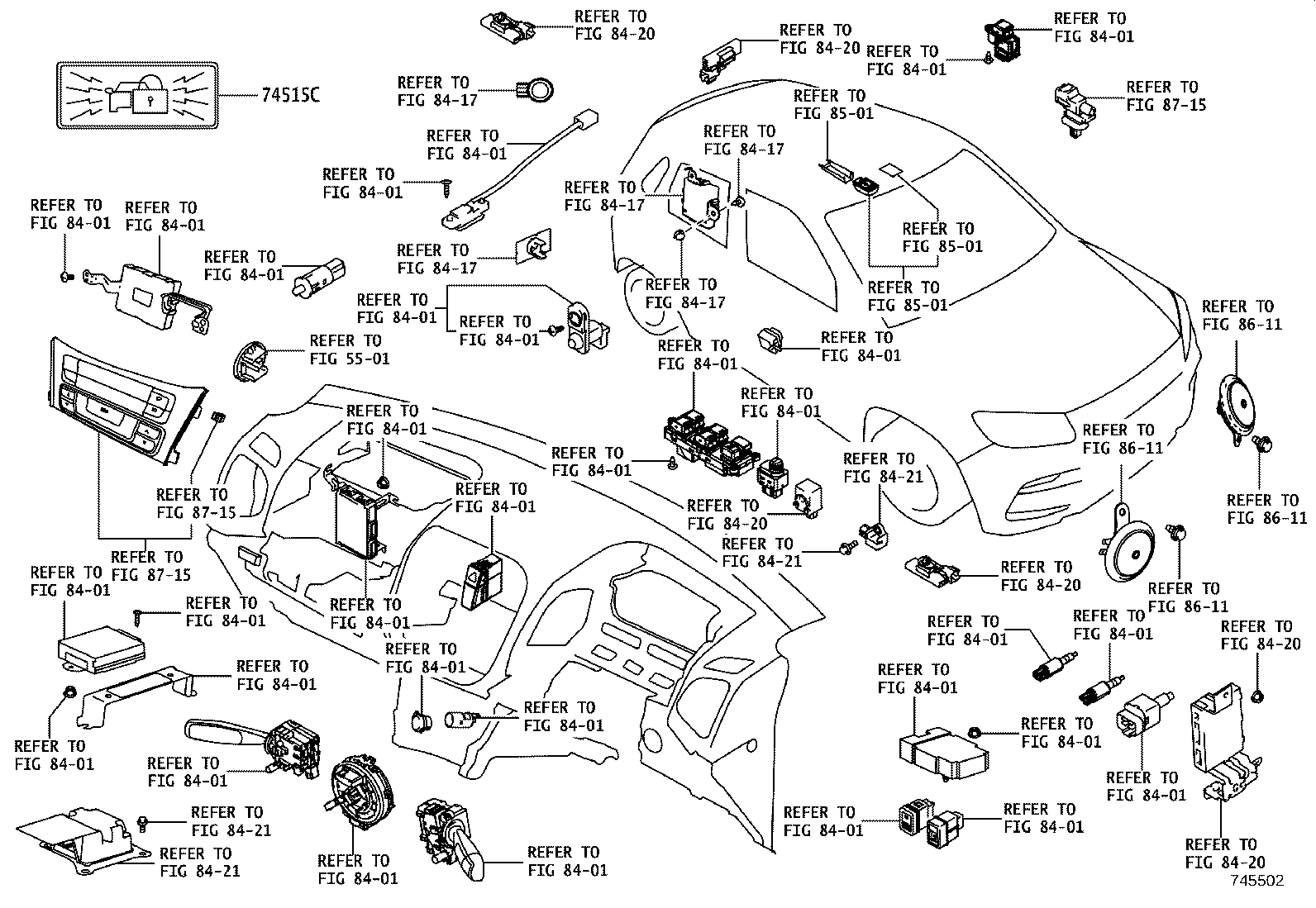

| 74515C | Label, Theft Warning Information |
| 74559B | Label, Fuel Information |
| 74751 | Label, Tire Pressure Information |
| 85539D | Label, Power Outlet Notice |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
