Side Moulding

38 part groups · 6 illustrations

Illustrations

Part groups

PNC	Description
62221R	Molding, Front Pillar, Lower RH
62222F	Molding, Front Pillar, Lower LH
62505E	Cover Sub-assy, Quarter Pillar, RH
62506C	Cover Sub-assy, Quarter Pillar, LH
75061	Moulding Set, Outside
75062	Moulding Set, Outside, LH
75073	Moulding Sub-assy, Front Door, Outside Lower RH
75074	Moulding Sub-assy, Front Door, Outside Lower LH
75077	Moulding Sub-assy, Rear Door Outside Lower RH
75078	Moulding Sub-assy, Rear Door Outside Lower LH

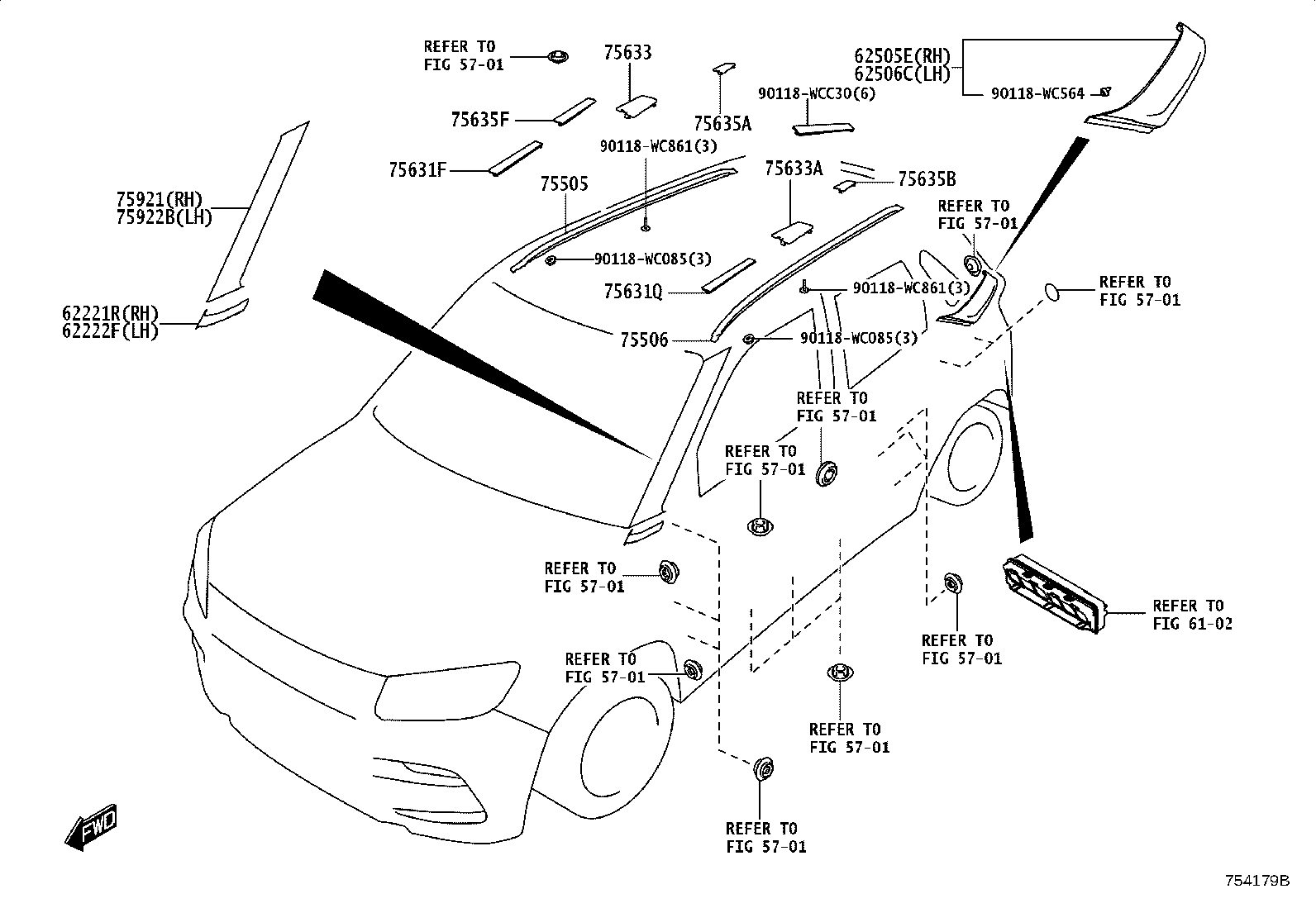

75505	Garnish Sub-assy, Roof Side, Front RH
75506	Garnish Sub-assy, Roof Side, Front LH

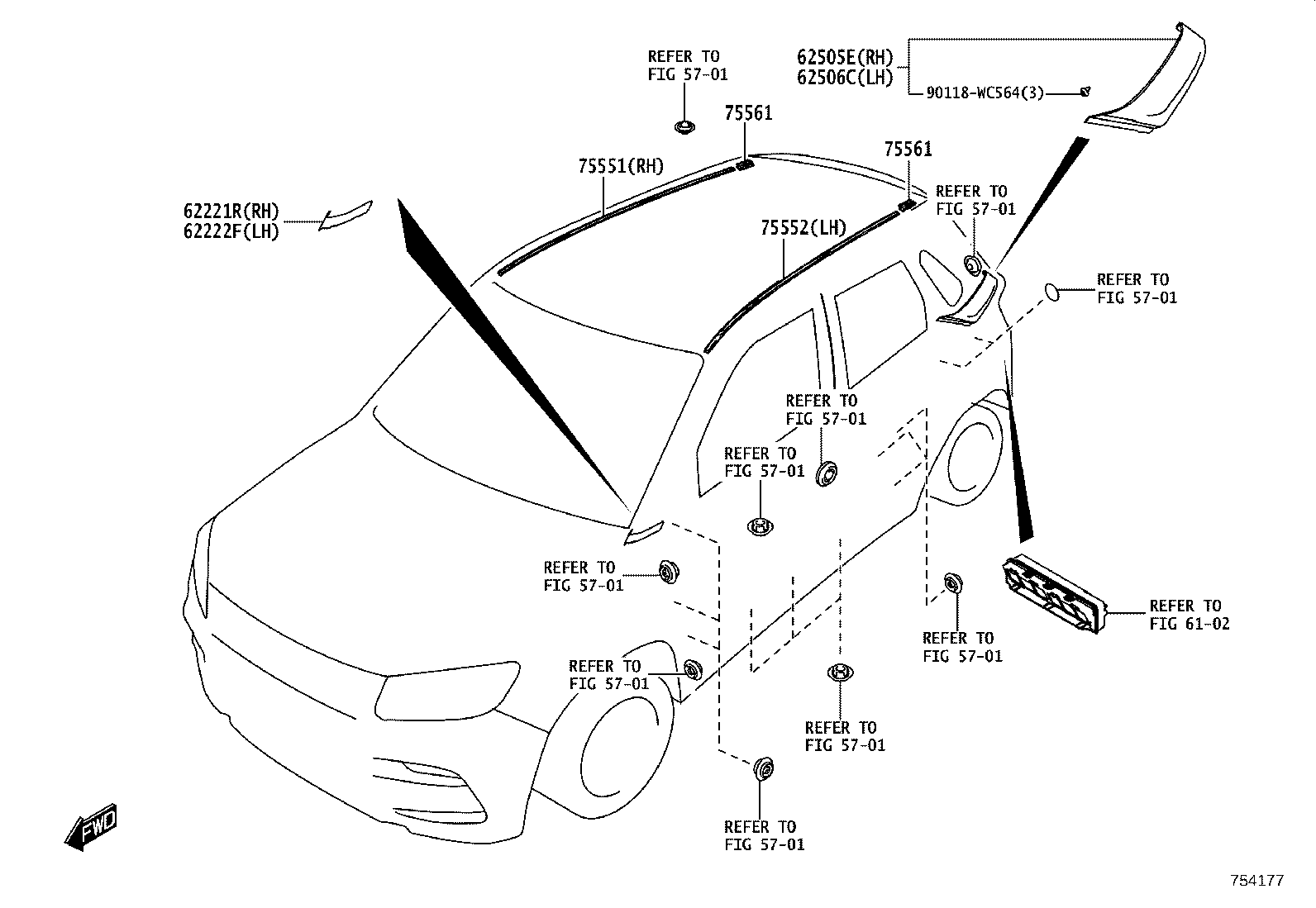

75551	Moulding, Roof Drip Side Finish, RH
75552	Moulding, Roof Drip Side Finish, LH
75561	Clip, Roof Drip Side Finish Moulding, NO.1
75601A	Moulding Sub-assy, Front Fender, RH
75601C	Clip, Front Fender Moulding
75602A	Moulding Sub-assy, Front Fender, LH
75605B	Moulding Sub-assy, Quarter Outside, RH
75605E	Clip, Quarter Outside Moulding
75606B	Moulding Sub-assy, Quarter Outside, LH
75611C	Moulding, Front Fender, Outside RH
75612C	Moulding, Front Fender, Outside LH
75631F	Lid, Roof Side Garnish, NO.1 RH
75631Q	Lid, Roof Side Garnish, NO.1 LH
75633	Lid, Roof Side Garnish, NO.2 RH
75633A	Lid, Roof Side Garnish, NO.2 LH
75635A	Lid, Roof Side Garnish, NO.3 RH
75635B	Lid, Roof Side Garnish, NO.3 LH
75635F	Cap, Roof Garnish, NO.3

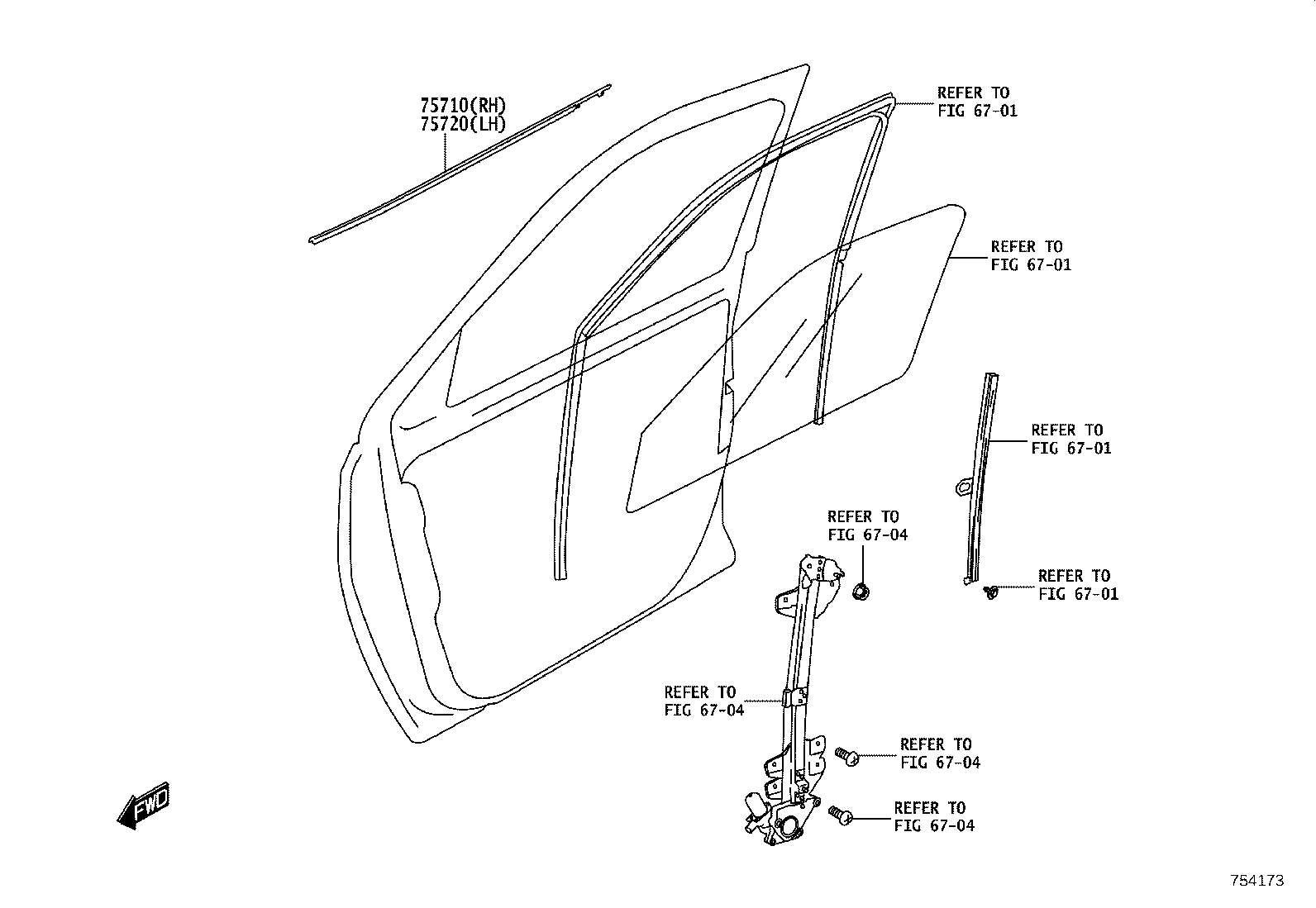

75710	Moulding Assy, Front Door Belt, RH
75720	Moulding Assy, Front Door Belt, LH

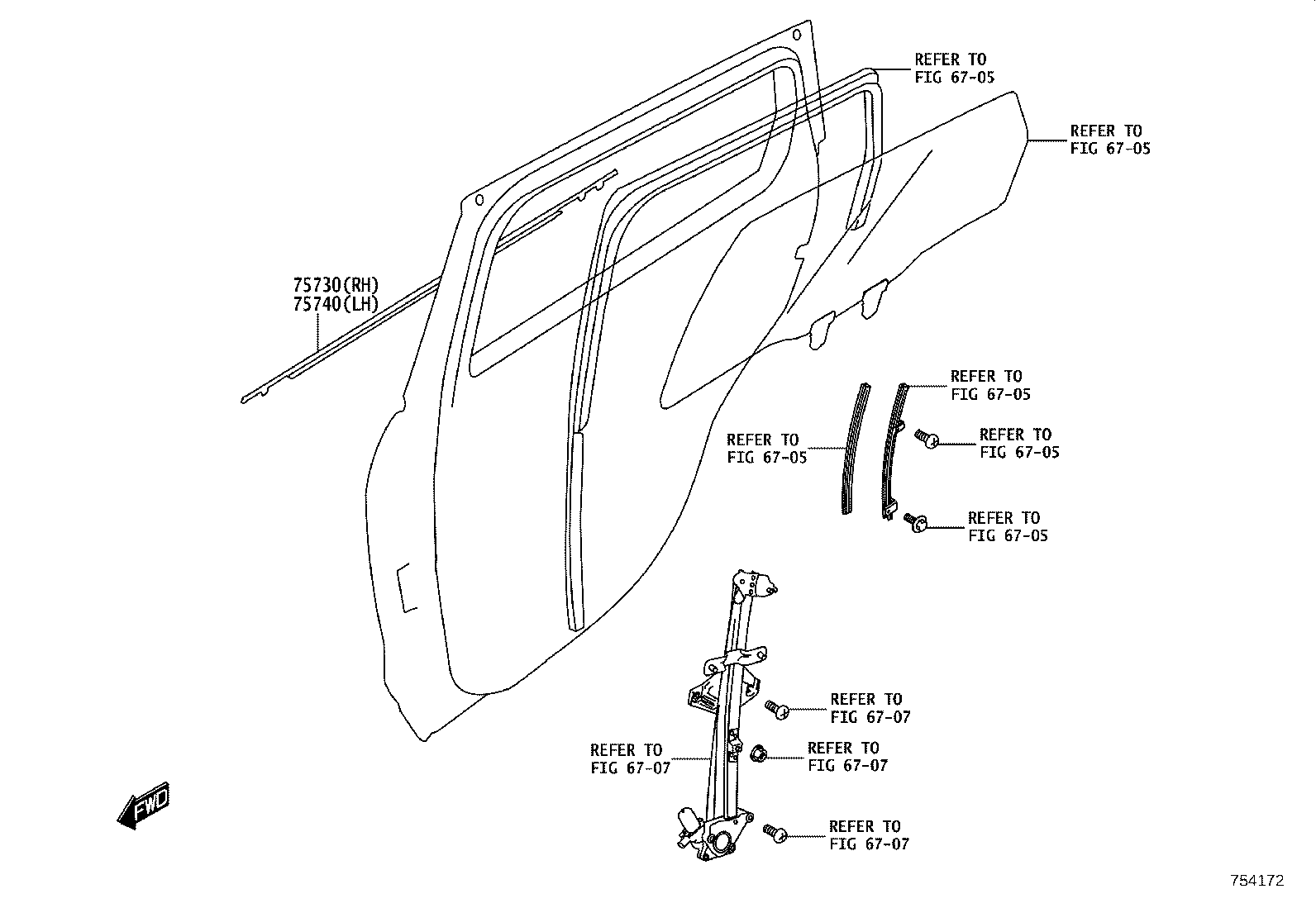

75730	Moulding Assy, Rear Door Belt, RH
75740	Moulding Assy, Rear Door Belt, LH
75850A	Moulding Assy, Body Rocker Panel, RH
75860A	Moulding Assy, Body Rocker Panel, LH
75921	Tape, Black Out, NO.1 RH
75922B	Tape, Black Out, NO.1 LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
