Toyota Urban Cruiser

2020-12 → present · chassis K15BR-HS###N · catalogue 138310 · General

Supported model Data version 2020-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

46 part groups · 13 illustrations

Illustrations

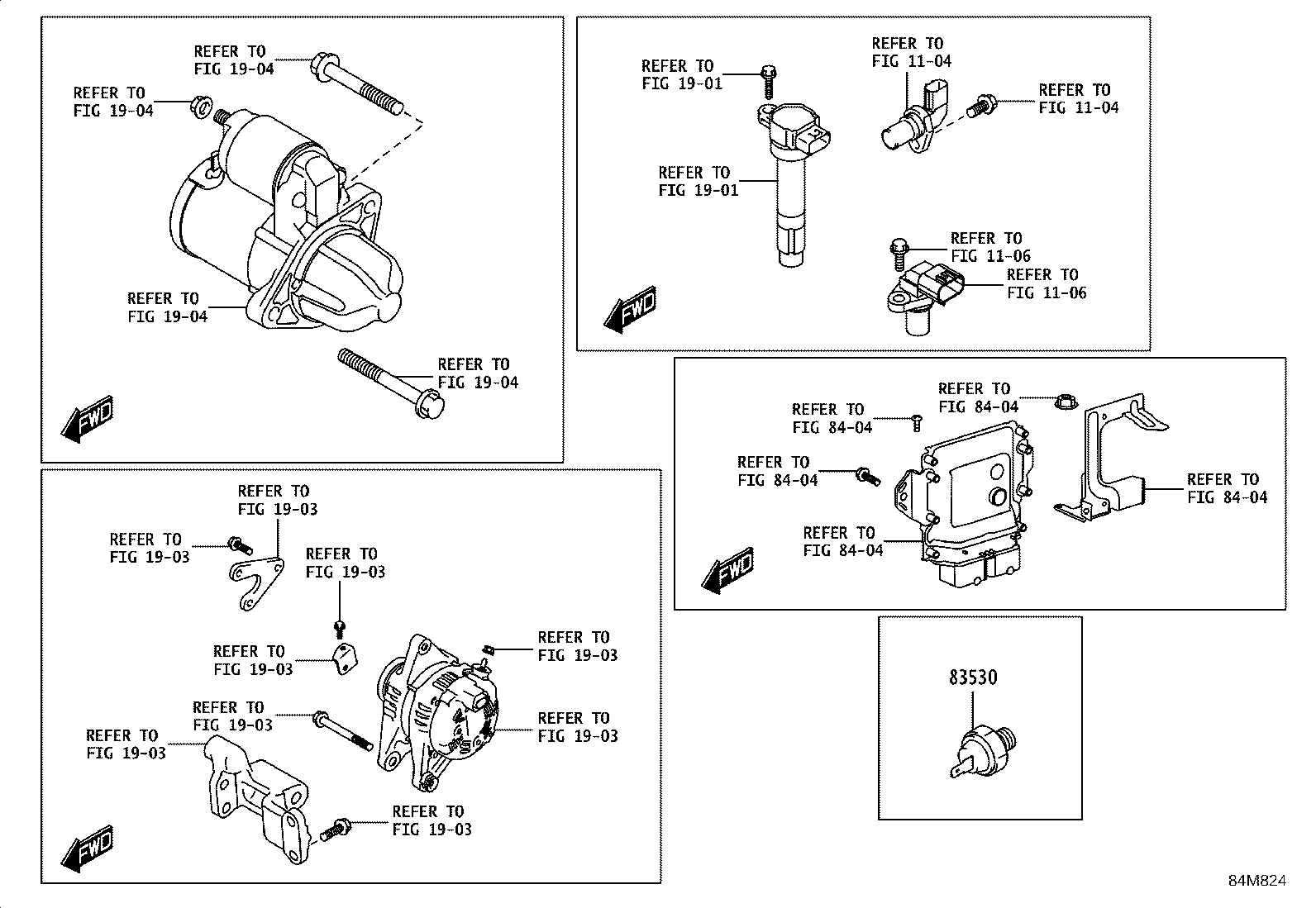

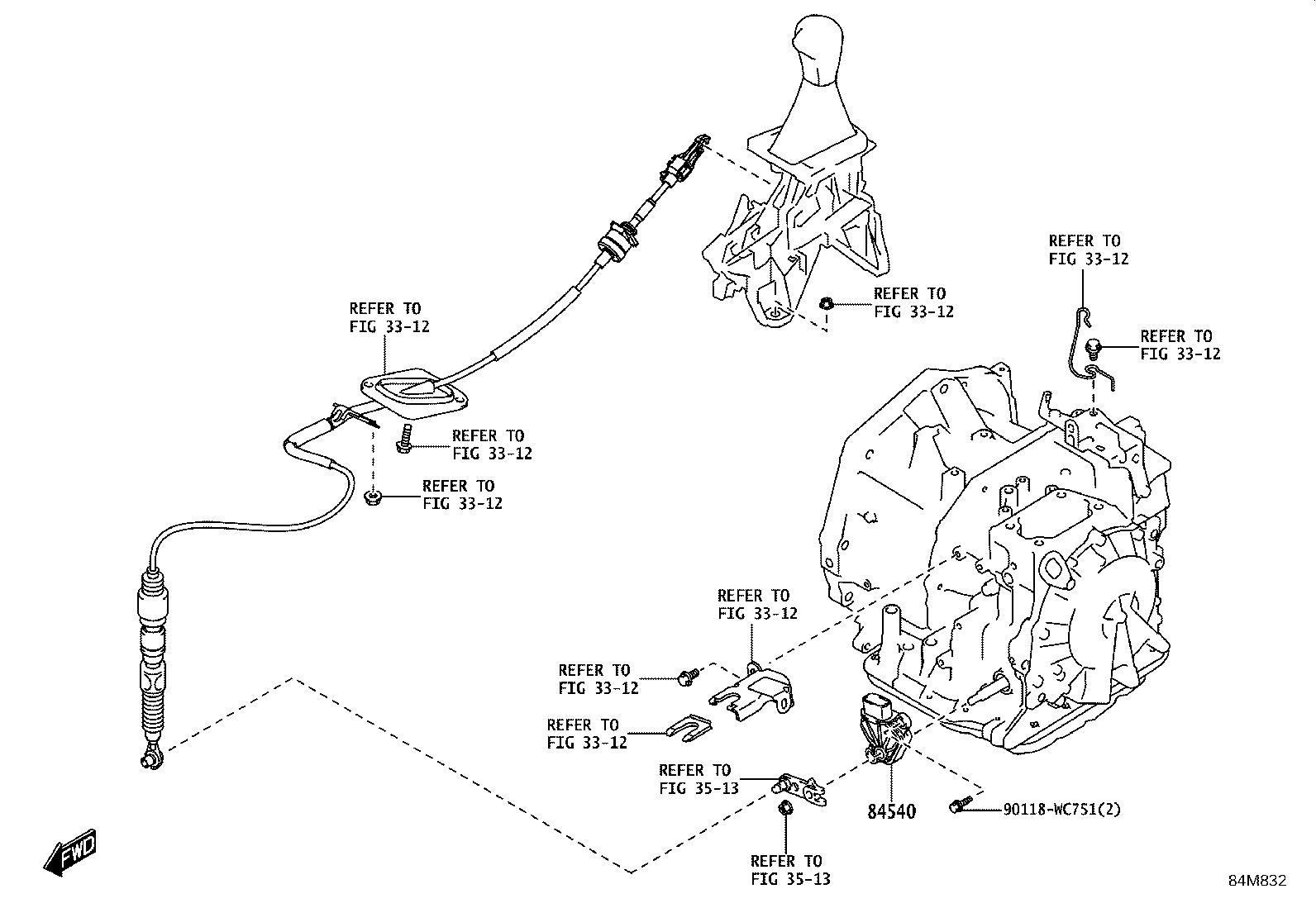

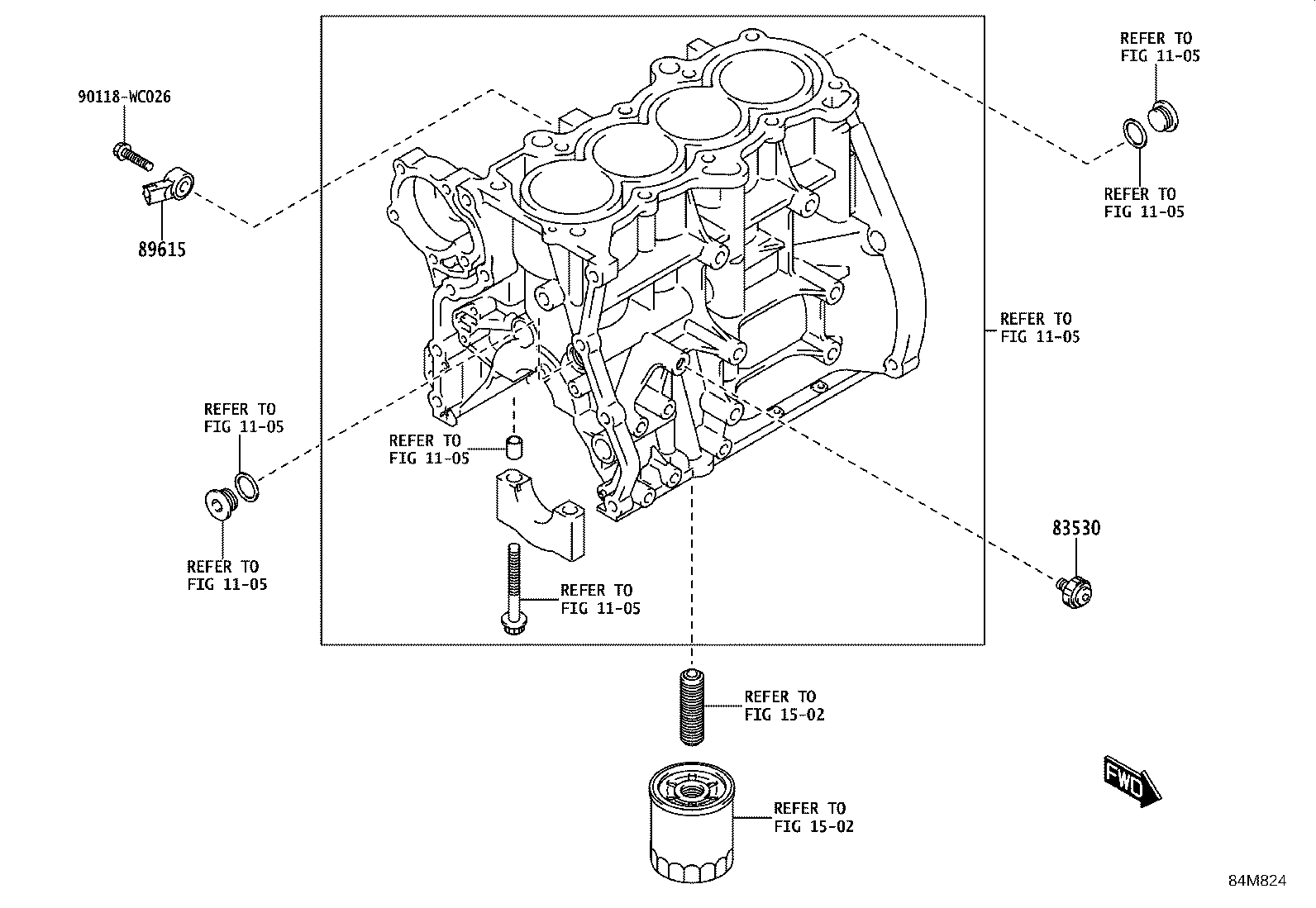

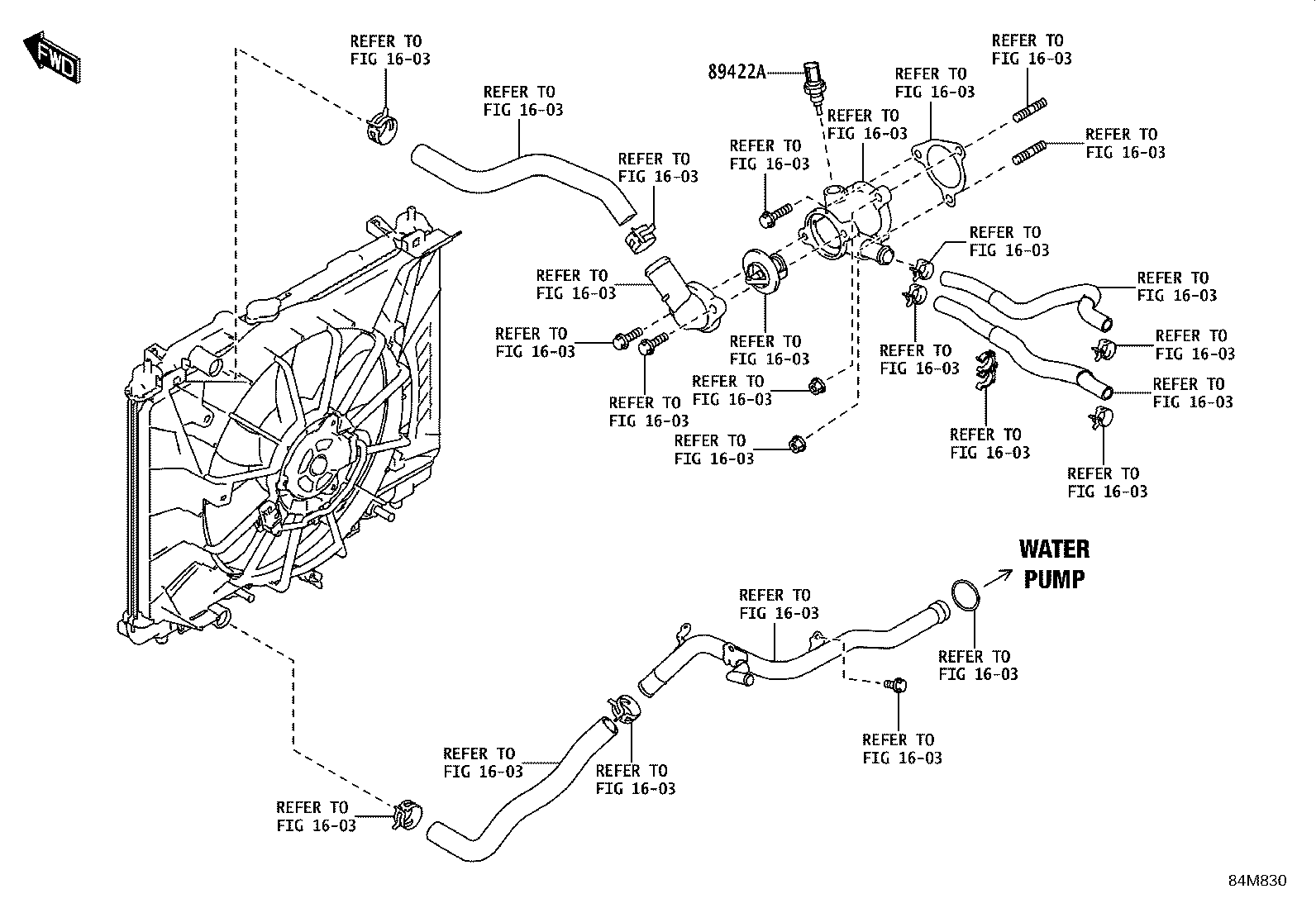

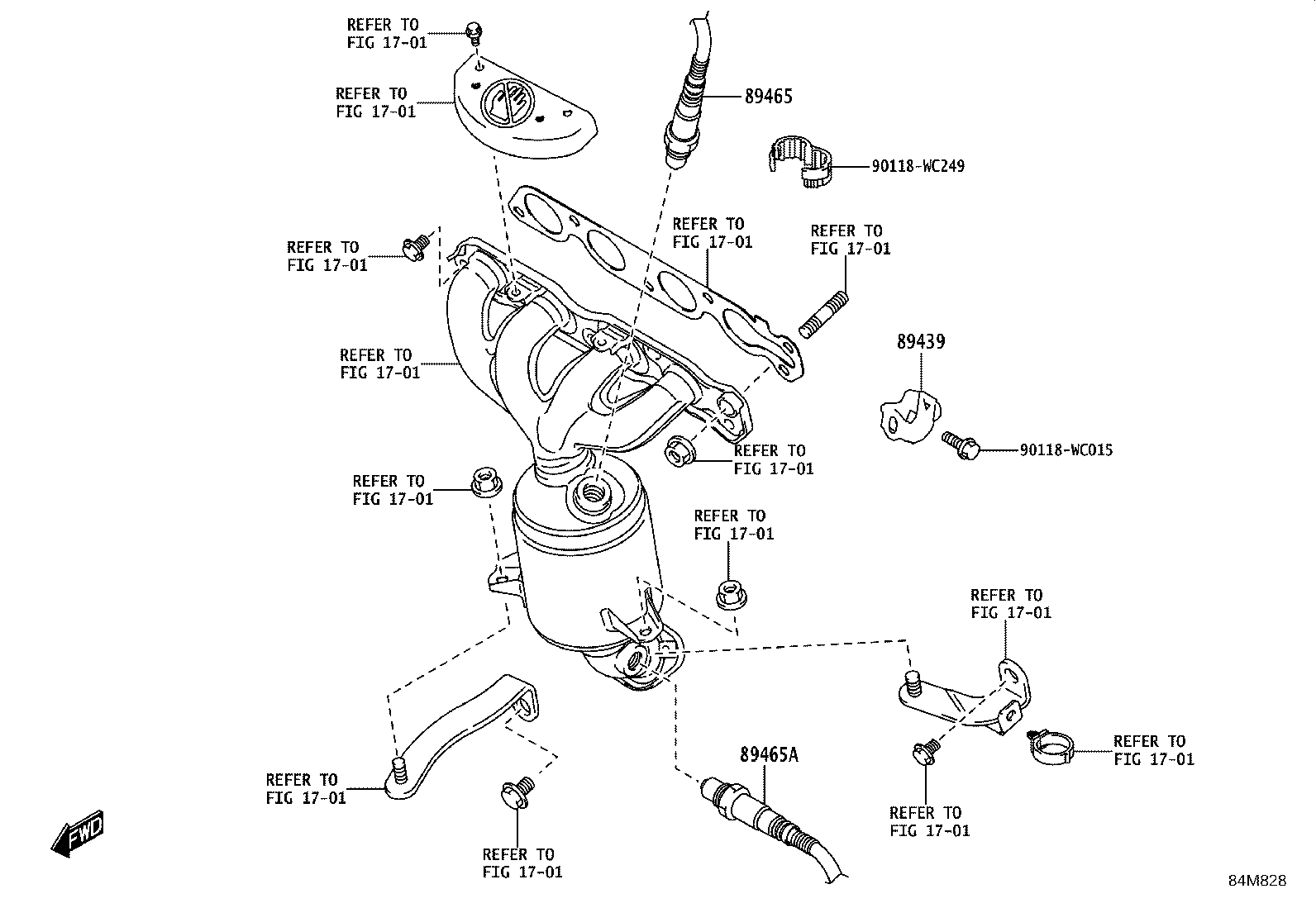

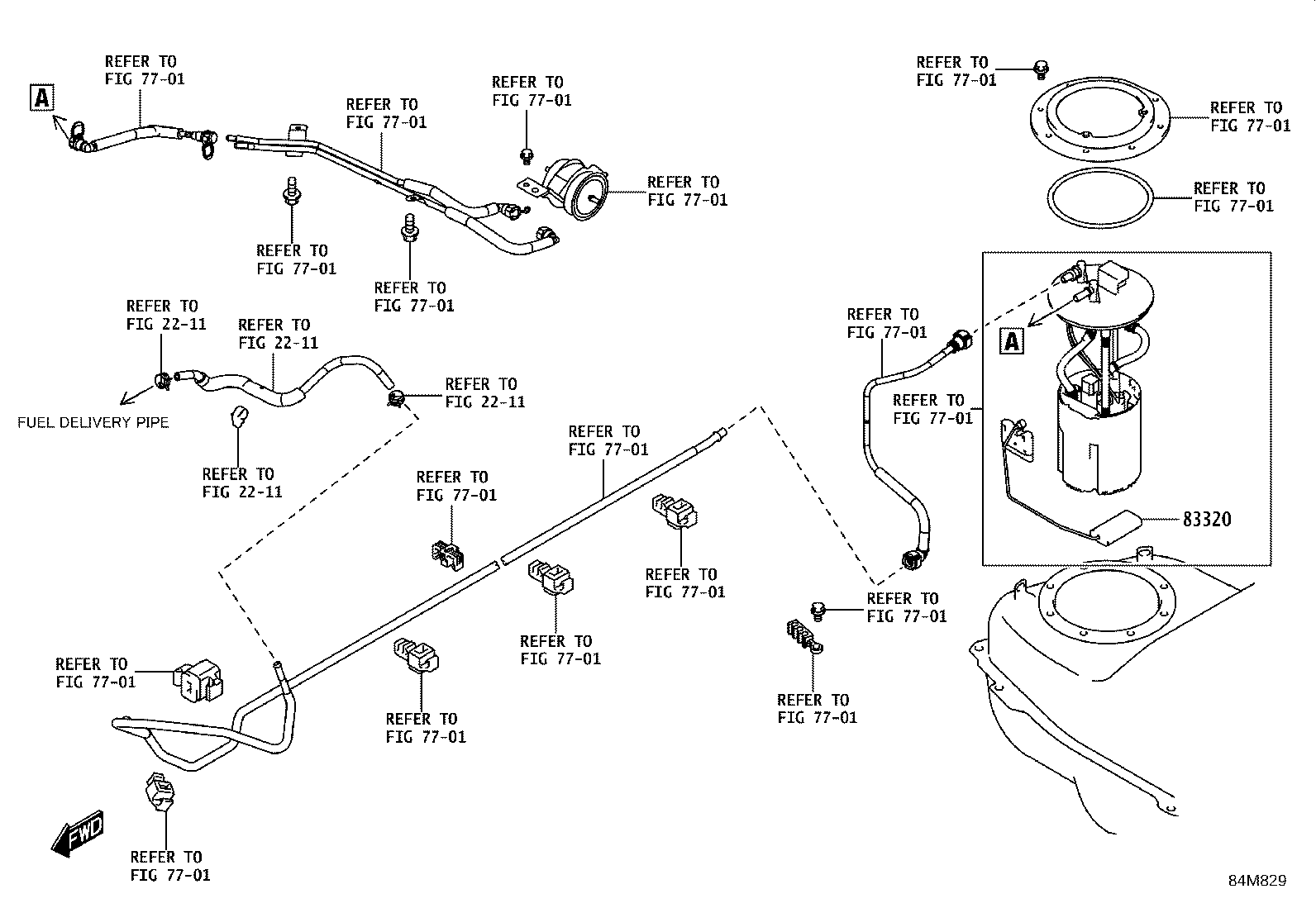

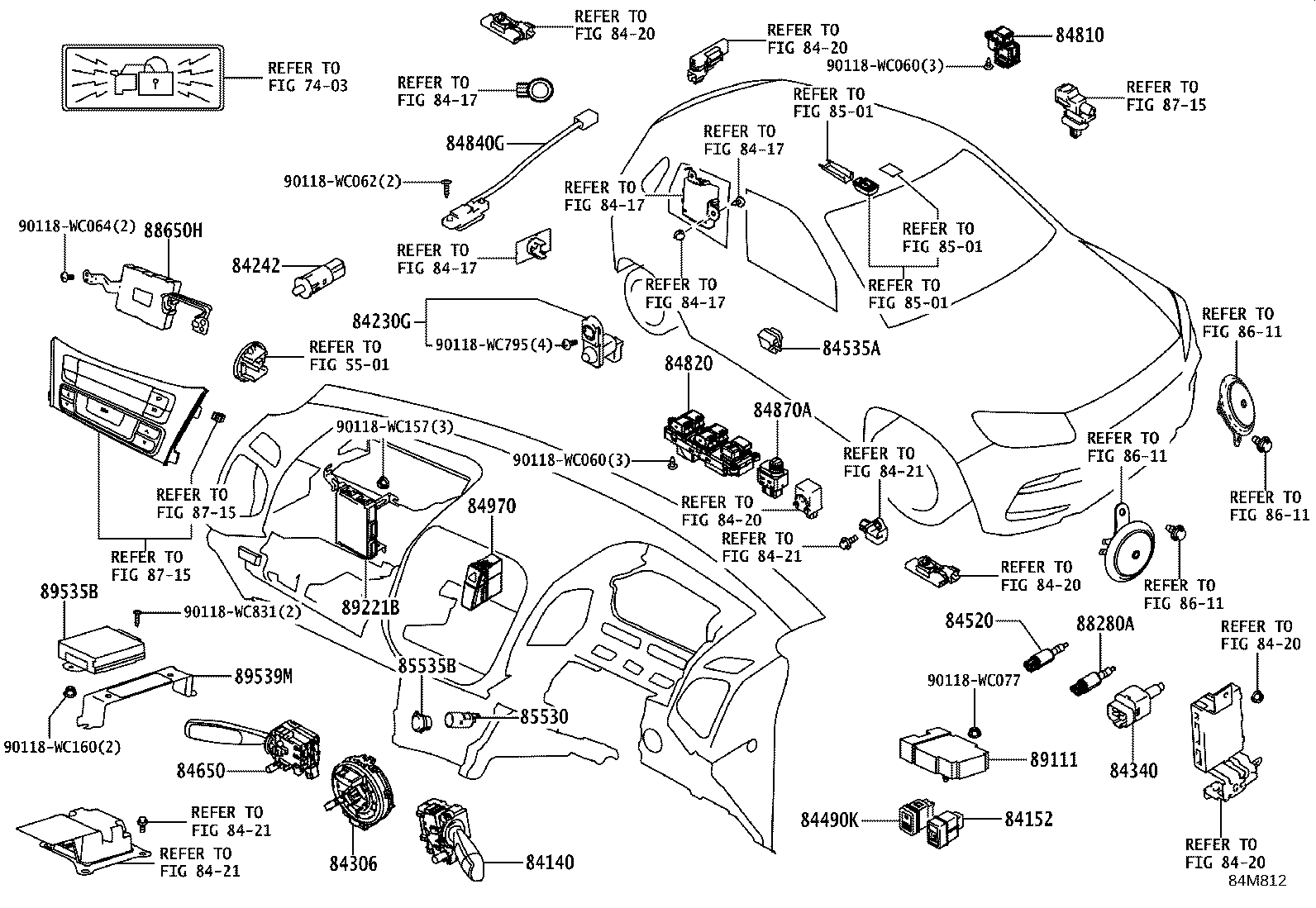

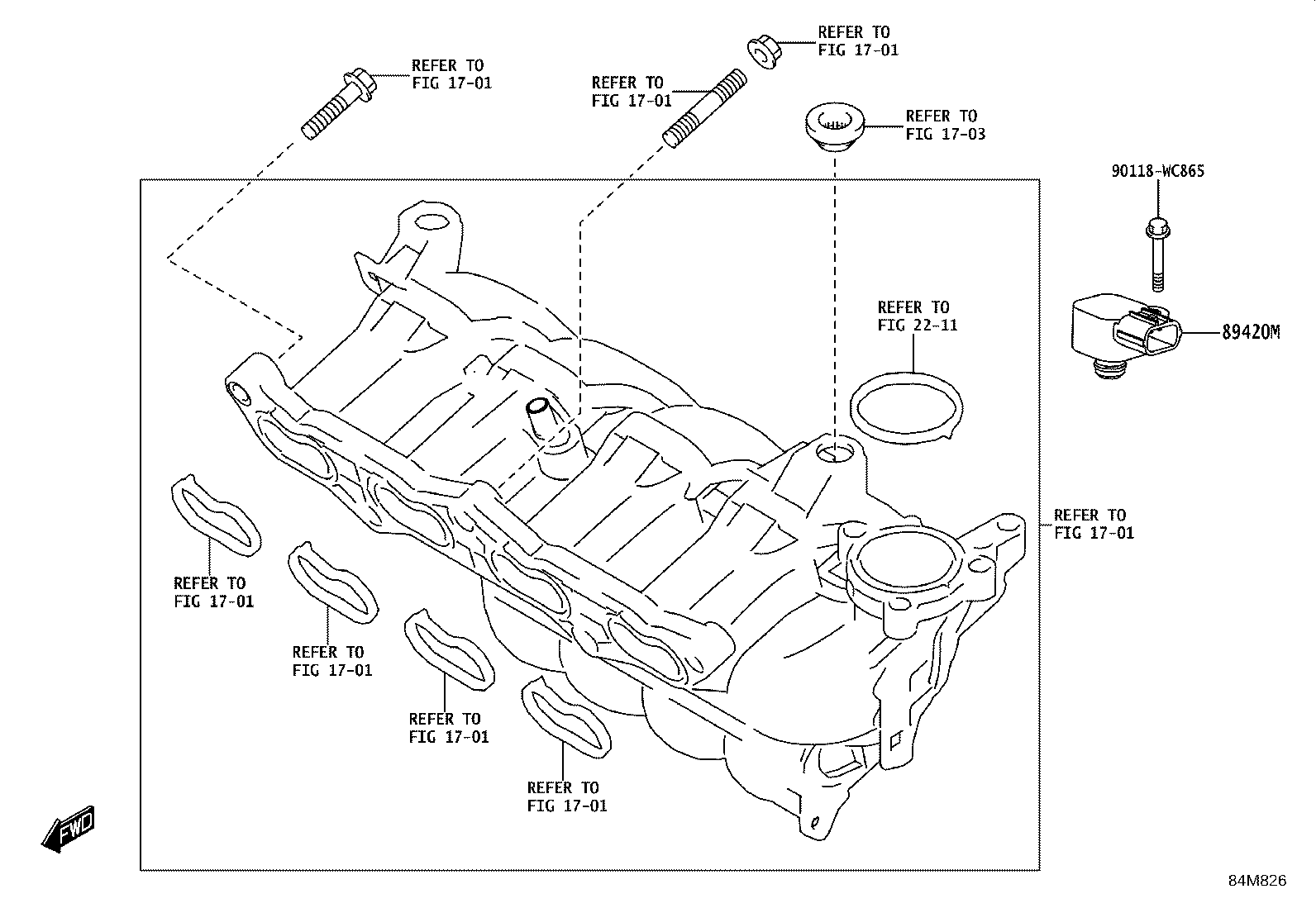

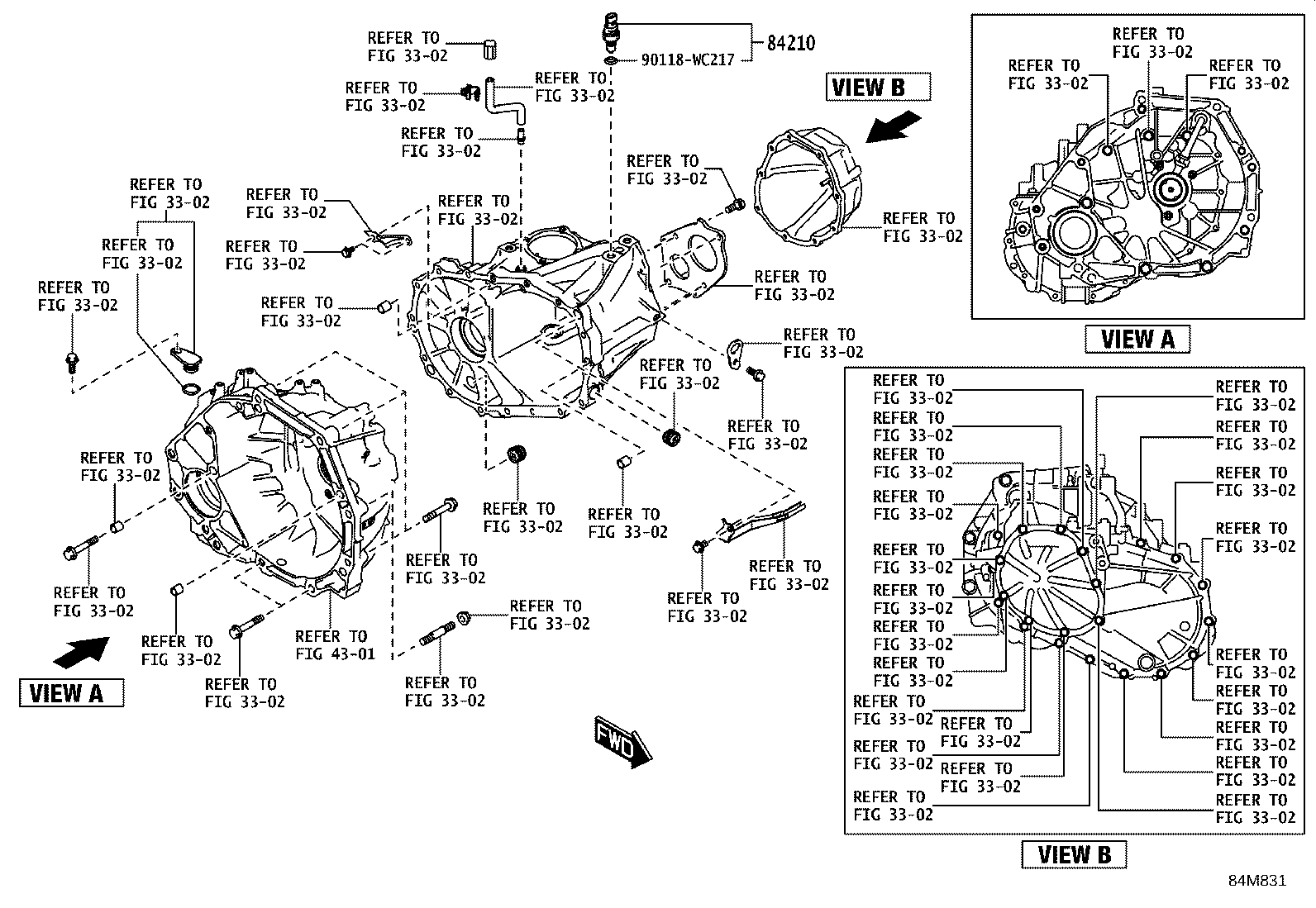

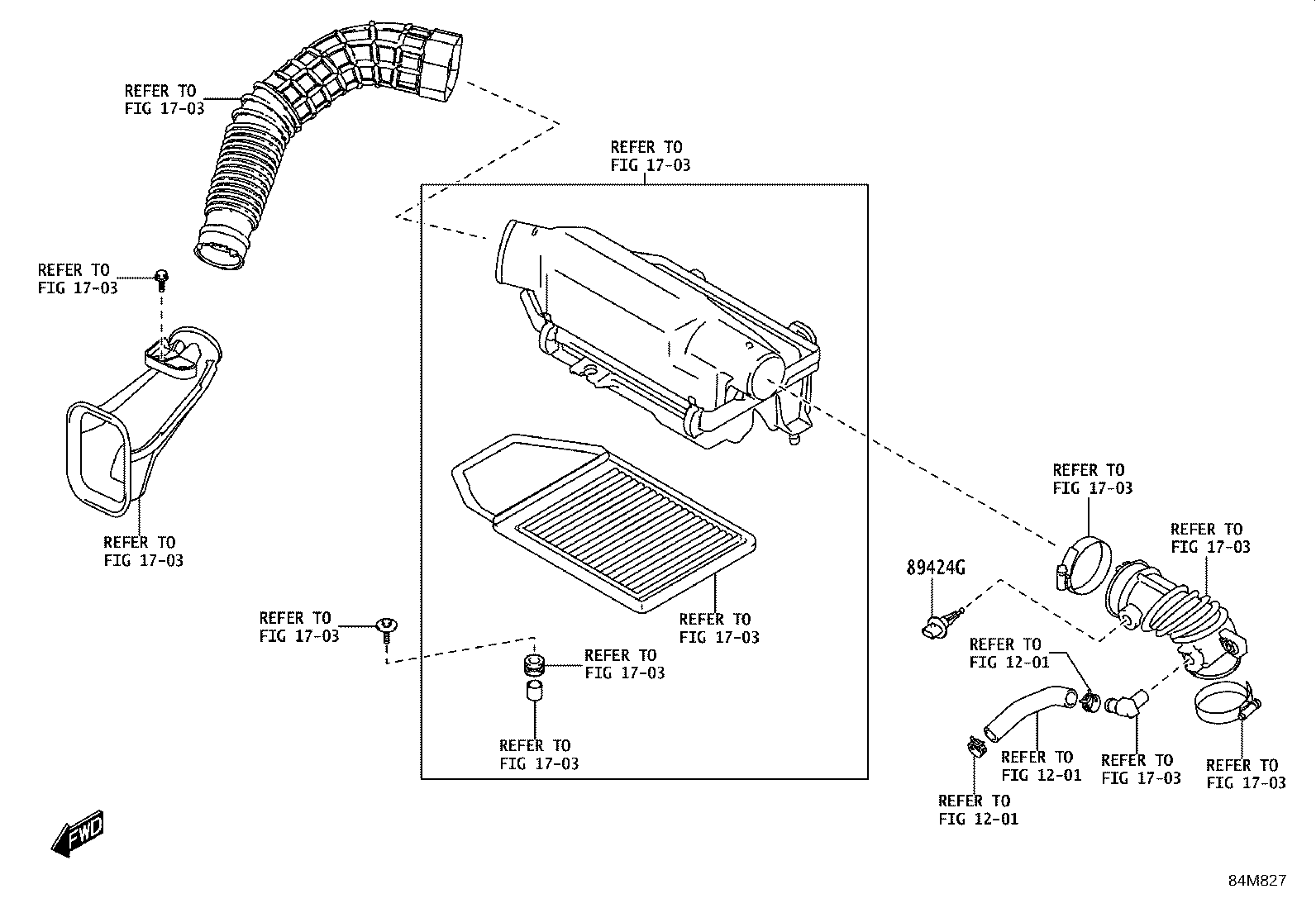

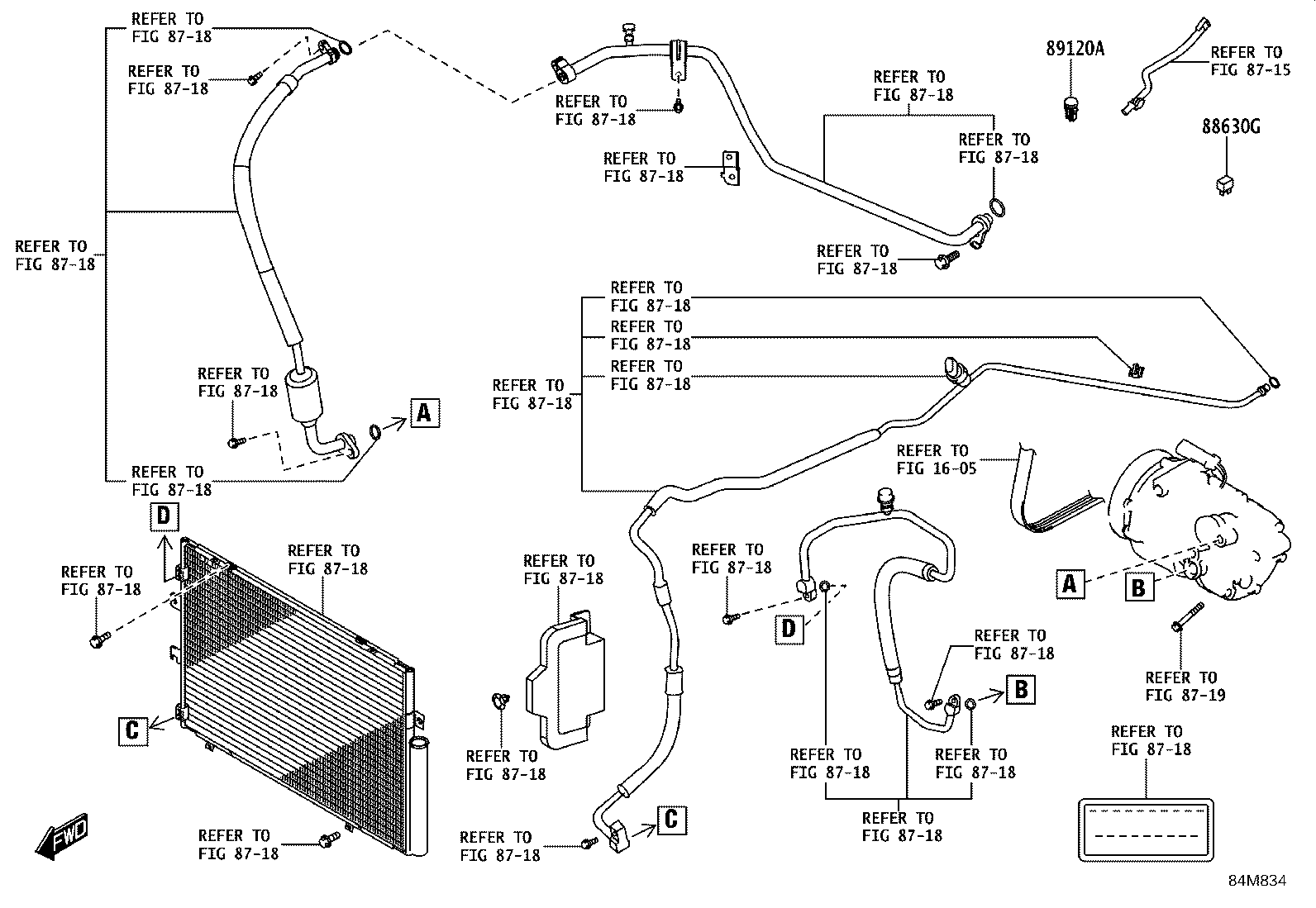

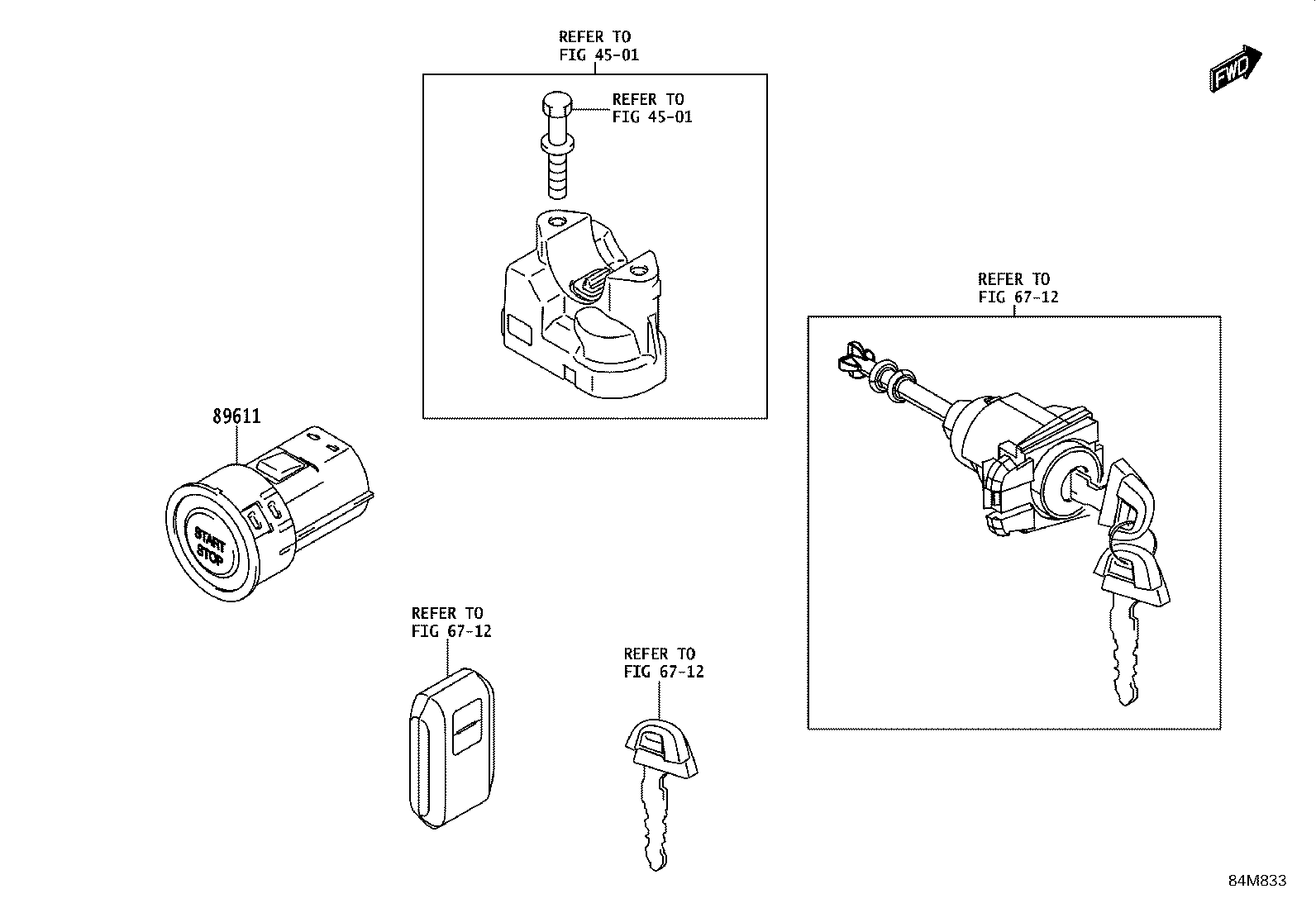

Figure 84M811 84M811 2020-12 → — Figure 84M825 84M825 2020-12 → — Figure 84M826 84M826 2020-12 → — Figure 84M827 84M827 2020-12 → — Figure 84M828 84M828 2020-12 → — Figure 84M829 84M829 2020-12 → — Figure 84M830 84M830 2020-12 → — Figure 84M831 84M831 2020-12 → — Figure 84M832 84M832 2020-12 → — Figure 84M824 84M824 2020-12 → — Figure 84M812 84M812 2020-12 → — Figure 84M833 84M833 2020-12 → — Figure 84M834 84M834 2020-12 → —

Part groups

PNCDescription
82600D Instrument Panel Fuse
82600E Engine Room Fuse
82620A Block Assy, Fusible Link
82620B Block Assy, Fusible Link
82621A Cover, Fusible Link
82662A Cover, Relay Block, Upper, NO.1
82672A Cover, Junction Block
82730 Block Assy, Instrument Panel Junction
83320 Gage Assy, Fuel Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling
84210 Switch Assy, Back-up Lamp
84230G Switch Assy, Courtesy Lamp
84242 Switch, Glove Box Lamp
84306 Cable Sub-assy, Spiral
84340 Switch Assy, Stop Lamp
84490K Switch Assy, Back Sonar
84520 Switch Assy, Clutch Start
84535A Switch, Door Lock
84540 Switch Assy, Neutral Start
84650 Switch Assy, Windshield Wiper
84810 Switch Assy, Power Window Regulator
84820 Master Switch Assy, Power Window Regulator
84840G Switch Assy, Back Door Opener
84870A Switch Assy, Outer Mirror
84970 Switch Assy, Combination
85530 Socket Assy, Power Outlet, NO.1
85535B Cover, Power Outlet Socket, NO.1
85999H Bracket, Relay
88280A Switch Assy, Clutch
88630G Relay Assy, Cooler
88650H Amplifier Assy, Air Conditioner
89111 Computer, Network Gateway
89120A Sensor, Automatic Light Control
89221B Computer, Body
89420M Sensor Assy, Air Pressure
89422A Sensor, Water Temperature
89424G Sensor, Inlet Air Temperature
89439 Bracket, Sensor
89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89535B Computer, Transmission Control
89539M Bracket, Transmission Control Computer, NO.1
89611 Switch, Push Start
89615 Sensor, Knock Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
