Toyota Urban Cruiser

2020-12 → present · chassis K15BR-HS###N · catalogue 138310 · General

Supported model Data version 2020-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

17 part groups · 2 illustrations

Illustrations

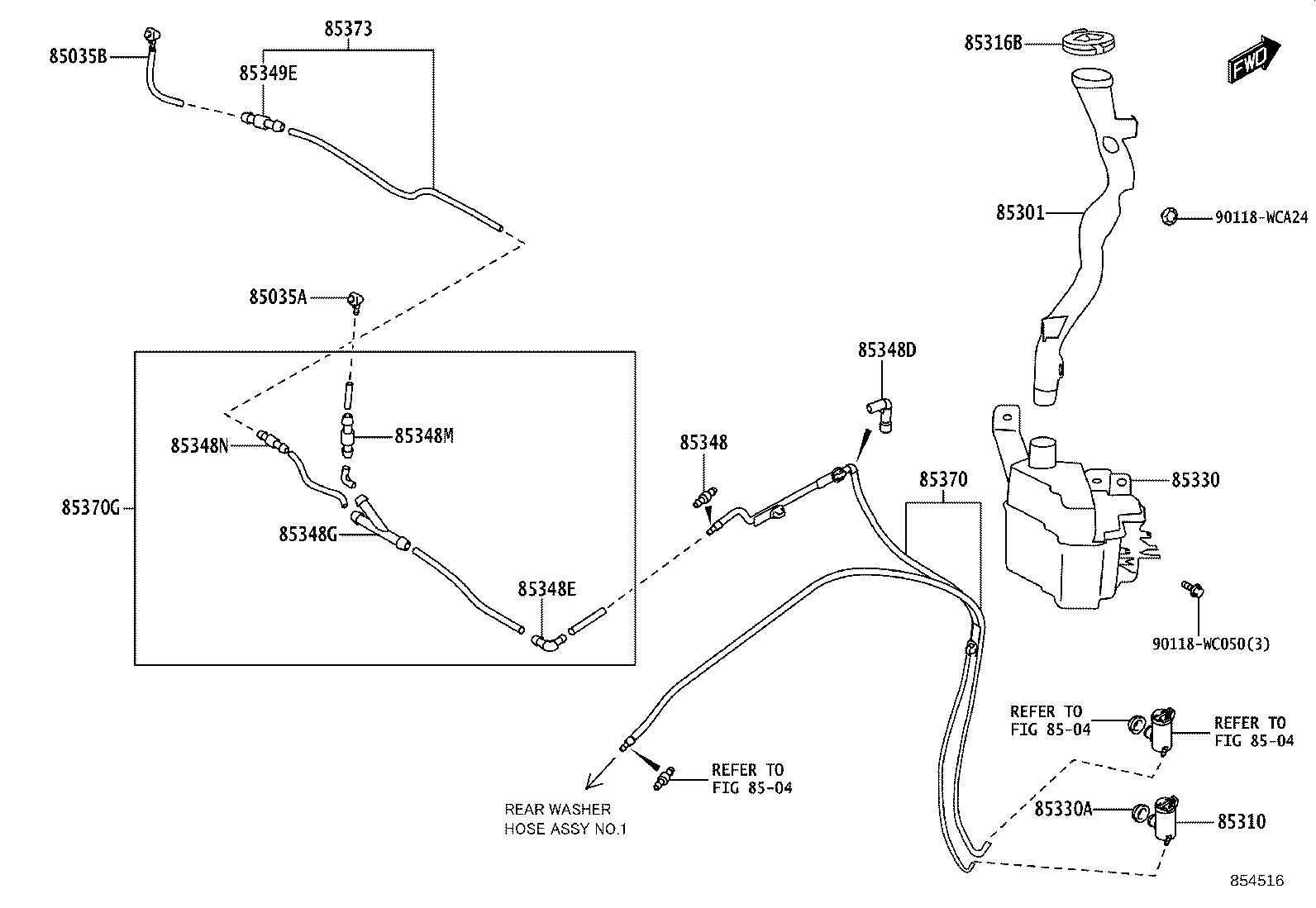

Figure 854515 854515 2020-12 → — Figure 854516 854516 2020-12 → —

Part groups

PNCDescription
85035A Nozzle, FR Washer, RH
85035B Nozzle, Front Washer, LH
85301 Inlet Sub-assy, Washer
85310 Motor And Pump Assy, Windshield Washer
85316B Cap, Washer, Inlet
85330 Jar Assy, Windshield Washer
85330A Bush, Windshield Washer Jar
85348 Joint, Windshield Washer Hose, NO.1
85348D Joint, Windshield Washer Elbow, NO.1
85348E Joint, Windshield Washer Elbow, NO.2
85348G Joint, Windshield Washer Hose, NO.2
85348M Joint, Windshield Washer Hose, NO.3
85348N Joint, Windshield Washer Hose, NO.4
85349E Joint, Windshield Washer Hose, NO.5
85370 Hose Assy, Windshield Washer
85370G Hose Assy, Windshield Washer, NO.2
85373 Hose, Windshield Washer (FROM JOINT TO NOZZLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
