Toyota Urban Cruiser
2020-12 → present · chassis K15BR-HS###N · catalogue 138310 · General
Supported model
Data version 2020-12

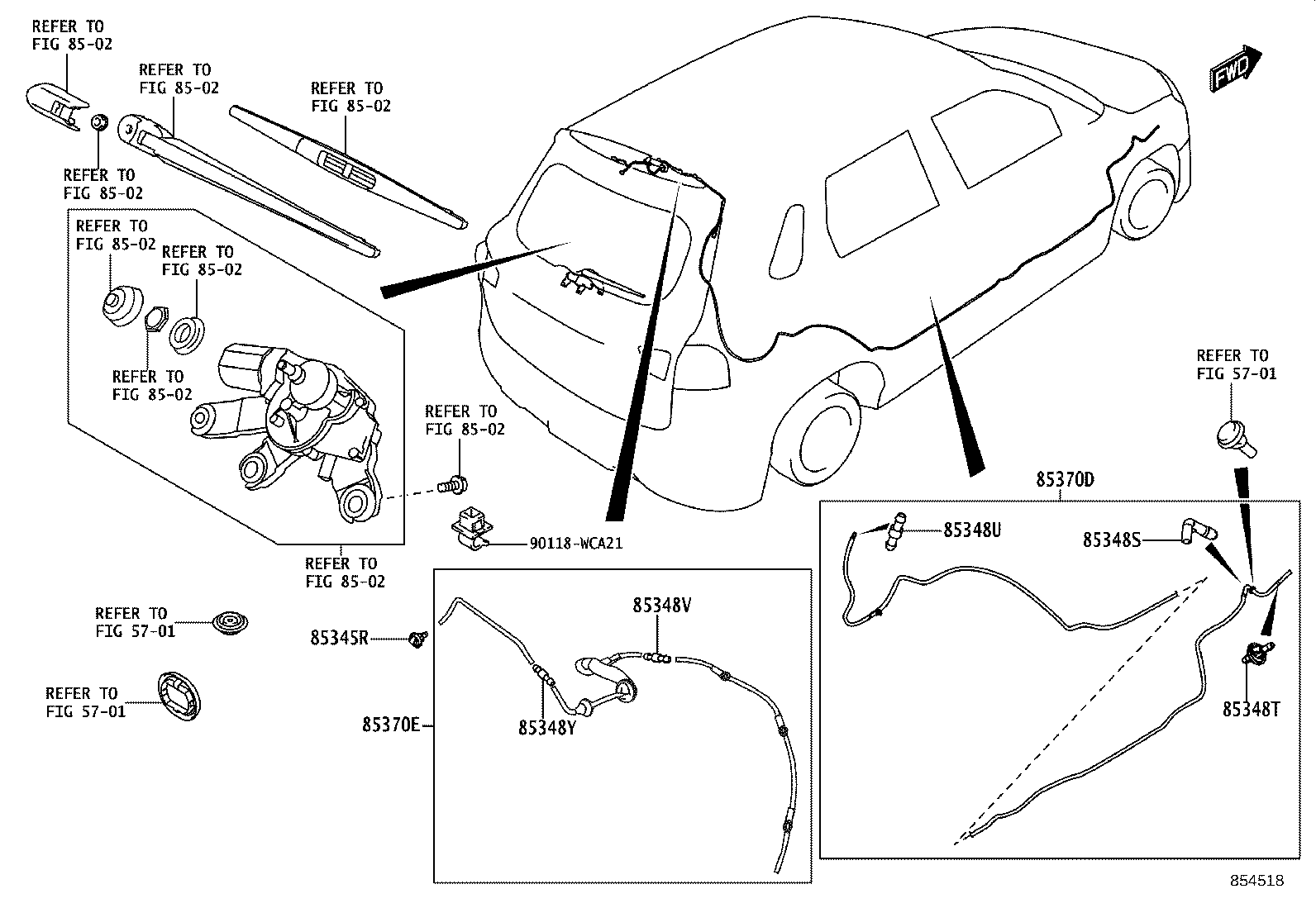

Rear Washer
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85330F | Motor & Pump Assy, RR Washer |
| 85330S | Bush, Rear Washer Jar |
| 85345R | Nozzle, Rear Washer |
| 85348R | Joint, Rear Washer Hose, NO.1 |
| 85348S | Joint, Rear Washer Elbow, NO.1 |
| 85348T | Joint, Rear Washer Hose, NO.2 |
| 85348U | Joint, Rear Washer Hose, NO.3 |
| 85348V | Joint, Rear Washer Hose, NO.4 |
| 85348Y | Joint, Rear Washer Hose, NO.5 |
| 85370D | Hose Assy, Rear Washer, NO.1 |
| 85370E | Hose Assy, Rear Washer, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
