Toyota Urban Cruiser

2020-12 → present · chassis K15BR-HS###N · catalogue 138310 · General

Supported model Data version 2020-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

15 part groups · 6 illustrations

Illustrations

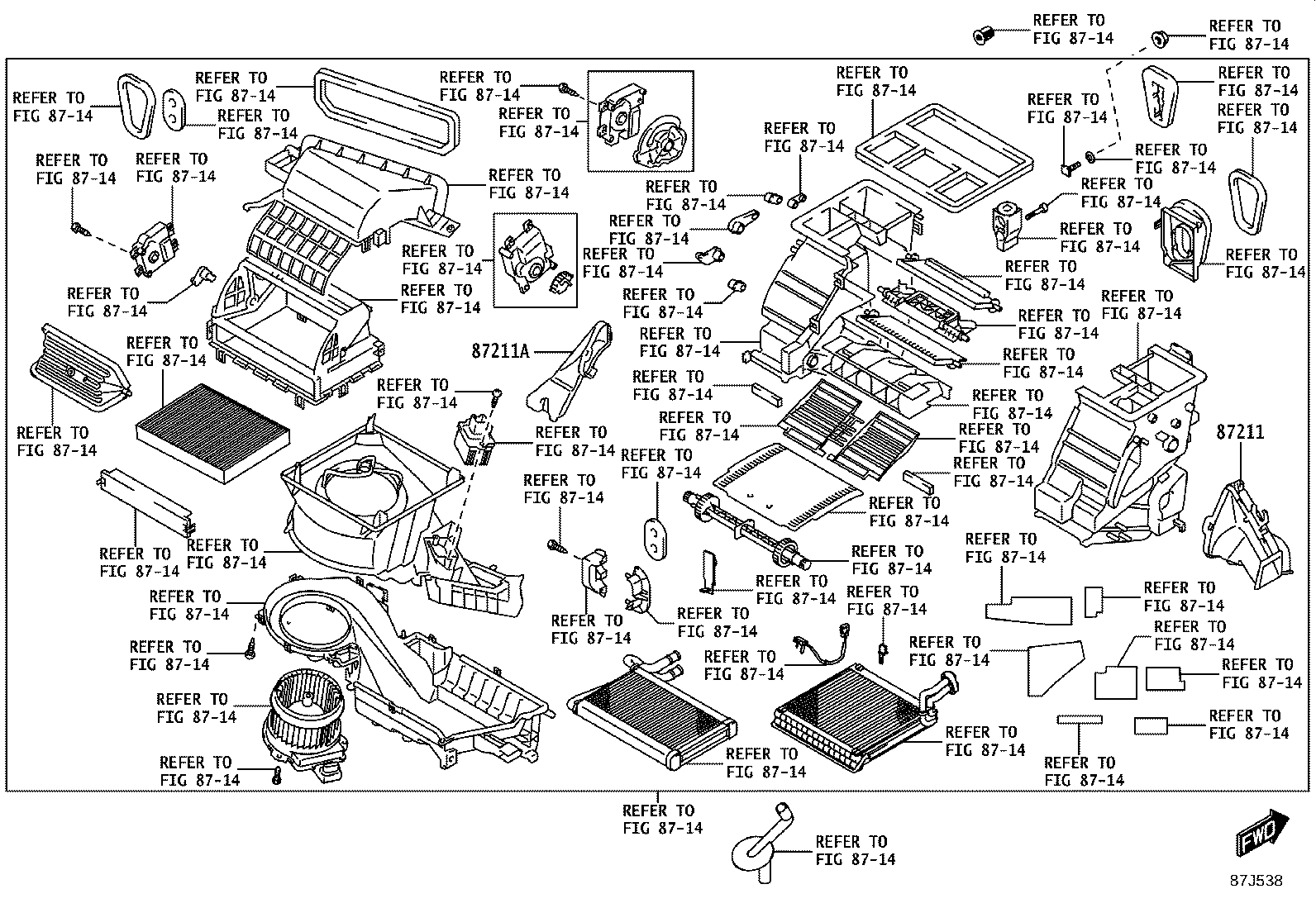

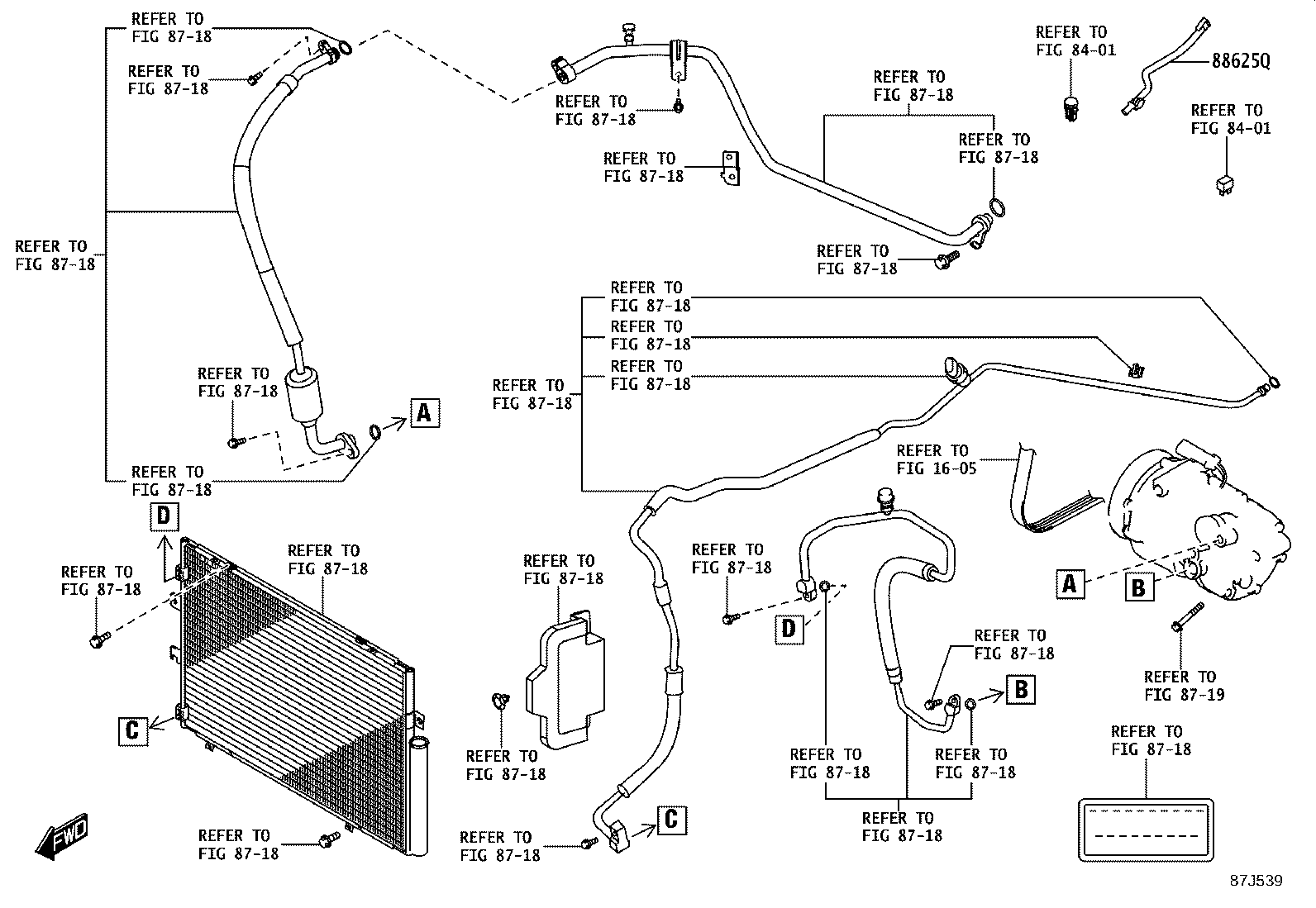

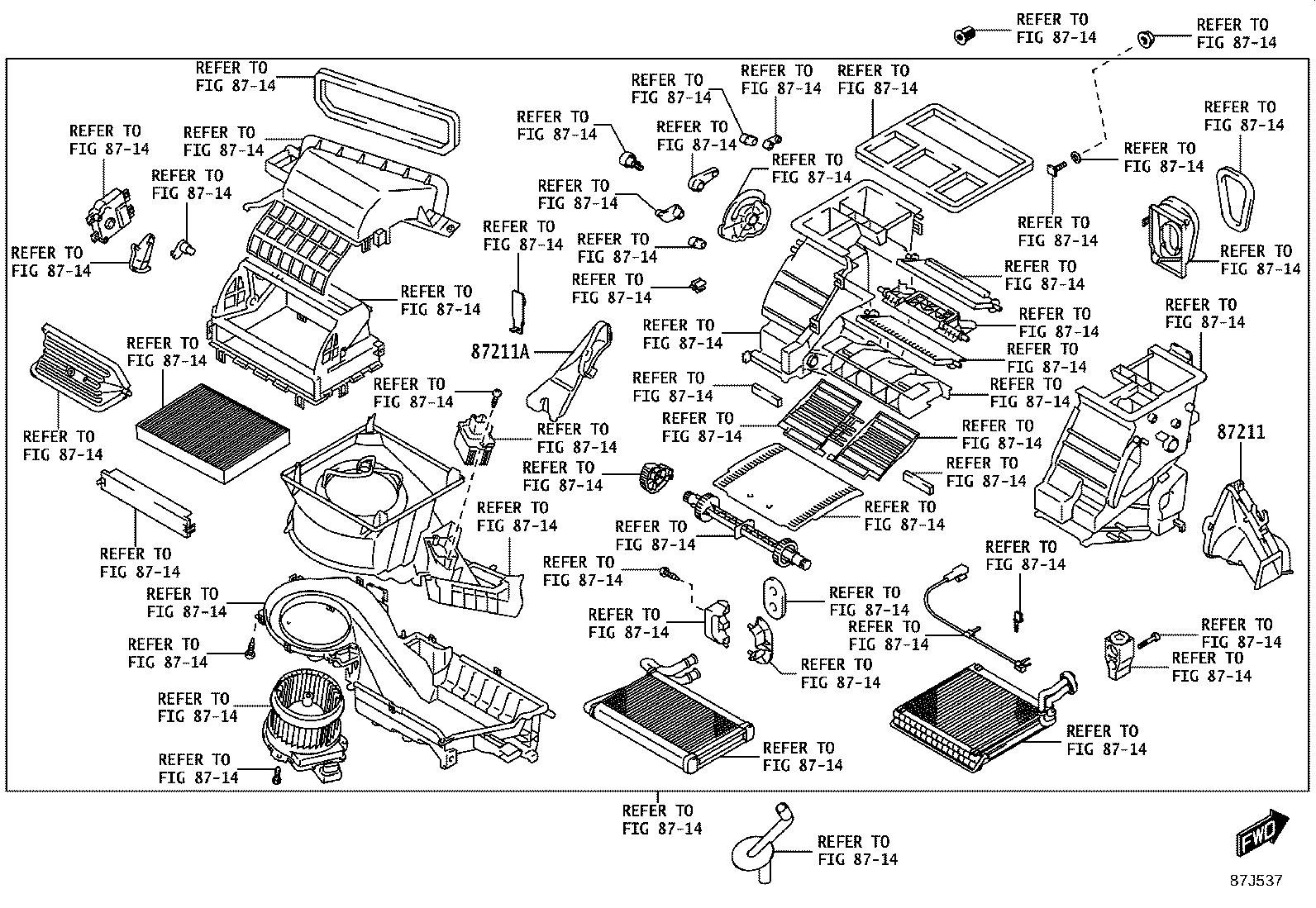

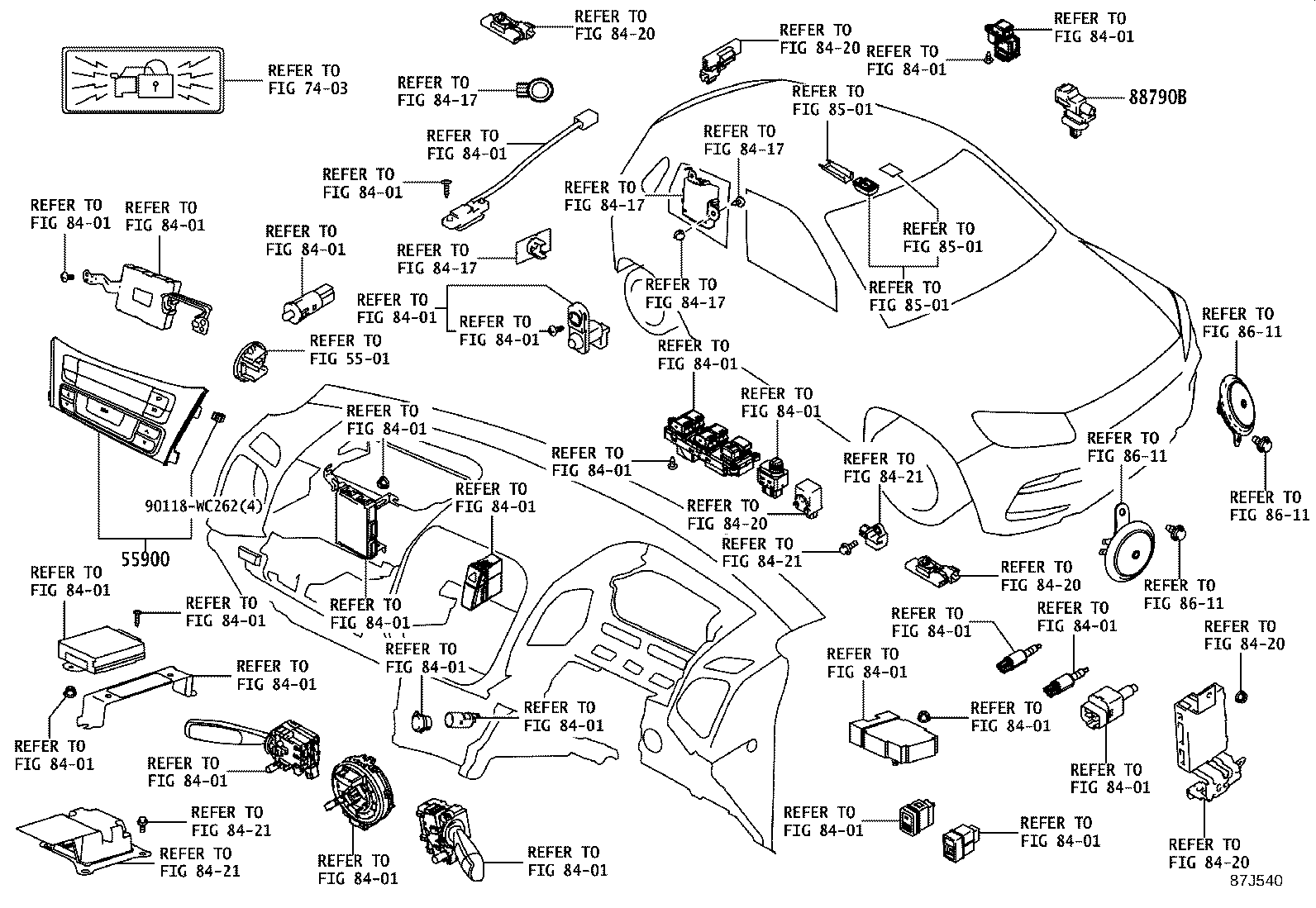

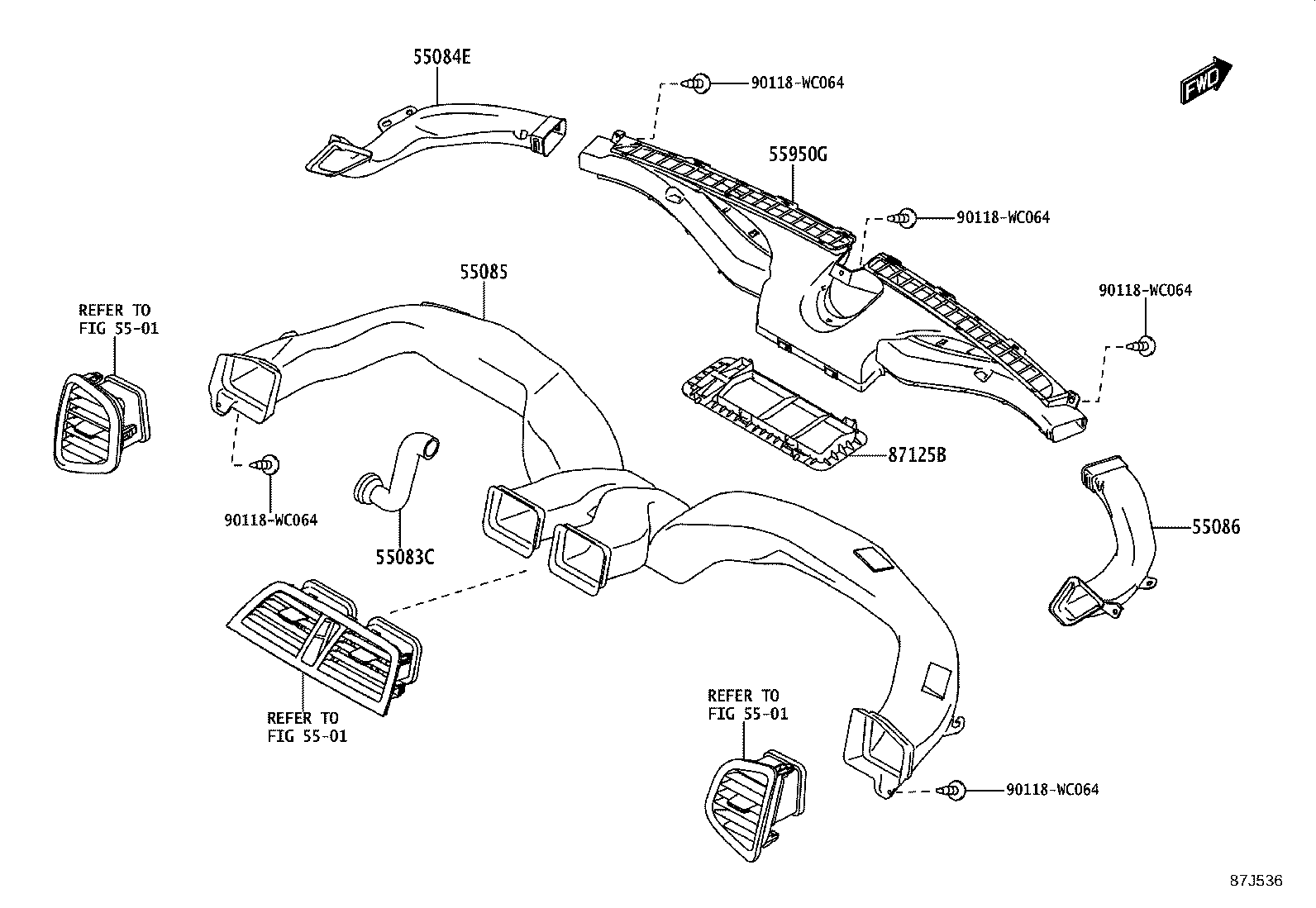

Figure 87J541 87J541 2020-12 → — Figure 87J540 87J540 2020-12 → — Figure 87J536 87J536 2020-12 → — Figure 87J537 87J537 2020-12 → — Figure 87J538 87J538 2020-12 → — Figure 87J539 87J539 2020-12 → —

Part groups

PNCDescription
55083C Duct Sub-assy, Front Ventilator
55084E Duct Sub-assy, Heater TO Register, NO.1
55085 Duct Sub-assy, Heater TO Register, NO.2
55086 Duct Sub-assy, Heater TO Register, NO.3
55900 Control Assy, Air Conditioner
55905J Knob Sub-assy, Control
55906A Cable Sub-assy, Defroster Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55950G Nozzle Assy, Defroster
84732K Bulb, Heater Blower Switch
87125B Grille, Heater Air Outlet
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88790B Thermistor Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
