Toyota Urban Cruiser
2022-11 → present · chassis FG21###,22###,61###,62### · catalogue 138320 · General
Supported model
Data version 2024-04

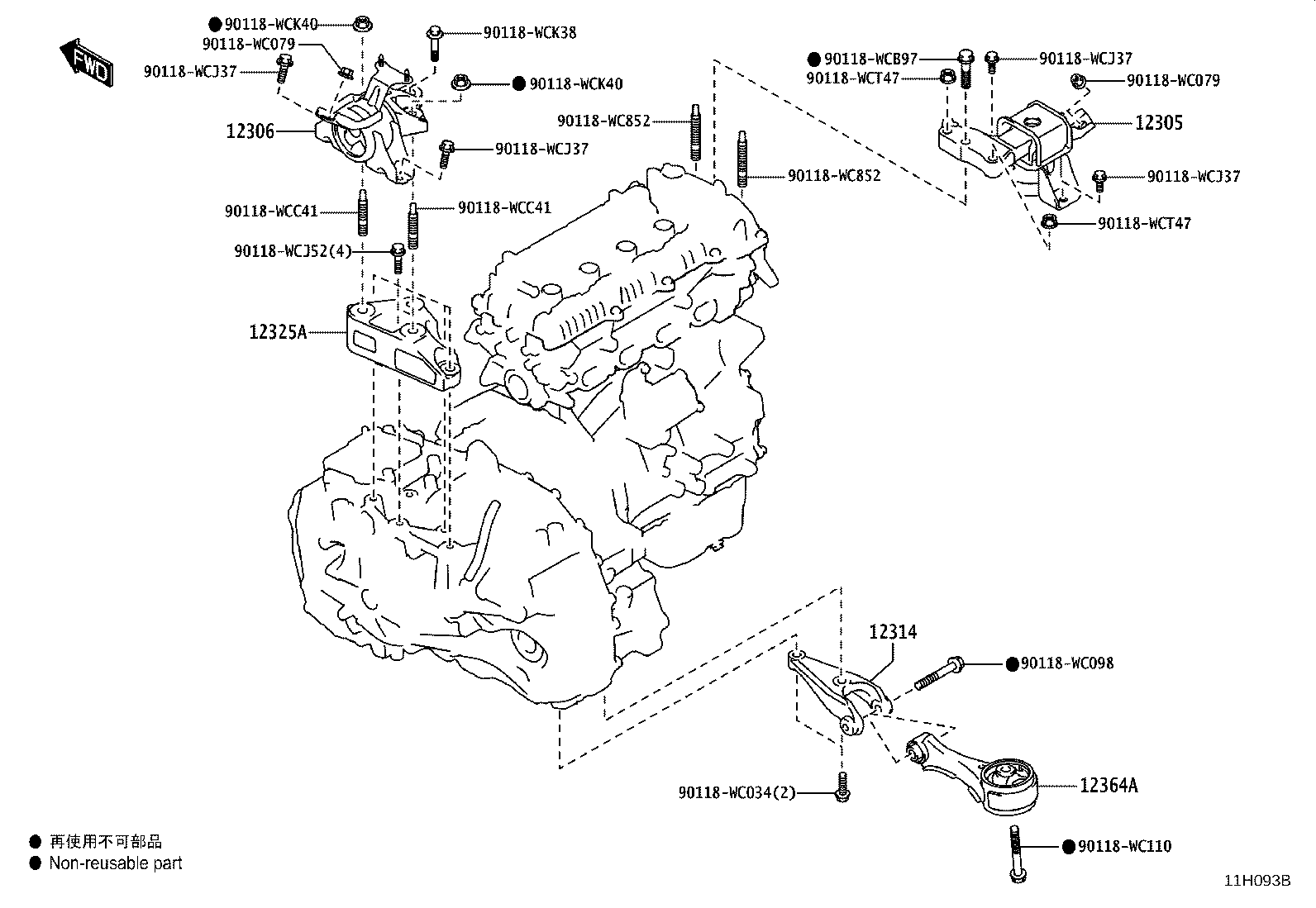

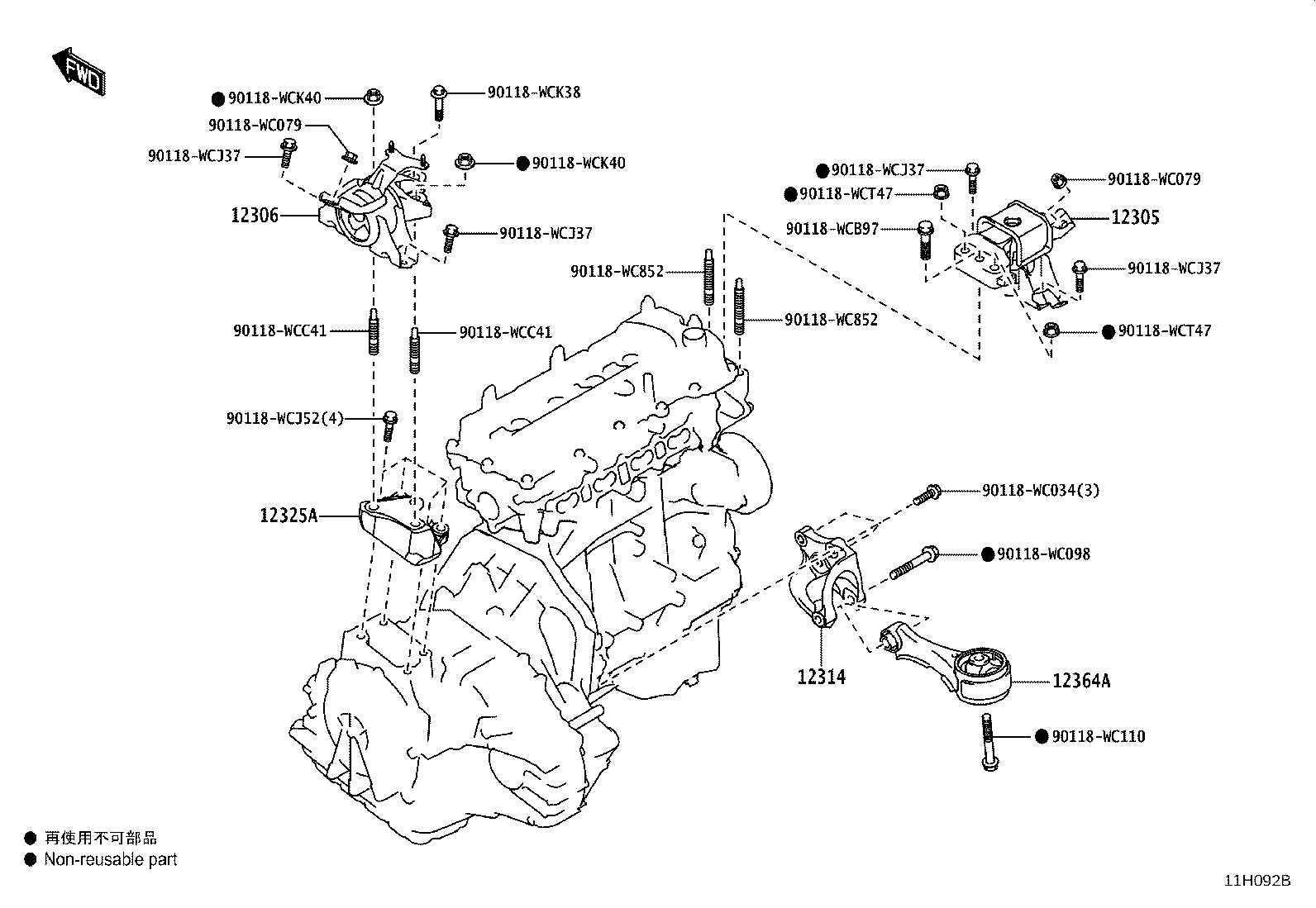

Mounting
5 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 12305 | Insulator Sub-assy, Engine Mounting, RH |
| 12306 | Insulator Sub-assy, Engine Mounting, LH |
| 12314 | Bracket, Engine Lateral Control Rod |
| 12325A | Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE) |
| 12364A | Rod, Engine Lateral Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
