Toyota Urban Cruiser
2022-11 → present · chassis FG21###,22###,61###,62### · catalogue 138320 · General
Supported model
Data version 2024-04

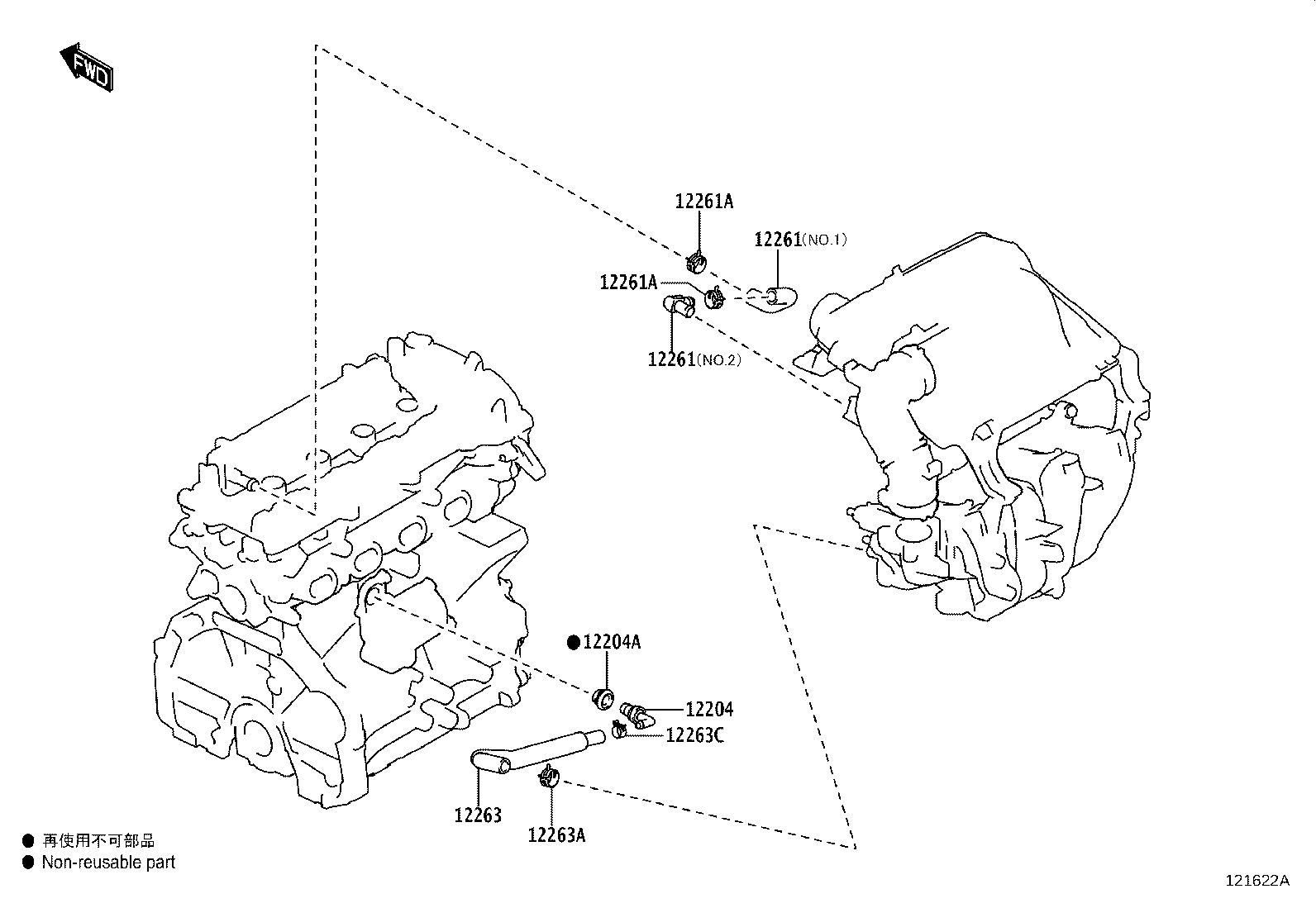

Ventilation Hose
10 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 12204 | Valve Sub-assy, Ventilation |
| 12204A | Grommet(FOR VENTILATION SYSTEM) |
| 12205 | Case Sub-assy, Ventilation |
| 12229 | Pipe, Ventilation |
| 12261 | Hose, Ventilation |
| 12261A | Clip OR Clamp(FOR VENTILATION HOSE) |
| 12263 | Hose, Ventilation, NO.3 |
| 12263A | Clip(FOR VENTILATION HOSE) |
| 12263C | Clip(FOR VENTILATION HOSE) |
| 12273B | Gasket, Oil Separator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
