Toyota Urban Cruiser
2022-11 → present · chassis FG21###,22###,61###,62### · catalogue 138320 · General
Supported model
Data version 2024-04

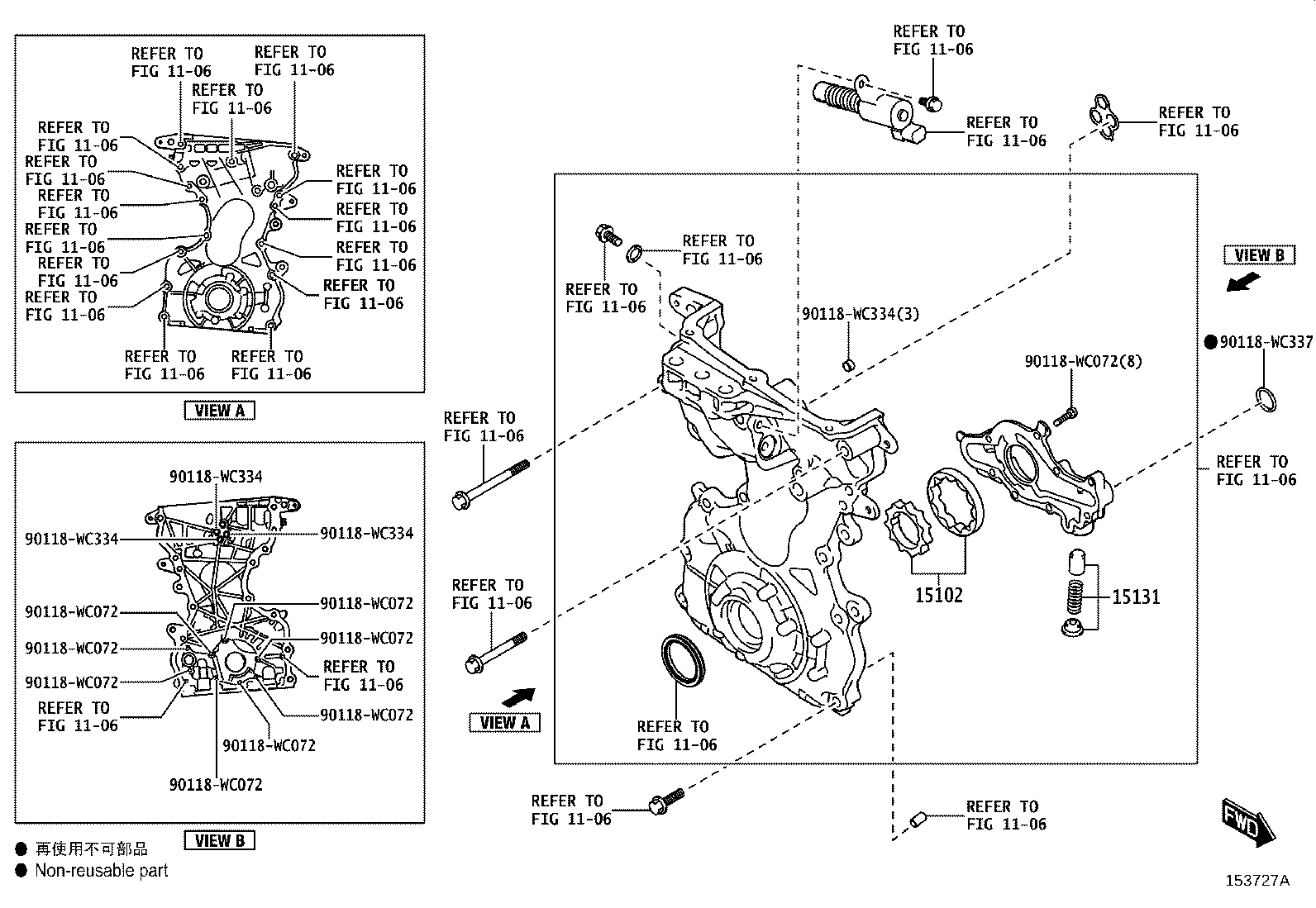

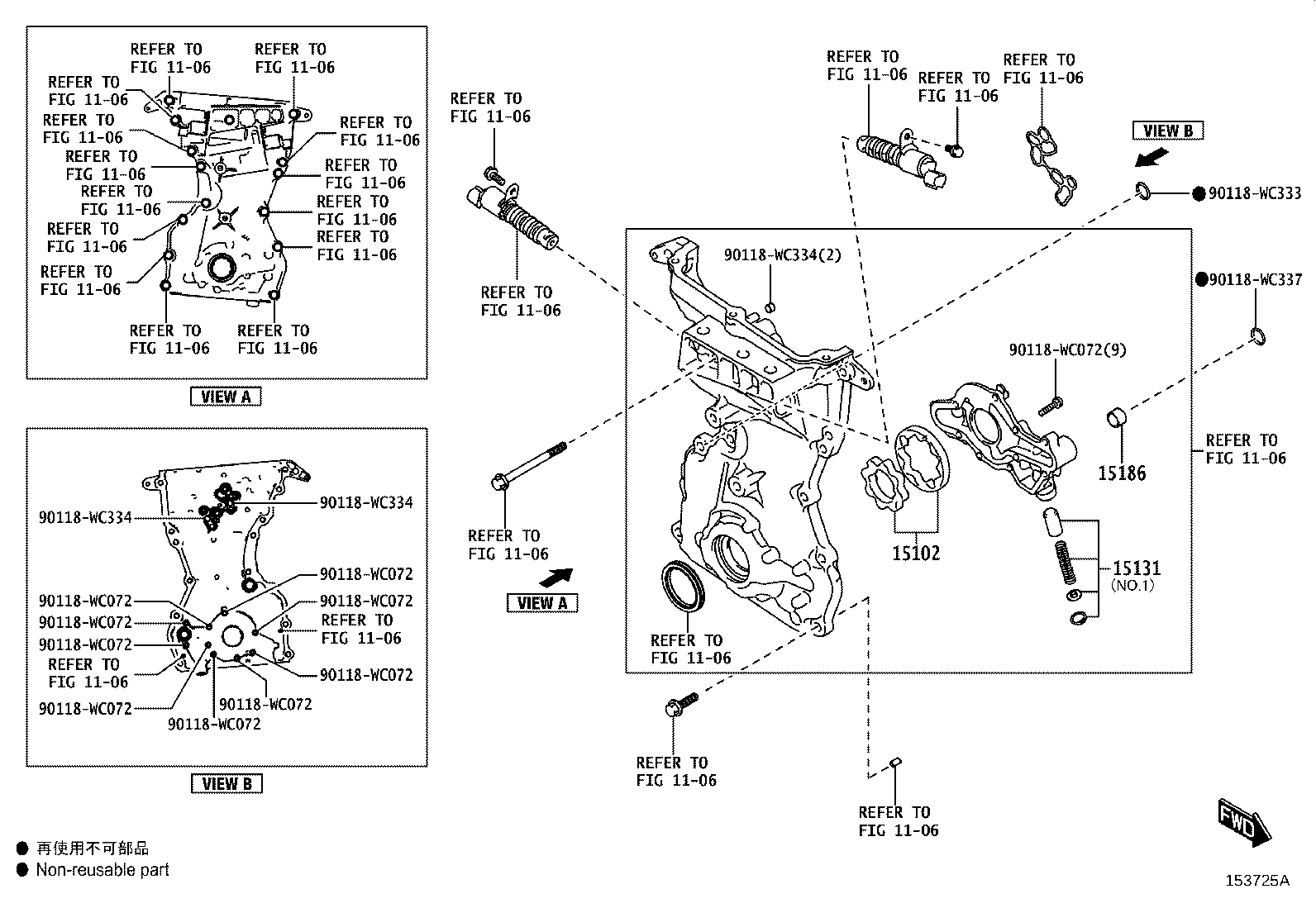

Engine Oil Pump
6 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 15102 | Rotor Set, Oil Pump |
| 15104 | Strainer Sub-assy, Oil |
| 15104E | Bolt, Stud(FOR OIL STRAINER) |
| 15131 | Valve, Oil Pump Relief |
| 15147 | Gasket, Oil Strainer |
| 15186 | Spacer(FOR OIL PUMP DRIVE SHAFT GEAR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
