Toyota Urban Cruiser
2022-11 → present · chassis FG21###,22###,61###,62### · catalogue 138320 · General
Supported model
Data version 2024-04

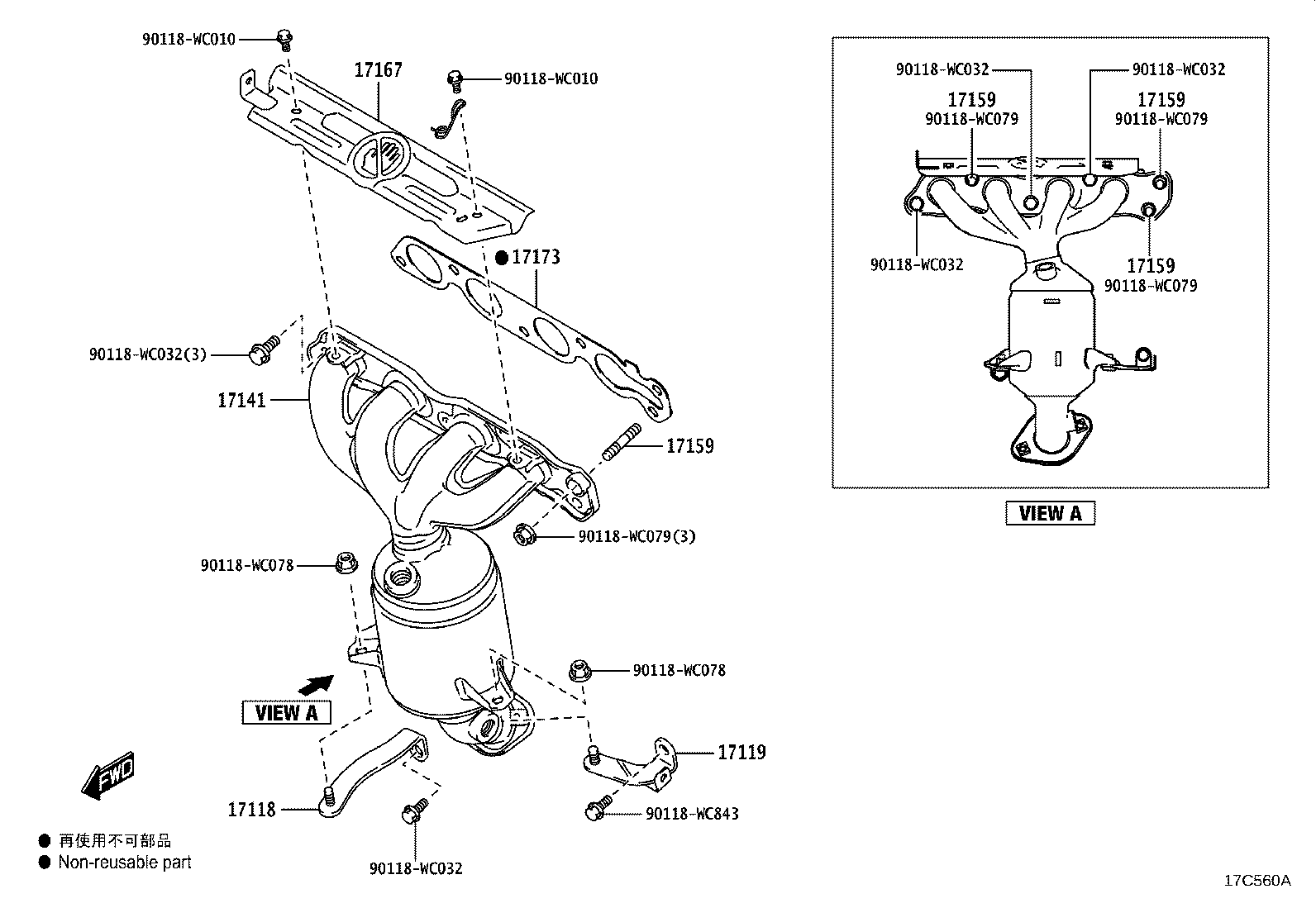

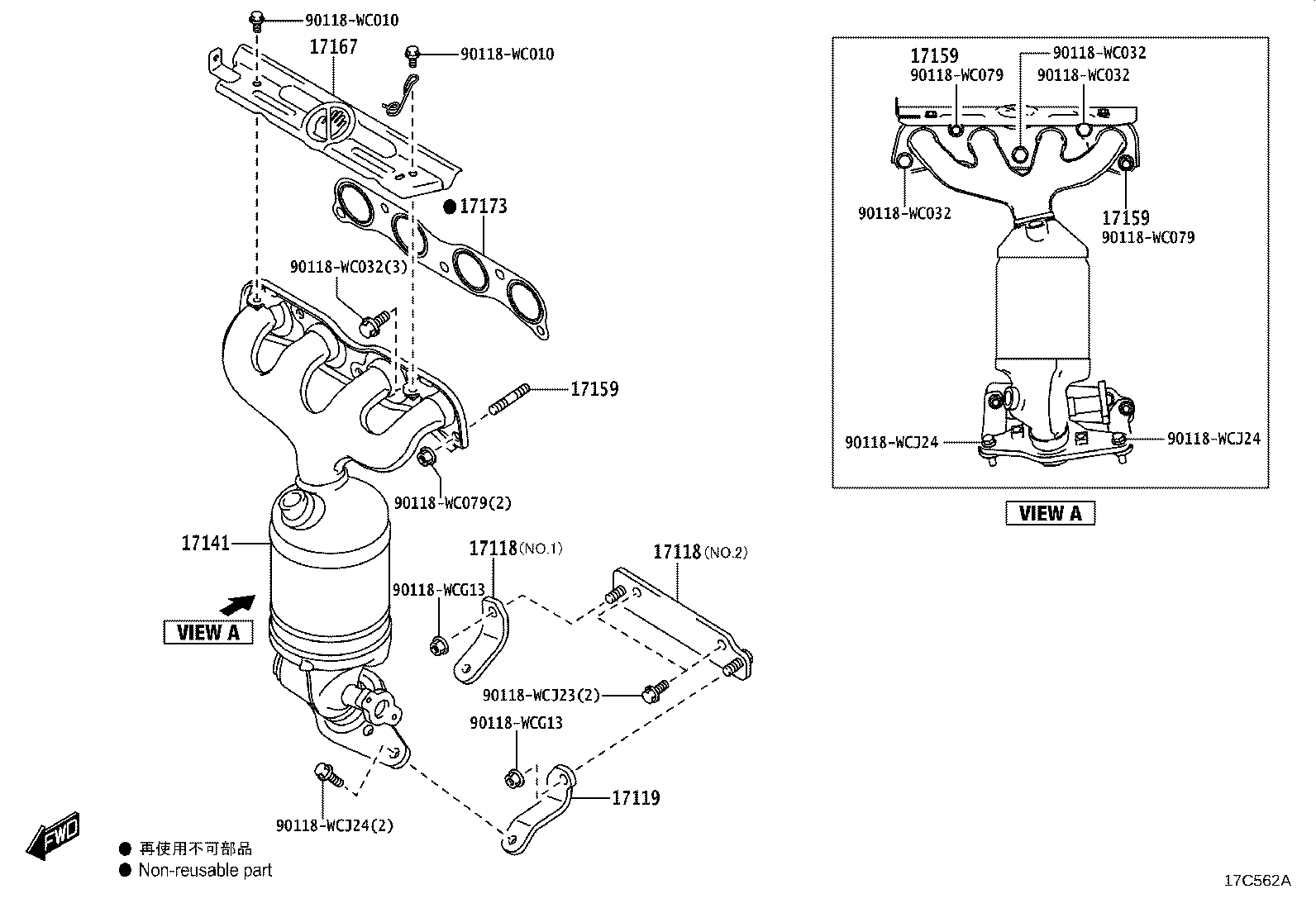

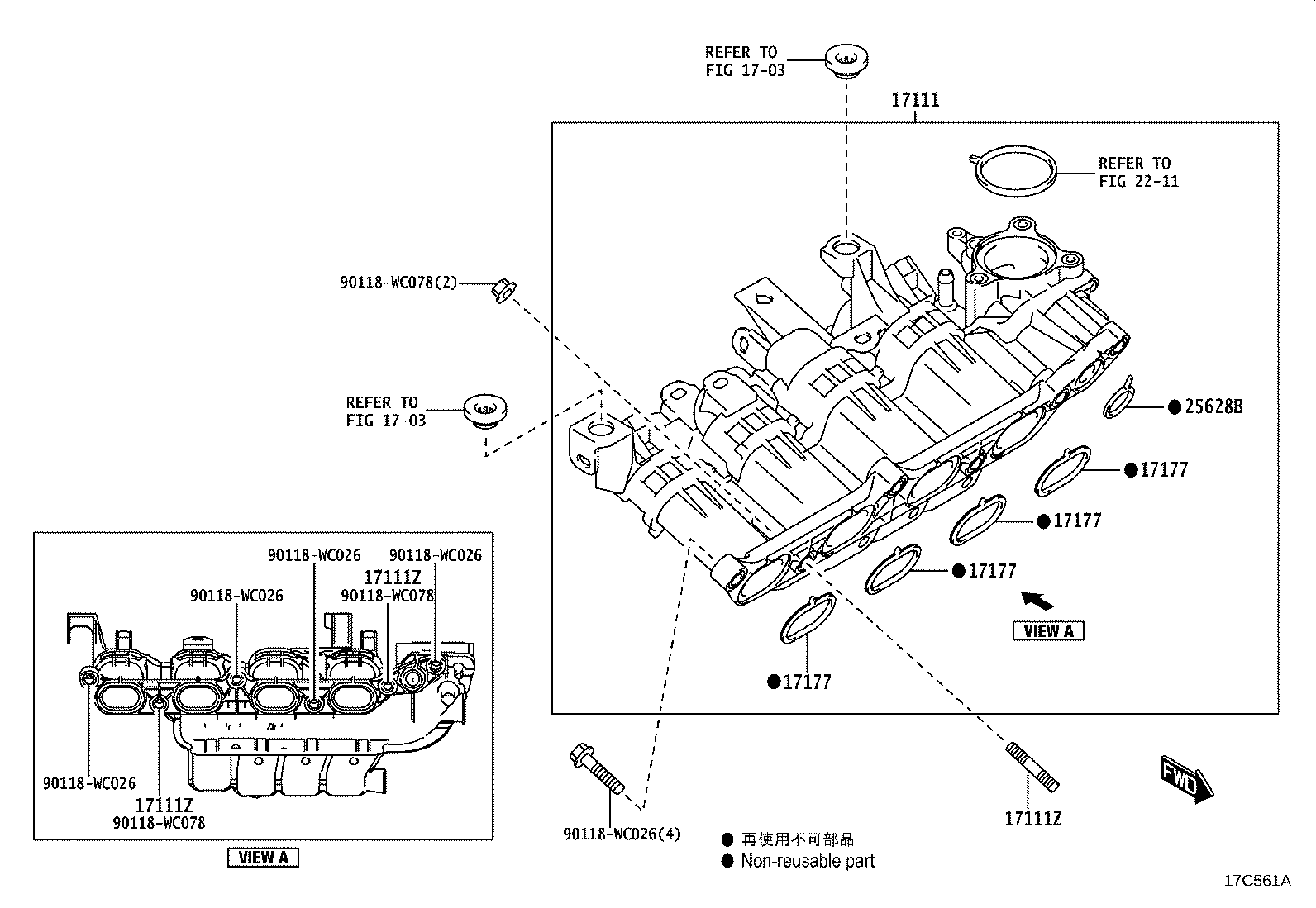

Manifold
10 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 17111 | Manifold, Intake |
| 17111Z | Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD) |
| 17118 | Stay, Manifold |
| 17119 | Stay, Manifold, NO.2 |
| 17141 | Manifold, Exhaust |
| 17159 | Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) |
| 17167 | Insulator, Exhaust Manifold Heat, NO.1 |
| 17173 | Gasket, Exhaust Manifold TO Head |
| 17177 | Gasket, Intake Manifold TO Head, NO.1 |
| 25628B | Gasket, Egr Inlet |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
