Toyota Urban Cruiser

2022-11 → present · chassis FG21###,22###,61###,62### · catalogue 138320 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

14 part groups · 5 illustrations

Illustrations

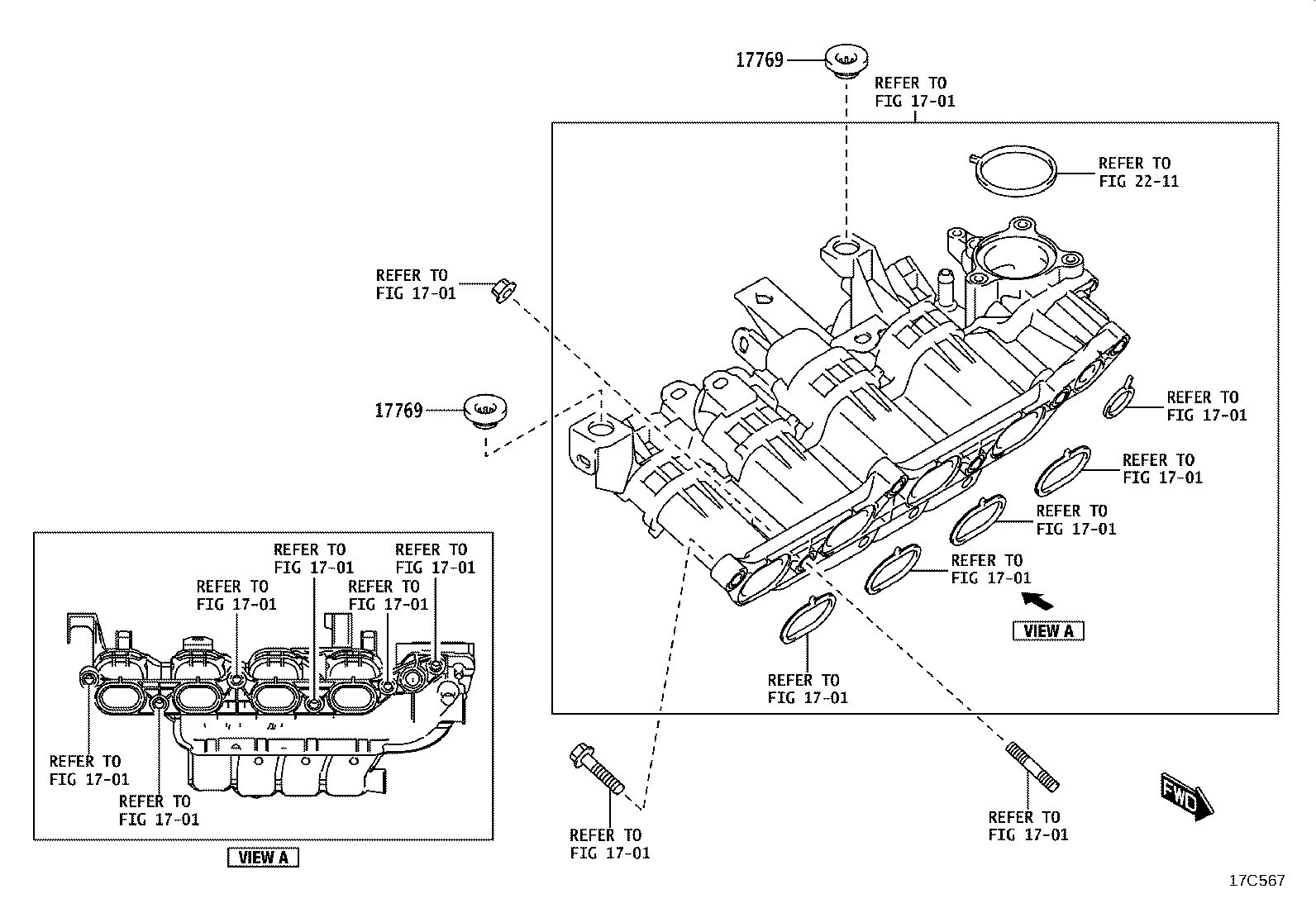

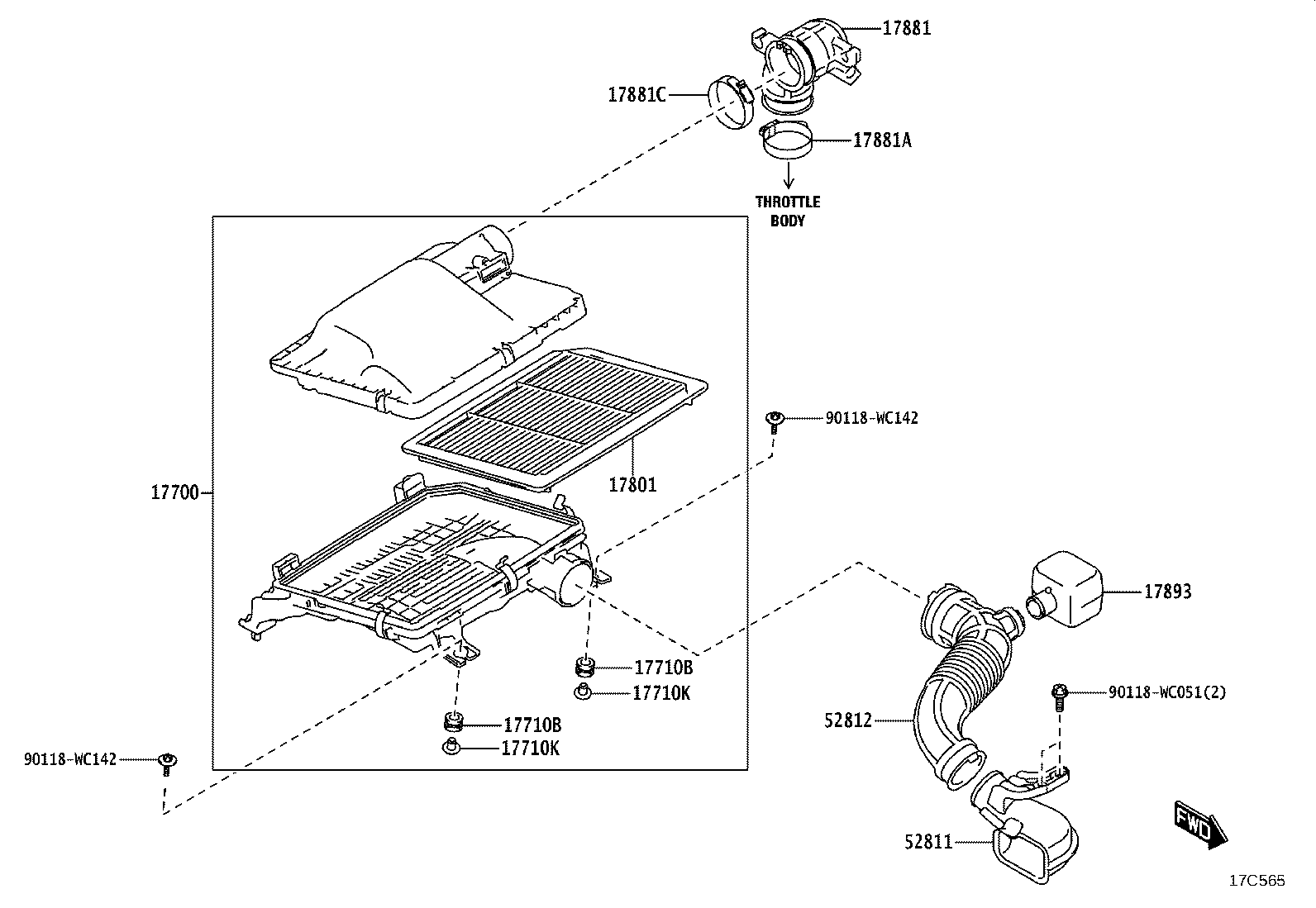

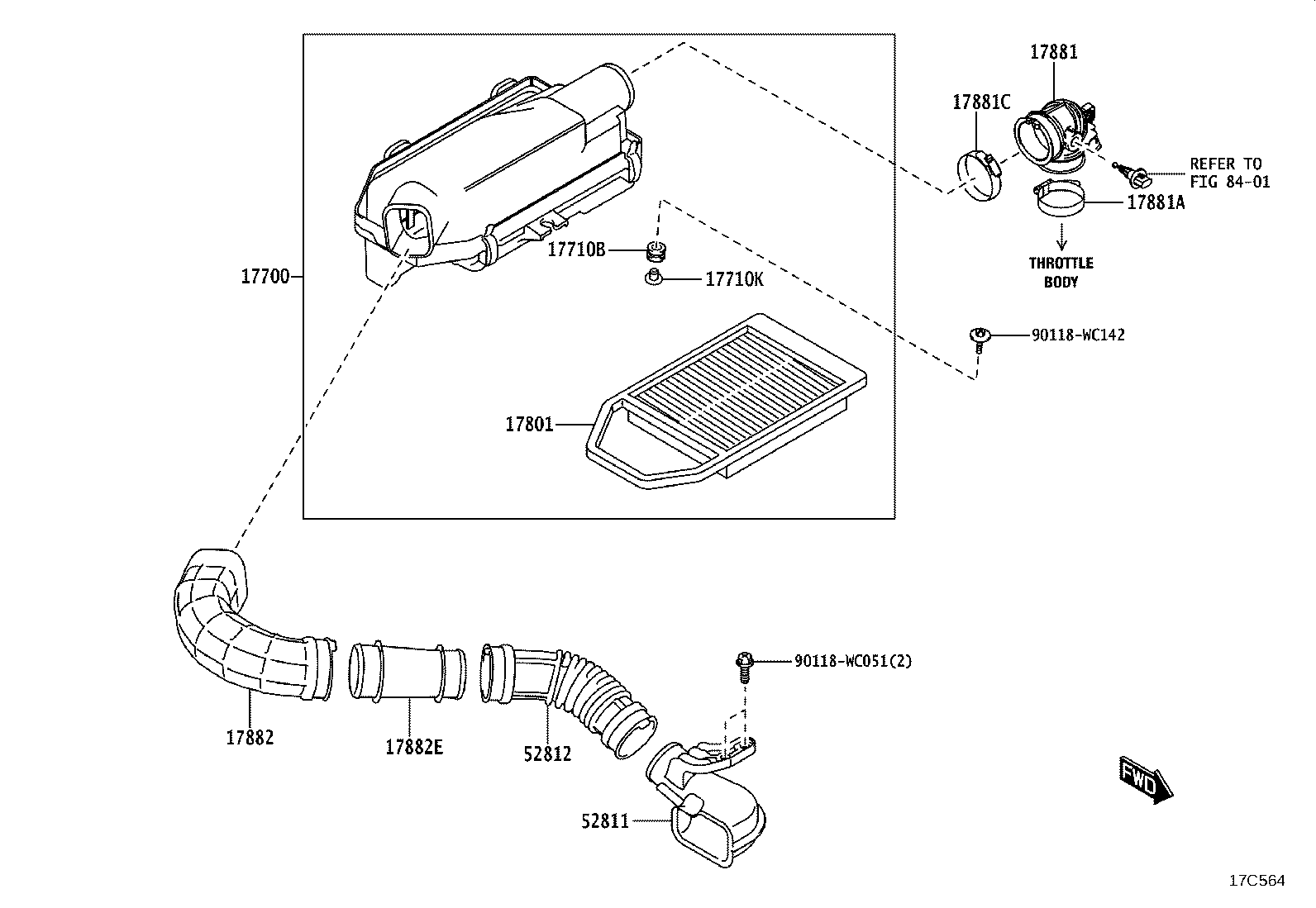

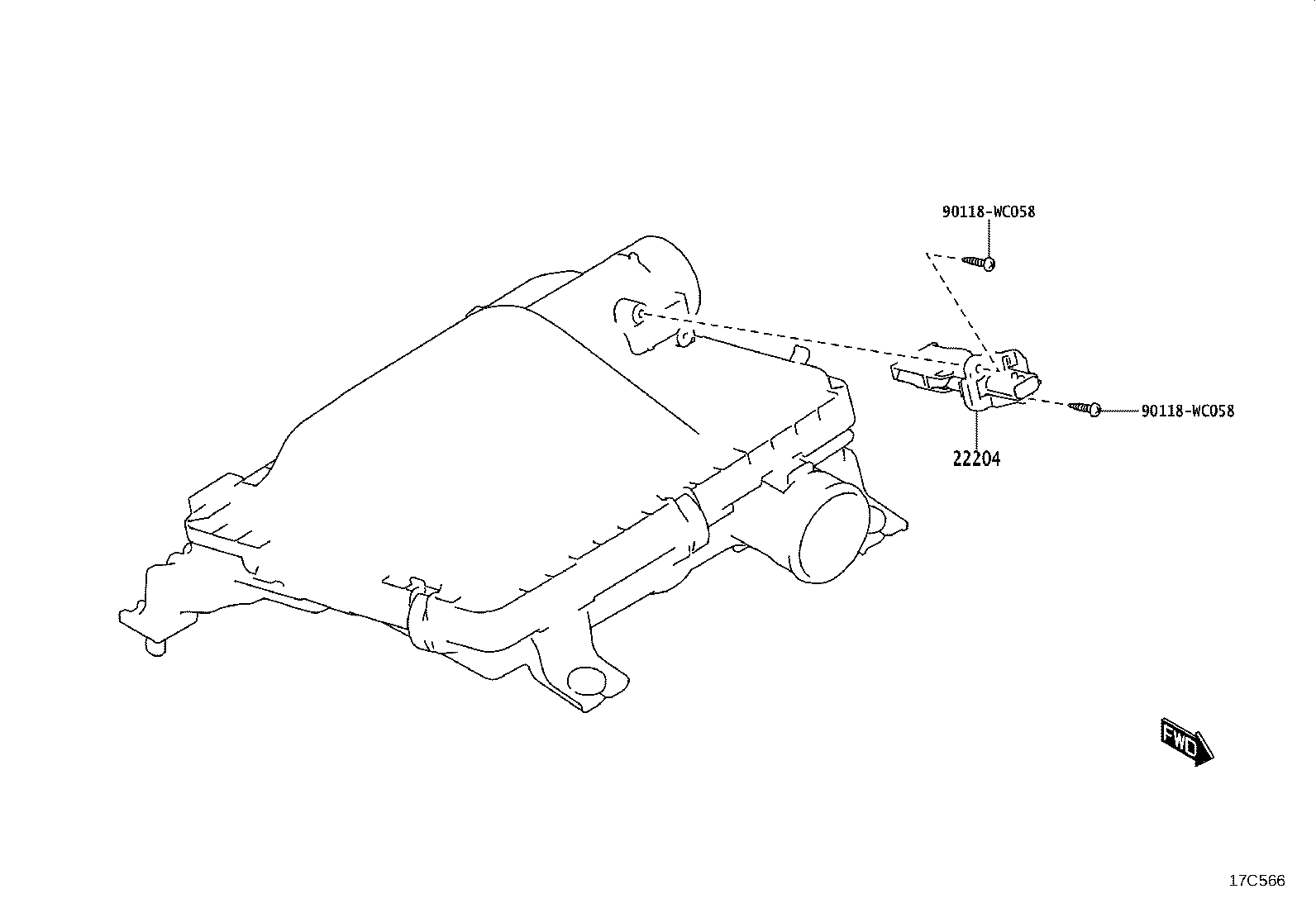

Figure 17C563 17C563 2022-11 → — Figure 17C564 17C564 2022-11 → — Figure 17C565 17C565 2023-02 → — Figure 17C566 17C566 2023-02 → — Figure 17C567 17C567 2023-02 → —

Part groups

PNCDescription
17700 Cleaner Assy, Air
17710B Grommet
17710K Collar(FOR AIR CLEANER)
17769 Support, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17881C Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882E Pipe, Cool Air Intake, NO.2
17893 Resonator, Intake Air
22204 Meter Sub-assy, Intake Air Flow
52811 Duct, Cool Air Intake, NO.1
52812 Duct, Cool Air Intake, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
