Toyota Urban Cruiser

2022-11 → present · chassis FG21###,22###,61###,62### · catalogue 138320 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Band & Multiple Disc Clutch (ATM)

21 part groups · 6 illustrations

Illustrations

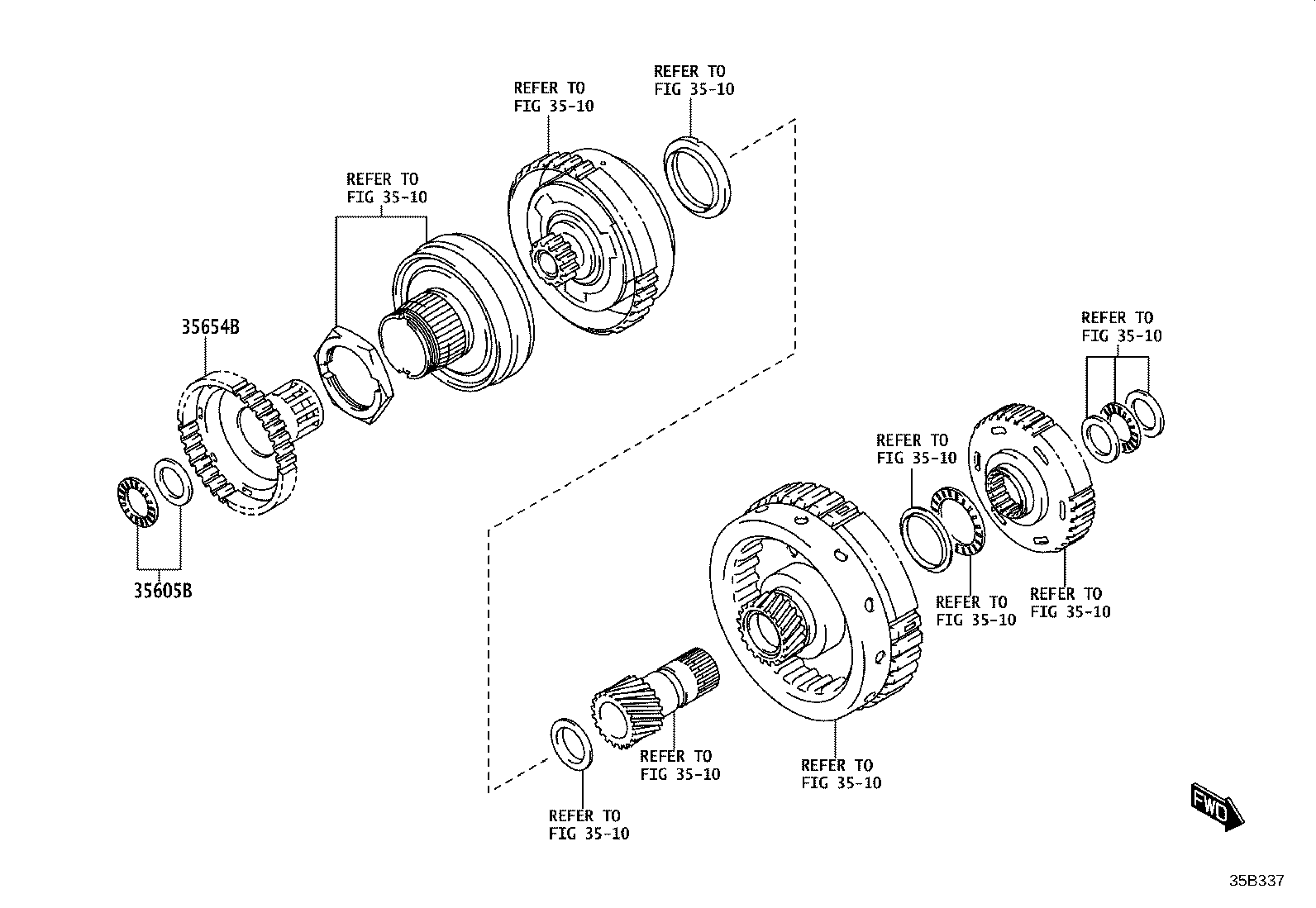

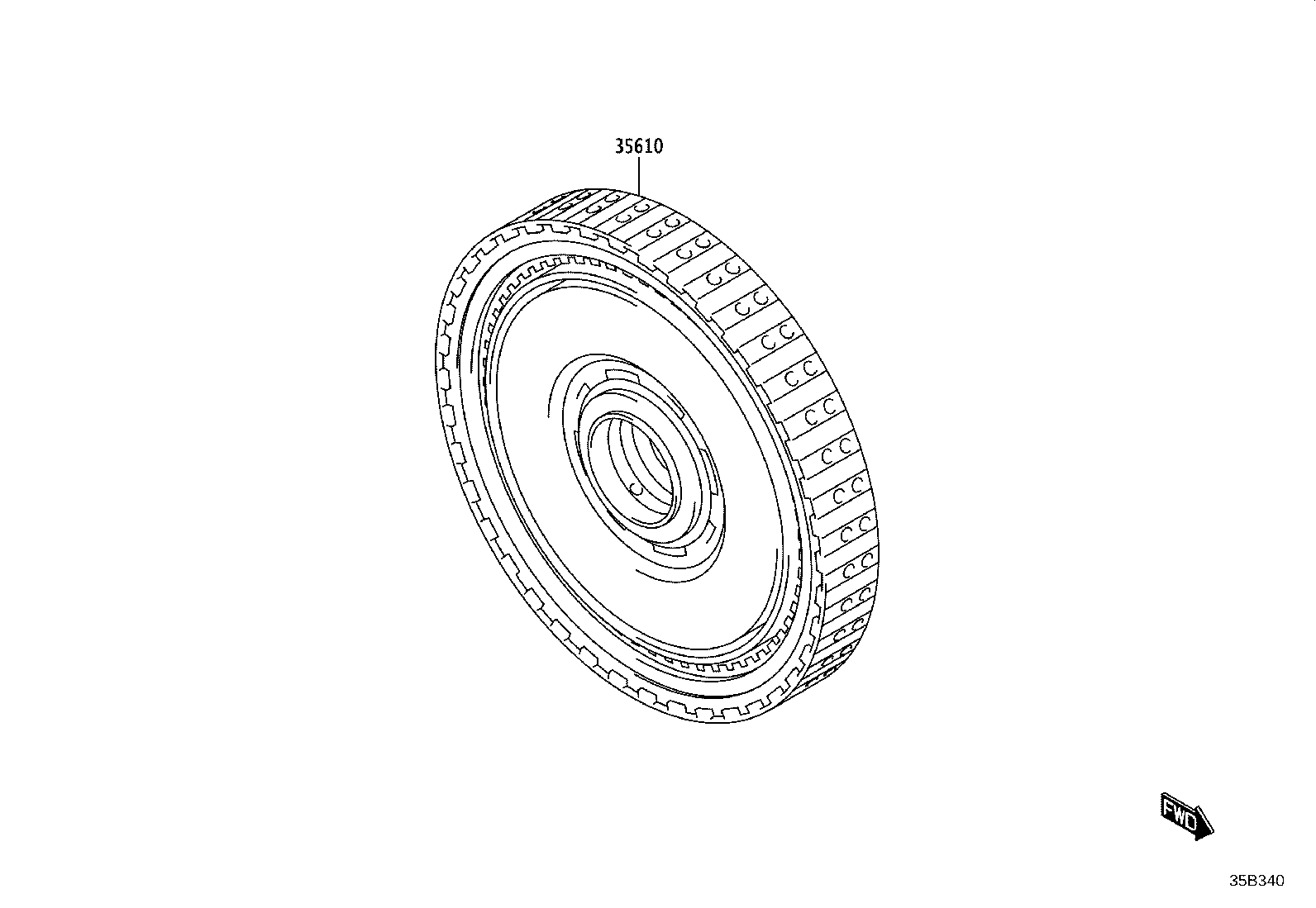

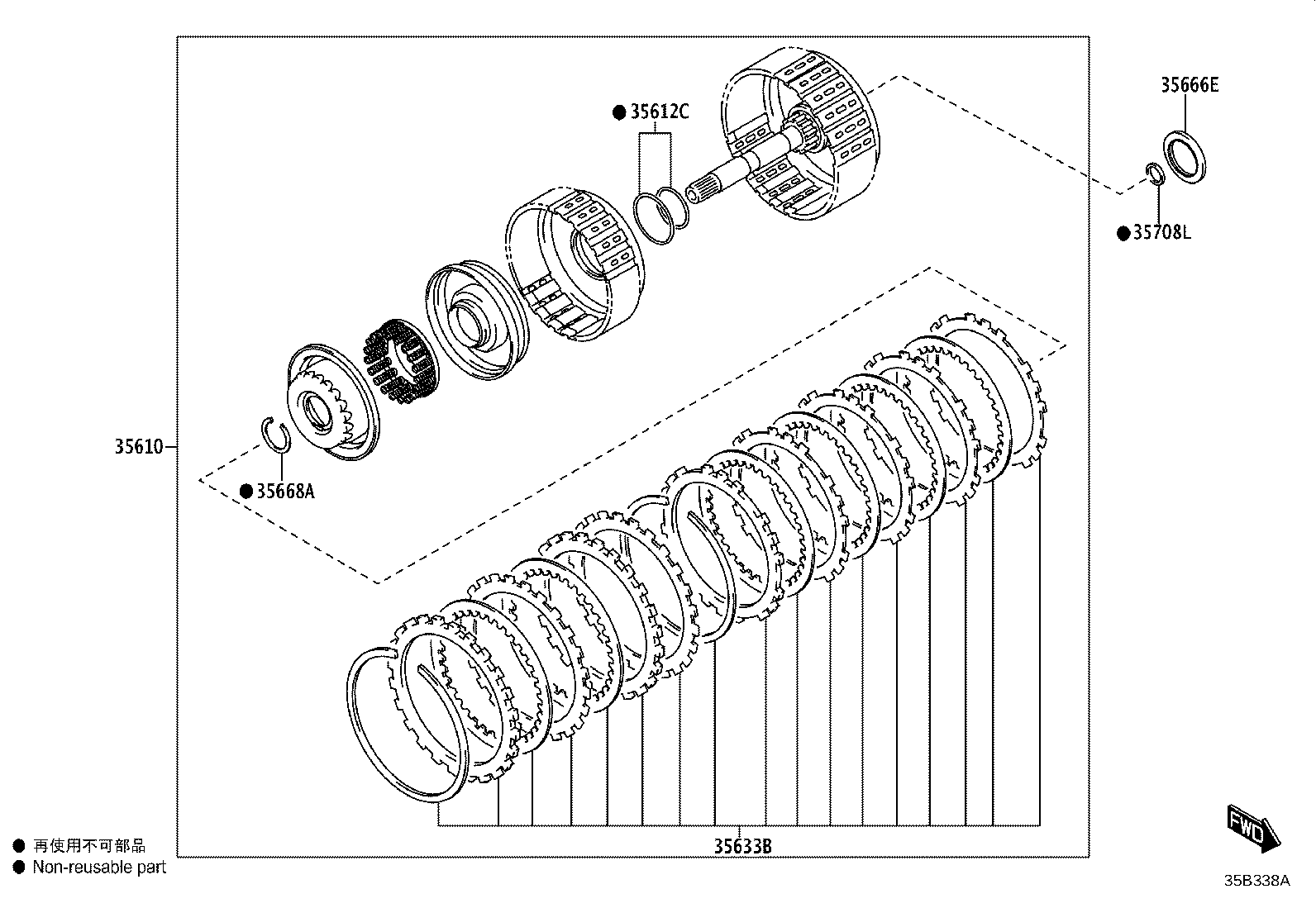

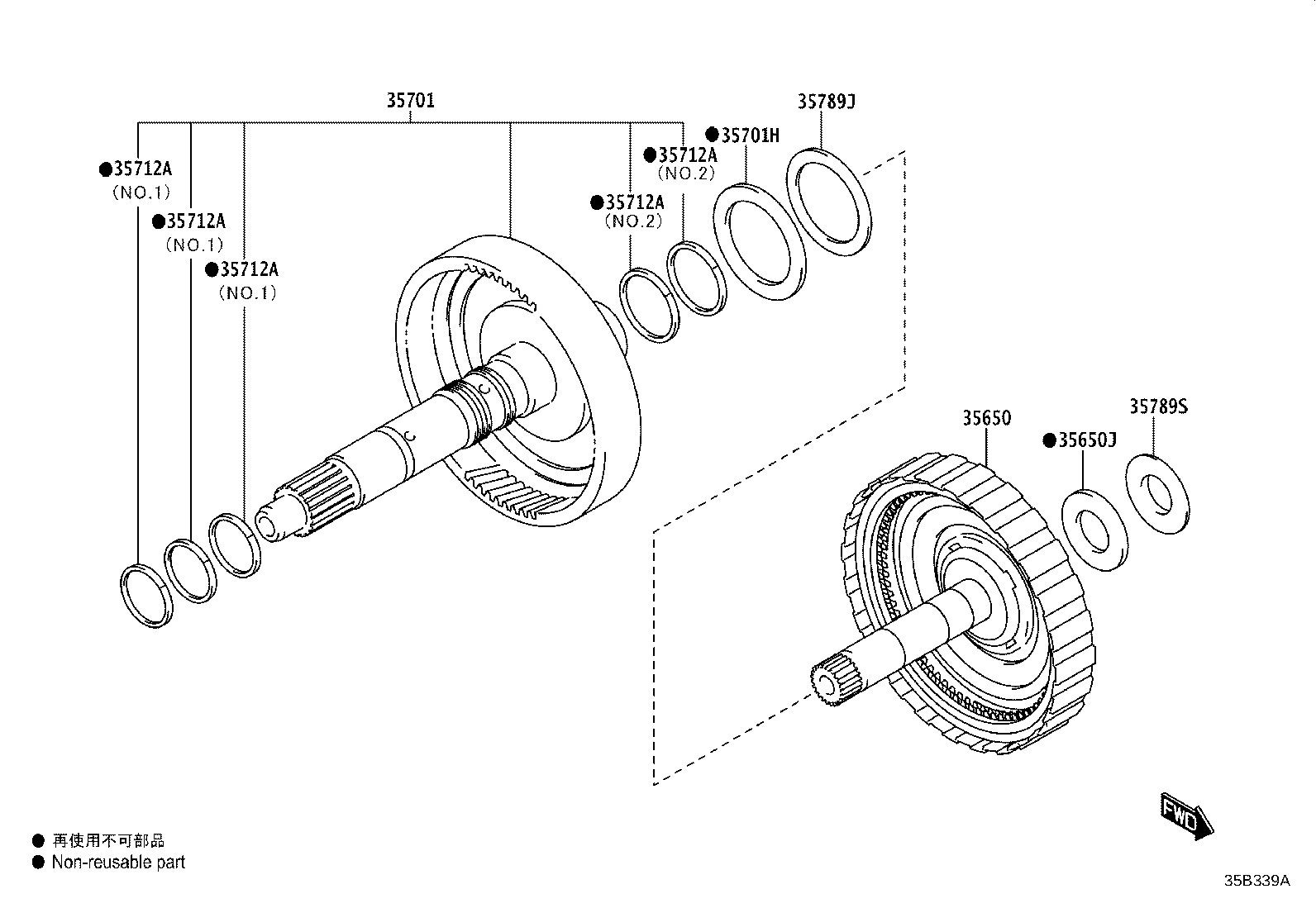

Figure 35B336A 35B336A 2022-11 → — Figure 35B337 35B337 2022-11 → — Figure 35B338A 35B338A 2022-11 → — Figure 35B339A 35B339A 2023-02 → — Figure 35B340 35B340 2023-02 → — Figure 35B341A 35B341A 2023-02 → —

Part groups

PNCDescription
35605B Bearing, Thrust Needle Roller
35606C Ring, O (FOR DIRECT CLUTCH PISTON)
35606E Ring, Shaft Snap (FOR DIRECT CLUTCH PISTON RETURN SPRING)
35610 Clutch Assy, Front Multiple Disc
35612C Ring, O(FOR FORWARD CLUTCH PISTON)
35633B Disc, Clutch (FOR FORWARD MULTIPLE DISC CLUTCH)
35650 Clutch Assy, Rear Multiple Disc
35650J Bearing, Thrust Needle Roller (FOR DIRECT DISC CLUTCH)
35654B Hub, Direct Clutch
35666E Balancer, Reverse Clutch
35667A Disk, Direct Clutch
35668A Ring, Snap(FOR CLUTCH BALANCER)
35701 Shaft Sub-assy, Input
35701H Bearing, Thrust Needle Roller (FOR INPUT SHAFT)
35708L Ring, O (FOR INTERMEDIATE SHAFT)
35712A Ring, Input Shaft Oil Seal
35789J Race, Thrust Bearing (FOR INPUT SHAFT FRONT)
35789S Race, Thrust Bearing (FOR INPUT SHAFT REAR)
35815C Cover, Brake Piston
35821J Piston, B-1 Brake
35821L Ring, O(FOR B-1 BRAKE PISTON)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
