Toyota Urban Cruiser
2022-11 → present · chassis FG21###,22###,61###,62### · catalogue 138320 · General
Supported model
Data version 2024-04

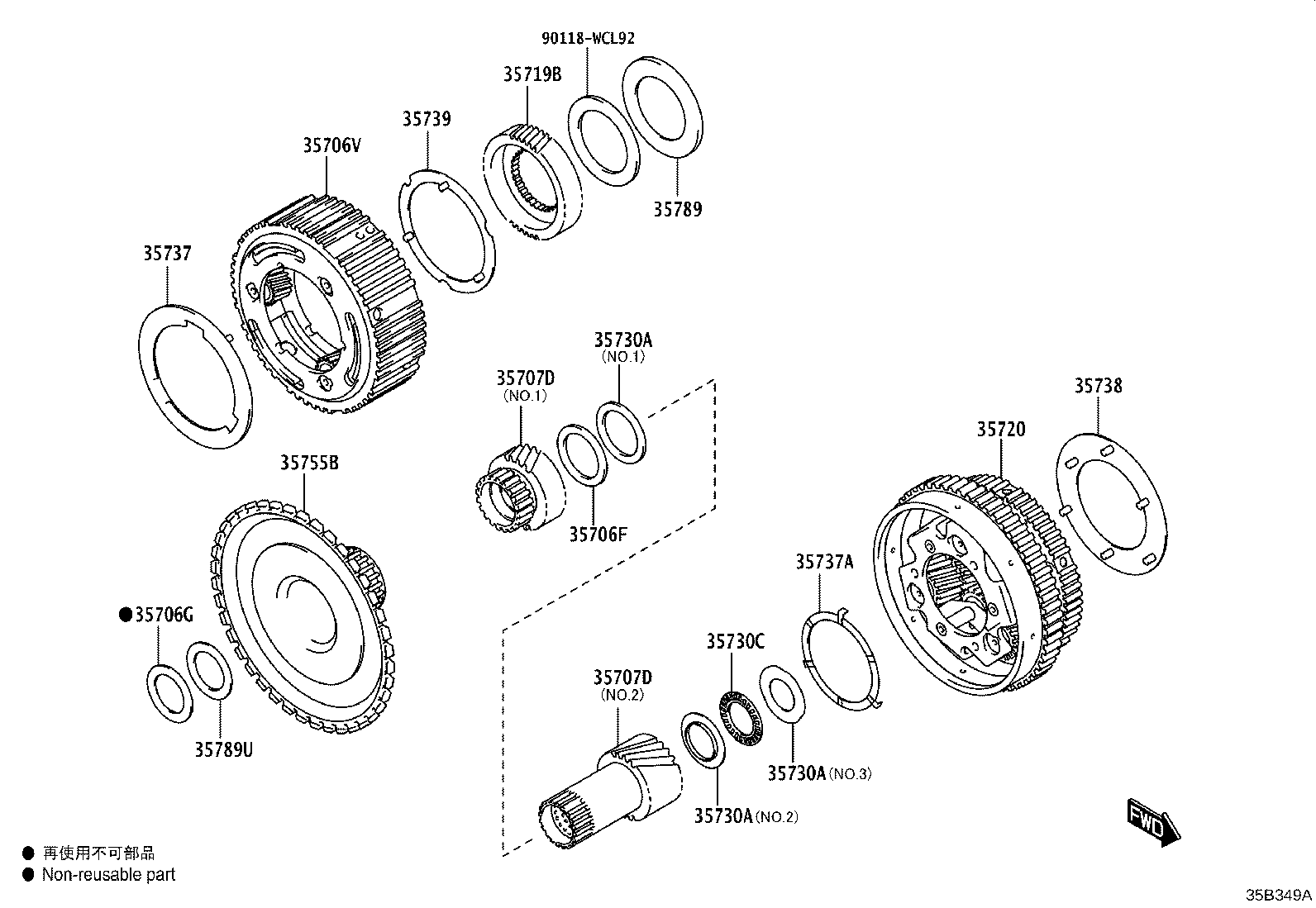

Planetary Gear, Reverse Piston & Counter Gear(ATM)
26 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

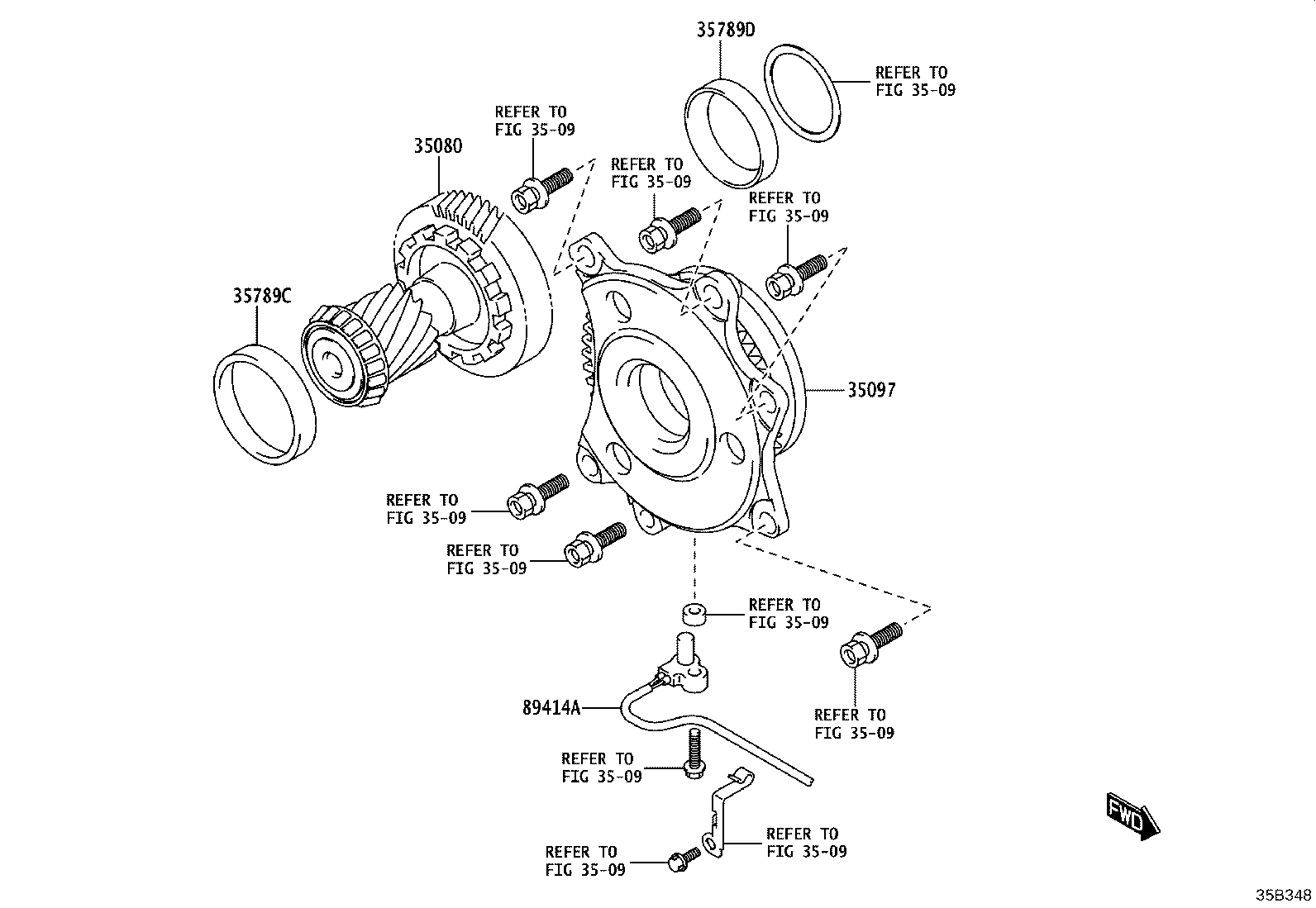

| 35080 | Gear Assy, Counter Driven & Differential Pinion |
| 35097 | Counter Gear Kit, Automatic Transaxle |
| 35631J | Hub, Forward Clutch, NO.1 |
| 35706F | Race, Thrust Bearing (FOR SUN GEAR REAR) |
| 35706G | Bearing, Thrust (FOR SUN GEAR REAR) |
| 35706V | Gear Sub Assy, Planetary Sun |
| 35707D | Gear Sub-assy, Rear Planetary Sun |
| 35708B | Bearing, Radial Ball (FOR INTERMEDIATE SHAFT REAR) |
| 35719B | Gear, Planetary Sun |
| 35720 | Gear Assy, Front Planetary |
| 35720J | Bearing, Thrust Needle Roller(FOR PLANETARY GEAR FRONT) |
| 35720K | Bearing, Thrust Needle Roller(FOR PLANETARY GEAR REAR) |
| 35730 | Gear Assy, Rear Planetary Sun |
| 35730A | Race, Thrust Bearing (FOR REAR PLANETARY SUN GEAR) |
| 35730C | Bearing, Thrust Needle(FOR REAR PLANETARY SUN GEAR, NO.2) |
| 35737 | Washer, Planetary Carrier Thrust |
| 35737A | Washer, Planetary Carrier Thrust, NO.1 |
| 35738 | Washer, Planetary Carrier Thrust, NO.2 |
| 35739 | Washer, Planetary Carrier Thrust, NO.3 |
| 35740A | Gear Assy,Front Planetary Ring |
| 35755B | Drum, Sun Gear Input |
| 35789 | Race, Thrust Bearing (FOR FRONT PLANETARY FLANGE FRONT) |
| 35789C | Race, Thrust Bearing (FOR FRONT PLANETARY GEAR FRONT) |
| 35789D | Race, Thrust Bearing (FOR FRONT PLANETARY GEAR REAR) |
| 35789U | Race, Thrust Bearing |
| 89414A | Rotor, Sensor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
