Toyota Urban Cruiser
2022-11 → present · chassis FG21###,22###,61###,62### · catalogue 138320 · General
Supported model
Data version 2024-04
Valve Body & Oil Strainer (ATM)
8 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 35198B | Bracket, Wire Harness Clamp |
| 35303 | Strainer Sub-assy, Oil |
| 35303A | Ring, O (FOR OIL STRAINER) |

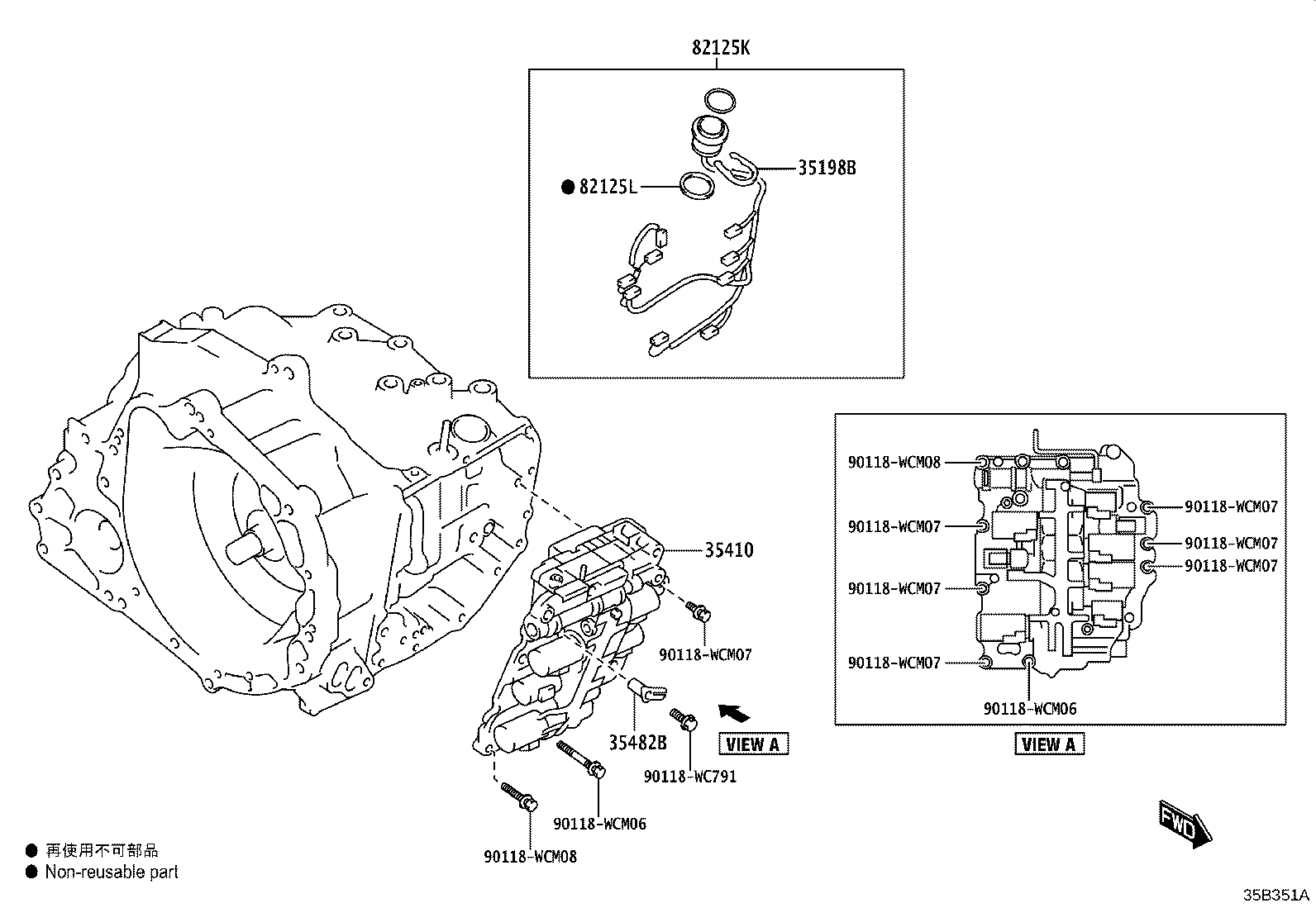

| 35410 | Body Assy, Transmission Valve |
| 35426D | Piston, C-3 Accumulator |
| 35482B | Clamp, Temperature Sensor |
| 82125K | Wire, Transmission |
| 82125L | Ring, O(FOR TRANSMISSION WIRE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
