Toyota Urban Cruiser
2022-11 → present · chassis FG21###,22###,61###,62### · catalogue 138320 · General
Supported model
Data version 2024-04

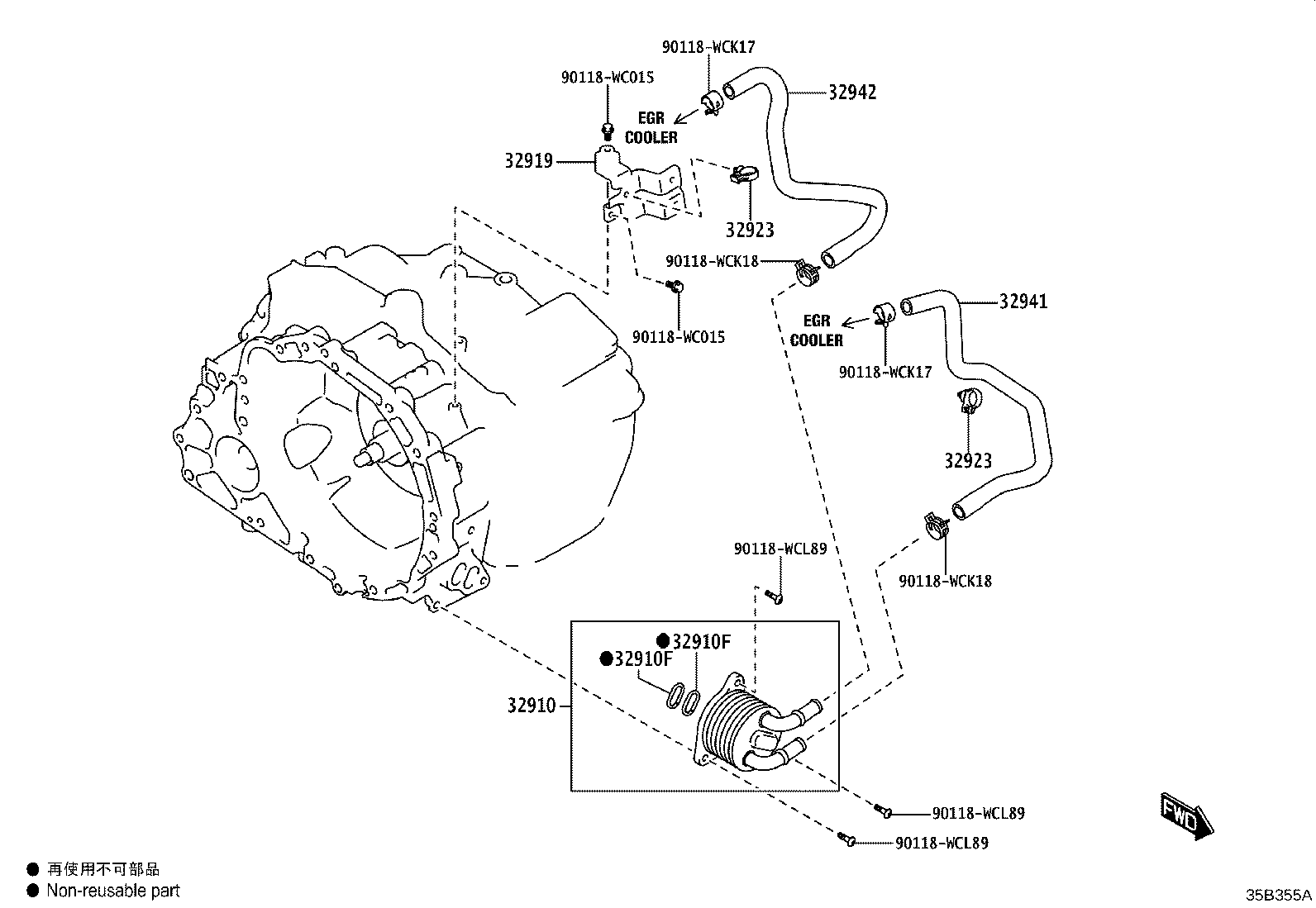

Oil Cooler & Tube (ATM)
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 32901G | Bolt, Union(FOR OIL COOLER) |
| 32901H | Gasket(FOR OIL COOLER UNION) |
| 32907C | Tube Sub-assy, Oil Cooler W/O Hose, NO.1 |
| 32910 | Cooler Assy, Oil |
| 32910F | Ring, O(FOR OIL COOLER) |
| 32919 | Holder, Oil Cooler Tube |
| 32923 | Clamp, Automatic Transmission Oil Cooler Tube |
| 32941 | Hose, Oil Cooler Inlet, NO.1 |
| 32942 | Hose, Oil Cooler Outlet, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
