Toyota Urban Cruiser

2022-11 → present · chassis FG21###,22###,61###,62### · catalogue 138320 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

9 part groups · 6 illustrations

Illustrations

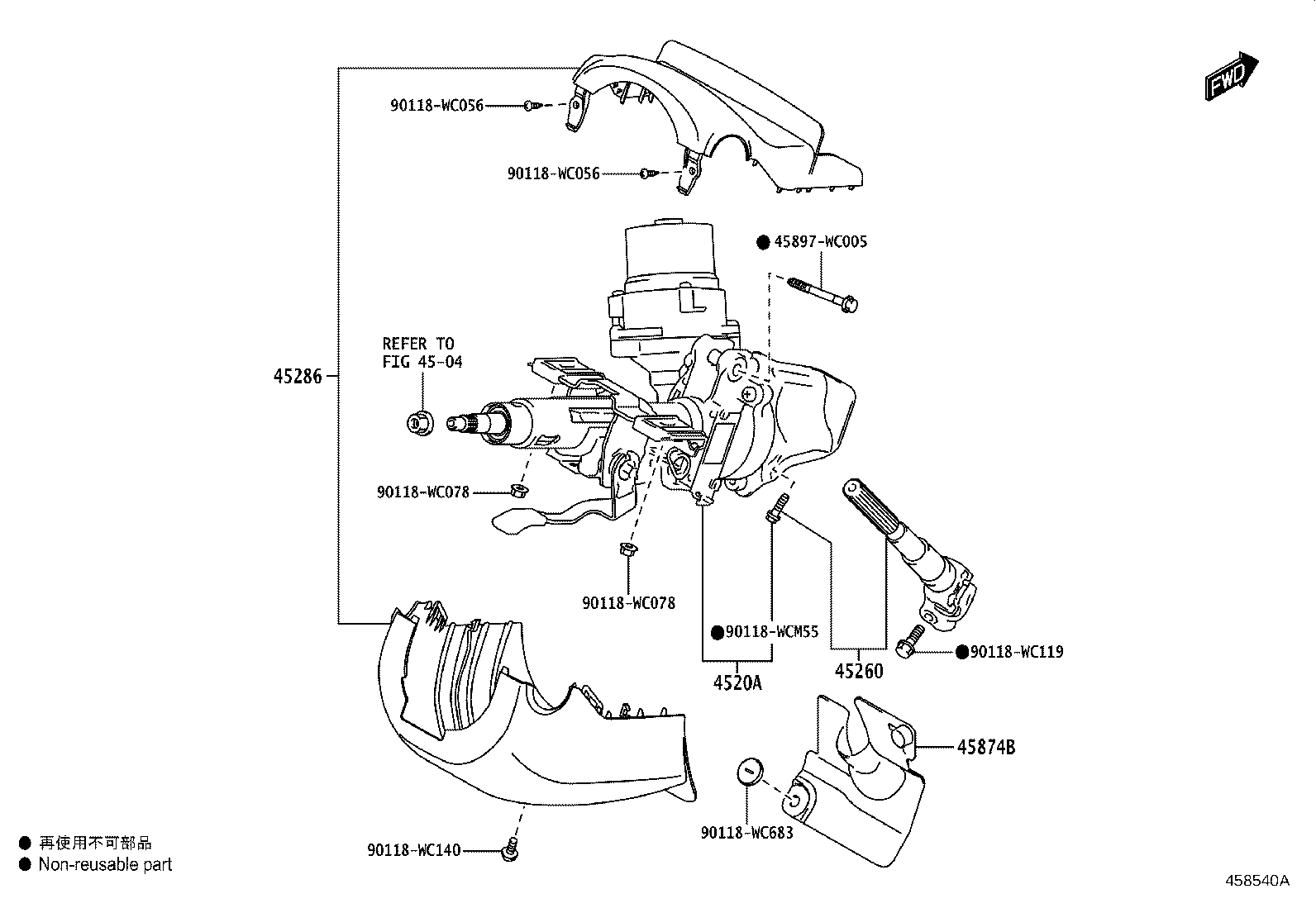

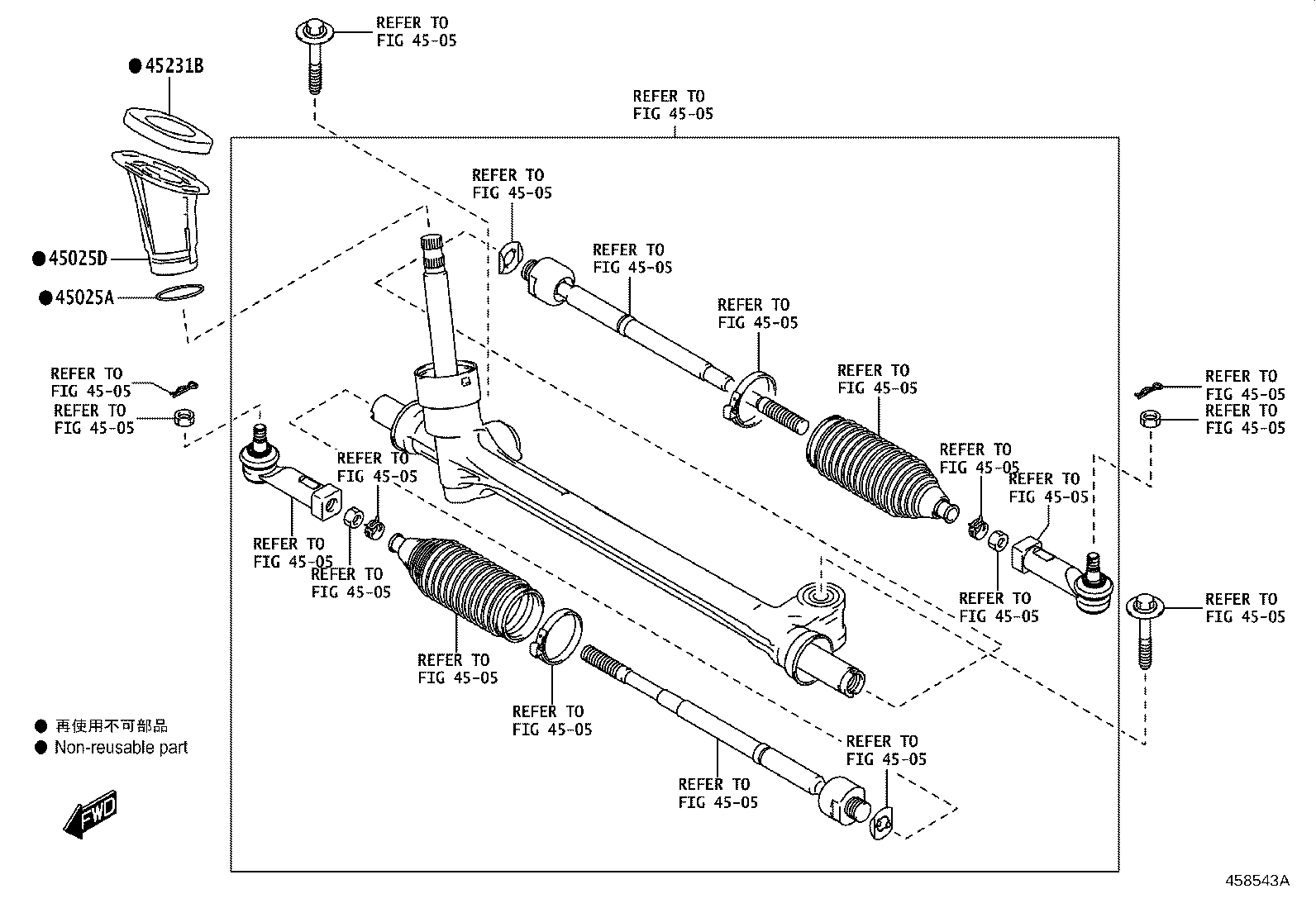

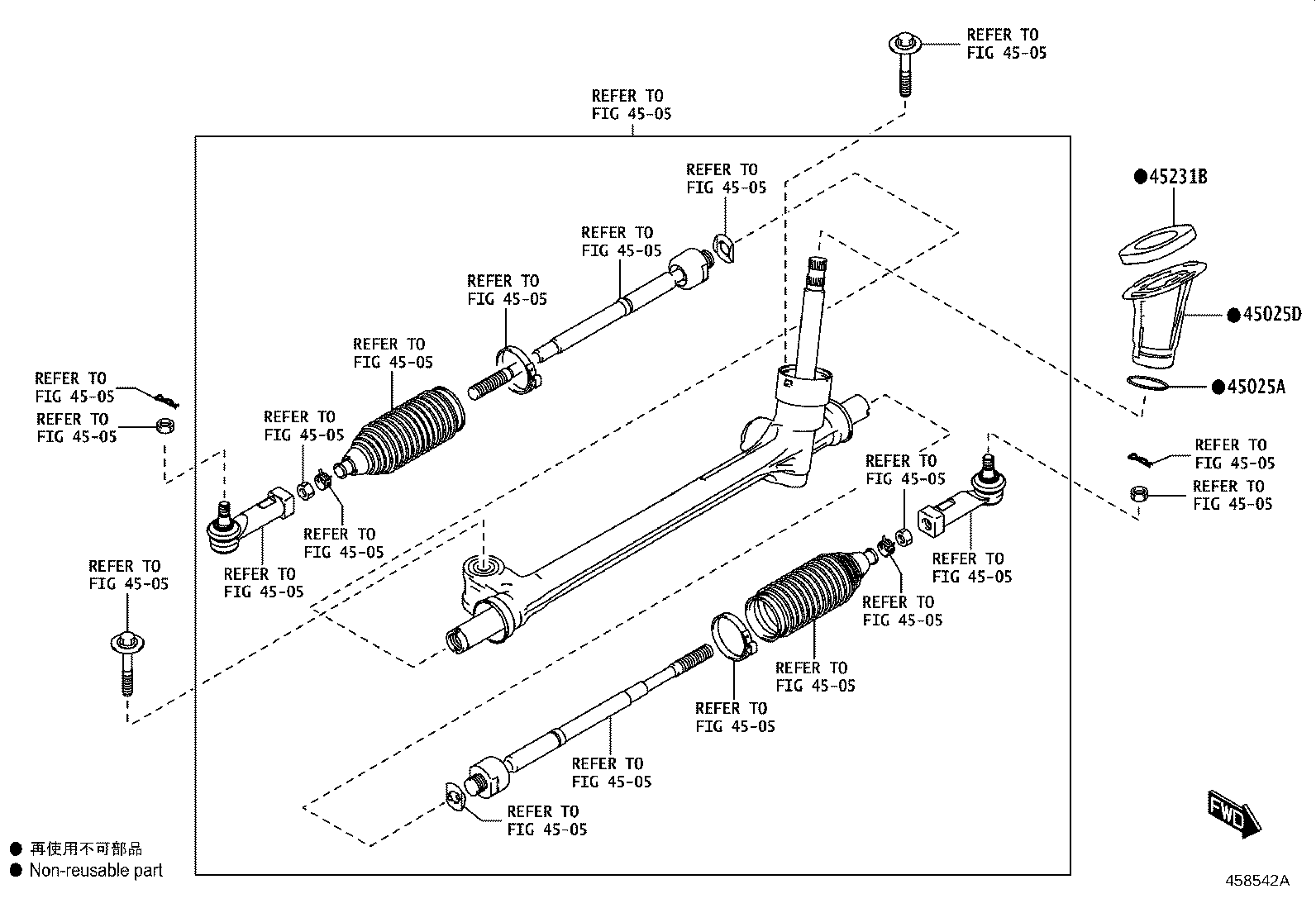

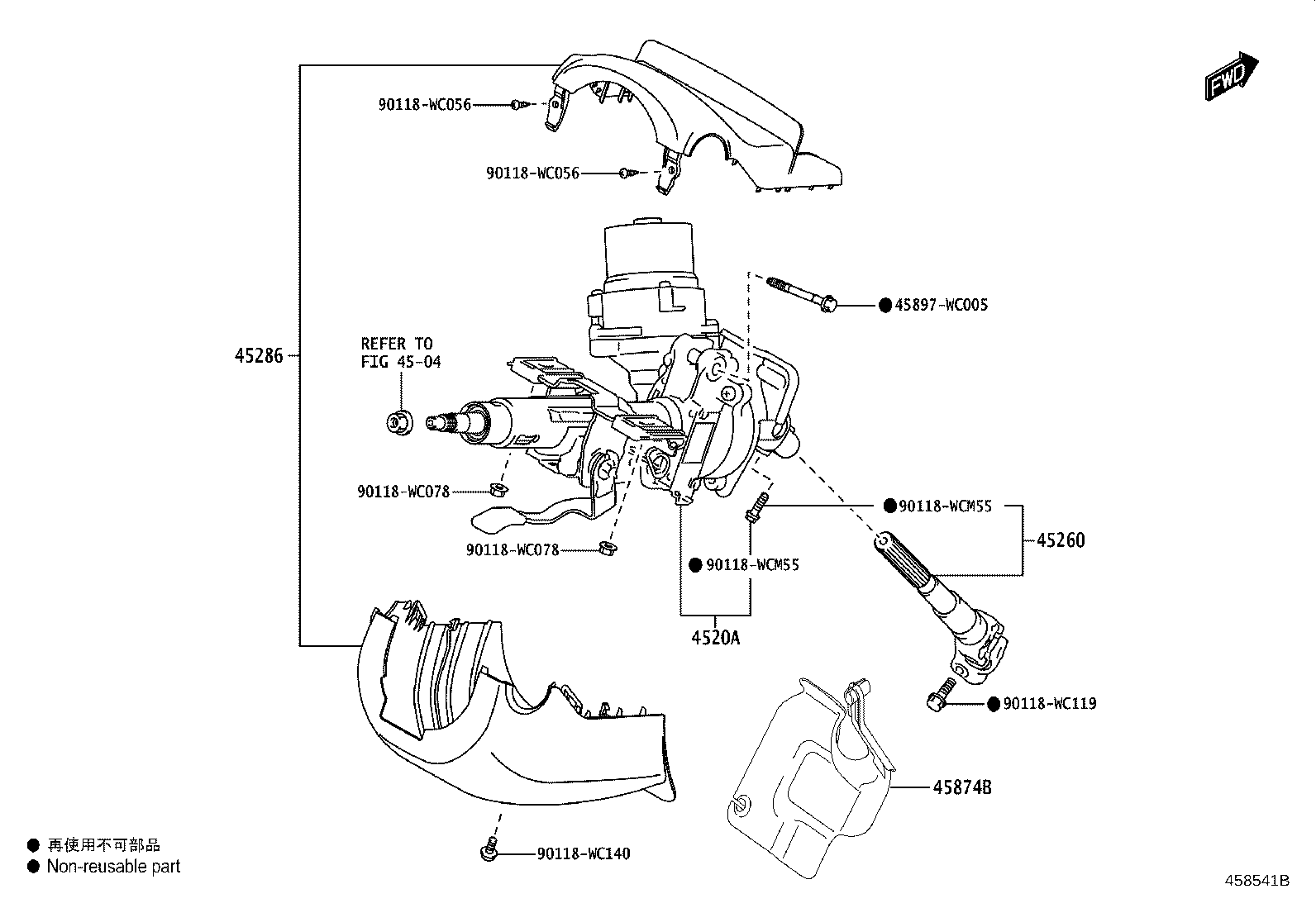

Figure 458538A 458538A 2022-11 → — Figure 458539A 458539A 2022-11 → — Figure 458540A 458540A 2022-11 → — Figure 458541B 458541B 2022-11 → — Figure 458542A 458542A 2022-11 → — Figure 458543A 458543A 2022-11 → —

Part groups

PNCDescription
45020B Actuator OR Upper Bracket Assy, Steering Lock
45025A Ring, O(FOR STEERING COLUMN HOLE COVER)
45025D Cover Sub-assy, Steering Column Hole, NO.1
4520A Column Sub-assy, Electric Power Steering
45231B Seal, Dust
45260 Shaft Assy, Steering Intermediate, NO.2
45286 Cover, Steering Column
45874B Protector, Steering Column, NO.1
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
