Toyota Urban Cruiser

2022-11 → present · chassis FG21###,22###,61###,62### · catalogue 138320 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

3 part groups · 7 illustrations

Illustrations

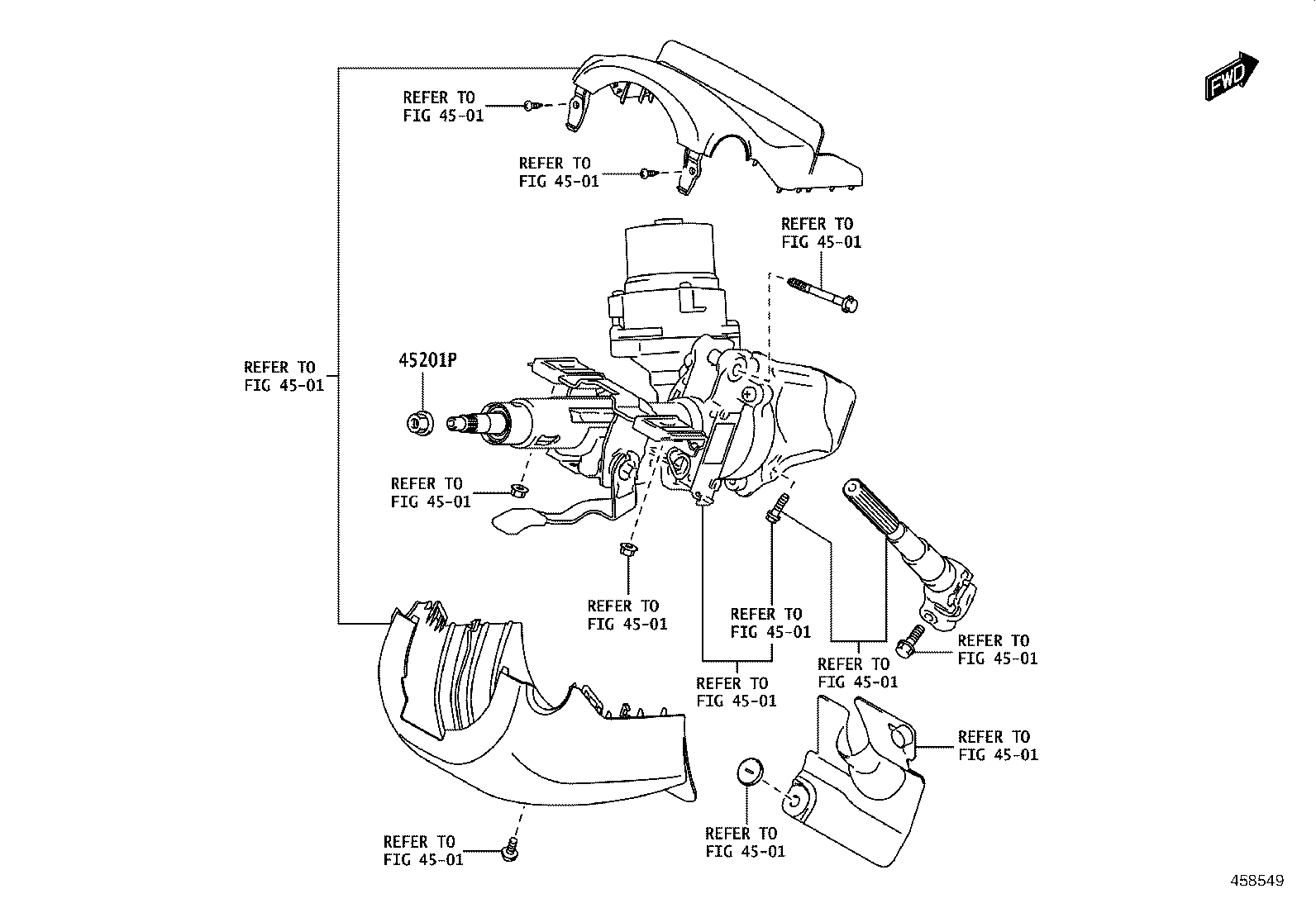

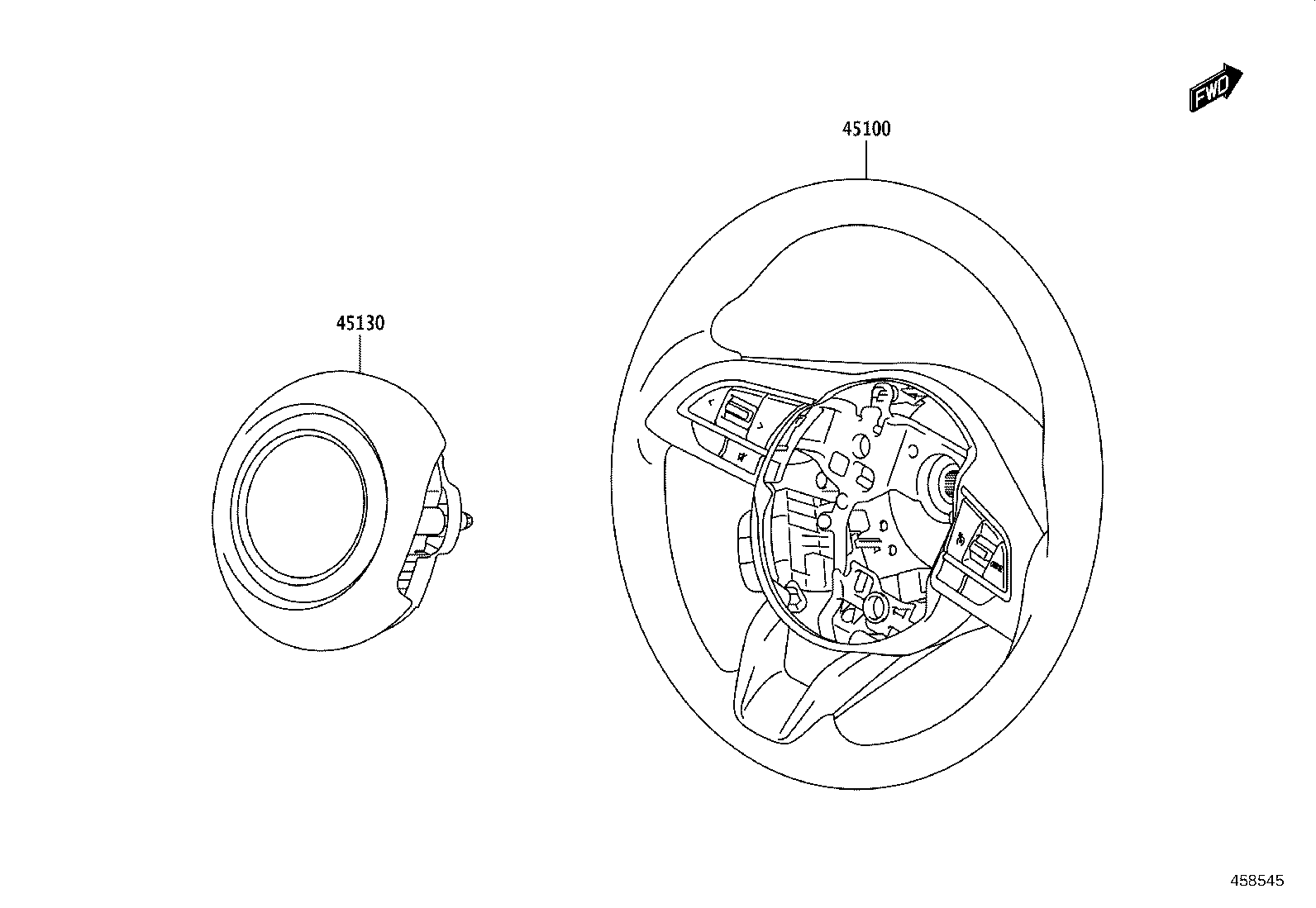

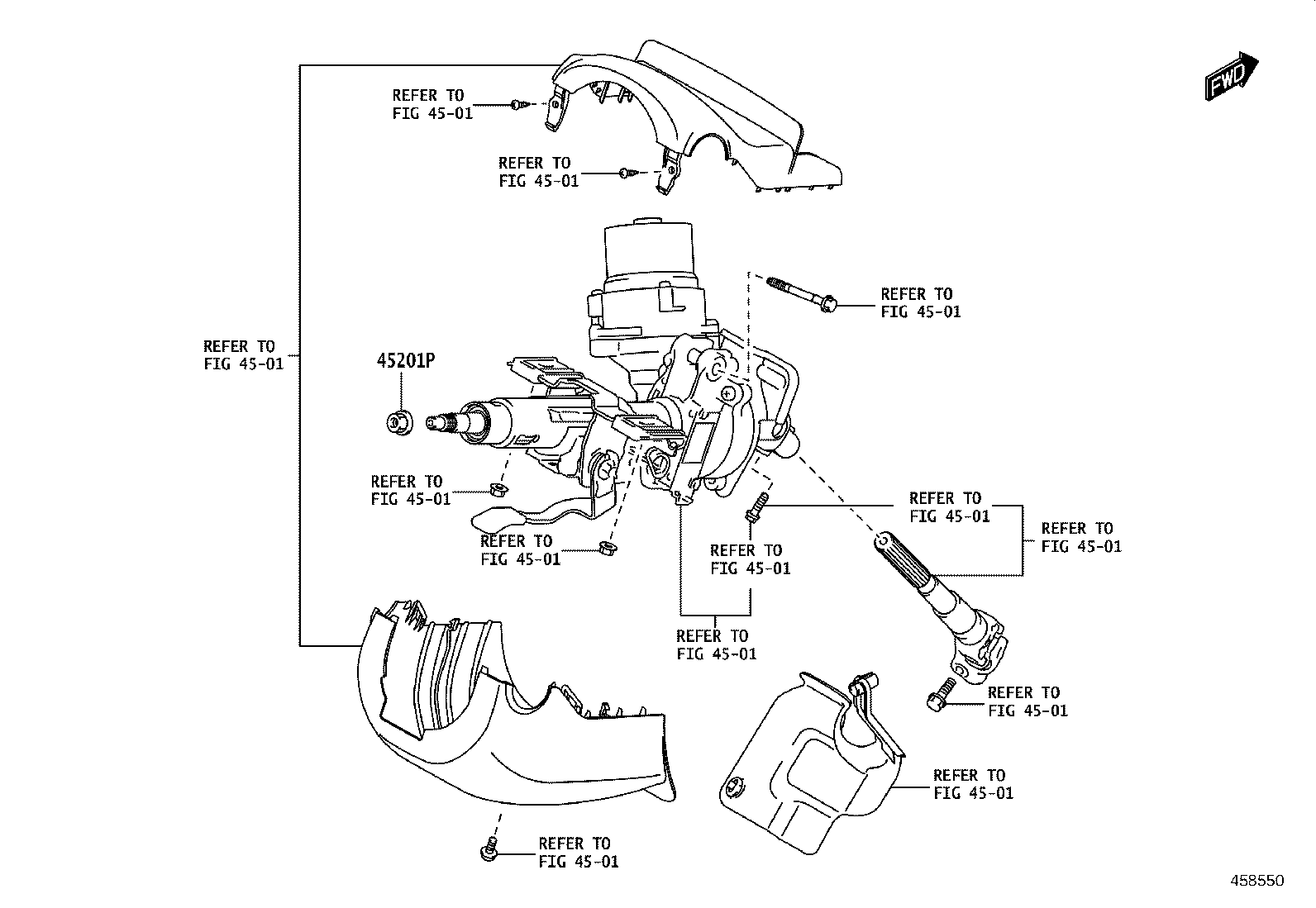

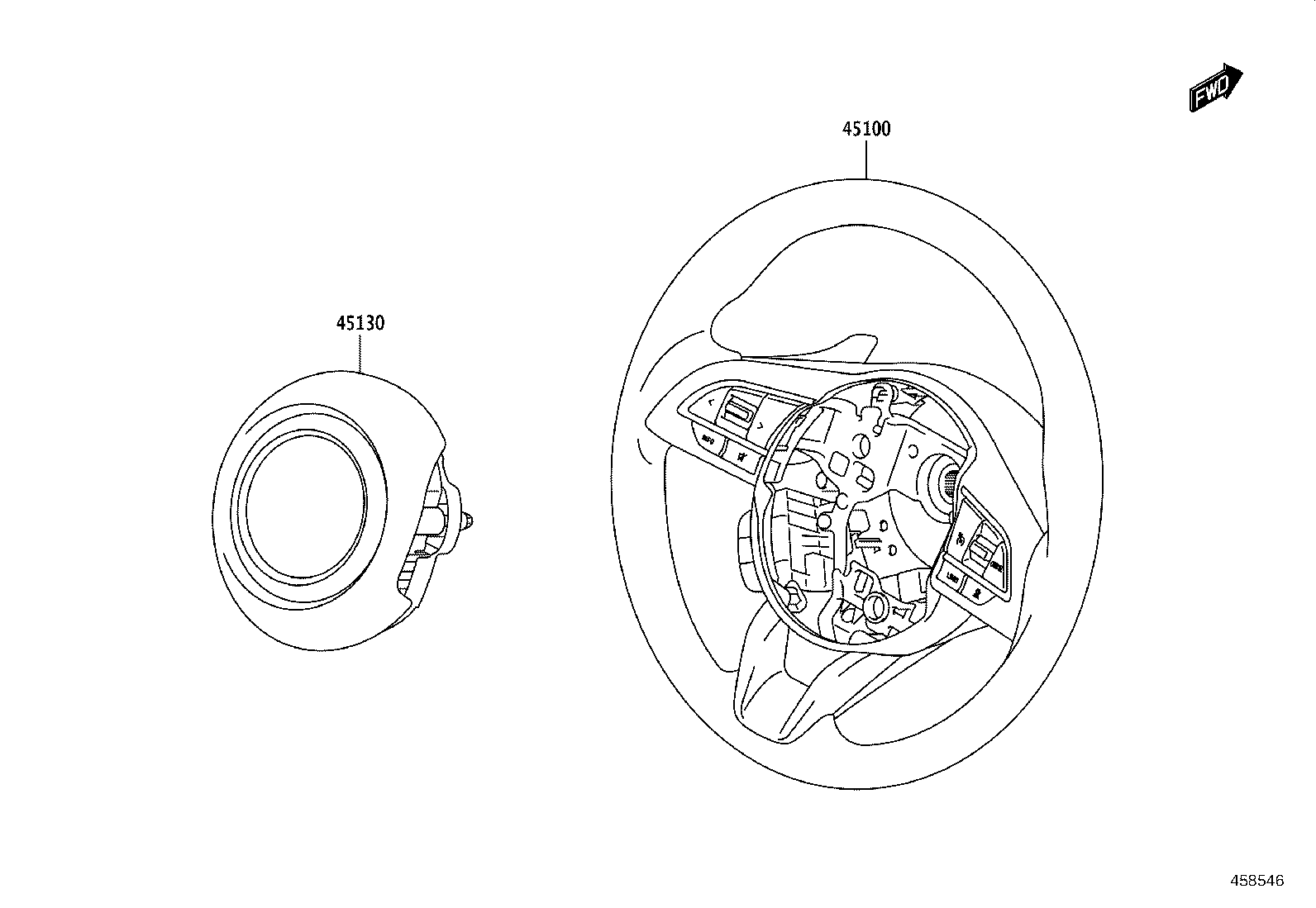

Figure 458544 458544 2022-11 → — Figure 458545 458545 2022-11 → — Figure 458546 458546 2022-11 → — Figure 458547 458547 2022-11 → — Figure 458548 458548 2023-02 → — Figure 458549 458549 2022-11 → — Figure 458550 458550 2022-11 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45130 Button Assy, Horn
45201P Nut, Steering Wheel Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
