Toyota Urban Cruiser

2022-11 → present · chassis FG21###,22###,61###,62### · catalogue 138320 · General

Supported model Data version 2024-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Pedal & Bracket

3 part groups · 7 illustrations

Illustrations

Figure 47E233

47E233 2022-11 → —

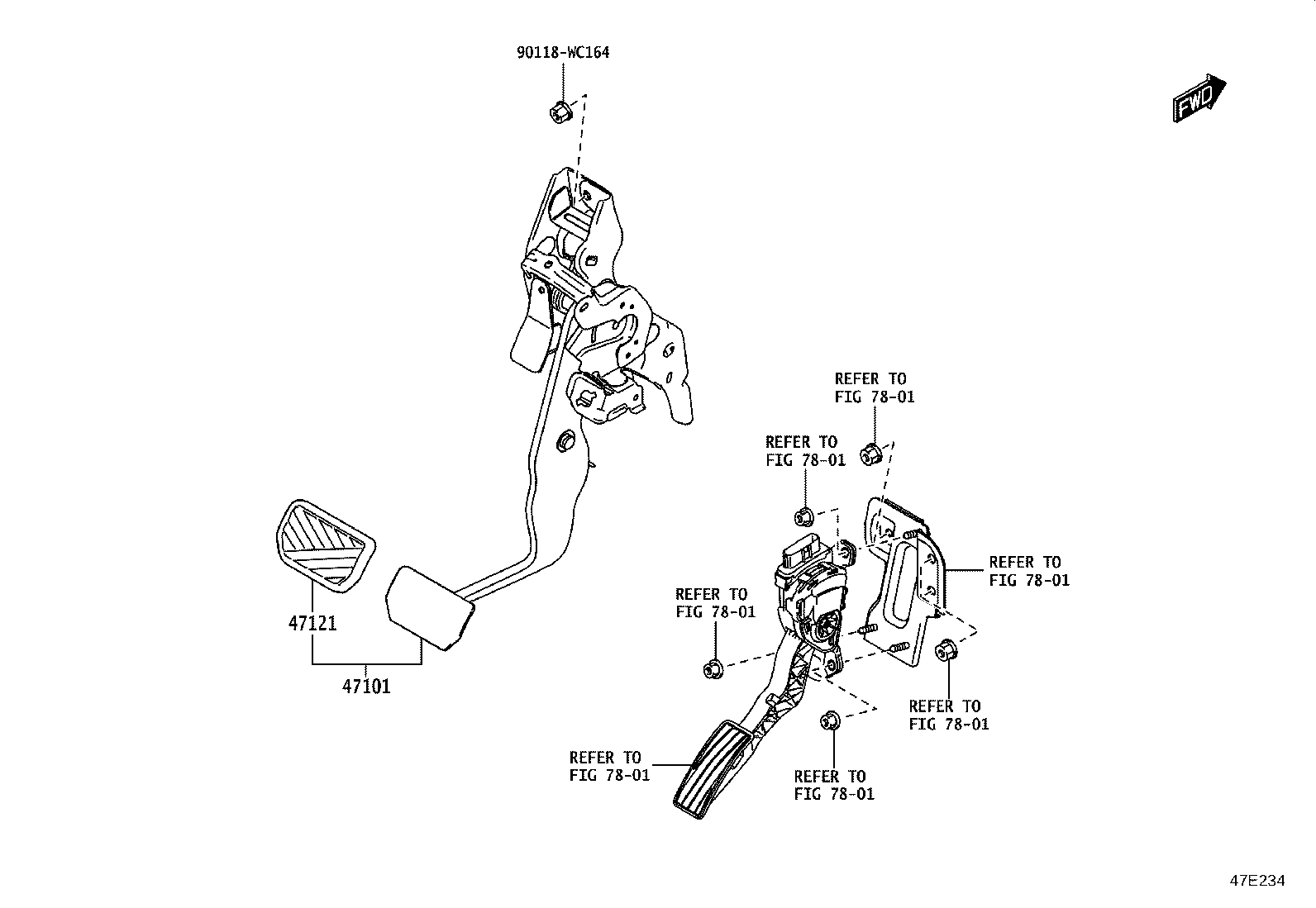

Figure 47E234

47E234 2023-02 → —

Figure 47E234

47E234 2023-02 → —

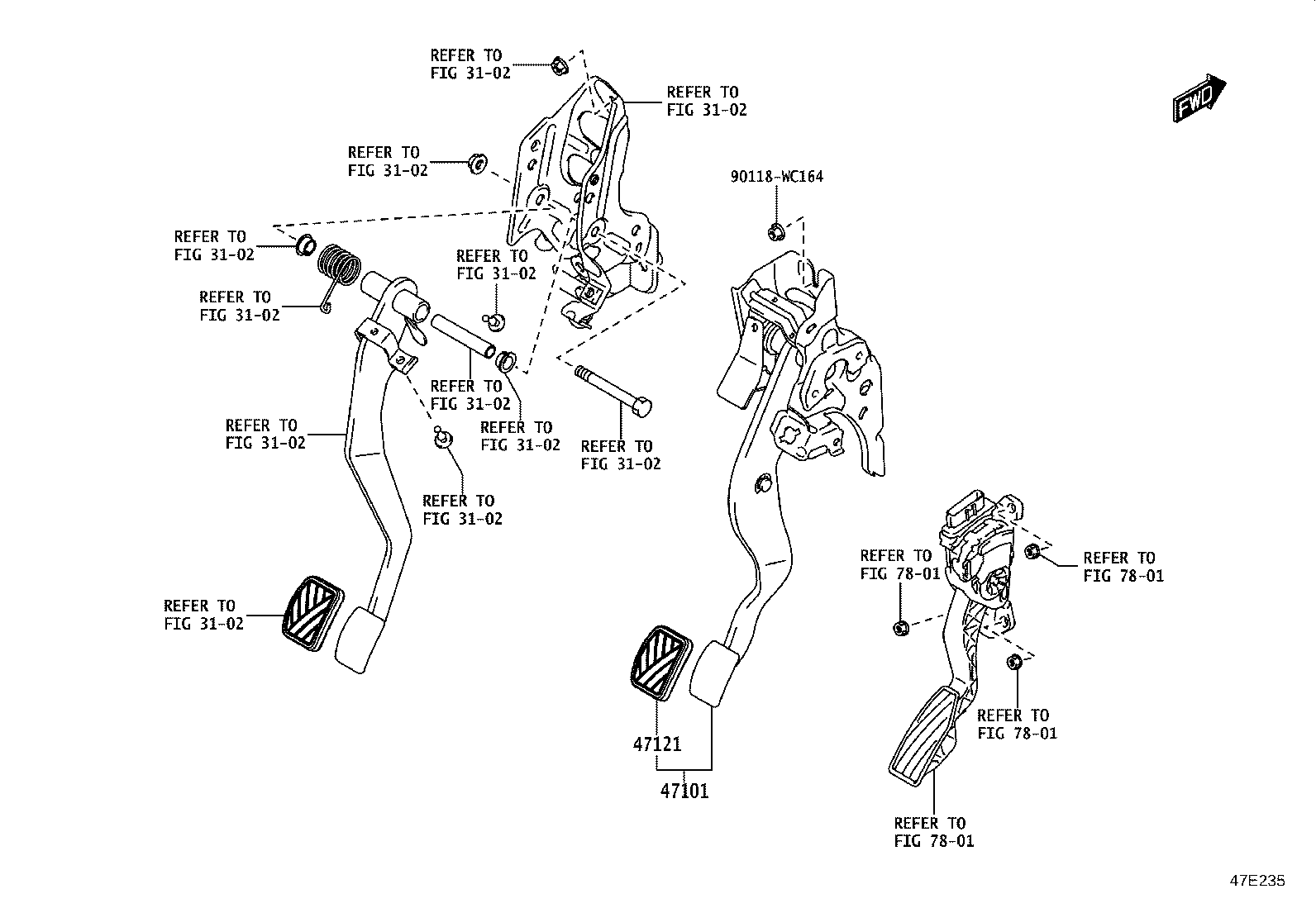

Figure 47E235

47E235 2022-11 → —

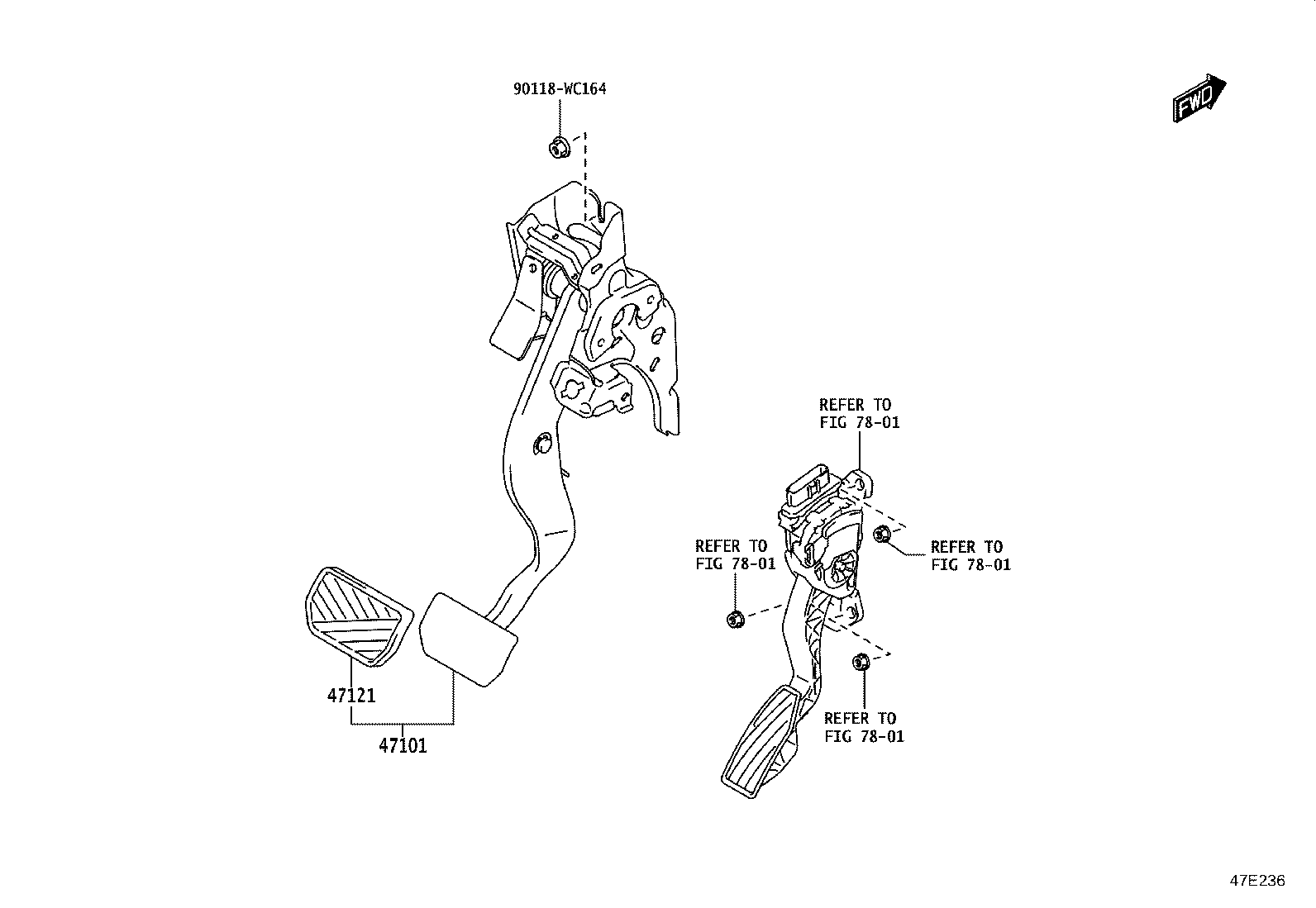

Figure 47E236

47E236 2022-11 → —

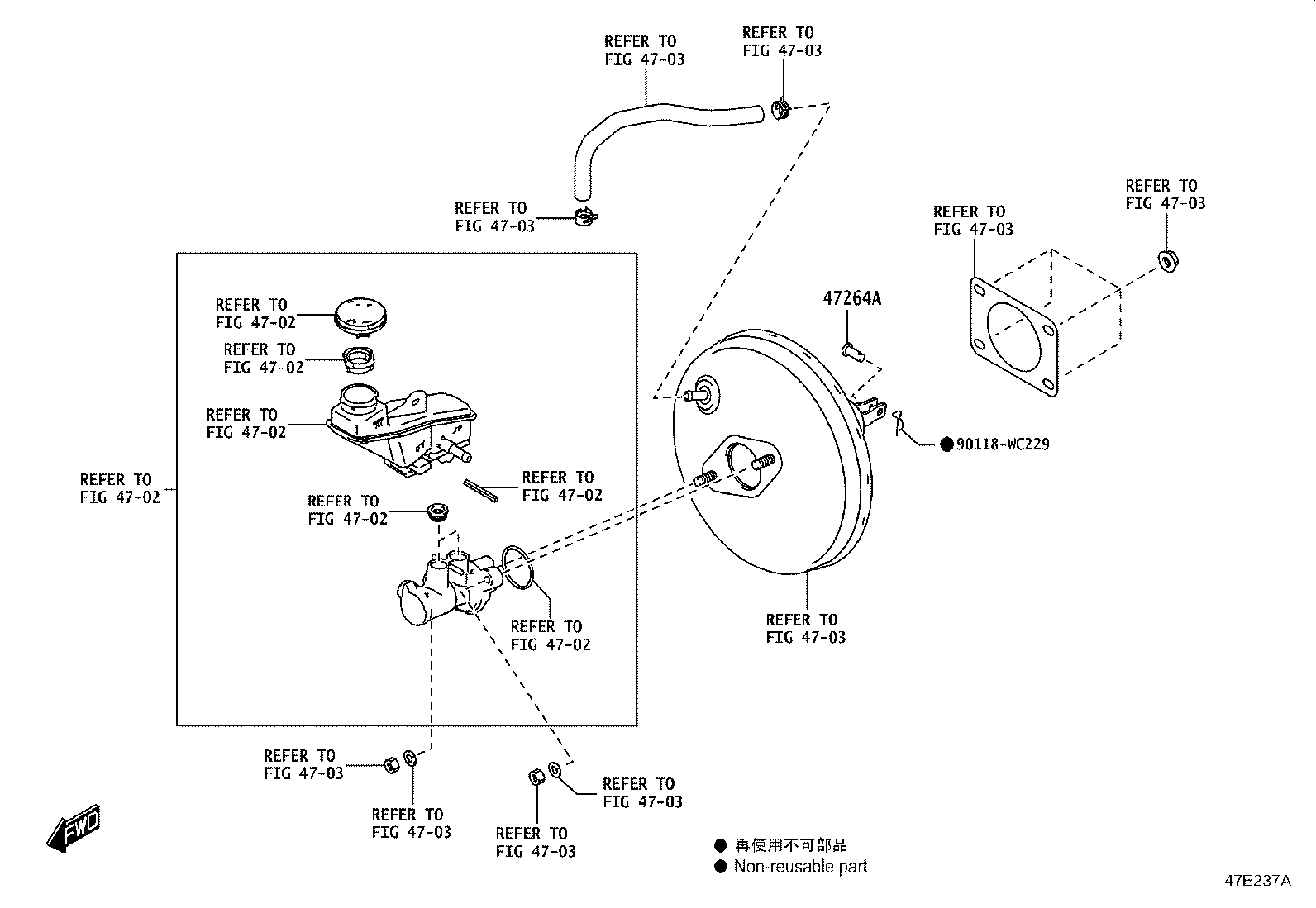

Figure 47E237A

47E237A 2022-11 → —

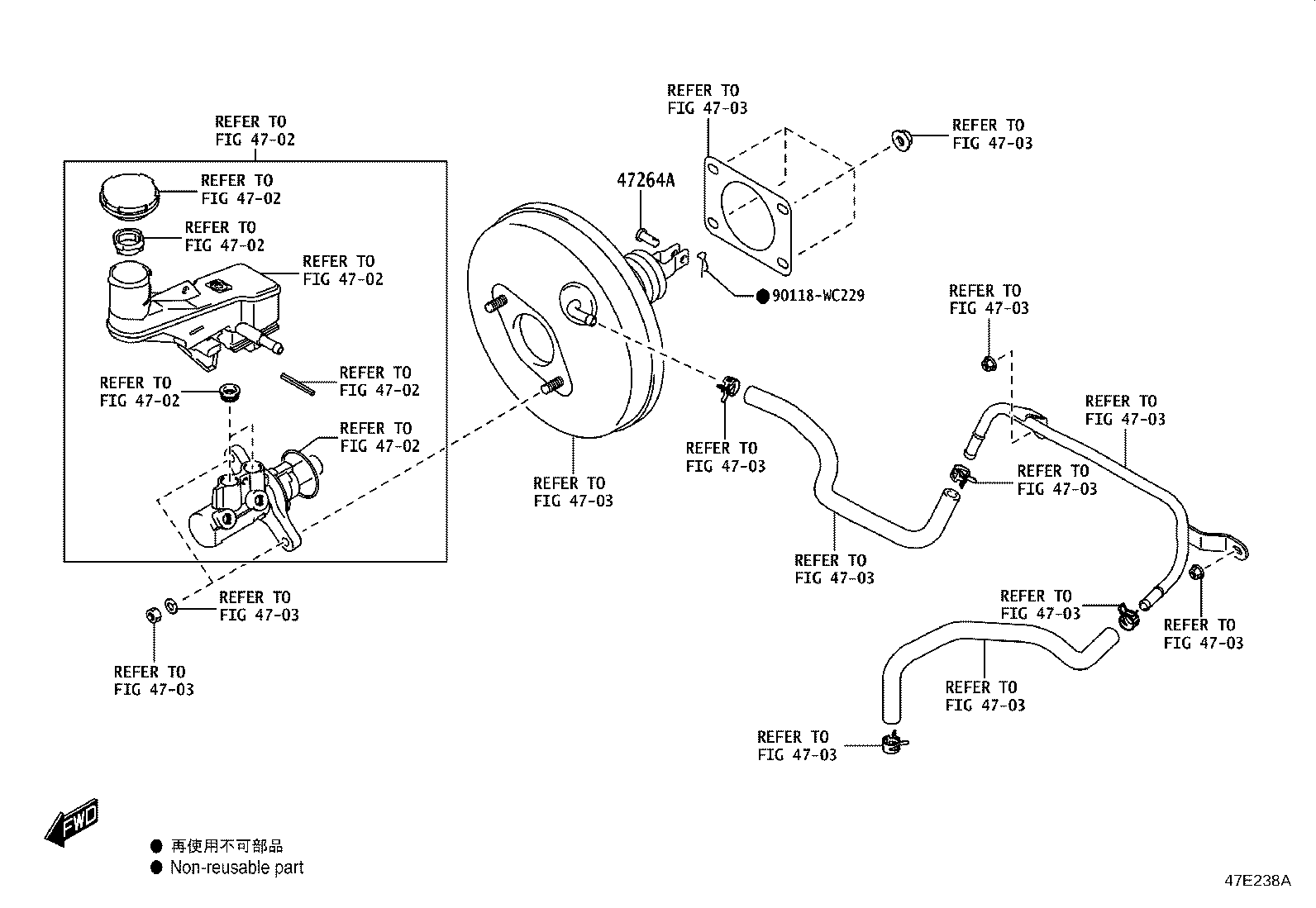

Figure 47E238A

47E238A 2022-11 → —

Part groups

PNC	Description
47101	Pedal Sub-assy, Brake
47121	Pad, Brake Pedal
47264A	Pin(FOR PUSH ROD)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
