Toyota Urban Cruiser
2022-11 → present · chassis FG21###,22###,61###,62### · catalogue 138320 · General
Supported model
Data version 2024-04

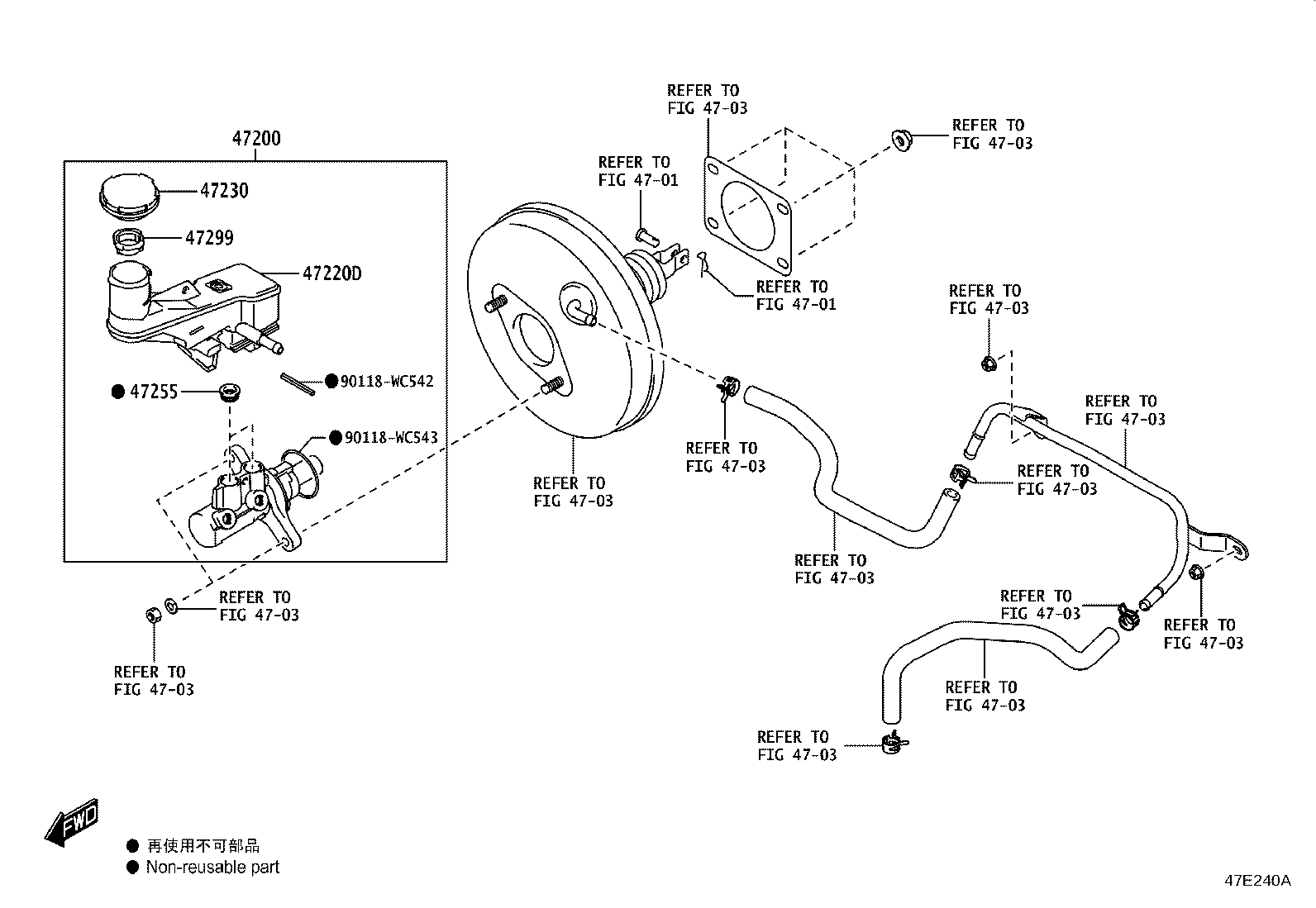

Brake Master Cylinder
5 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 47200 | Cylinder Assy, Brake Master |
| 47220D | Reservoir Assy, Brake Master Cylinder |
| 47230 | Cap Assy, Brake Master Cylinder Reservoir Filler |
| 47255 | Grommet, Master Cylinder Reservoir |
| 47299 | Strainer, Brake Master Cylinder Reservoir |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
