Toyota Urban Cruiser

2022-11 → present · chassis FG21###,22###,61###,62### · catalogue 138320 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

6 part groups · 5 illustrations

Illustrations

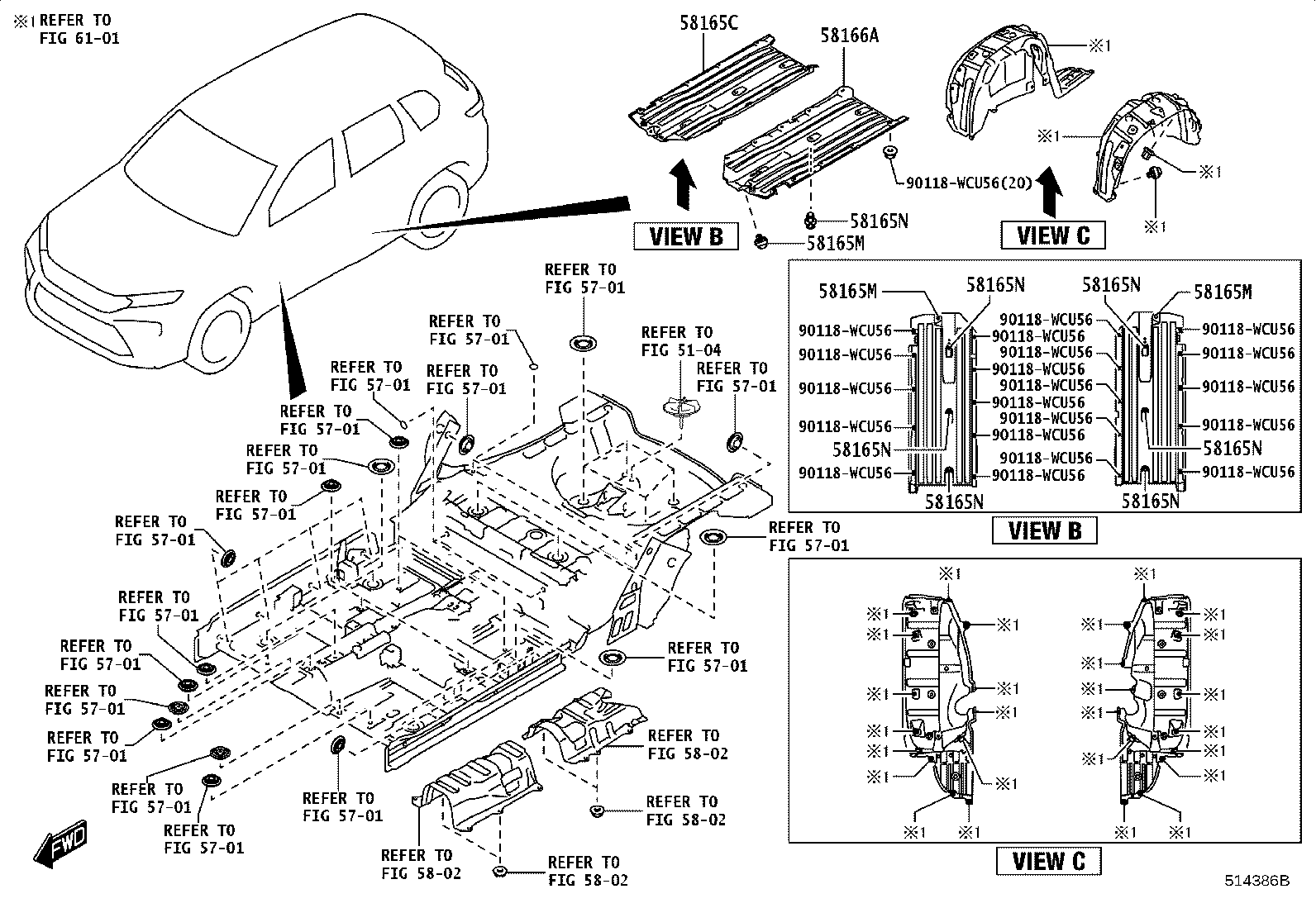

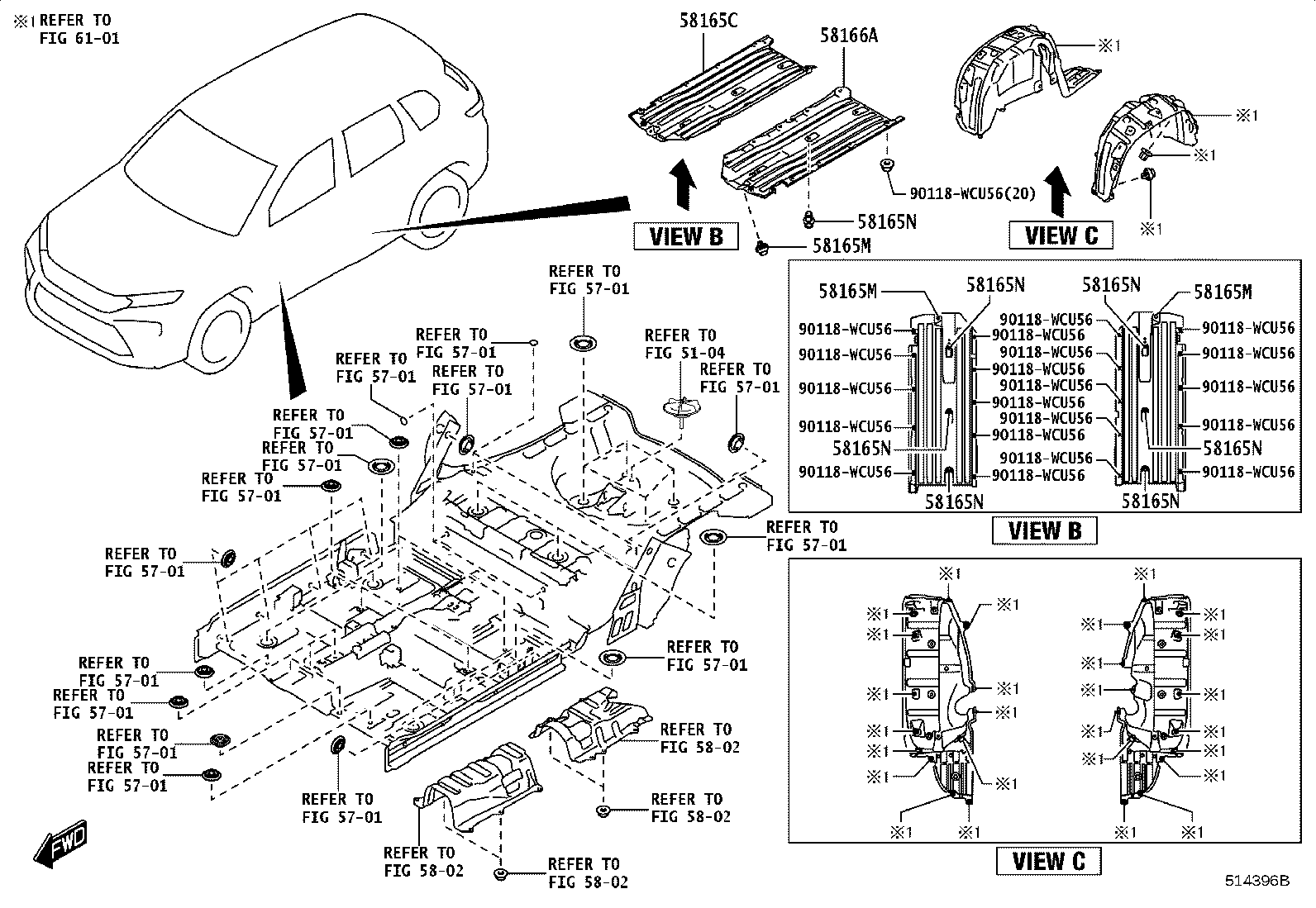

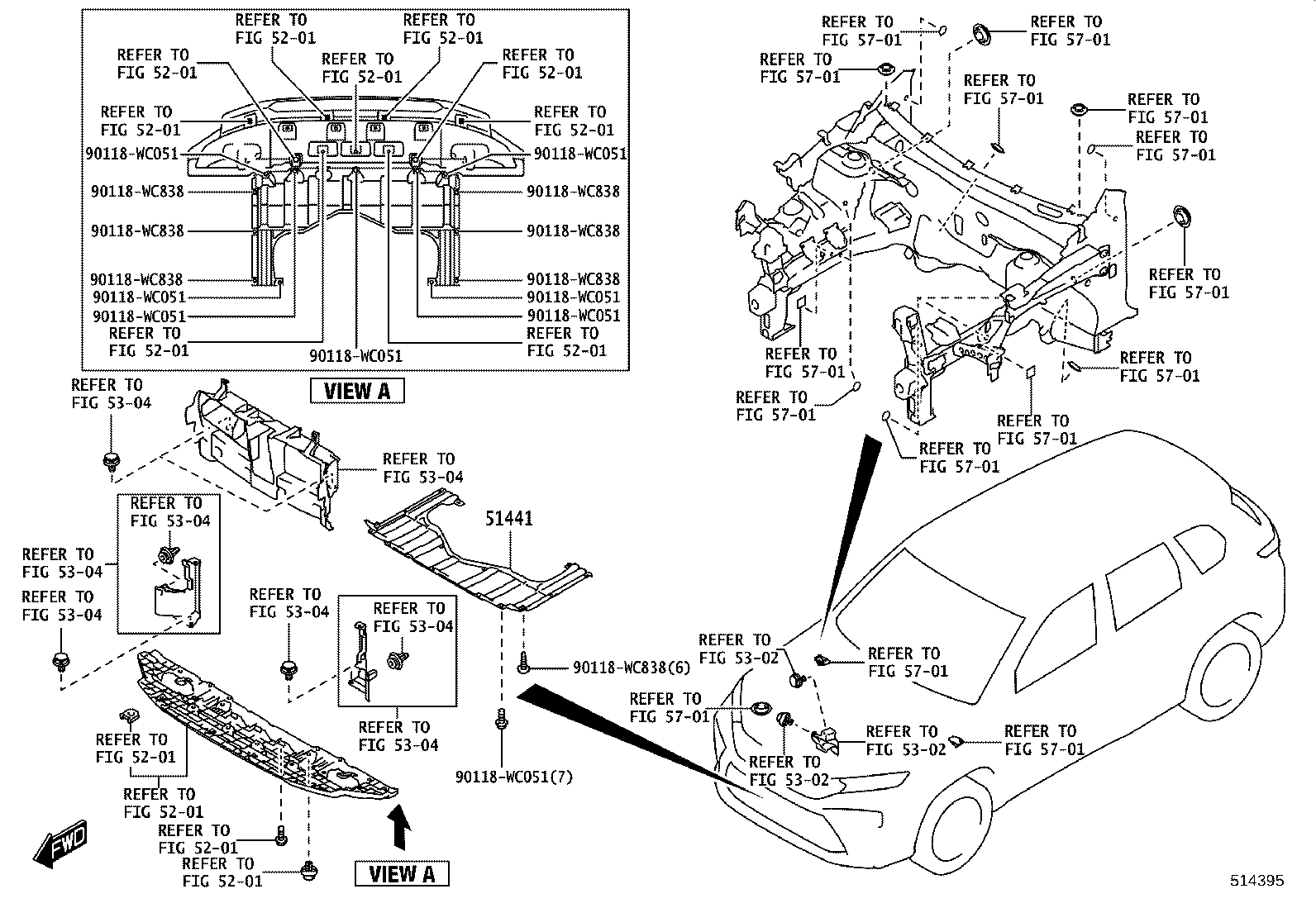

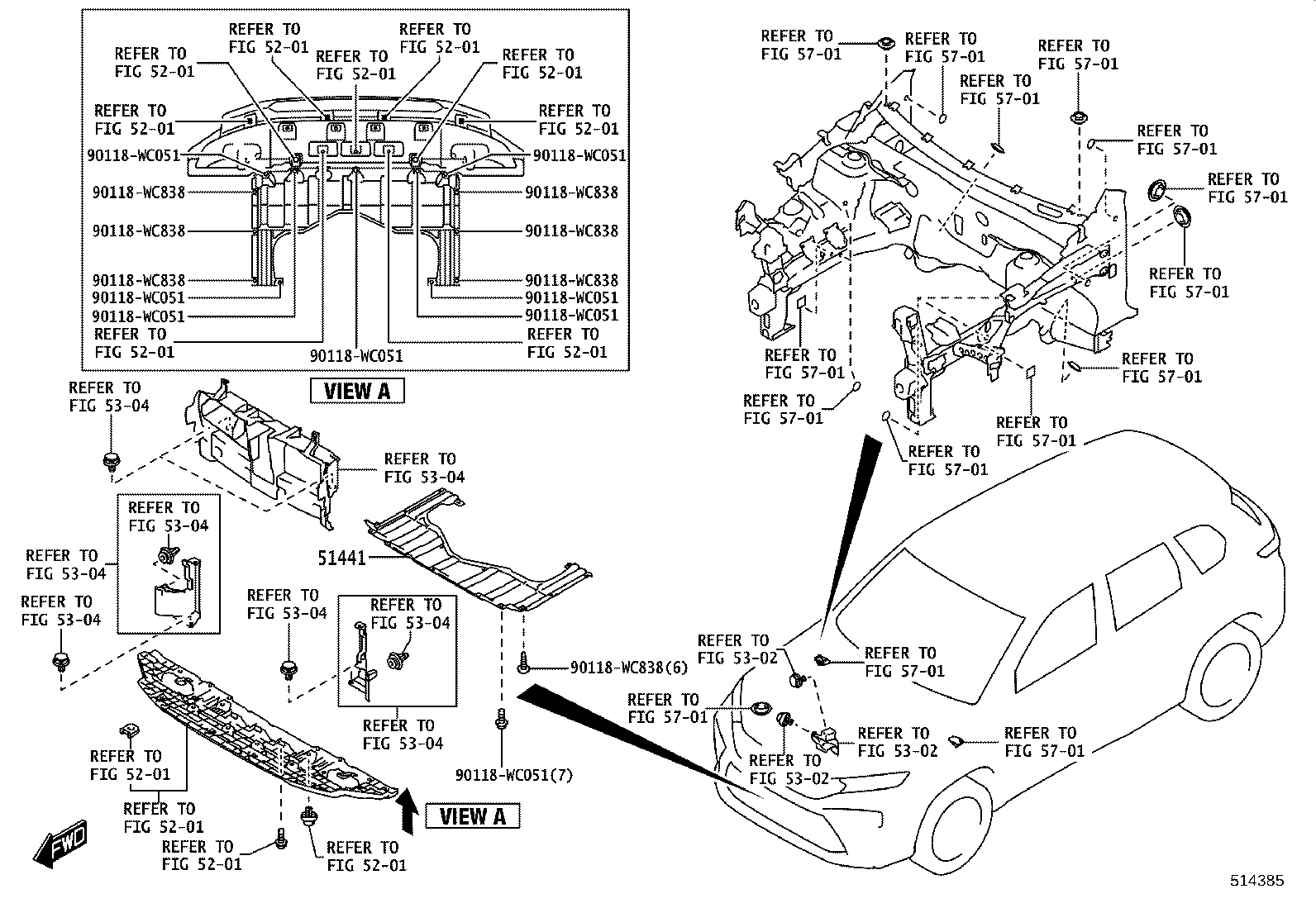

Figure 514384 514384 2022-11 → — Figure 514395 514395 2022-11 → — Figure 514385 514385 2022-11 → — Figure 514396B 514396B 2022-11 → — Figure 514386B 514386B 2022-11 → —

Part groups

PNCDescription
51201A Crossmember Sub-assy, Frame, Front
51441 Cover, Engine Under, NO.1
58165C Cover, Front Floor, RH
58165M Clip, Front Floor Cover, NO.1
58165N Clip, Front Floor Cover, NO.2
58166A Cover, Front Floor, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
