Toyota Urban Cruiser

2022-11 → present · chassis FG21###,22###,61###,62### · catalogue 138320 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

16 part groups · 9 illustrations

Illustrations

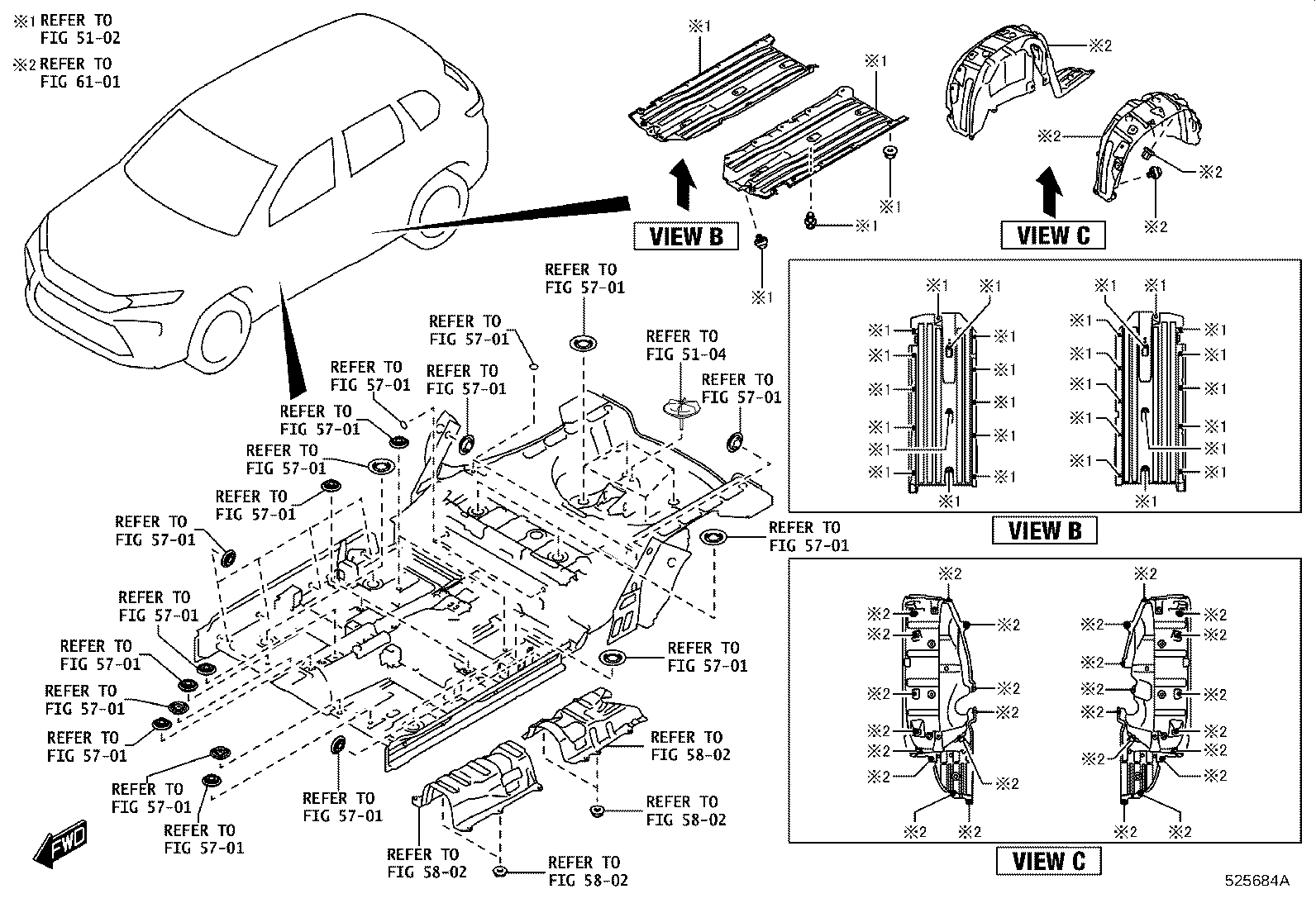

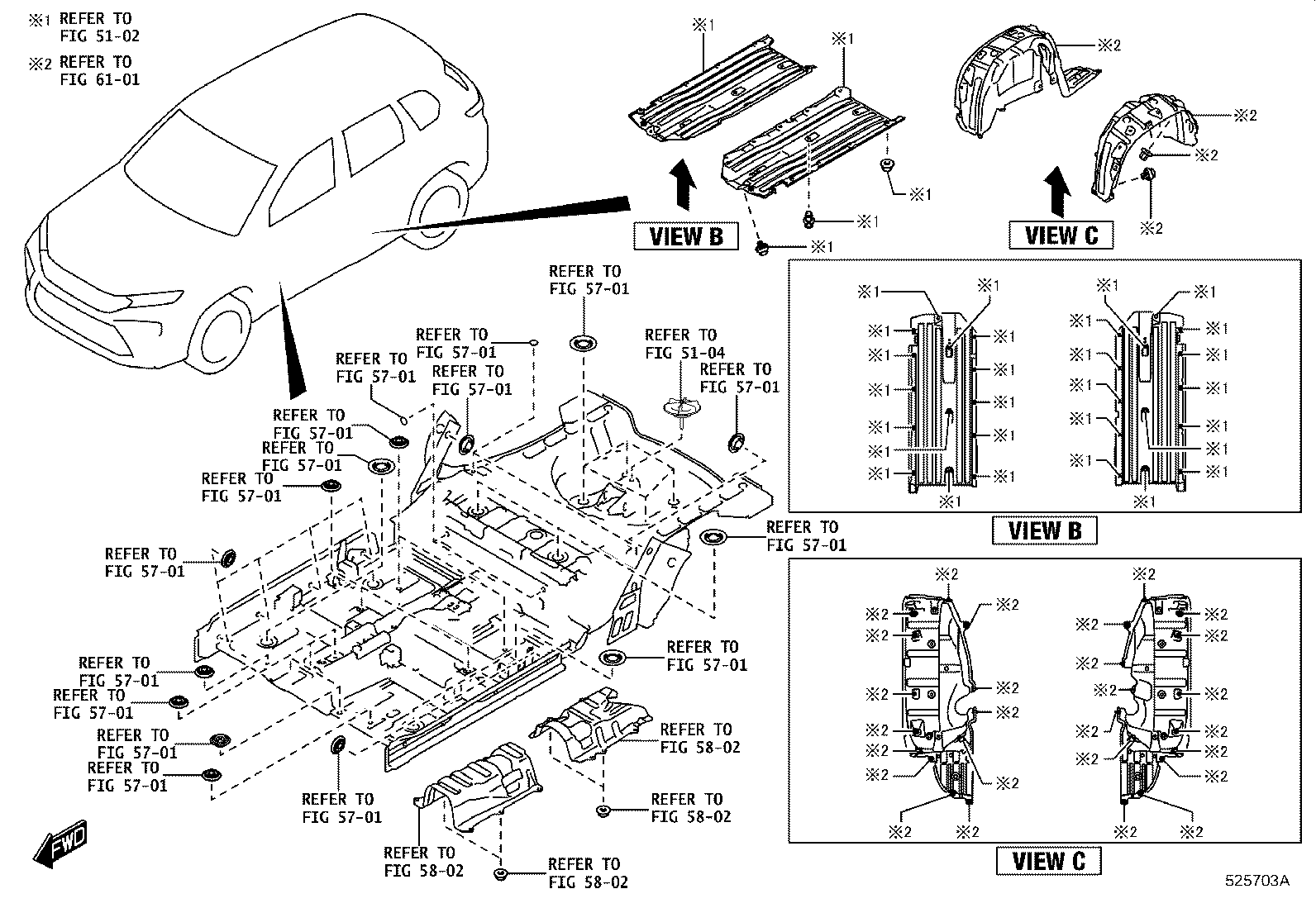

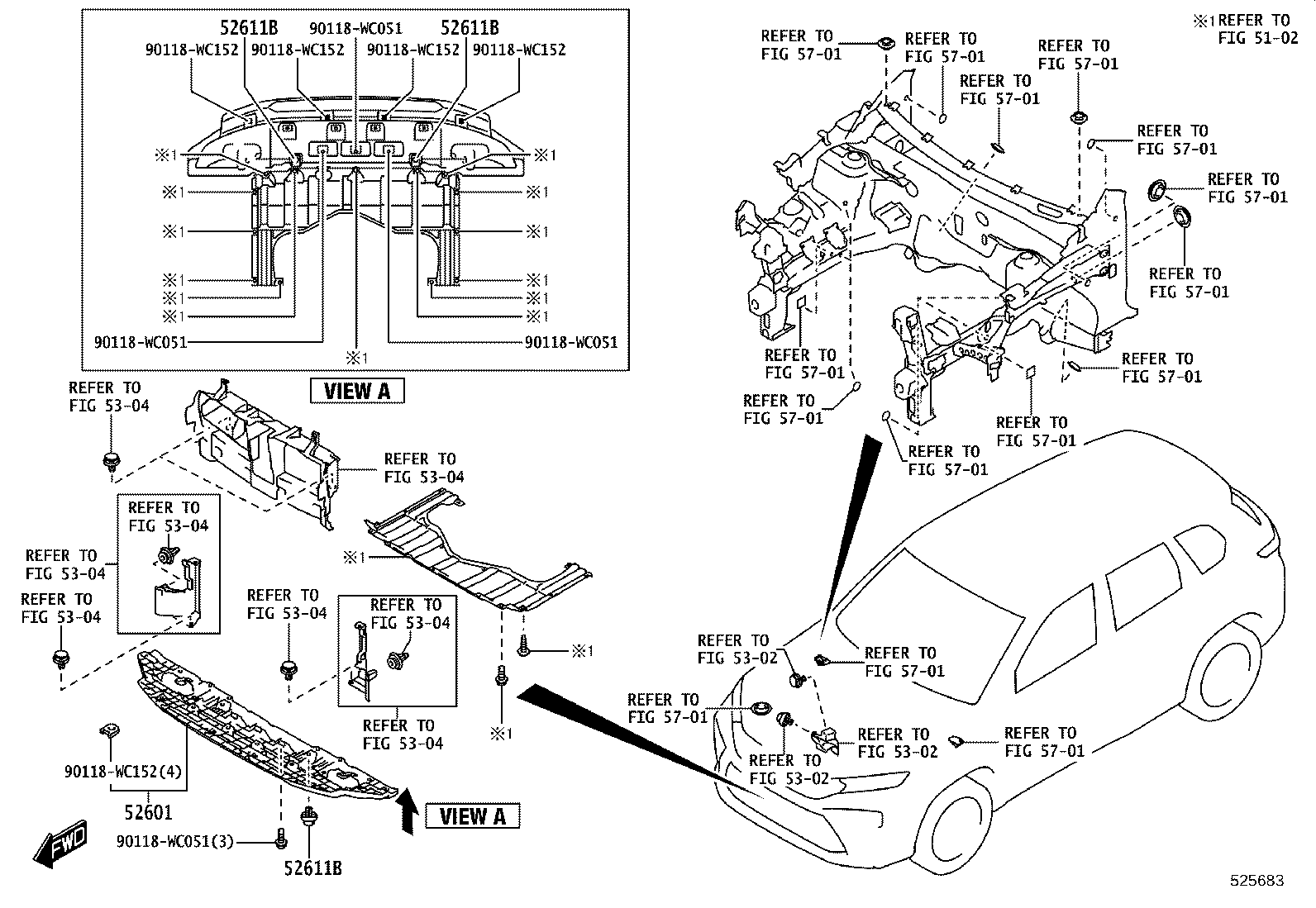

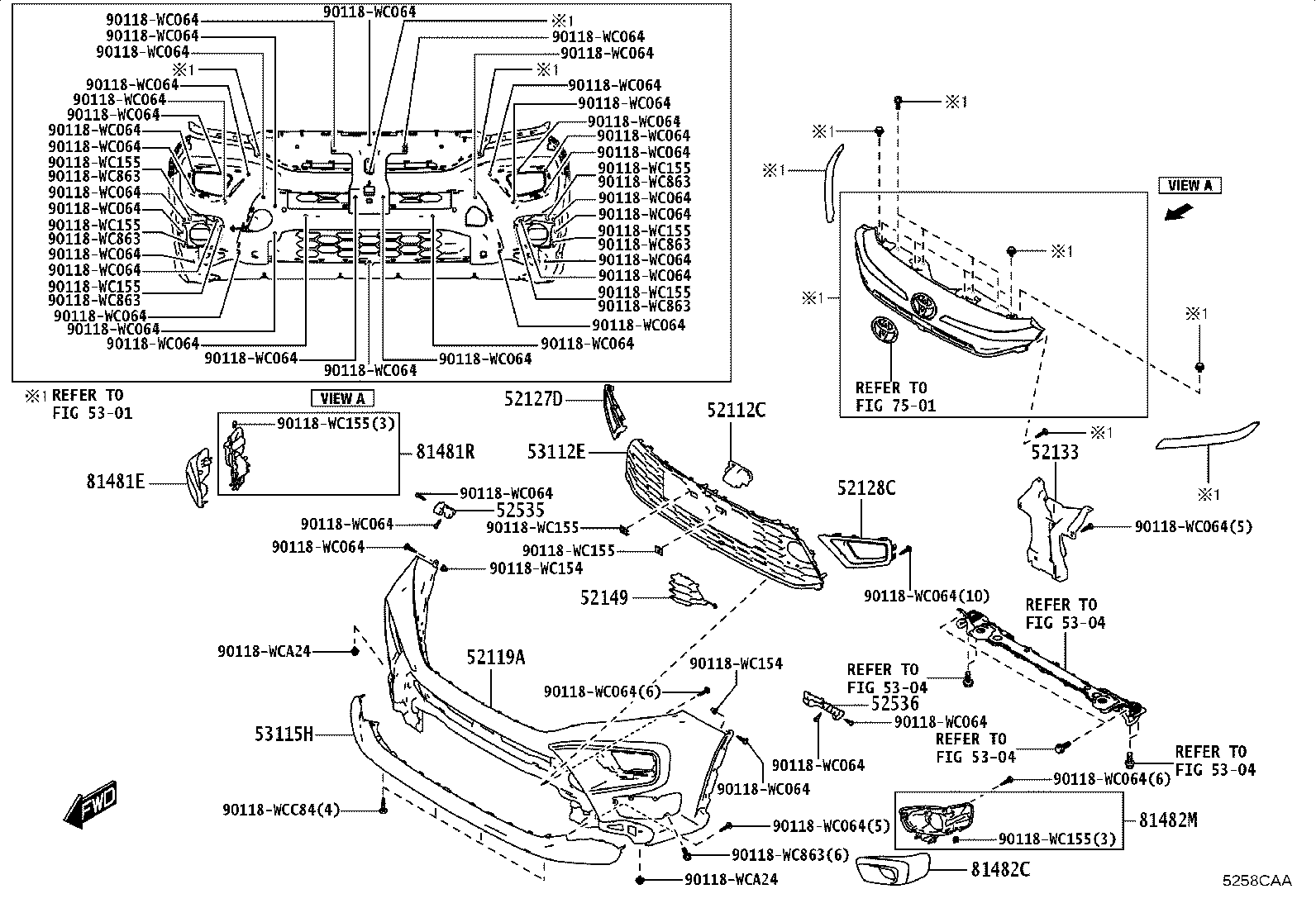

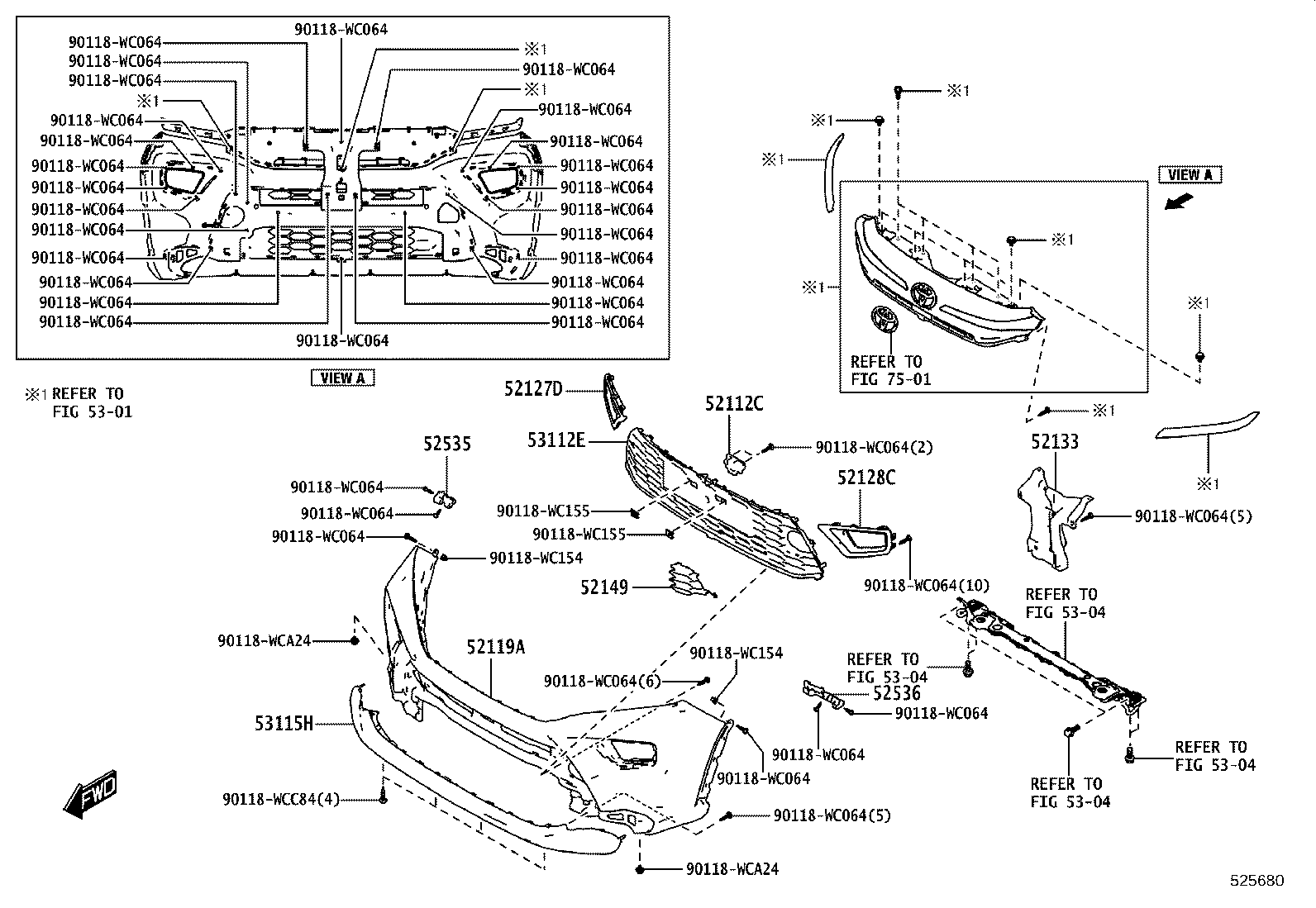

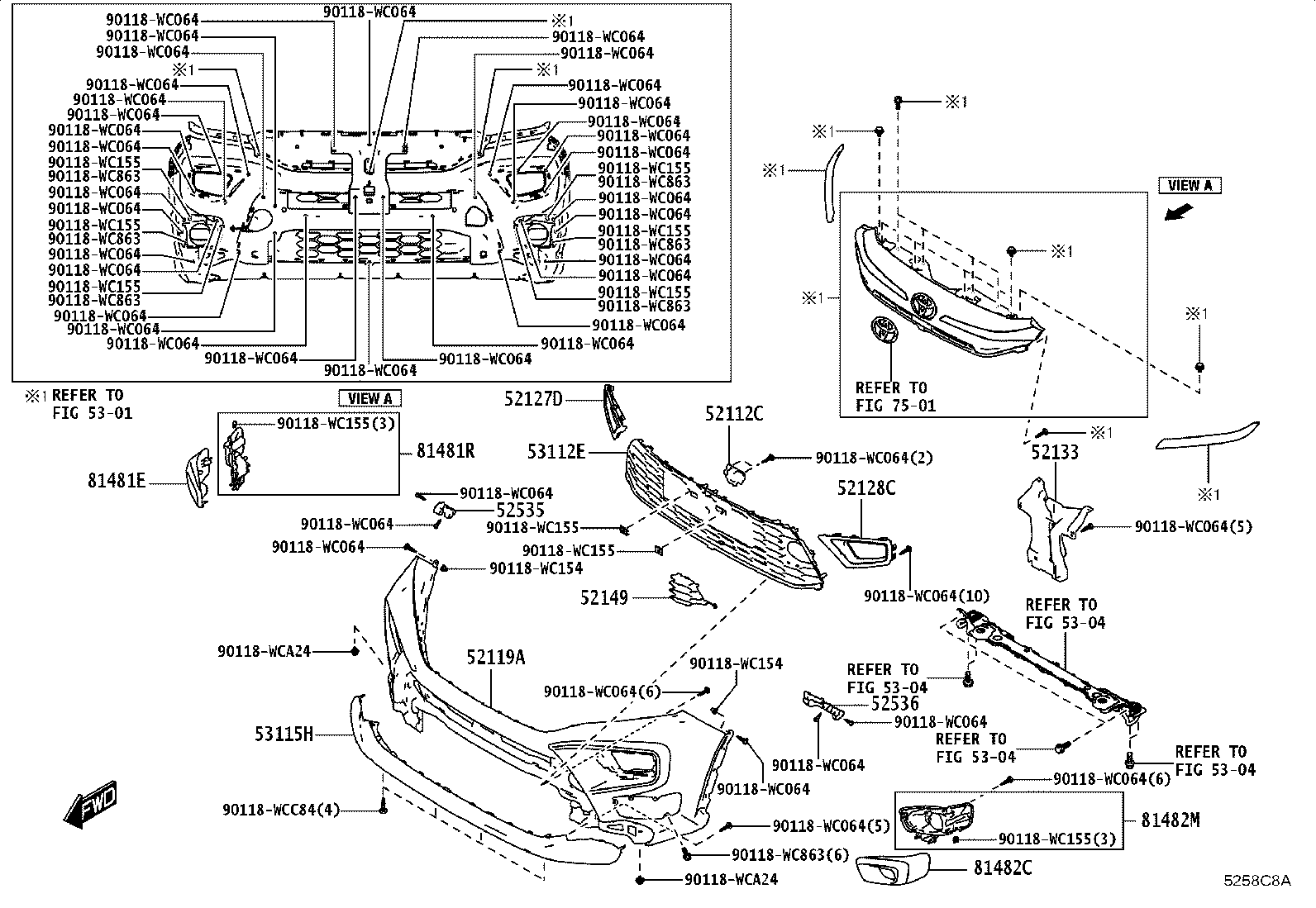

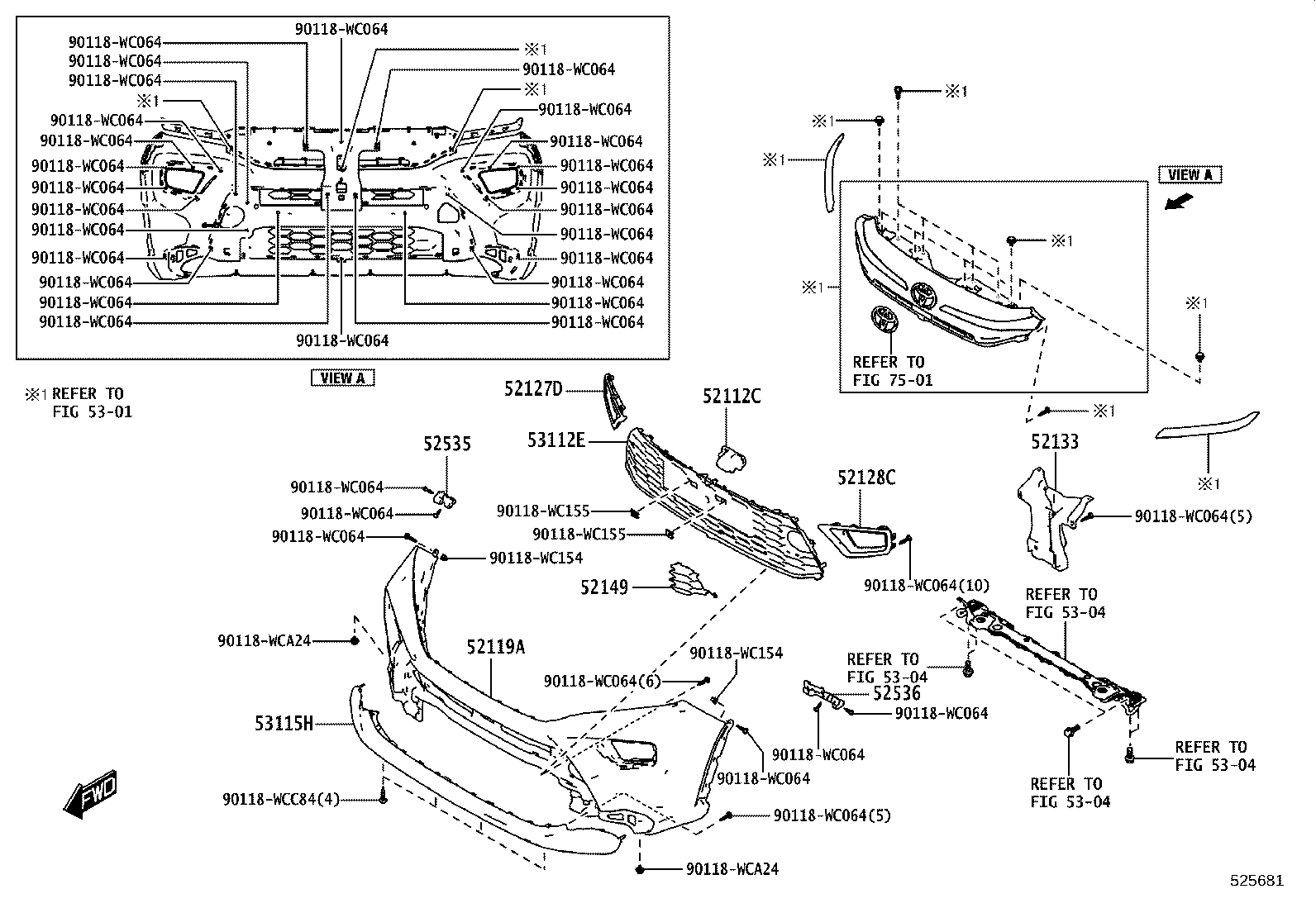

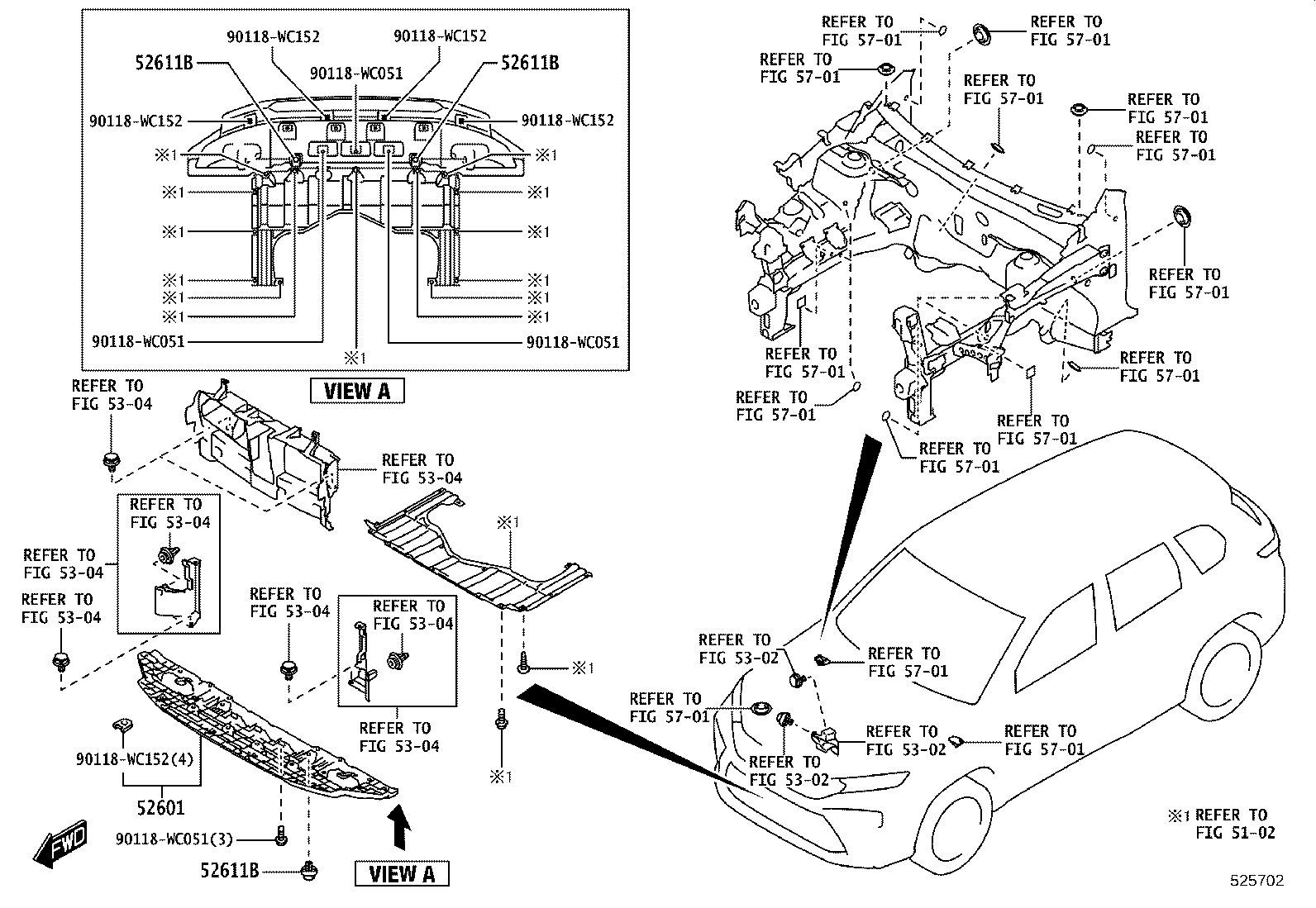

Figure 525679 525679 2022-11 → — Figure 525680 525680 2022-11 → — Figure 525681 525681 2022-11 → — Figure 5258C8A 5258C8A 2024-04 → — Figure 5258CAA 5258CAA 2024-04 → — Figure 525702 525702 2022-11 → — Figure 525683 525683 2022-11 → — Figure 525703A 525703A 2022-11 → — Figure 525684A 525684A 2022-11 → —

Part groups

PNCDescription
52112C Extension, Front Bumper
52119A Cover, Front Bumper
52127D Cover, Front Bumper Hole, RH
52128C Cover, Front Bumper Hole, LH
52133 Reinforcement, Front Bumper
52149 Bracket, Front Bumper, Inner
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52601 Absorber Sub-assy, Front Bumper Energy
52611B Clip, Front Bumper Energy Absorber
53112E Grille, Radiator, Lower NO.1
53115H Bracket, Radiator Grille
81481E Cover, Fog Lamp, RH
81481R Bracket, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
81482M Bracket, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
