Toyota Urban Cruiser

2022-11 → present · chassis FG21###,22###,61###,62### · catalogue 138320 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

3 part groups · 5 illustrations

Illustrations

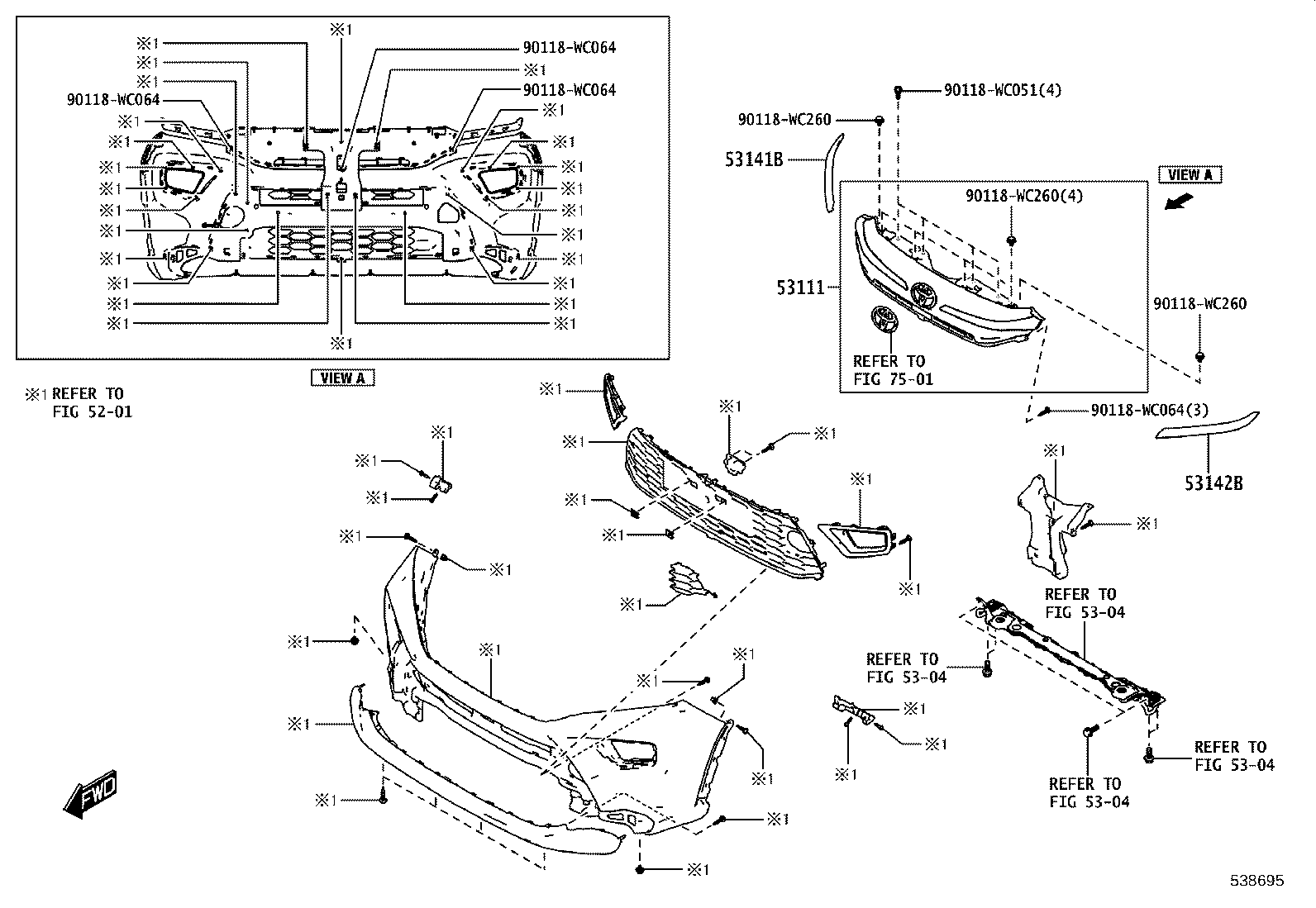

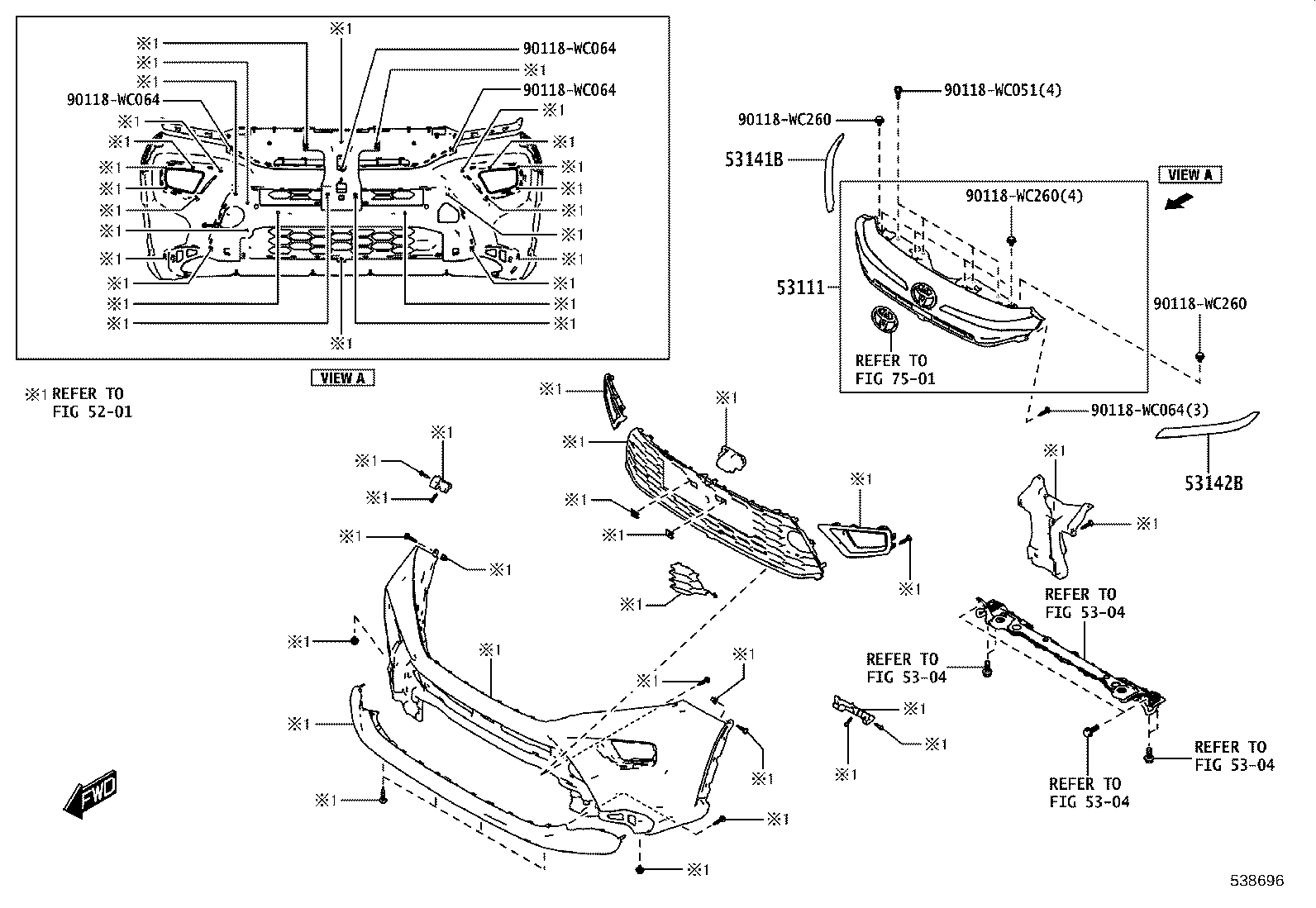

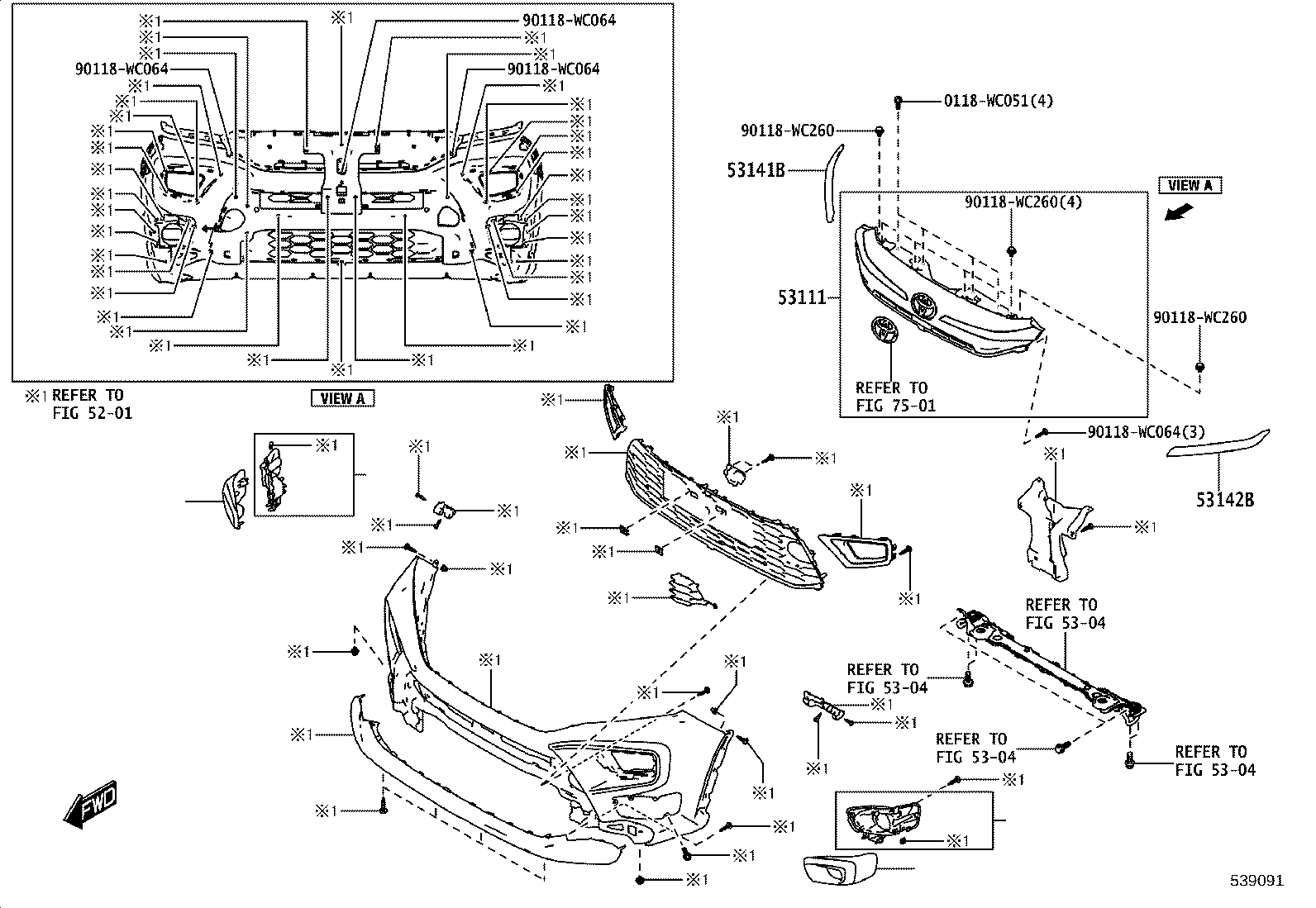

Figure 538694 538694 2022-11 → — Figure 538695 538695 2022-11 → — Figure 538696 538696 2022-11 → — Figure 539091 539091 2024-04 → — Figure 539092 539092 2024-04 → —

Part groups

PNCDescription
53111 Grille, Radiator
53141B Garnish, Radiator Grille, NO.1
53142B Radiator Grille Garnish, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
