Toyota Urban Cruiser
2022-11 → present · chassis FG21###,22###,61###,62### · catalogue 138320 · General
Supported model
Data version 2024-04
Hood & Front Fender
18 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|

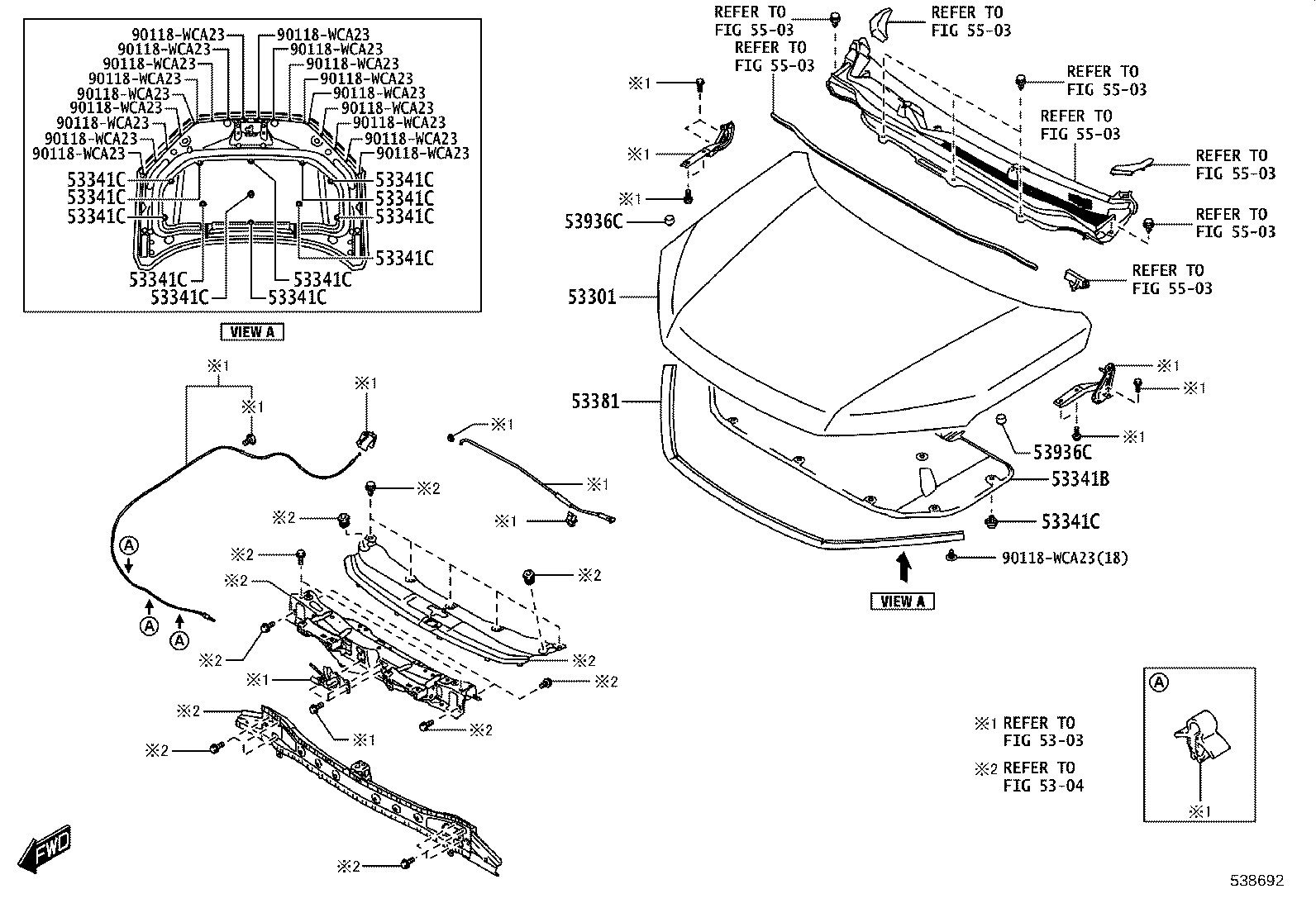

| 53301 | Hood Sub-assy |
| 53341B | Insulator, Hood |
| 53341C | Clip(FOR HOOD INSULATOR) |
| 53381 | Seal, Hood TO Radiator Support |

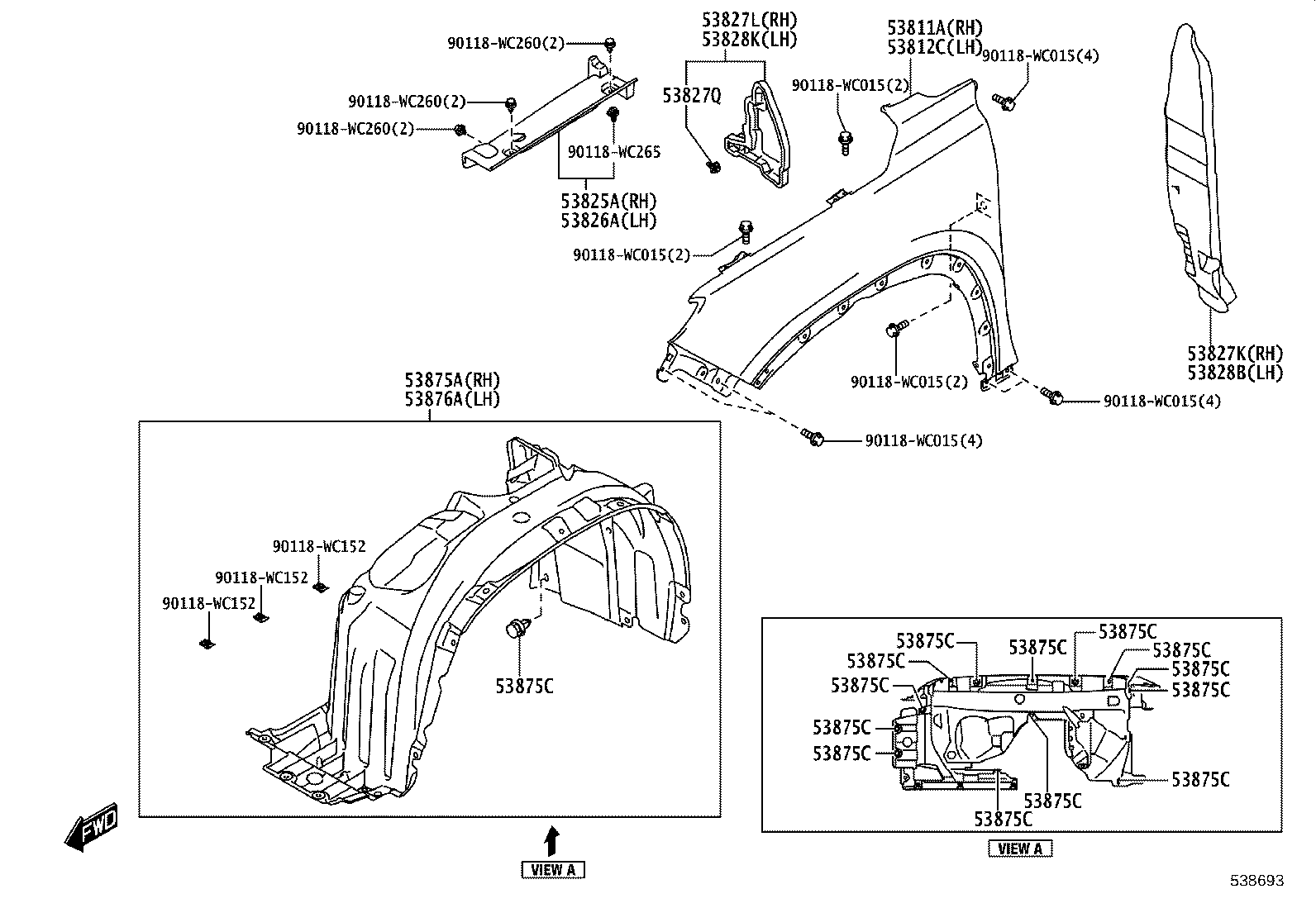

| 53811A | Panel, Front Fender, RH |
| 53812C | Panel, Front Fender, LH |
| 53825A | Protector, Front Fender, Upper RH |
| 53826A | Protector, Front Fender, Upper LH |
| 53827K | Protector, Front Fender Side Panel, RH |
| 53827L | Protector, Front Fender Side Panel, RH |
| 53827Q | Clip, Front Fender Side Panel Protector, NO.1 |
| 53828B | Protector, Front Fender Side Panel, LH |
| 53828K | Protector, Front Fender Side Panel, LH |

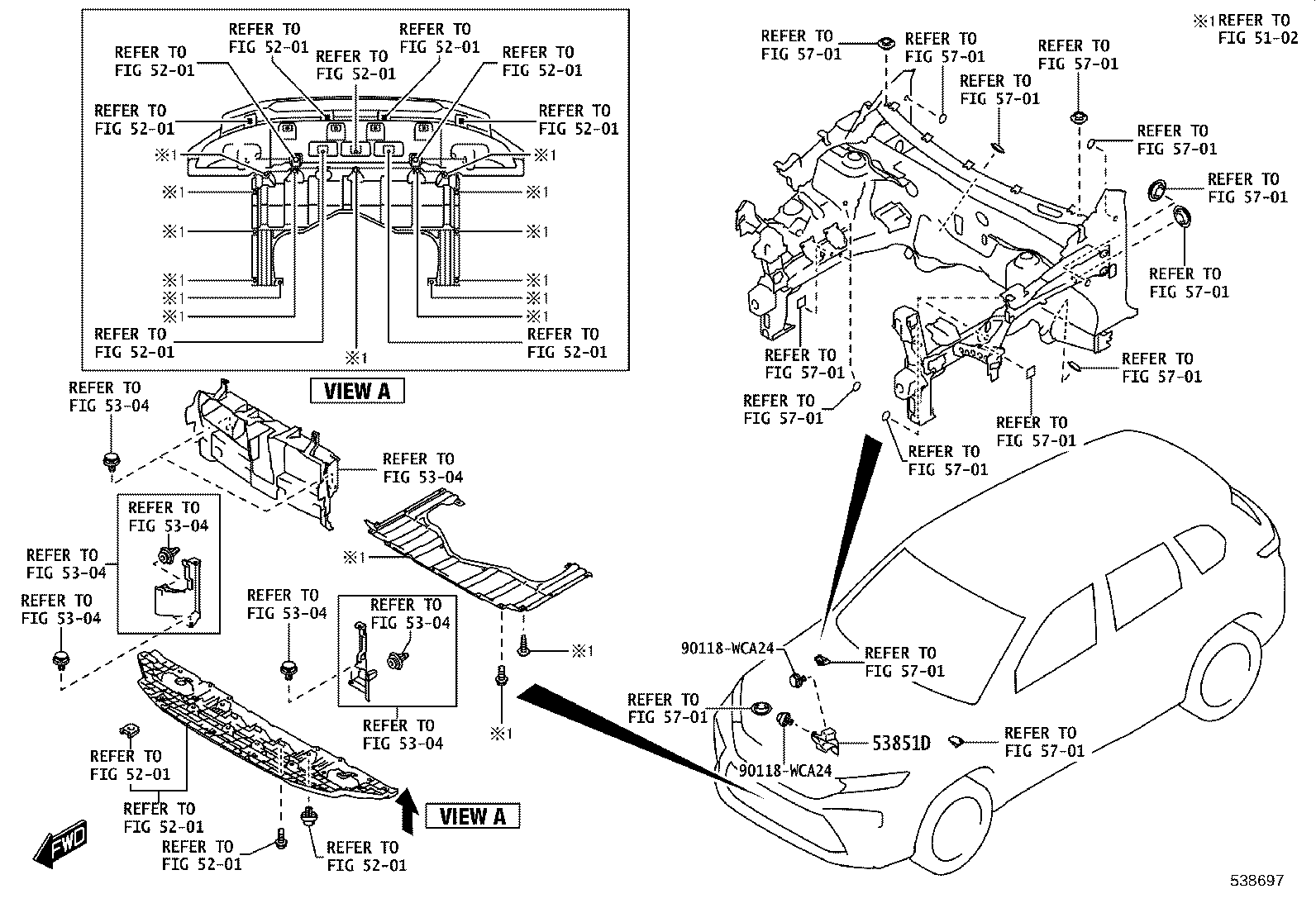

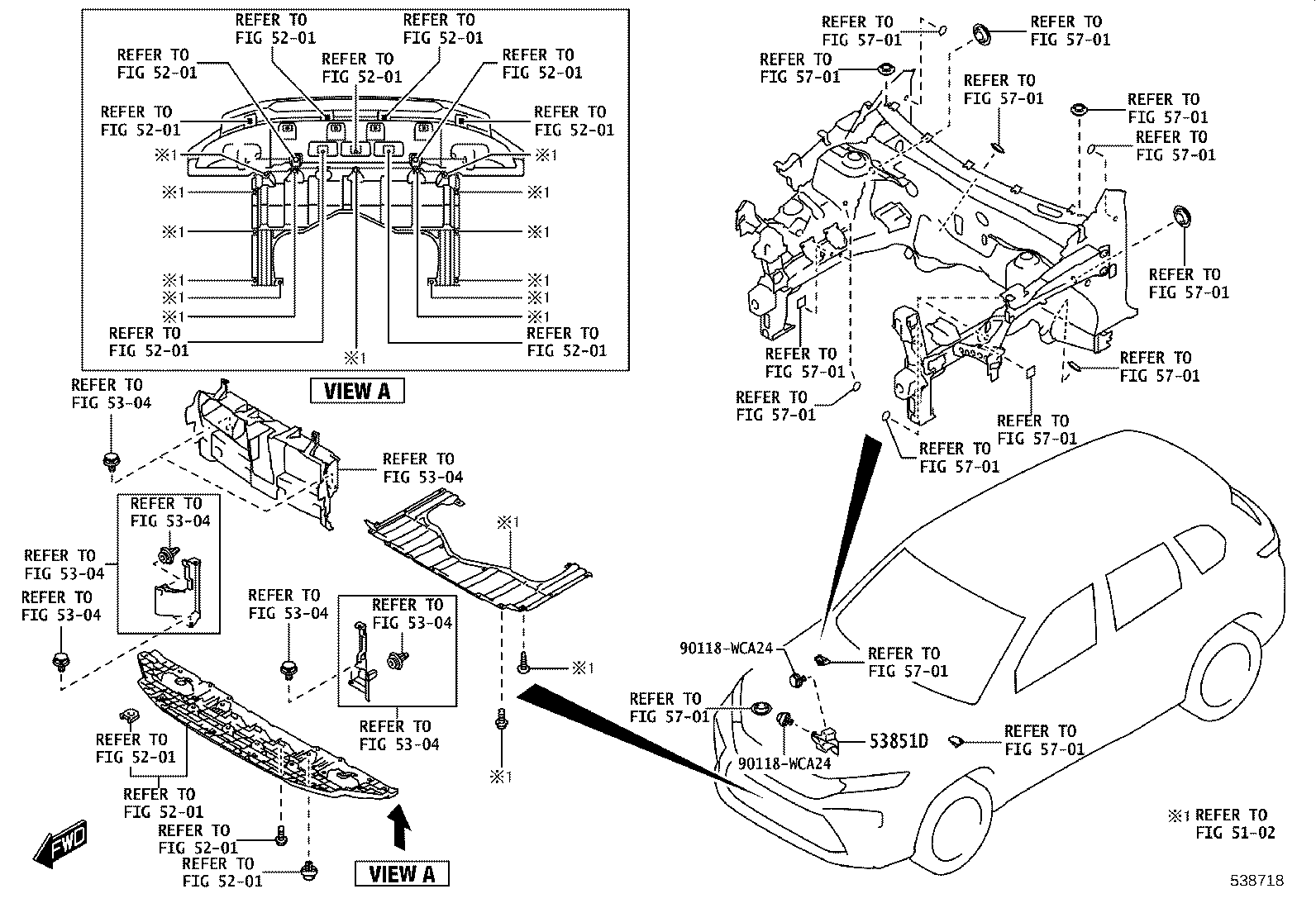

| 53851D | Pad, Front Wheel Opening Extension, RH |
| 53875A | Liner, Front Fender, RH |
| 53875C | Clip, Front Fender Liner |
| 53876A | Liner, Front Fender, LH |
| 53936C | Cushion |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
