Toyota Urban Cruiser
2022-11 → present · chassis FG21###,22###,61###,62### · catalogue 138320 · General
Supported model
Data version 2024-04

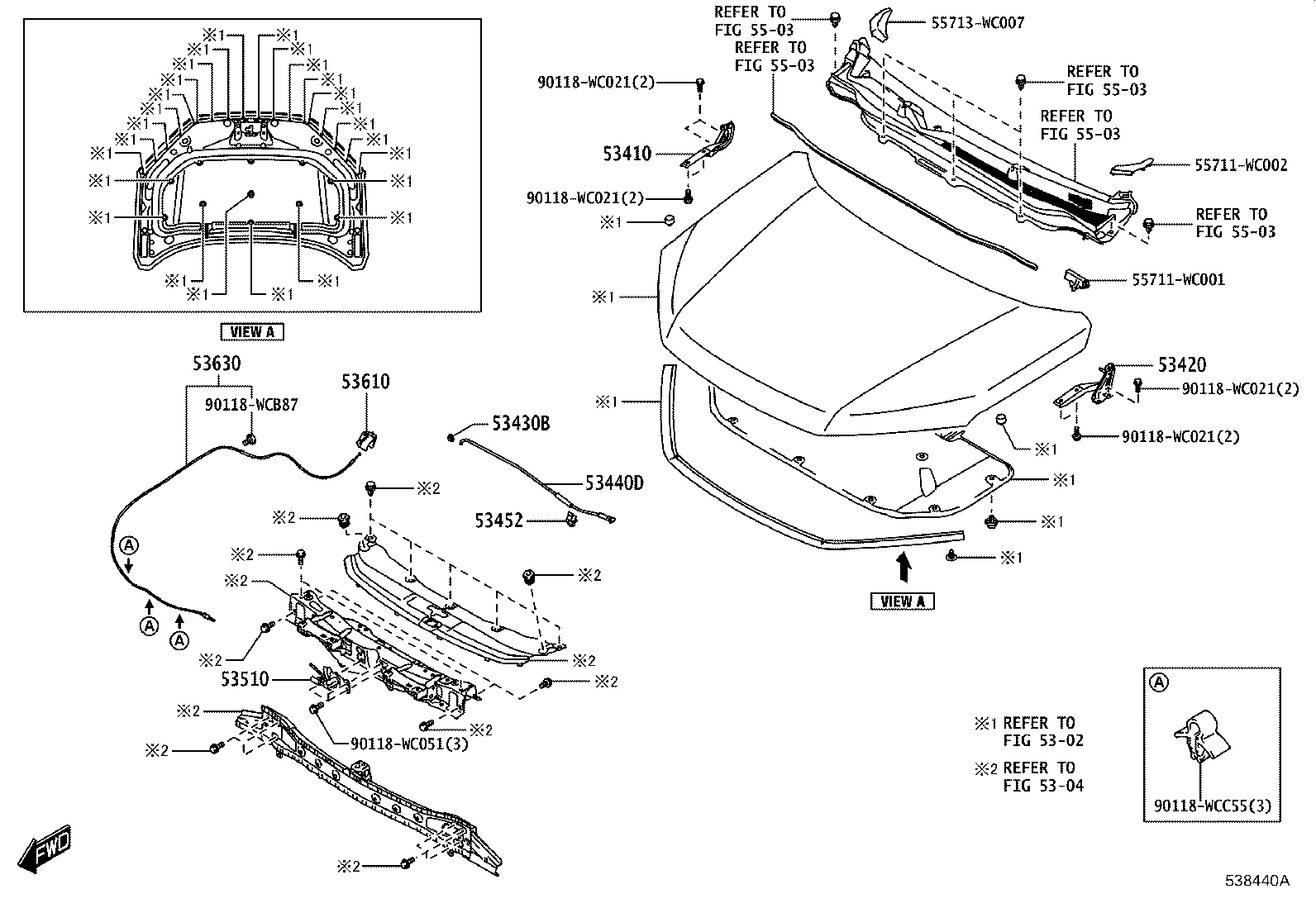

Hood Lock & Hinge
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53410 | Hinge Assy, Hood, RH |
| 53420 | Hinge Assy, Hood, LH |
| 53430B | Grommet(FOR HOOD SUPPORT) |
| 53440D | Support Assy, Hood |
| 53452 | Holder, Hood Stay |
| 53510 | Lock Assy, Hood |
| 53610 | Lever Assy, Hood Lock Release |
| 53630 | Cable Assy, Hood Lock Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
